SBR2U60S1FQ
Green
SUPER BARRIER RECTIFIER
Product Summary
V
RRM
(V)
60
I
O
(A)
2
V
F
Max (V)
@ +25°
C
0.51
I
R
Max (mA) @
+25°
C
0.15
Features and Benefits
Guard Ring Die Construction for Transient Protection
Low Power Loss, High Efficiency
Patented Interlocking Clip Design for High Surge Current Capacity
®
Patented Super Barrier Rectifier SBR Technology
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Description and Applications

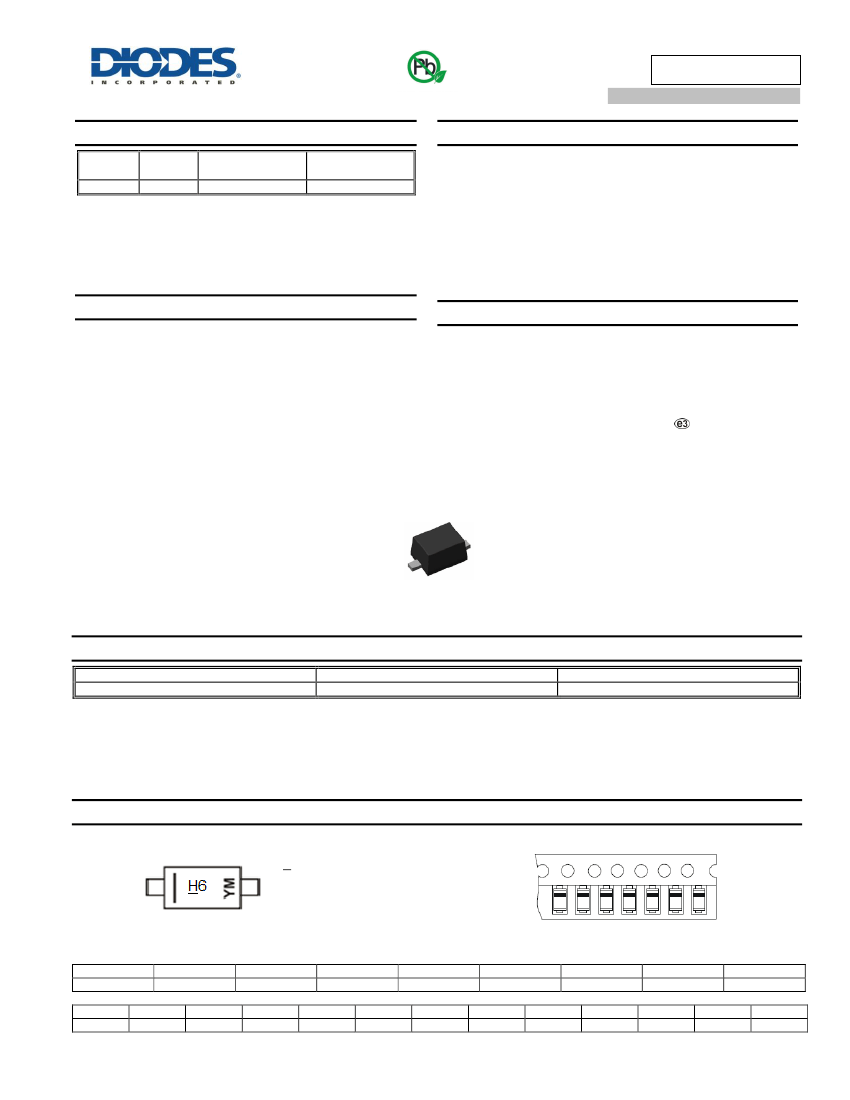

The SBR2U60S1FQ is a single rectifier packaged in SOD123F.
Offering low V
F
, low power loss and high efficiency, this device is
ideal for use in general rectification applications as a:
Boost Diode
Blocking Diode
Mechanical Data
SOD123F
Case: SOD123F
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.015 grams (Approximate)
Top View
Ordering Information
(Note 5)
Part Number
SBR2U60S1FQ-7
Notes:
Case
SOD123F
Packaging
3,000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Please refer to https://www.diodes.com/quality/.
5. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
H6 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: F = 2018)
M = Month (ex: 9 = September)
Bar Denotes Cathode Pin
Cathode Pin
Date Code Key
Year
Code
Month
Code
Jan
1
2013
A
Feb
2
2014
B
Mar
3
Apr
4
2015
C
May
5
2016
D
Jun
6
1 of 5
www.diodes.com
Jul
7
2017
E
Aug
8
2018
F
Sep
9
2019
G
Oct
O
Nov
N
2020
H
Dec
D
SBR is a registered trademark of Diodes Incorporated.
SBR2U60S1FQ
Document number: DS38834 Rev. 3 - 2
February 2018
© Diodes Incorporated
SBR2U60S1FQ
Maximum Ratings
(@T
A
= +25° unless otherwise specified.)
C,
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current
8.3ms Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
RM
I
O
I
FSM
Value
60
2
35
Unit
V
A
A
Thermal Characteristics
Characteristic
Typical Thermal Resistance Junction to Case (Note 6)
Typical Thermal Resistance Junction to Ambient (Note 6)
Operating and Storage Temperature Range
Symbol
R
θJC
R
θJA
T
J
, T
STG
Value
40
100
-55 to +175
Unit
°
C/W
°
C
Electrical Characteristics
(@T
A
= +25° unless otherwise specified.)
C,
Characteristic
Reverse Breakdown Voltage (Note 8)
Forward Voltage Drop
Symbol
V
(BR)R
V
F
Min
60
—
—
—
—
—
—
—
Typ
—
0.37
0.44
0.42
20
50
6.5
75
Max
—
0.46
0.51
—
—
150
—
—
Unit
V
V
µA
µA
mA
pF
Test Condition
I
R
= 1.0mA
I
F
= 1A, T
J
= +25°
C
I
F
= 2A, T
J
= +25°
C
I
F
= 2A, T
J
= +125°
C
V
R
= 10V, T
J
= +25°
C
V
R
= 60V, T
J
= +25°
C
V
R
= 60V, T
J
= +125°
C
V
R
= 10V, f = 1MHz
Leakage Current (Note 8)
Total Capacitance
Notes:
I
R
C
T
6. Device mounted on FR-4 substrate, 0.4"*0.5", 2oz, single-sided, PC boards with 0.2"*0.25" copper pad.
7. Device mounted on FR-4 substrate, 1.0"*1.0", 2oz, single-sided, PC boards with 0.2"*0.25" copper pad.
8. Short duration pulse test used to minimize self-heating effect.
SBR2U60S1FQ
Document number: DS38834 Rev. 3 - 2
2 of 5
www.diodes.com
February 2018
© Diodes Incorporated
SBR2U60S1FQ
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
REVERSE LEAKAGE CURRENT (mA)
175
o
C
100
10
1
0.1
0.01
0.001
0.0001
1E-05
1E-06
0.0
0.2
0.4
0.6
0.8
1.0
20
40
60
80
100
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

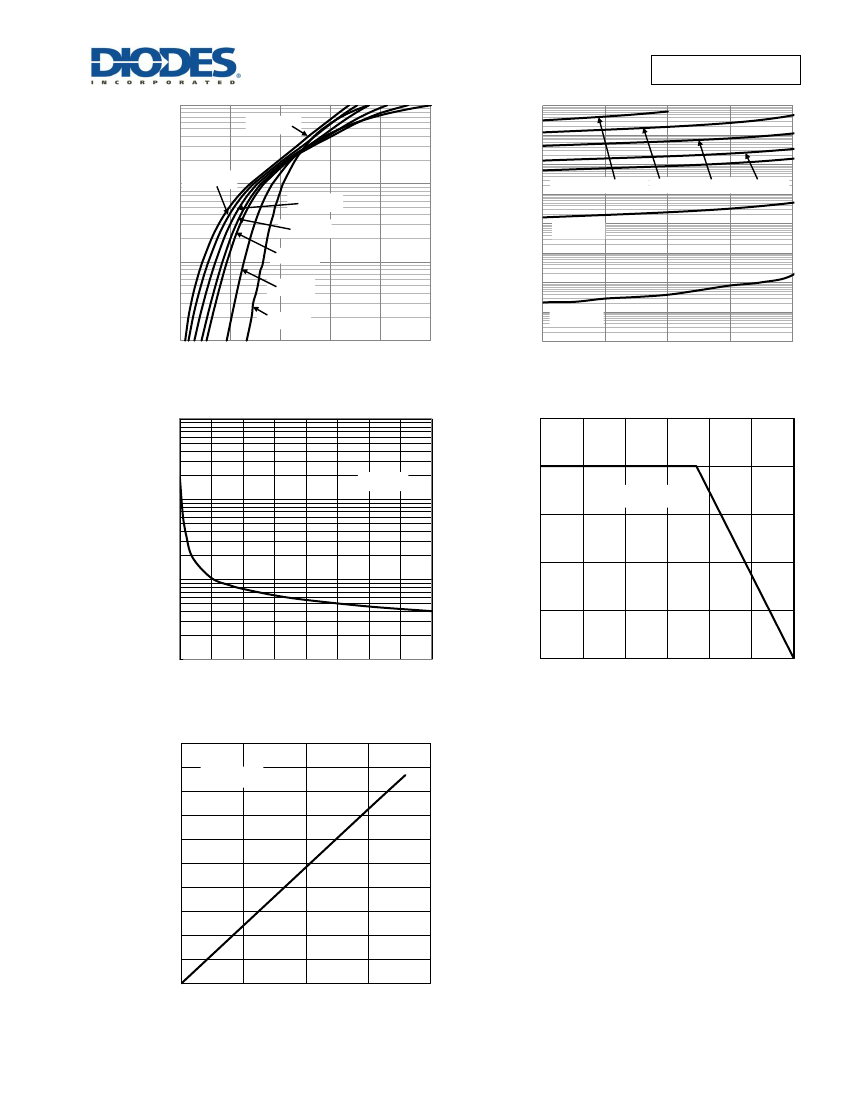

Figure 1. Typical Forward Characteristics
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Figure 2. Typical Reverse Characteristics
-55
o
C
85
o
C
175
o
C
150
o
C
125
o
C
100
o
C
1
150
o
C
125
o
C
100
o
C
25
o
C
0.1
85
o
C
25
o
C
-55
o
C
0.01
I
O
AVERAGE RECTIFIER OUTPUT CURRENT (A)
10000
2.50
C
T
, JUNCTION CAPACITANCE
(pF)
2.00
Note 5
7
1.50
f=1MHz
1000
1.00
100
0.50
10
0
5
10
15
20
25
30
35
40
V
R
, REVERSE VOLTAGE (V)
Figure 3. Typical Junction Capacitance
P
F
, AVERAGE FORWARD POWER DISSIPATION
(W)
2
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
1
2
3
4
I
F
, AVERAGE FORWARD CURRENT (A)
Figure 5. Forward Power Dissipation
T
J
= 175℃
0.00
25
50
75
100
125
150
175
T
A
, AMBIENT TEMPERATURE (℃)
Figure 4. DC Forward Current Derating
SBR2U60S1FQ
Document number: DS38834 Rev. 3 - 2
3 of 5
www.diodes.com
February 2018
© Diodes Incorporated
SBR2U60S1FQ
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOD123F
E
L2
b
D
He
SOD123F
Dim Min Max Typ
A
0.81 1.15
-
b
0.80 1.05
-
c
0.05 0.30
-
D
1.70 1.90 1.80
E
2.60 2.80 2.70
He
3.30 3.70 3.50
L2
0.35 0.85
-
All Dimensions in mm
c
A
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOD123F
C
Y
X
G
X1
Dimensions Value (in mm)
C
2.86
G
1.52
X
1.34
X1
4.20
Y
1.80
SBR2U60S1FQ
Document number: DS38834 Rev. 3 - 2
4 of 5
www.diodes.com
February 2018
© Diodes Incorporated
SBR2U60S1FQ
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2018, Diodes Incorporated
www.diodes.com
SBR2U60S1FQ
Document number: DS38834 Rev. 3 - 2
5 of 5
www.diodes.com
February 2018
© Diodes Incorporated
