BC858BW-7-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BC858BW-7-F

BC858BW-7-F: DescriptionBipolar Transistors - BJT PNP BIPOLAR; CategoryDiscrete semiconductor The transistor; File Size185KB，5 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

BC858BW-7-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BC858BW-7-F	-	-	View	Buy Now

BC858BW-7-F Overview

Bipolar Transistors - BJT PNP BIPOLAR

BC858BW-7-F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	19 weeks
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	30 V
Configuration	SINGLE
Minimum DC current gain (hFE)	220
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.2 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

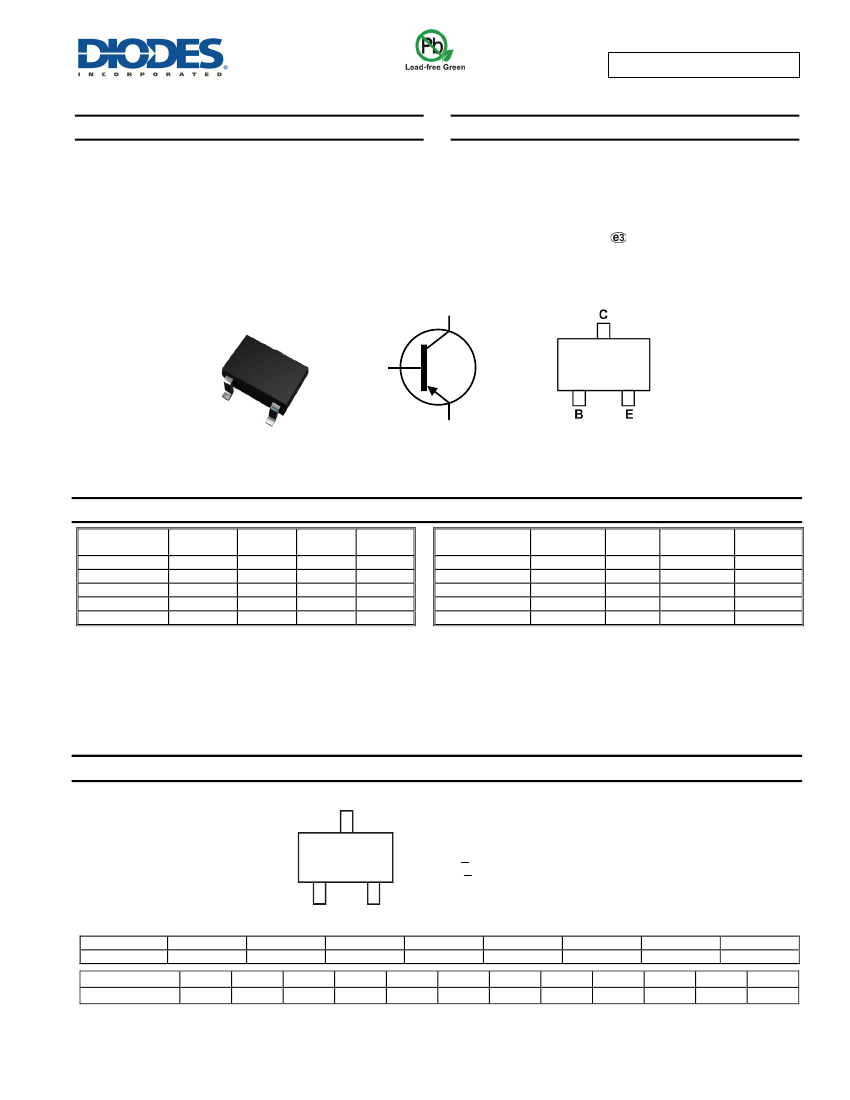

BC856AW-BC858CW

PNP SMALL SIGNAL TRANSISTOR IN SOT323

Features



Ideally Suited for Automatic Insertion

Complementary NPN Types Available (BC846AW – BC848CW)

For switching and AF Amplifier Applications

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. "Green" Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP capable (Note 4)

Mechanical Data



Case: SOT323

Case material: molded plastic, “Green” molding compound

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

Weight: 0.006 grams (Approximate)

SOT323

Top View

Device Symbol

Top View

Pin-Out

Ordering Information

(Notes 4 & 5)

Product

BC856AW-7-F

BC856BW-7-F

BC856BW-13-F

BC857AW-7-F

BC857BW-7-F

Notes:

Compliance

AEC-Q101

Marking

K3A

K3B

K3A

K3B

Reel Size

(inches)

Quantity

per Reel

3,000

10,000

3,000

Product

BC857BWQ-13-F

BC857CW-7-F

BC858AW-7-F

BC858BW-7-F

BC858CW-7-F

Compliance

Automotive

AEC-Q101

Marking

K3B

K3G

K3A

K3B

K3G

Reel Size

(inches)

Quantity

per Reel

10,000

3,000

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally

the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. Tape width is 8mm. For packaging details, go to our website at http://www.diodes.com/products/packages.html

Marking Information

xxx

xxx = Product Type Marking Code (See Ordering Information)

YM = Date Code Marking

Y or Y = Year (ex: A = 2013)

M or M = Month (ex: 9 = September)

Date Code Key

Year

Code

Month

Code

2010

Jan

Feb

2011

Mar

2012

Apr

May

2013

Jun

2014

Jul

Aug

2015

Sep

2016

Oct

Nov

2017

Dec

BC856AW – BC858CW

Document Number: DS30251 Rev. 10 - 2

1 of 5

www.diodes.com

November 2013

BC858BW-7-F Related Products

	BC858BW-7-F	BC856BW-7-F	BC857AW-7-F
Description	Bipolar Transistors - BJT PNP BIPOLAR	Bipolar Transistors - BJT BIPOLAR TRANSISTOR PNP SOT-323	Bipolar Transistors - BJT PNP BIPOLAR
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Contacts	3	3	3
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Factory Lead Time	19 weeks	19 weeks	19 weeks
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A
Collector-emitter maximum voltage	30 V	65 V	45 V
Configuration	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	220	220	125
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e3	e3	e3
Humidity sensitivity level	1	1	1
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260
Polarity/channel type	PNP	PNP	PNP
Maximum power dissipation(Abs)	0.2 W	0.2 W	0.2 W
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	200 MHz	200 MHz	200 MHz
Base Number Matches	1	1	1
