SBR20100CTFP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SBR20100CTFP

SBR20100CTFP: DescriptionSchottky Diodes & Rectifiers 20A 100V; CategoryDiscrete semiconductor diode; File Size453KB，6 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

SBR20100CTFP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SBR20100CTFP	-	-	View	Buy Now

SBR20100CTFP Overview

Schottky Diodes & Rectifiers 20A 100V

SBR20100CTFP Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
Parts packaging code	TO-220AB
package instruction	ITO-220AB, 3 PIN
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
application	FAST SOFT RECOVERY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.75 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Maximum non-repetitive peak forward current	150 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	40
Base Number Matches	1

Preview

Download Datasheet

View All

SBR20100CT

SBR20100CTFP

20A SBR

SUPER BARRIER RECTIFIER

Product Summary

RRM

(V)

100

(A)

10 (Per leg)

20 (Total)

F(MAX)

(V)

@ +25°

0.82

R(MAX)

(mA)

@ +25°

0.1

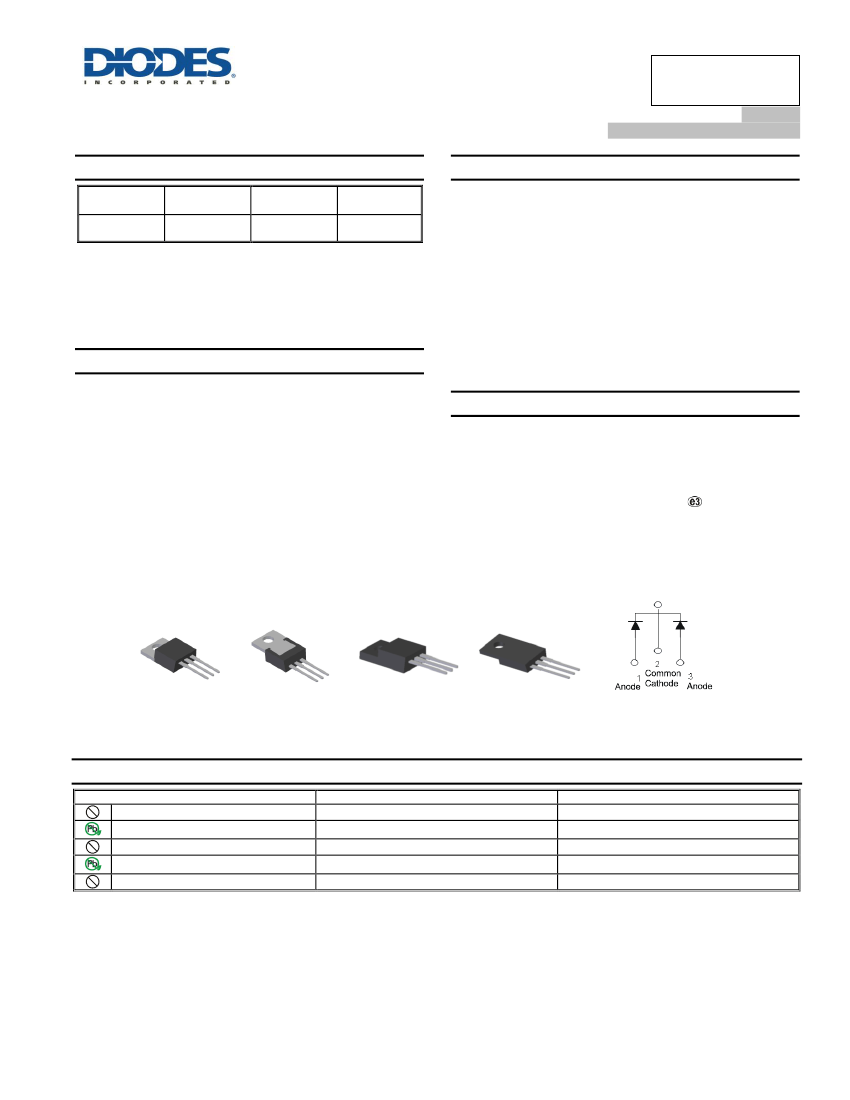

Features and Benefits



Patented SBR technology provides superior avalanche

capability versus Schottky diodes, ensuring more rugged and

reliable end applications.

Reduced ultra-low forward voltage drop (V

); Better efficiency

and cooler operation.

Reduced high-temperature reverse leakage; Increased reliability

against thermal runaway failure in high-temperature operation.

TO220AB, ITO220AB and ITO220AB (Type E)



Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Available in ―Green‖ Packages: TO220AB and ITO220AB



Lead-Free Finish; RoHS Compliant (Notes 1 & 2)



Halogen and Antimony Free. “Green” Device (Note 3)



Description and Applications

The SBR20100CT & SBR20100CTFP provide very low V

and

excellent reverse leakage stability at high temperatures. They are

ideal for use as rectifiers, freewheel diodes or blocking diodes in:



DC-DC Converters

AC-DC Adaptors

Mechanical Data



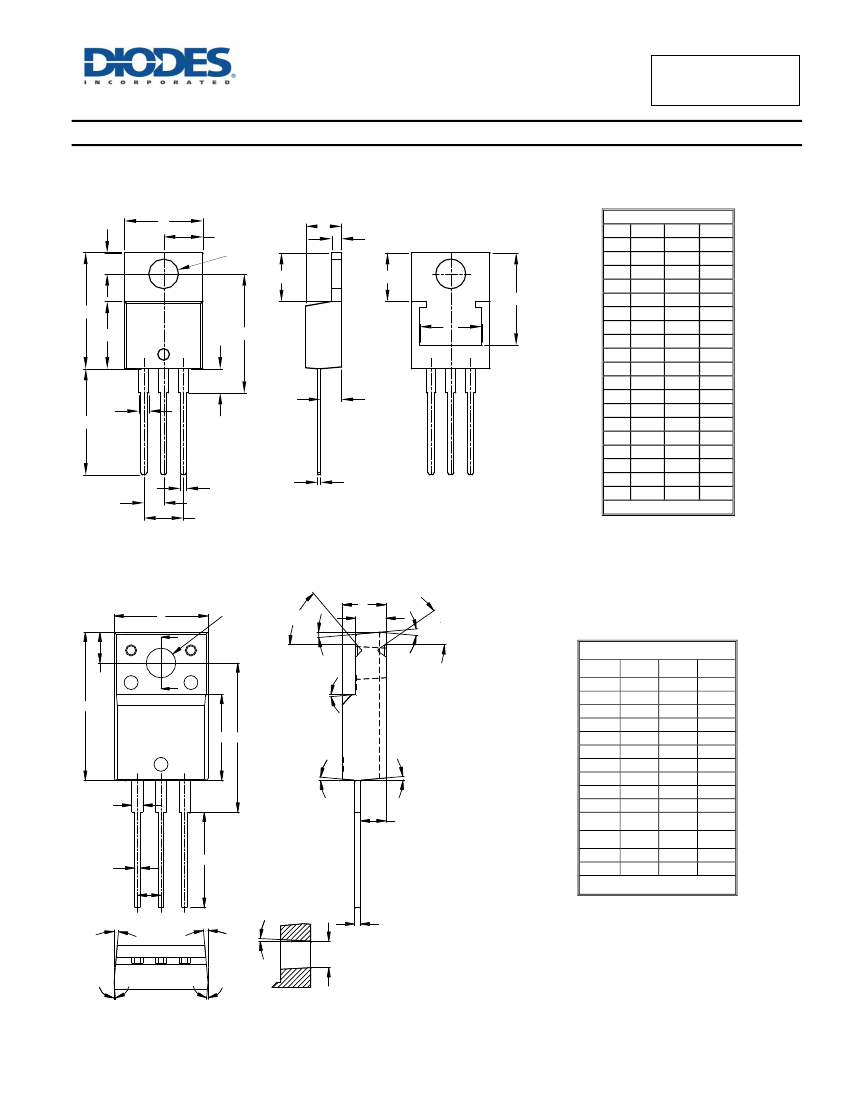

Case: TO220AB, ITO220AB and ITO220AB (Type E)

Case Material: Molded Plastic;

UL Flammability Classification Rating 94V-0

Terminals: Matte Tin Finish Annealed over Copper Leadframe;

Solderable per MIL-STD-202, Method 208

Weight: TO220AB – 1.85 grams (Approximate)

ITO220AB – 1.65 grams (Approximate)

ITO220AB (Type E) – 1.65 grams (Approximate)

TO220AB

Top View

TO220AB

Bottom View

ITO220AB

Top View

ITO220AB

Bottom View

Package Pin-Out

Configuration

Ordering Information

(Notes 4 & 5)

Green

Part Number

SBR20100CT

SBR20100CT-G

SBR20100CTFP

SBR20100CTFP-G

SBR20100CTFP-JT

Case

TO220AB

ITO220AB

ITO220AB (Type E)

Packaging

50 Pieces/Tube

Green

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green‖ products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR20100CT-G.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

SBR is a registered trademark of Diodes Incorporated.

SBR20100CT, SBR20100CTFP

Document number: DS30956 Rev. 16 - 2

1 of 6

www.diodes.com

November 2016
