Z0103MARL1G

Description
Triacs Z0103/7/9 600V TRIAC 1A
CategoryAnalog mixed-signal IC    Trigger device
File Size175KB,7 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

Z0103MARL1G Online Shopping

Suppliers Part Number Price MOQ In stock
Z0103MARL1G - - View Buy Now

Z0103MARL1G Overview

Triacs Z0103/7/9 600V TRIAC 1A

Z0103MARL1G Parametric

Parameter NameAttribute value
Brand NameON Semiconductor
Is it lead-free?Lead free
MakerON Semiconductor
Parts packaging codeTO-92
package instructionCYLINDRICAL, O-PBCY-W3
Contacts3
Manufacturer packaging code29-11
Reach Compliance Codenot_compliant
ECCN codeEAR99
Factory Lead Time1 week
Other featuresSENSITIVE GATE
ConfigurationSINGLE
Critical rise rate of minimum off-state voltage10 V/us
Maximum DC gate trigger current3 mA
Maximum DC gate trigger voltage1.3 V
Maximum holding current10 mA
JEDEC-95 codeTO-92
JESD-30 codeO-PBCY-W3
JESD-609 codee1
Maximum leakage current0.5 mA
Number of components1
Number of terminals3
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formCYLINDRICAL
Certification statusNot Qualified
Maximum rms on-state current1 A
Off-state repetitive peak voltage600 V
surface mountNO
Terminal surfaceTin/Silver/Copper (Sn/Ag/Cu)
Terminal formWIRE
Terminal locationBOTTOM
Trigger device type4 QUADRANT LOGIC LEVEL TRIAC
Z0103MA

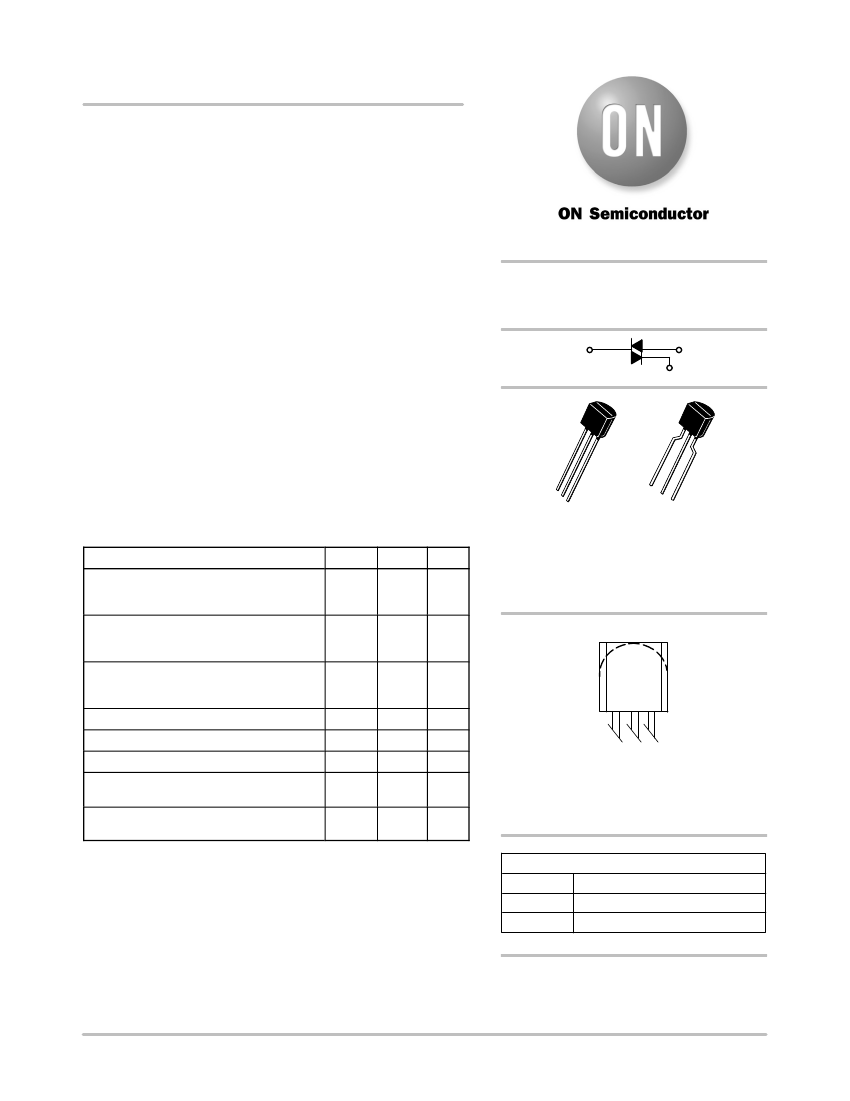

Sensitive Gate Triacs
Series
Silicon Bidirectional Thyristors
Designed for use in solid state relays, MPU interface, TTL logic and
any other light industrial or consumer application. Supplied in an
inexpensive TO−92 package which is readily adaptable for use in
automatic insertion equipment.
Features
http://onsemi.com
One−Piece, Injection−Molded Package
Blocking Voltage to 600 V
Sensitive Gate Triggering in Four Trigger Modes (Quadrants) for all
TRIACS
1.0 AMPERE RMS
600 VOLTS
MT2
G
MT1
possible Combinations of Trigger Sources, and especially for Circuits
that Source Gate Drives
All Diffused and Glassivated Junctions for Maximum Uniformity of
Parameters and Reliability
Improved Noise Immunity (dv/dt Minimum of 10 V/msec at 110°C)
Commutating di/dt of 1.6 A/msec at 110°C
High Surge Current of 8 A
These are Pb−Free Devices
MAXIMUM RATINGS
(T
J
= 25°C unless otherwise noted)
Rating
Peak Repetitive Off-State Voltage
(T
J
=
−40
to +125°C)
(1)
Sine Wave 50 to 60 Hz, Gate Open
On-State RMS Current
Full Cycle Sine Wave 50 to 60 Hz
(T
C
= 50°C)
Peak Non−Repetitive Surge Current
One Full Cycle, Sine Wave 60 Hz
(T
C
= 110°C)
Circuit Fusing Considerations (t = 8.3 ms)
Average Gate Power (T
C
= 80°C, t
v
8.3 ms)
Peak Gate Current (t
v
20
ms,
T
J
= +125°C)
Operating Junction Temperature Range
Storage Temperature Range
Symbol
V
DRM,
V
RRM
I
T(RMS)
Value
600
Unit
V
3
STRAIGHT LEAD
BULK PACK
12
1
3
BENT LEAD
TAPE & REEL
AMMO PACK
2
TO−92 (TO−226AA)
CASE 029
STYLE 12
1.0
A
MARKING DIAGRAM
Z0
10xMA
YWW
G
G
I
TSM
8.0
A
I
2
t
P
G(AV)
I
GM
T
J
T
stg
0.35
1.0
1.0
−40
to
+125
−40
to
+150
A
2
s
W
A
°C
°C
1 2 3
x
= 3,7,9
Y
= Year
WW
= Work Week
G
= Pb−Free Package
(*Note: Microdot may be in either location)
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. V
DRM
and V
RRM
for all types can be applied on a continuous basis. Blocking
voltages shall not be tested with a constant current source such that the
voltage ratings of the devices are exceeded.
PIN ASSIGNMENT
1
2
3
Main Terminal 1
Gate
Main Terminal 2
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 6 of this data sheet.
©
Semiconductor Components Industries, LLC, 2012
January, 2012− Rev. 4
1
Publication Order Number:
Z0103MA/D

Z0103MARL1G Related Products

Z0103MARL1G Z0109MARLRFG Z0109MARL1G Z0107MARL1G Z0109MARLRPG Z0103MARLRPG Z0107MAG
Description Triacs Z0103/7/9 600V TRIAC 1A Triacs TRIAC 600V 1A TO-92 Triacs Z0103/7/9 600V TRIAC 1A Triacs Z0103/7/9 600V TRIAC 1A Triacs TRIAC 600V 1A TO-92 Triacs TRIAC 600V 1A TO-92 Triacs TRIAC 600V 1A TO-92
Brand Name ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Maker ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor
Parts packaging code TO-92 TO-92 TO-92 TO-92 TO-92 TO-92 TO-92
package instruction CYLINDRICAL, O-PBCY-W3 CYLINDRICAL, O-PBCY-W3 CYLINDRICAL, O-PBCY-W3 CYLINDRICAL, O-PBCY-W3 CYLINDRICAL, O-PBCY-W3 CYLINDRICAL, O-PBCY-W3 CYLINDRICAL, O-PBCY-W3
Contacts 3 3 3 3 3 3 3
Manufacturer packaging code 29-11 29-11 29-11 29-11 29-11 29-11 29-11
Reach Compliance Code not_compliant not_compliant not_compliant not_compliant not_compliant not_compliant not_compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features SENSITIVE GATE SENSITIVE GATE SENSITIVE GATE SENSITIVE GATE SENSITIVE GATE SENSITIVE GATE SENSITIVE GATE
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Critical rise rate of minimum off-state voltage 10 V/us 50 V/us 50 V/us 20 V/us 50 V/us 10 V/us 20 V/us
Maximum DC gate trigger current 3 mA 10 mA 10 mA 5 mA 10 mA 3 mA 5 mA
Maximum DC gate trigger voltage 1.3 V 1.3 V 1.3 V 1.3 V 1.3 V 1.3 V 1.3 V
Maximum holding current 10 mA 10 mA 10 mA 10 mA 10 mA 10 mA 10 mA
JEDEC-95 code TO-92 TO-92 TO-92 TO-92 TO-92 TO-92 TO-92
JESD-30 code O-PBCY-W3 O-PBCY-W3 O-PBCY-W3 O-PBCY-W3 O-PBCY-W3 O-PBCY-W3 O-PBCY-W3
JESD-609 code e1 e1 e1 e1 e1 e1 e1
Maximum leakage current 0.5 mA 0.5 mA 0.5 mA 0.5 mA 0.5 mA 0.5 mA 0.5 mA
Number of components 1 1 1 1 1 1 1
Number of terminals 3 3 3 3 3 3 3
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape ROUND ROUND ROUND ROUND ROUND ROUND ROUND
Package form CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum rms on-state current 1 A 1 A 1 A 1 A 1 A 1 A 1 A
Off-state repetitive peak voltage 600 V 600 V 600 V 600 V 600 V 600 V 600 V
surface mount NO NO NO NO NO NO NO
Terminal surface Tin/Silver/Copper (Sn/Ag/Cu) Tin/Silver/Copper (Sn/Ag/Cu) Tin/Silver/Copper (Sn/Ag/Cu) Tin/Silver/Copper (Sn/Ag/Cu) Tin/Silver/Copper (Sn/Ag/Cu) Tin/Silver/Copper (Sn/Ag/Cu) Tin/Silver/Copper (Sn/Ag/Cu)
Terminal form WIRE WIRE WIRE WIRE WIRE WIRE WIRE
Terminal location BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM
Trigger device type 4 QUADRANT LOGIC LEVEL TRIAC 4 QUADRANT LOGIC LEVEL TRIAC 4 QUADRANT LOGIC LEVEL TRIAC 4 QUADRANT LOGIC LEVEL TRIAC 4 QUADRANT LOGIC LEVEL TRIAC 4 QUADRANT LOGIC LEVEL TRIAC 4 QUADRANT LOGIC LEVEL TRIAC
Factory Lead Time 1 week - 1 week 1 week - 1 week -
