LF25ABDT-TRY datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LF25ABDT-TRY

LF25ABDT-TRY: DescriptionLinear Voltage Regulators VLDV Reg Inhibit 0.45V 50uA 500mA; CategoryPower/power management The power supply circuit; File Size2MB，53 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

LF25ABDT-TRY Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LF25ABDT-TRY	-	-	View	Buy Now

LF25ABDT-TRY Overview

Linear Voltage Regulators VLDV Reg Inhibit 0.45V 50uA 500mA

LF25ABDT-TRY Parametric

Parameter Name	Attribute value
Brand Name	STMicroelectronics
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	TO-252
package instruction	DPAK-3/2
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	24 weeks
Samacsys Description	Linear Voltage Regulators VLDV Reg Inhibit 0.45V 50uA 500mA
Adjustability	FIXED
Maximum drop-back voltage 1	1.3 V
Nominal dropback voltage 1	0.4 V
Maximum absolute input voltage	40 V
Maximum input voltage	16 V
Minimum input voltage	3.5 V
JESD-30 code	R-PSSO-G2
JESD-609 code	e3
length	6.5 mm
Maximum grid adjustment rate	0.015%
Maximum load regulation	0.015%
Humidity sensitivity level	1
Number of functions	1
Output times	1
Number of terminals	2
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min	-40 °C
Maximum output current 1	0.5 A
Maximum output voltage 1	2.565 V
Minimum output voltage 1	2.435 V
Nominal output voltage 1	2.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-252
Encapsulate equivalent code	SMSIP3H,.38,90TB
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG
method of packing	TR, 13 INCH
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Filter level	AEC-Q100
Maximum seat height	2.4 mm
surface mount	YES
technology	BIPOLAR
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	2.28 mm
Terminal location	SINGLE
Maximum voltage tolerance	1%
width	6.1 mm

Preview

Download Datasheet

View All

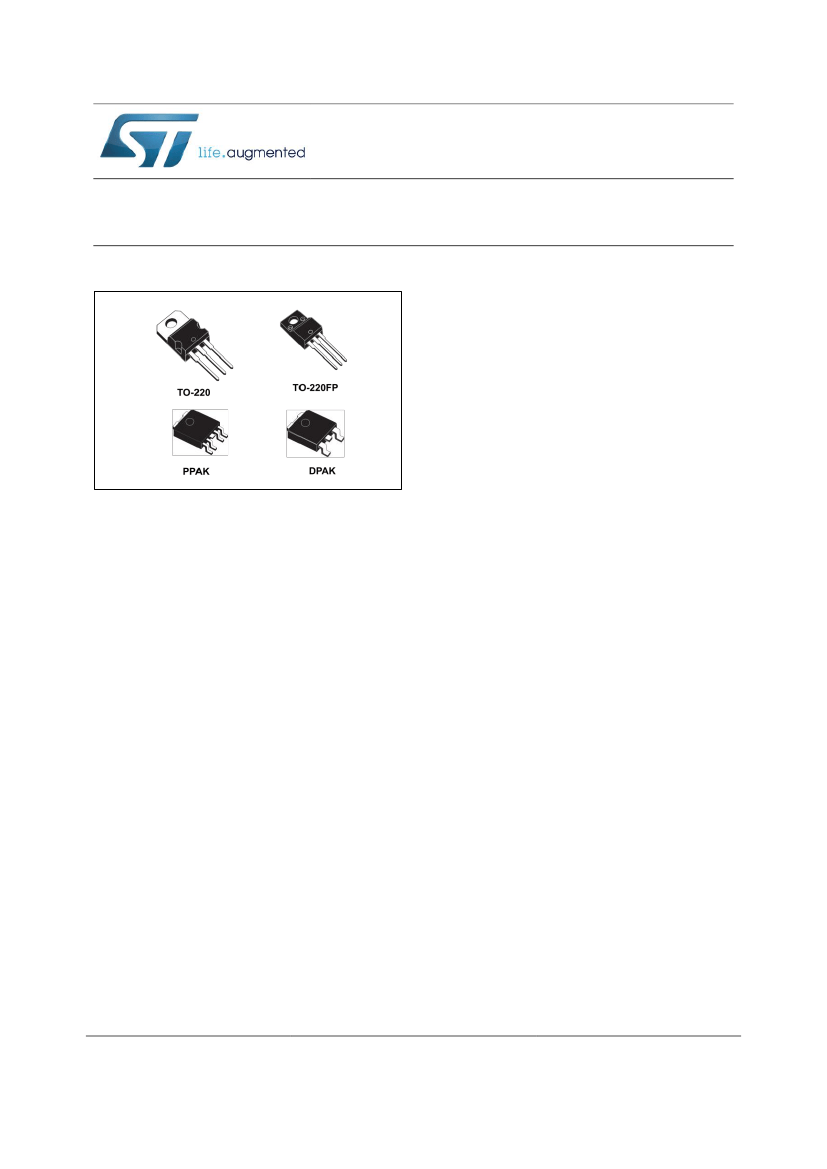

LFXX

Very low drop voltage regulator with inhibit function

Datasheet - production data

Description

The LFXX is a very low drop regulator available

in TO-220, TO-220FP, DPAK and PPAK

packages and in a wide range of output voltages.

The low drop voltage (0.45 V) and low quiescent

current make it particularly suitable for low-noise,

low-power applications and especially in battery-

powered systems. In the 5 pin configuration

(PPAK) a shutdown logic control function is

available (pin 2, TTL compatible). This means

that when the device is used as a local regulator,

a part of the board can be put in standby,

decreasing the total power consumption. In the

three terminal configuration, the device has the

same electrical performance, but it is fixed in ON

state. It requires a capacitor of only 2.2 µF for

stability, saving board space and costs. The

LFXX is available as automotive grade in DPAK

and PPAK packages, for the options of output

voltages whose commercial part numbers are

shown in the order codes. These devices are

qualified according to the specification

AEC-Q100 of the automotive market, in the

temperature range -40 °C to 125 °C, and the

statistical tests PAT, SYL, SBL are performed.

Features



Very low-dropout voltage (0.45 V)

Very low quiescent current (typ. 50 µA in

OFF mode, 500 µA in ON mode)

Output current up to 500 mA

Logic-controlled electronic shutdown

Output voltages of 1.5; 1.8; 2.5; 3.3; 4.7; 5;

6; 8; 8.5; 9; 12 V

Automotive grade product: 1.8 V, 2.5 V,

3.3 V, 5.0 V, 8.0 V, 8.5 V V

OUT

in DPAK and

PPAK packages

Internal current and thermal limit

Only 2.2 µF for stability

Available in ±1% (AB), ±1.5% (AC) or

±2% (C) selection at 25 °C

Supply voltage rejection: 80 db (typ.)

Temperature range: from -40 to 125 °C

May 2017

DocID2574 Rev 31

1/53

www.st.com

This is information on a product in full production.

LF25ABDT-TRY Related Products

	LF25ABDT-TRY	LF18CDT-TRY	LF50ABV-E	LF33ABV-DG	LF80CDT-TRY	LF25CDT-TR	LF33CV-DG	LF50CPT-TRY	LF33CPT-TRY
Description	Linear Voltage Regulators VLDV Reg Inhibit 0.45V 50uA 500mA	Linear Voltage Regulators VLDV Reg Inhibit 0.45V 50uA 500mA	LDO Voltage Regulators POWER MANAGEMENT	LDO Voltage Regulators VLDO Reg 0.45V 500mA 2.2uF 80dB	Linear Voltage Regulators VLDV Reg Inhibit 0.45V 50uA 500mA	LDO Voltage Regulators 2.5V 0.5A Positive	Linear Voltage Regulators VL Drop REG .45V 3.3V Dual Gauge	Linear Voltage Regulators VLDV Reg Inhibit 0.45V 50uA 500mA	Linear Voltage Regulators VLDV Reg Inhibit 0.45V 50uA 500mA
Brand Name	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
package instruction	DPAK-3/2	TO-252, SMSIP3H,.38,90TB	, SIP3,.1TB	TO-220, SIP3,.1TB	TO-252, SMSIP3H,.38,90TB	TO-252, SMSIP3H,.38,90TB	TO-220, SIP3,.1TB	TO-252, SMSIP5H,.37,50TB	PPAK-5/4
Reach Compliance Code	not_compliant	not_compliant	compliant	compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED
Nominal dropback voltage 1	0.4 V	0.4 V	0.4 V	0.4 V	0.4 V	0.4 V	0.4 V	0.4 V	0.4 V
Maximum absolute input voltage	40 V	40 V	40 V	40 V	40 V	40 V	40 V	40 V	40 V
Maximum grid adjustment rate	0.015%	0.015%	0.025%	0.016%	0.044%	0.012%	0.016%	0.028%	0.019%
Maximum load regulation	0.015%	0.015%	0.025%	0.016%	0.044%	0.012%	0.016%	0.028%	0.019%
Output times	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	3	3	2	2	3	4	4
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Working temperature TJ-Min	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current 1	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Nominal output voltage 1	2.5 V	1.8 V	5 V	3.3 V	8 V	2.5 V	3.3 V	5 V	3.3 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	SMSIP3H,.38,90TB	SMSIP3H,.38,90TB	SIP3,.1TB	SIP3,.1TB	SMSIP3H,.38,90TB	SMSIP3H,.38,90TB	SIP3,.1TB	SMSIP5H,.37,50TB	SMSIP5H,.37,50TB
method of packing	TR, 13 INCH	TR, 13 INCH	TUBE	TUBE	TR, 13 INCH	TR, 13 INCH	TUBE	TR, 13 INCH	TR, 13 INCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	NO	NO	YES	YES	NO	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal pitch	2.28 mm	2.28 mm	2.54 mm	2.55 mm	2.28 mm	2.28 mm	2.55 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum voltage tolerance	1%	2%	2%	1%	2%	2%	2%	2%	2%
Parts packaging code	TO-252	TO-252	-	SFM	TO-252	TO-252	SFM	MODULE	MODULE
Contacts	3	3	-	3	3	3	3	4	4
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	24 weeks	98 weeks	-	24 weeks	24 weeks	24 weeks	24 weeks	-	-
Maximum drop-back voltage 1	1.3 V	1.3 V	-	0.7 V	1.3 V	0.7 V	0.7 V	1.3 V	1.3 V
Maximum input voltage	16 V	16 V	-	16 V	16 V	16 V	16 V	16 V	16 V
Minimum input voltage	3.5 V	3 V	-	4.3 V	-	3.5 V	4.3 V	-	4.3 V
JESD-30 code	R-PSSO-G2	R-PSSO-G2	-	R-PSFM-T3	R-PSSO-G2	R-PSSO-G2	R-PSFM-T3	R-PSSO-G4	R-PSSO-G4
JESD-609 code	e3	e3	-	-	e3	e3	e3	e3	e3
length	6.5 mm	6.5 mm	-	10.2 mm	6.5 mm	6.5 mm	10.2 mm	6.5 mm	6.5 mm
Humidity sensitivity level	1	1	-	-	1	-	-	1	1
Number of functions	1	1	-	1	1	1	1	1	1
Maximum output voltage 1	2.565 V	1.887 V	-	3.366 V	8.335 V	2.6 V	3.432 V	5.215 V	3.447 V
Minimum output voltage 1	2.435 V	1.713 V	-	3.234 V	7.665 V	2.4 V	3.168 V	4.785 V	3.153 V
encapsulated code	TO-252	TO-252	-	TO-220	TO-252	TO-252	TO-220	TO-252	TO-252
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG	SMALL OUTLINE, HEAT SINK/SLUG	-	FLANGE MOUNT	SMALL OUTLINE, HEAT SINK/SLUG	SMALL OUTLINE, HEAT SINK/SLUG	FLANGE MOUNT	SMALL OUTLINE, HEAT SINK/SLUG	SMALL OUTLINE, HEAT SINK/SLUG
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	-	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Filter level	AEC-Q100	AEC-Q100	-	-	AEC-Q100	-	-	AEC-Q100	AEC-Q100
Maximum seat height	2.4 mm	2.4 mm	-	19.35 mm	2.4 mm	2.4 mm	19.35 mm	2.4 mm	2.4 mm
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	-	-	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn) - annealed	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	-	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
width	6.1 mm	6.1 mm	-	4.5 mm	6.1 mm	6.1 mm	4.5 mm	6.1 mm	6.1 mm
