BAV23A/C/S
SURFACE MOUNT HIGH VOLTAGE DUAL SWITCHING DIODE
Features
•
•
•
•
•
•
Fast Switching Speed
Surface Mount Package Ideally Suited for Automated Insertion
High Reverse Breakdown Voltage
Low Leakage Current
Lead, Halogen and Antimony Free, RoHS Compliant
"Green" Device (Notes 1 and 2)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
•
Case: SOT23
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
Polarity: See Diagrams Below
Weight: 0.008 grams (approximate)
NEW PRODUCT
SOT23
Top View
BAV23A
BAV23C
BAV23S
Ordering Information
(Note 3)
Part Number
BAV23A-7-F
BAV23A-13-F
BAV23AQ-7-F
BAV23AQ-13-F
BAV23C-7-F
BAV23C-13-F
BAV23CQ-7-F
BAV23CQ-13-F
BAV23S-7-F
BAV23S-13-F
BAV23SQ-13-F
Notes:
Qualification
Commercial
Commercial
Automotive
Automotive
Commercial
Commercial
Automotive
Automotive
Commercial
Commercial
Automotive
Case
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
Packaging
3,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
10,000/Tape & Reel
1. No purposefully added lead. Halogen and Antimony Free.
2. Product manufactured with Date Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
3. For packaging details, go to our website at http://www.diodes.com.
Marking Information
XXX = Product Type Marking Code
ex. KT7 = BAV23A
KT6 = BAV23C
KL31 = BAV23S
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
XXX
Date Code Key
Year
2003
Code
Month
Code
P
Jan
1
2004
R
Feb
2
2005
S
2006
T
Mar
3
2007
U
Apr
4
2008
V
May
5
YM
2009
W
Jun
6
2010
X
2011
Y
Jul
7
2012
Z
Aug
8
2013
A
Sep
9
2014
B
Oct
O
2015
C
2016
D
Nov
N
2017
E
Dec
D
BAV23A/C/S
Document number: DS30042 Rev. 15 - 2
1 of 4
www.diodes.com
November 2011
© Diodes Incorporated
BAV23A/C/S
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic
Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 4)
Non-Repetitive Peak Forward Surge Current
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
@ t = 1.0μs
@ t = 100μs
@ t = 10ms
I
FSM
I
FRM
Value
250
200
141
400
9.0
3.0
1.7
625
Unit
V
V
V
mA
A
mA
NEW PRODUCT
Repetitive Peak Forward Surge Current (Note 4)
Thermal Characteristics
Characteristic
Power Dissipation (Note 4)
Thermal Resistance Junction to Ambient Air (Note 4)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J
, T
STG
Value
350
357
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
Reverse Breakdown Voltage (Note 5)
Forward Voltage
Reverse Current (Note 5)
Total Capacitance
Reverse Recovery Time
Notes:
Symbol
V
(BR)R
V
F
I
R
C
T
t
rr
Min
250
⎯
⎯
⎯
⎯
⎯
⎯
Max
⎯
1.0
1.25
100
100
5.0
50
Unit
V
V
nA
μA
pF
ns
Test Condition
I
R
= 100μA
I
F
= 100mA
I
F
= 200mA
V
R
= 200V, T
J
= 25°C
V
R
= 200V, T
J
= 150°C
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 30mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
4. Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com.
5. Short duration pulse test used to minimize self-heating effect.
400
Note 4
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
500
1
P
D
, POWER DISSIPATION (mW)
0.1
300
200
0.01
100
0
0
40
80
160
120
200
T
A
, AMBIENT TEMPERATURE (
°
C)

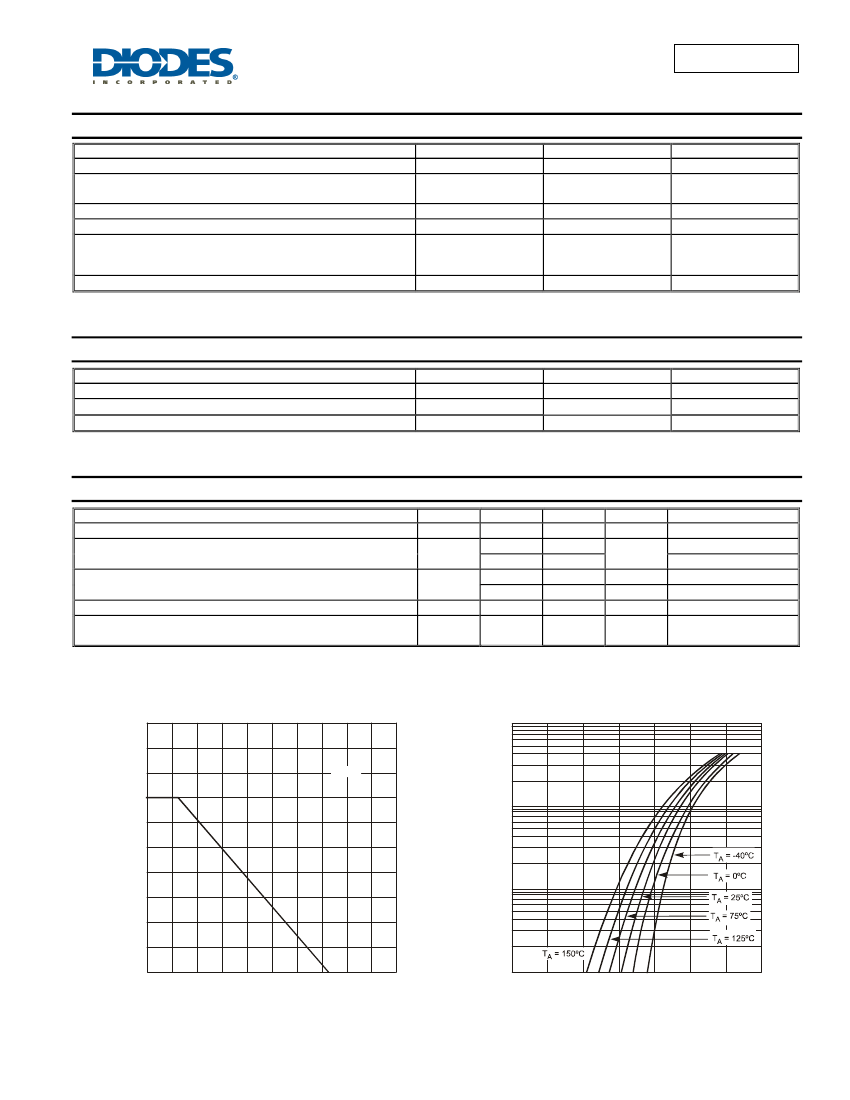

Fig. 1 Power Derating Curve, Total Package
0.001
0
0.8
1.0
0.2
0.4
1.2
1.4
0. 6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics, Per Element
BAV23A/C/S
Document number: DS30042 Rev. 15 - 2
2 of 4
www.diodes.com
November 2011
© Diodes Incorporated

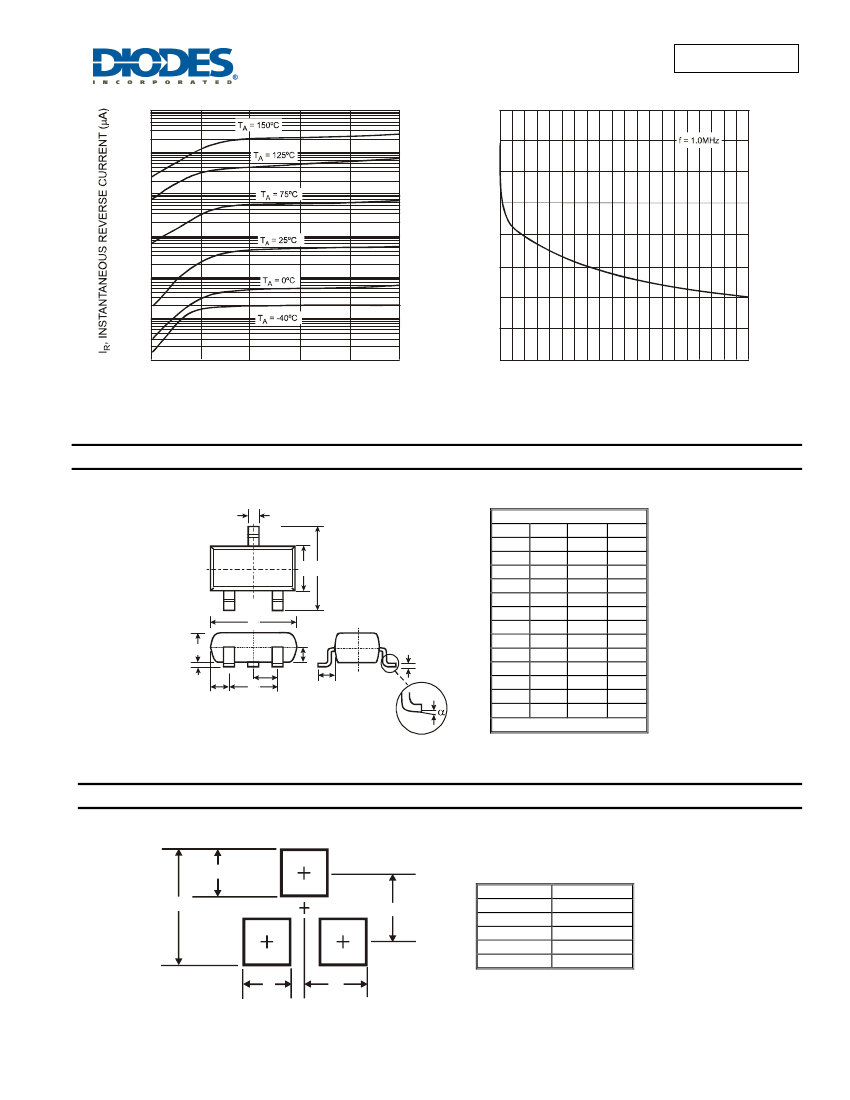

BAV23A/C/S
