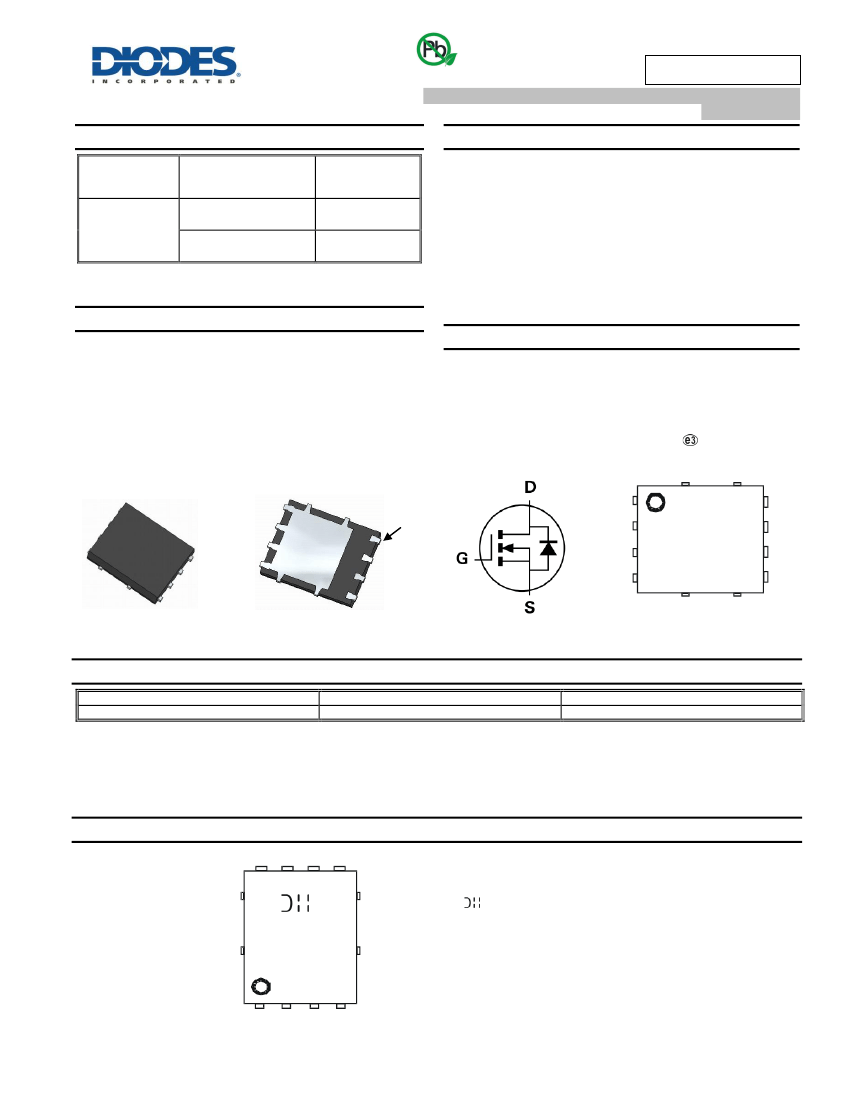

Rated to +175° – Ideal for High Ambient Temperature
C
Environments
100% Unclamped Inductive Switching – Ensures More Reliable
and Robust End Application
Low R
DS(ON)
– Minimizes Power Losses
Low Q
g
– Minimizes Switching Losses
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
NEW PRODUCT
Description and Applications
This MOSFET is designed to meet the stringent requirements of
Automotive applications. It is qualified to AECQ101, supported by a
PPAP and is ideal for use in:
Primary Switch in Isolated DC-DC
Synchronous Rectifier
Load Switch
Mechanical Data
Case: PowerDI 5060-8
Case Material: Molded Plastic, ―Green‖ Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Finish - Matte Tin Annealed over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
Weight: 0.097 grams (Approximate)
®
PowerDI5060-8
S
D
D
D
D
Pin1
S
S
G
Top View
Bottom View
Internal Schematic
Top View
Pin Configuration
Ordering Information
(Note 5)
Part Number
DMTH6004LPSQ-13
Notes:
Case
PowerDI5060-8
Packaging
2,500 / Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green‖ products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
D
D
D
D
H6004LS
YY WW
= Manufacturer’s Marking
H6004LS = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 16 = 2016)
WW = Week (01 to 53)
S
S
S
G
PowerDI is a registered trademark of Diodes Incorporated.
