53997-0871 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 53997-0871

53997-0871: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, M2.5, Brown Insulator, Plug, LEAD FREE; CategoryThe connector; File Size161KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

53997-0871 Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, M2.5, Brown Insulator, Plug, LEAD FREE

53997-0871 Parametric

Parameter Name	Attribute value
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N

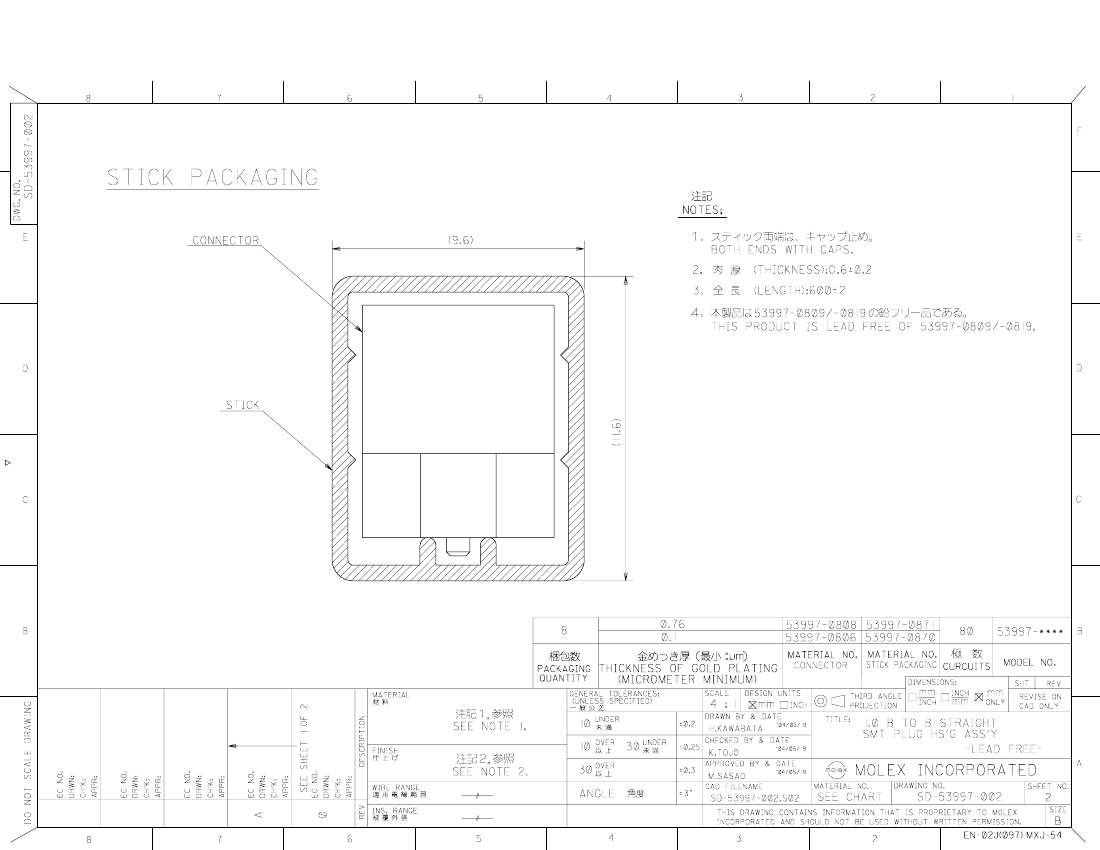

Other features	ROHS COMPLIANT & STICK PACKAGE
Board mount options	HOLE .112-.124
body width	0.287 inch
subject depth	0.348 inch
body length	2.559 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BROWN
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
MIL compliance	NO
Manufacturer's serial number	53997
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	M2.5
Installation option 2	SCREWLOCKS
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.2578 mm
Plating thickness	4u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	80
UL Flammability Code	94V-0
Base Number Matches	1

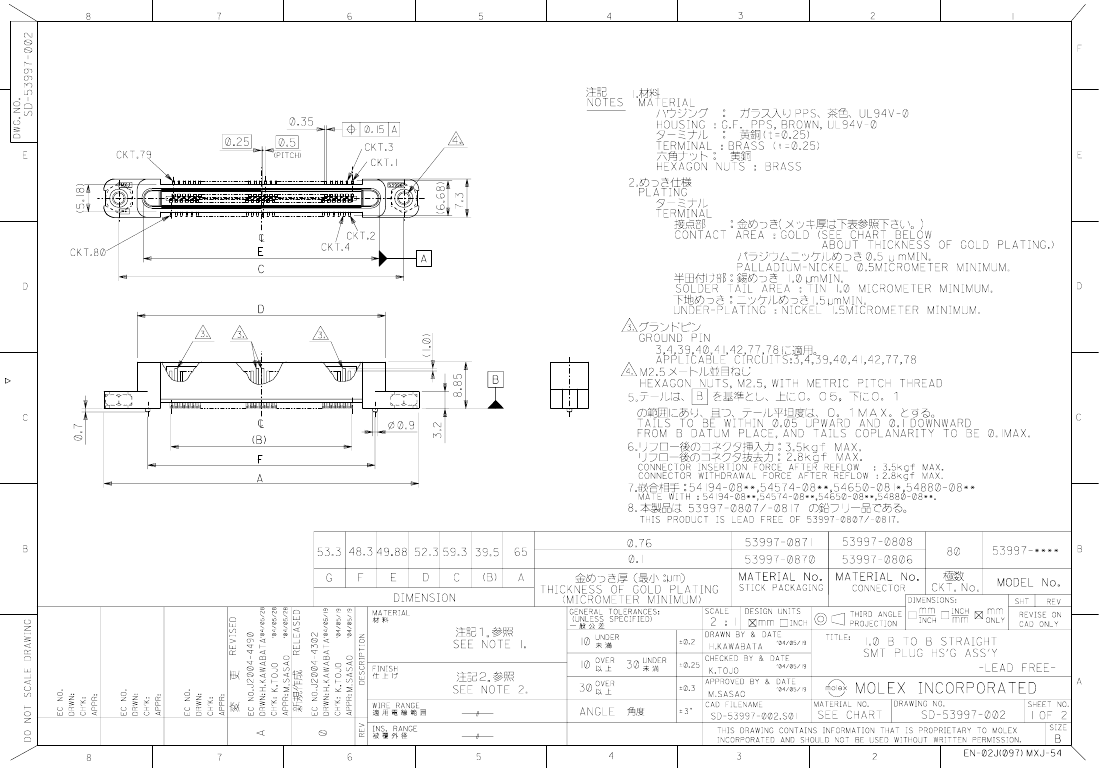

Preview

Download Datasheet

View All

53997-0871 Related Products

	53997-0871	53997-0870
Description	Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, M2.5, Brown Insulator, Plug, LEAD FREE	Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, M2.5, Brown Insulator, Plug, LEAD FREE
Maker	Molex	Molex
package instruction	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
Other features	ROHS COMPLIANT & STICK PACKAGE	ROHS COMPLIANT & STICK PACKAGE
Board mount options	HOLE .112-.124	HOLE .112-.124
body width	0.287 inch	0.287 inch
subject depth	0.348 inch	0.348 inch
body length	2.559 inch	2.559 inch
Body/casing type	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI	AU-PD-NI ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL
Contact point gender	MALE	MALE
Contact material	BRASS	BRASS
contact mode	STAGGERED	STAGGERED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
Insulator color	BROWN	BROWN
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
MIL compliance	NO	NO
Manufacturer's serial number	53997	53997
Plug contact pitch	0.039 inch	0.039 inch
Mixed contacts	NO	NO
Installation option 1	M2.5	M2.5
Installation option 2	SCREWLOCKS	SCREWLOCKS
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	2	2
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.2578 mm	5.2578 mm
Plating thickness	4u inch	4u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	80	80
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
