5962-8865002RA

Description
Analog to Digital Converters - ADC IC 8-BIT CMOS
CategoryAnalog mixed-signal IC    converter
File Size608KB,12 Pages
ManufacturerADI
Websitehttps://www.analog.com
Download Datasheet Parametric Compare View All

5962-8865002RA Online Shopping

Suppliers Part Number Price MOQ In stock
5962-8865002RA - - View Buy Now

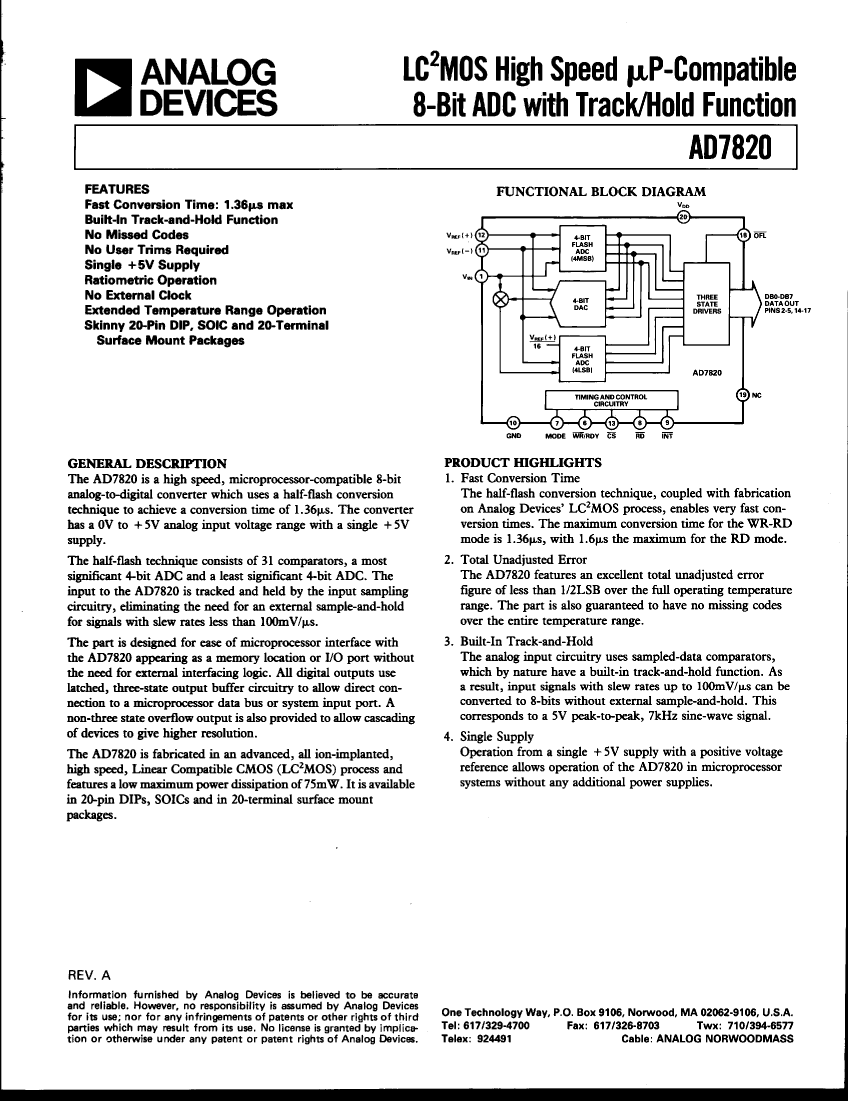

5962-8865002RA Overview

Analog to Digital Converters - ADC IC 8-BIT CMOS

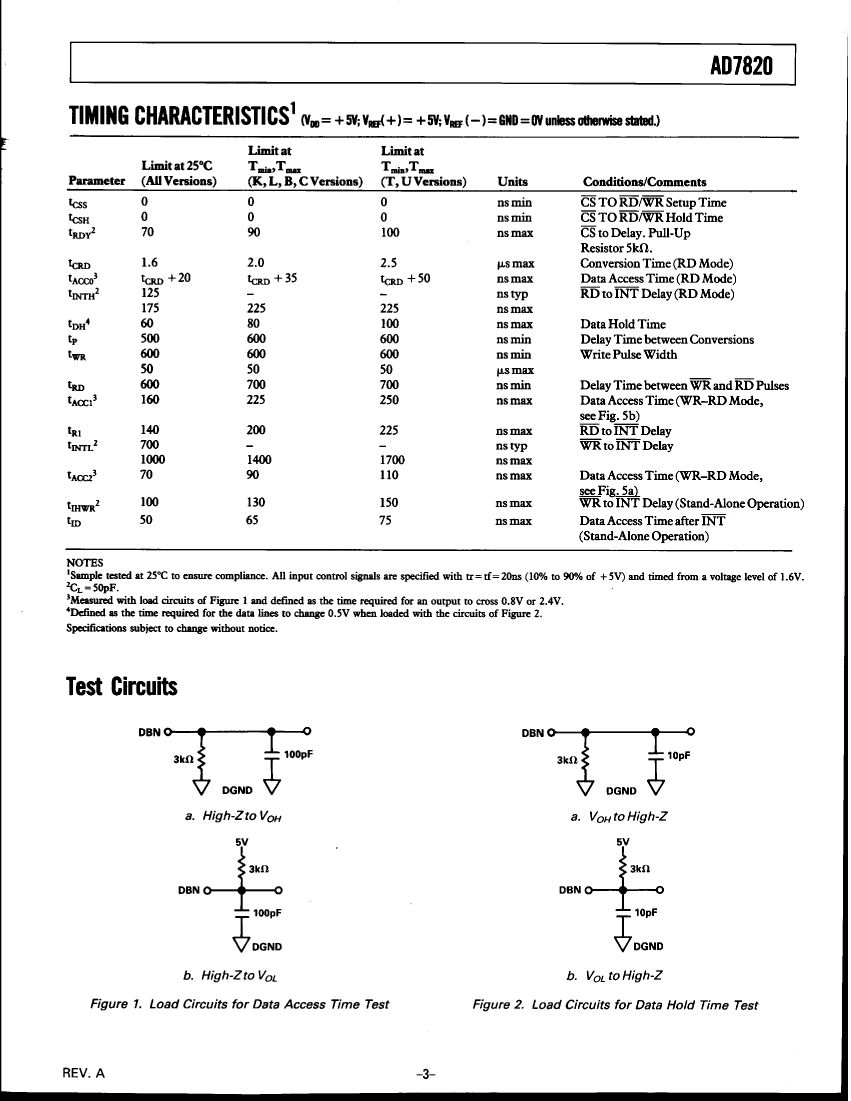

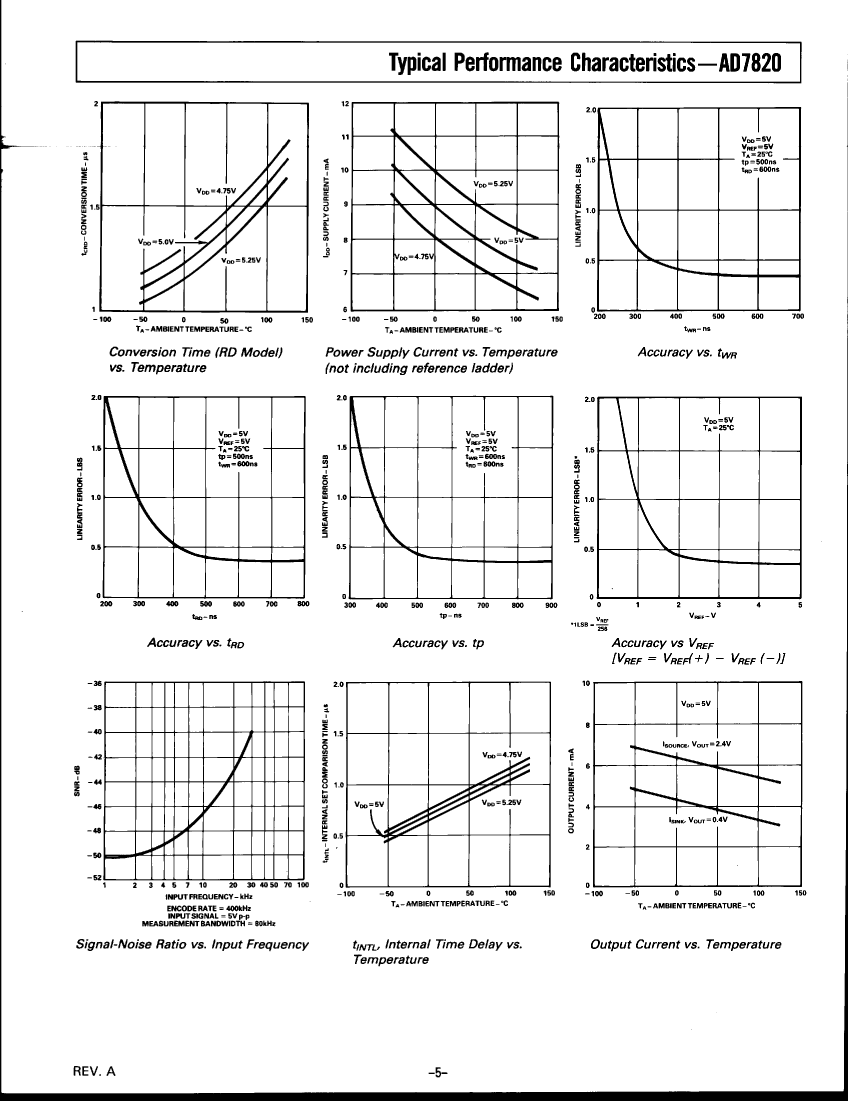

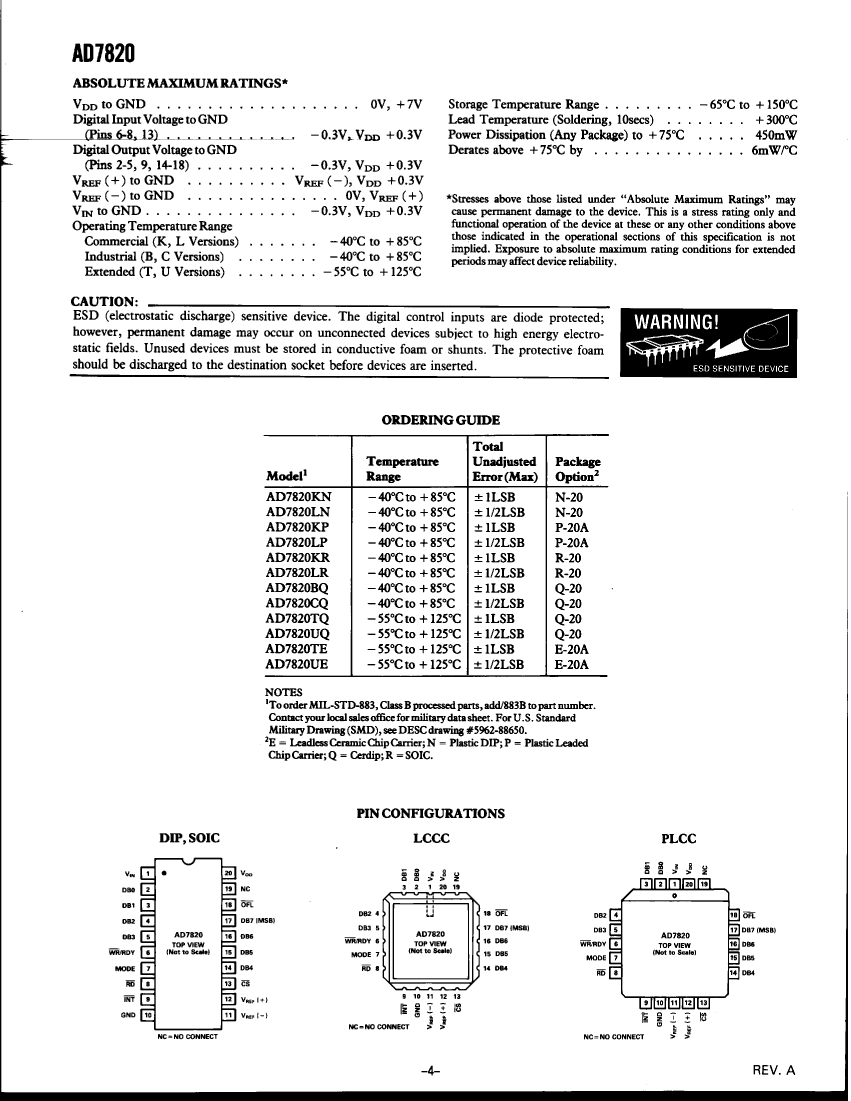

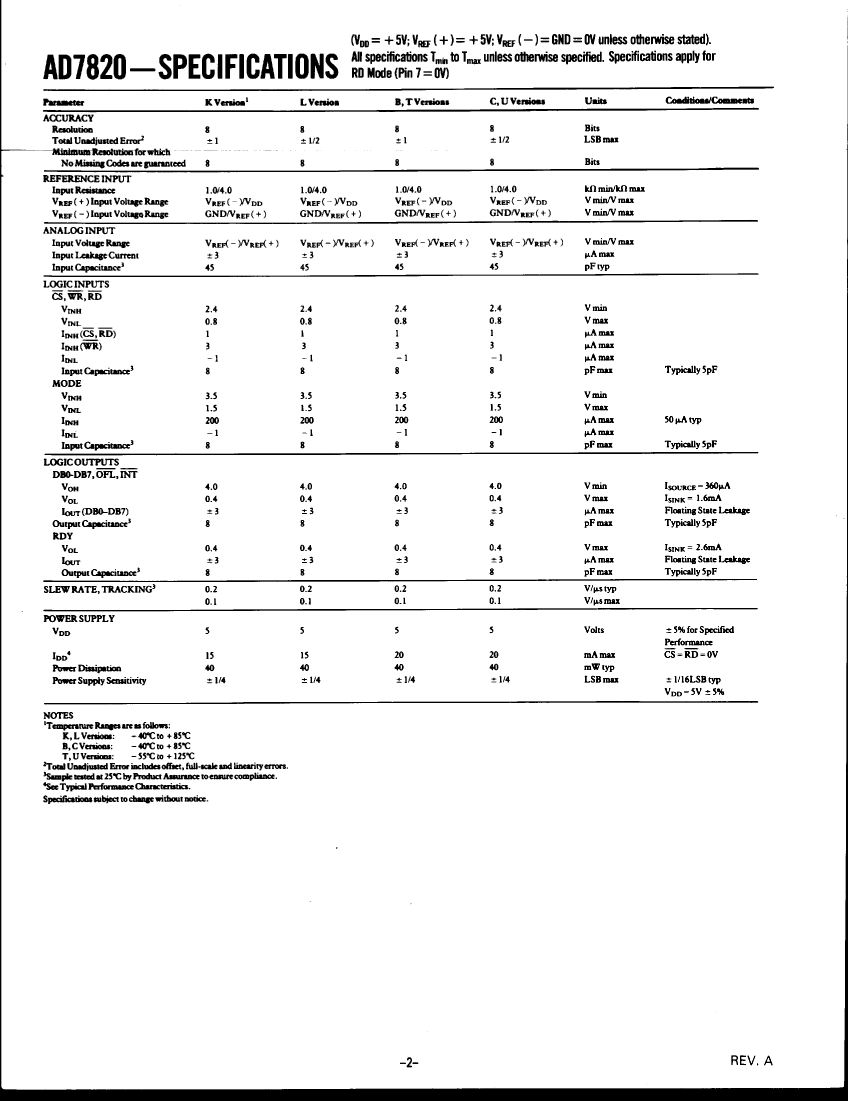

5962-8865002RA Parametric

Parameter NameAttribute value
Brand NameAnalog Devices Inc
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Parts packaging codeDIP
package instructionDIP, DIP20,.3
Contacts20
Reach Compliance Codenot_compliant
ECCN code3A001.A.2.C
Maximum analog input voltage5 V
Minimum analog input voltage
Maximum conversion time2.5 µs
Converter typeADC, FLASH METHOD
JESD-30 codeR-GDIP-T20
JESD-609 codee0
Maximum linear error (EL)0.3906%
Number of analog input channels1
Number of digits8
Number of functions1
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output bit codeBINARY
Output formatPARALLEL, 8 BITS
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP20,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Certification statusQualified
Sample and hold/Track and holdTRACK
Filter levelMIL-STD-883
Maximum seat height5.08 mm
Maximum slew rate20 mA
Nominal supply voltage5 V
surface mountNO
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.62 mm
Base Number Matches1

5962-8865002RA Related Products

5962-8865002RA 5962-8865001RA AD7820LN AD7820TQ
Description Analog to Digital Converters - ADC IC 8-BIT CMOS Analog to Digital Converters - ADC IC 8-BIT CMOS Analog to Digital Converters - ADC 8-Bit 2uS Sampling Analog to Digital Converters - ADC 8-Bit 2uS Sampling
Brand Name Analog Devices Inc Analog Devices Inc Analog Devices Inc Analog Devices Inc
Is it lead-free? Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible
Parts packaging code DIP DIP DIP DIP
package instruction DIP, DIP20,.3 DIP, DIP20,.3 DIP-20 DIP-20
Contacts 20 20 20 20
Reach Compliance Code not_compliant not_compliant not_compliant not_compliant
ECCN code 3A001.A.2.C 3A001.A.2.C EAR99 3A001.A.2.C
Maximum analog input voltage 5 V 5 V 7.3 V 7.3 V
Maximum conversion time 2.5 µs 2.5 µs 1.36 µs 1.36 µs
Converter type ADC, FLASH METHOD ADC, FLASH METHOD ADC, FLASH METHOD ADC, FLASH METHOD
JESD-30 code R-GDIP-T20 R-GDIP-T20 R-PDIP-T20 R-GDIP-T20
JESD-609 code e0 e0 e0 e0
Maximum linear error (EL) 0.3906% 0.3906% 0.195% 0.39%
Number of analog input channels 1 1 1 1
Number of digits 8 8 8 8
Number of functions 1 1 1 1
Number of terminals 20 20 20 20
Maximum operating temperature 125 °C 125 °C 85 °C 125 °C
Minimum operating temperature -55 °C -55 °C -40 °C -55 °C
Output bit code BINARY BINARY BINARY BINARY
Output format PARALLEL, 8 BITS PARALLEL, 8 BITS PARALLEL, 8 BITS PARALLEL, 8 BITS
Package body material CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED PLASTIC/EPOXY CERAMIC, GLASS-SEALED
encapsulated code DIP DIP DIP DIP
Encapsulate equivalent code DIP20,.3 DIP20,.3 DIP20,.3 DIP20,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT APPLICABLE NOT APPLICABLE
power supply 5 V 5 V 5 V 5 V
Certification status Qualified Qualified Not Qualified Not Qualified
Sample and hold/Track and hold TRACK TRACK TRACK TRACK
Maximum seat height 5.08 mm 5.08 mm 5.33 mm 5.08 mm
Maximum slew rate 20 mA 20 mA 15 mA 20 mA
Nominal supply voltage 5 V 5 V 5 V 5 V
surface mount NO NO NO NO
technology CMOS CMOS CMOS CMOS
Temperature level MILITARY MILITARY INDUSTRIAL MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn85Pb15) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT APPLICABLE NOT APPLICABLE
width 7.62 mm 7.62 mm 7.62 mm 7.62 mm
Base Number Matches 1 1 1 1
