Low Skew ÷1/÷2
Differential-to- 3.3V LVPECL Clock Generator
G
ENERAL
D
ESCRIPTION
T h e 8 7 3 7 I - 1 1 i s a l o w s k e w, h i g h p e r fo r m a n c e
Differential-to-3.3V LVPECL ClockGenerator/Divider.
The 8737I-11 has two selectable clock inputs. The CLK,
nCLK pair can acceptmost standard differential input
levels. The PCLK, nPCLK pair can accept LVPECL,
CML, or SSTL input levels.The clock enable is internally
synchronized to eliminate runt pulses on the outputs
during asynchronous assertion/deassertion of the clock
enable pin.
Guaranteed output and part-to-part skew characteristics
make the 8737I-11 ideal for clock distribution applications
demanding well defined performance and repeatability.
8737I-11
DATA SHEET
F
EATURES
•
Two divide by 1 differential 3.3V LVPECL outputs;
Two divide by 2 differential 3.3V LVPECL outputs
•
Selectable differential CLK, nCLK or LVPECL clock inputs
•
CLK, nCLK pair can accept the following differential
input levels: LVDS, LVPECL, LVHSTL, SSTL, HCSL
•
PCLK, nPCLK supports the following input types:
LVPECL, CML, SSTL
•
Maximum output frequency: 650MHz
•
Translates any single ended input signal (LVCMOS, LVTTL,
GTL) to LVPECL levels with resistor bias on nCLK input
•
Output skew: 75ps (maximum)
•
Part-to-part skew: 300ps (maximum)
•
Bank skew: Bank A - 30ps (maximum)
Bank B - 45ps (maximum)
•
3.3V operating supply
•
-40°C to 85°C ambient operating temperature
•
Available in lead-free RoHS-compliant package

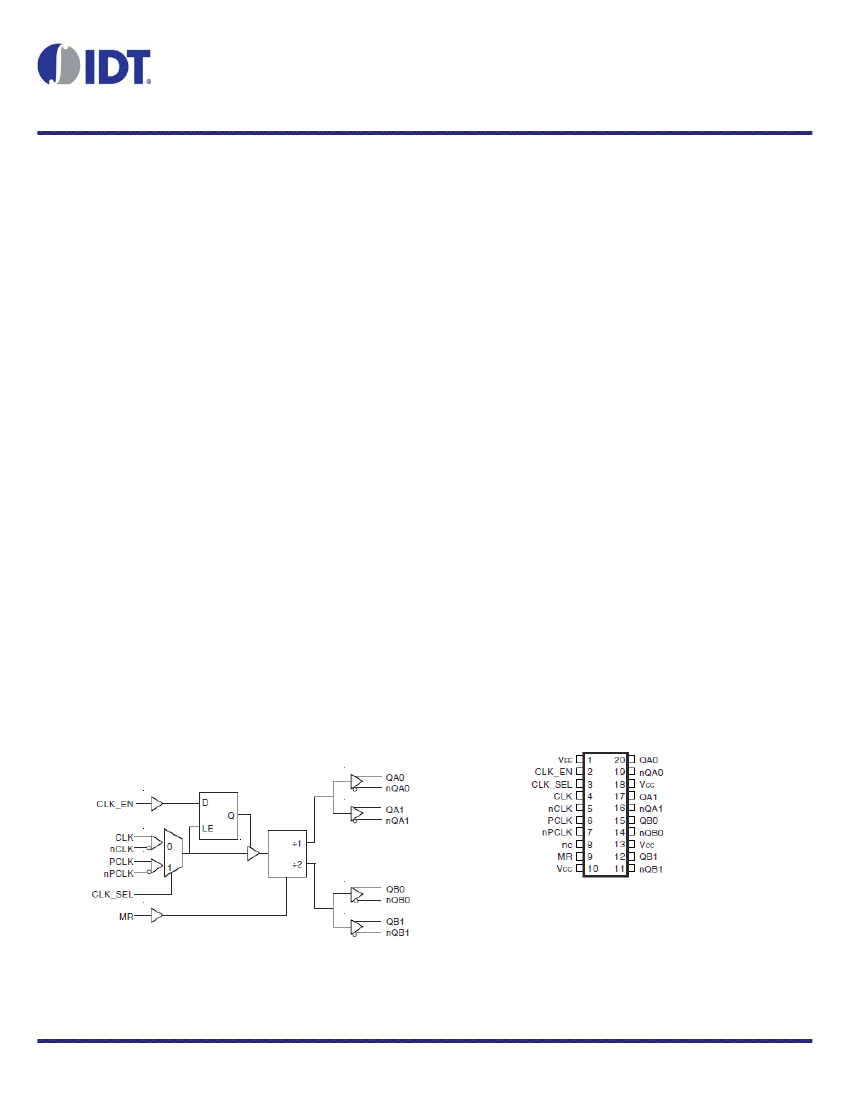

B
LOCK
D
IAGRAM
P
IN
A
SSIGNMENT
8737I-11
20-Lead TSSOP
6.50mm x 4.40mm x 0.92 package body
G Package
Top View
8737I-11 REVISION C 7/16/15
1
©2015 Integrated Device Technology, Inc.
8737I-11 DATA SHEET
T
ABLE
1. P
IN
D
ESCRIPTIONS
Number
1
2
3
4
5
6
7
8
9
10, 13, 18
11, 12
14, 15
16, 17
19, 20
Name
V
EE
CLK_EN
CLK_SEL
CLK
nCLK
PCLK
nPCLK
nc
MR
V
CC
nQB1, QB1
nQB0, QB0
nQA1, QA1
nQA0, QA0
Power
Power
Input
Input
Input
Input
Input
Unused
Input
Power
Output
Output
Output
Output
Type
Description
Negative supply pin.
Synchronizing clock enable. When HIGH, clock outputs follow clock input.
Pullup When LOW, Q outputs are forced low, nQ outputs are forced high.
LVCMOS / LVTTL interface levels.
Clock Select input. When HIGH, selects PCLK, nPCLK inputs.
Pulldown
When LOW, selects CLK, nCLK inputs. LVCMOS / LVTTL interface levels.
Pulldown Non-inverting differential clock input.
Pullup
Pullup
Inverting differential clock input.
Inverting differential LVPECL clock input.
Pulldown Non-inverting differential LVPECL clock input.
No connect.
Active HIGH Master Reset. When logic HIGH, the internal dividers
Pulldown are reset. When LOW, the Master Reset is disabled.
LVCMOS / LVTTL interface levels.
Positive supply pins.
Differential output pair. LVPECL interface levels.
Differential output pair. LVPECL interface levels.
Differential output pair. LVPECL interface levels.
Differential output pair. LVPECL interface levels.
NOTE:
Pullup
and
Pulldown
refer to internal input resistors. See Table 2, Pin Characteristics, for typical values.
T
ABLE
2. P
IN
C
HARACTERISTICS
Symbol
C
IN
R
PULLUP
R
PULLDOWN
Parameter
Input Capacitance
Input Pullup Resistor
Input Pulldown Resistor
Test Conditions
Minimum
Typical
4
51
51
Maximum
Units
pF
kΩ
kΩ
LOW SKEW ÷1/÷2
DIFFERENTIAL-TO- 3.3V LVPECL CLOCK GENERATOR
2
REVISION C 7/16/15
8737I-11 DATA SHEET
T
ABLE
3A. C
ONTROL
I
NPUT
F
UNCTION
T
ABLE
Inputs
MR
1
0
0
0
0
CLK_EN
X
0
0
1
1
CLK_SEL
X
0
1
0
1
Selected Source
X
CLK, nCLK
PCLK, nPCLK
CLK, nCLK
PCLK, nPCLK
QA0, QA1
LOW
Disabled; LOW
Disabled; LOW
Enabled
Enabled
HIGH
Disabled; HIGH
Disabled; HIGH
Enabled
Enabled
Outputs
nQA0, nQA1
QB0, QB1
LOW
Disabled; LOW
Disabled; LOW
Enabled
Enabled
nQB0, nQB1
HIGH
Disabled; HIGH
Disabled; HIGH
Enabled
Enabled
After CLK_EN switches, the clock outputs are disabled or enabled following a rising and falling input clock edge
as shown in Figure 1.
In the active mode, the state of the outputs are a function of the CLK, nCLK and PCLK, nPCLK inputs as described
in Table 3B.

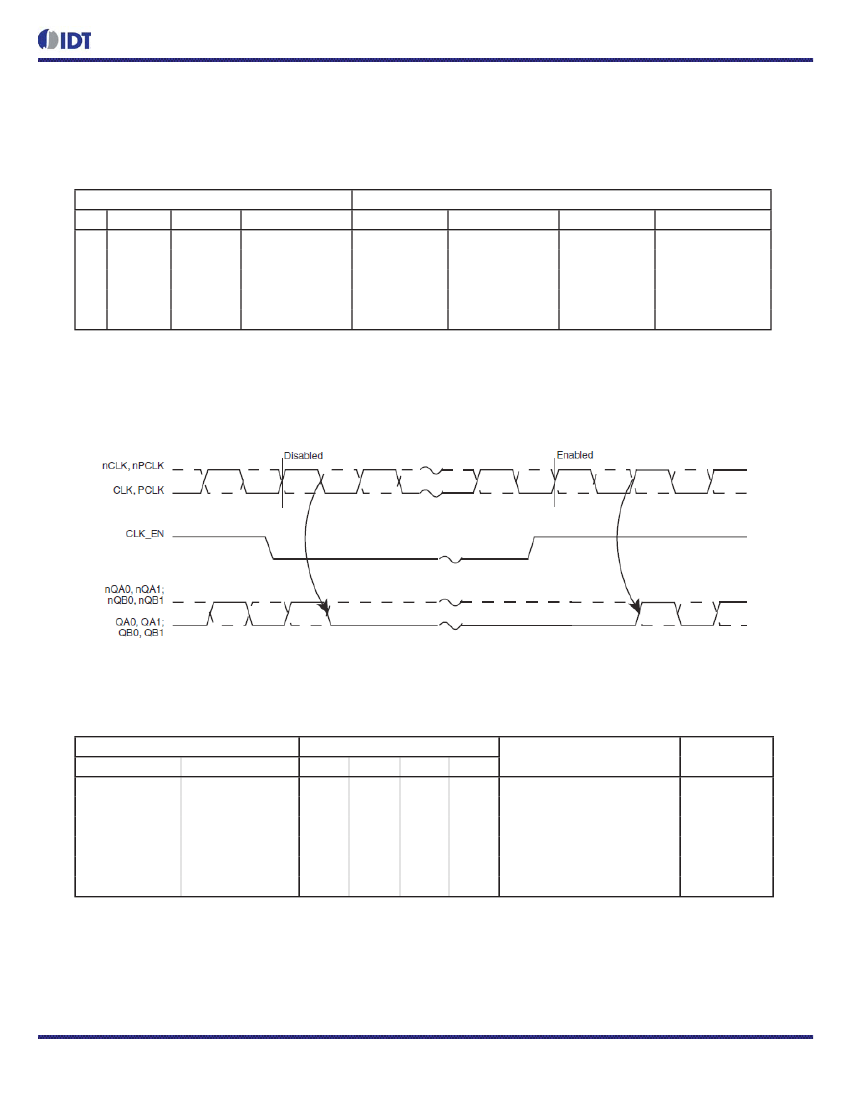

F
IGURE
1 - CLK_EN T
IMING
D
IAGRAM
T
ABLE
3B. C
LOCK
I
NPUT
F
UNCTION
T
ABLE
Inputs
CLK or PCLK
0
1
0
1
Biased; NOTE 1
Biased; NOTE 1
nCLK or nPCLK
0
1
Biased; NOTE 1
Biased; NOTE 1
0
1
QAx
LOW
HIGH
LOW
HIGH
HIGH
LOW
Outputs
nQAx
HIGH
LOW
HIGH
LOW
LOW
HIGH
QBx
LOW
HIGH
LOW
HIGH
HIGH
LOW
nQBx
HIGH
LOW
HIGH
LOW
LOW
HIGH
Input to Output Mode
Differential to Differential
Differential to Differential
Single Ended to Differential
Single Ended to Differential
Single Ended to Differential
Single Ended to Differential
Polarity
Non Inverting
Non Inverting
Non Inverting
Non Inverting
Inverting
Inverting
NOTE 1: Please refer to the Application Information section, “Wiring the Differential Input to Accept Single Ended Levels”.
REVISION C 7/16/15
3
LOW SKEW ÷1/÷2
DIFFERENTIAL-TO- 3.3V LVPECL CLOCK GENERATOR
8737I-11 DATA SHEET
A
BSOLUTE
M
AXIMUM
R
ATINGS
Supply Voltage, V
CC
Inputs, V
I
Outputs, I
O
Continuous Current
Surge Current
Package Thermal Impedance,
θ
JA
Storage Temperature, T
STG
4.6V
-0.5V to V
CC
+ 0.5V
50mA
100mA
73.2°C/W (0 lfpm)
-65°C to 150°C
NOTE: Stresses beyond those listed under Absolute
Maximum Ratings may cause permanent damage to the
device. These ratings are stress specifications only. Functional
operation of product at these conditions or any conditions
beyond those listed in the
DC Characteristics
or
AC Charac-
teristics
is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect product reliability.
T
ABLE
4A. P
OWER
S
UPPLY
DC C
HARACTERISTICS
,
V
CC
= 3.3V±5%, T
A
= -40°C
TO
85°C
Symbol
V
CC
I
EE
Parameter
Positive Supply Voltage
Power Supply Current
Test Conditions
Minimum
3.135
Typical
3.3
Maximum
3.465
55
Units
V
mA
T
ABLE
4B. LVCMOS / LVTTL DC C
HARACTERISTICS
,
V
CC
= 3.3V±5%, T
A
= -40°C
TO
85°C
Symbol
V
IH
V
IL
I
IH
I
IL
Parameter
Input High Voltage
Input Low Voltage
Input High Current
Input Low Current
CLK_EN
CLK_SEL, MR
CLK_EN
CLK_SEL, MR
V
IN
= V
CC
= 3.465V
V
IN
= V
CC
= 3.465V
V
IN
= 0V, V
CC
= 3.465V
V
IN
= 0V, V
CC
= 3.465V
-150
-5
Test Conditions
Minimum
2
-0.3
Typical
Maximum
V
CC
+ 0.3
0.8
5
150
Units
V
V
µA
µA
µA
µA
T
ABLE
4C. D
IFFERENTIAL
DC C
HARACTERISTICS
,
V
CC
= 3.3V±5%, T
A
= -40°C
TO
85°C
Symbol
I
IH
I
IL
V
PP
V
CMR
Parameter
Input High Current
Input Low Current
nCLK
CLK
nCLK
CLK
Test Conditions
V
IN
= V
CC
= 3.465V
V
IN
= V
CC
= 3.465V
V
IN
= 0V, V
CC
= 3.465V
V
IN
= 0V, V
CC
= 3.465V
-150
-5
0.15
1.3
V
CC
- 0.85
Minimum
Typical
Maximum
5
150
Units
µA
µA
µA
µA
V
V
Peak-to-Peak Input Voltage
Common Mode Input Voltage;
V
EE
+ 0.5
NOTE 1, 2
NOTE 1: For single ended applications, the maximum input voltage for CLK, nCLK is V
CC
+ 0.3V.
NOTE 2: Common mode voltage is defined as V
IH
.
LOW SKEW ÷1/÷2
DIFFERENTIAL-TO- 3.3V LVPECL CLOCK GENERATOR
4
REVISION C 7/16/15
8737I-11 DATA SHEET
T
ABLE
4D. LVPECL DC C
HARACTERISTICS
,
V
CC
= 3.3V±5%, T
A
= -40°C
TO
85°C
Symbol
I
IH
I
IL
V
PP
V
CMR
V
OH
V
OL
V
SWING
Parameter
Input High Current
Input Low Current
Peak-to-Peak Input Voltage
Common Mode Input Voltage; NOTE 1, 2
Output High Voltage; NOTE 3
Output Low Voltage; NOTE 3
Peak-to-Peak Output Voltage Swing
Test Conditions
V
IN
= V
CC
= 3.465V
V
IN
= V
CC
= 3.465V
V
IN
= 0V, V
CC
= 3.465V
V
IN
= 0V, V
CC
= 3.465V
-5
-150
0.3
V
EE
+ 1.5
V
CC
- 1.4
V
CC
- 2.0
0.6
1
V
CC
V
CC
- 0.9
V
CC
- 1.7
1.0
Minimum
Typical
Maximum
150
5
Units
µA
µA
µA
µA
V
V
V
V
V
NOTE 1: Common mode voltage is defined as V
IH
.
NOTE 2: For single ended applications, the maximum input voltage for PCLK, nPCLK is V
CC
+ 0.3V.
NOTE 3: Outputs terminated with 50Ω to V
CC
- 2V.
T
ABLE
5. AC C
HARACTERISTICS
,
V
CC
= 3.3V±5%, T
A
= -40°C
TO
85°C
Symbol
f
MAX
t
PD
tsk(o)
tsk(b)
tsk(pp)
t
R
t
F
odc
Parameter
Output Frequency
Propagation Delay; NOTE 1
Output Skew; NOTE 2, 4
Bank Skew; NOTE 4
Part-to-Part Skew; NOTE 3, 4
Output Rise Time
Output Fall Time
Output Duty Cycle
20% to 80% @ 50MHz
20% to 80% @ 50MHz
300
300
47
50
Bank A
Bank B
CLK, nCLK
PCLK, nPCLK
ƒ
≤
650MHz
ƒ
≤
650MHz
1.2
1.1
Test Conditions
Minimum
Typical
Maximum
650
1.8
1.7
75
30
45
300
700
700
53
Units
MHz
ns
ns
ps
ps
ps
ps
ps
ps
%
All parameters measured at 500MHz unless noted otherwise.
The cycle-to-cycle jitter on the input will equal the jitter on the output. The part does not add jitter.
NOTE 1: Measured from the differential input crossing point to the differential output crossing point.
NOTE 2: Defined as skew between outputs at the same supply voltage and with equal load conditions.
Measured at the output differential cross points.
NOTE 3: Defined as skew between outputs on different devices operating at the same supply voltages
and with equal load conditions. Using the same type of inputs on each device, the outputs are measured
at the differential cross points.
NOTE 4: This parameter is defined in accordance with JEDEC Standard 65.
REVISION C 7/16/15
5
LOW SKEW ÷1/÷2
DIFFERENTIAL-TO- 3.3V LVPECL CLOCK GENERATOR
