WM8993

Audio Hub Codec for Multimedia Phones

DESCRIPTION

The WM8993 is a highly integrated ultra-low power hi-fi CODEC

designed for portable devices such as multimedia phones.

A stereo 1W/channel speaker driver can operate in class D or

AB mode. Low leakage and high PSRR across the audio band

enable direct battery connection for the speaker supply.

Class W headphone drivers provide a dramatic reduction in

playback power and are ground-referenced. Active ground loop

noise rejection and DC offset correction help prevent pop noise

and ground noise from degrading headphone output quality.

Powerful mixing capability allows the device to support a huge

range of architectures and use cases. A highly flexible input

configuration supports multiple microphone or line inputs (mono

or stereo, single-ended or differential).

Fully differential internal architecture and on-chip RF noise filters

ensure a very high degree of noise immunity.

ReTune

Mobile parametric EQ with fully programmable

coefficients is integrated for optimization of speaker

characteristics. Programmable dynamic range control is also

available for maximizing loudness, protecting speakers from

clipping and preventing premature shutdown due to battery

droop.

The WM8993 is supplied in very small and thin 48-ball W-CSP

package, ideal for portable systems.

FEATURES



100dB SNR during DAC playback (‘A’ weighted)

Low power, low noise MIC interface

Class D or AB stereo speaker driver

- Stereo1W into 8 BTL speaker at <1% THD

- Mono 2W into 4 BTL speaker

ReTune Mobile parametric equalizer

Dynamic range controller

Low power Class W headphone drivers

- Integrated charge pump and DC offset correction

- 5mW total power for DAC playback to headphones

Digital audio interface

- All standard data formats and 2-channel TDM supported

- All standard sample rates from 8kHz to 48kHz

Low power FLL

- Provides all necessary internal clocks

- 32kHz to 27MHz input frequency

- Free-running mode for class D and charge pump

4 highly flexible line outputs (single-ended or differential )

Dedicated earpiece driver

“Direct voice” and “Direct DAC” paths to outputs

- Low noise paths bypass all internal mixers

- Low power consumption

Active noise reduction

- DC offset correction removes pops and clicks

- Ground loop noise cancellation

48-ball W-CSP package (3.65x3.55x0.546mm, 0.5mm pitch)



APPLICATIONS



Multimedia phones

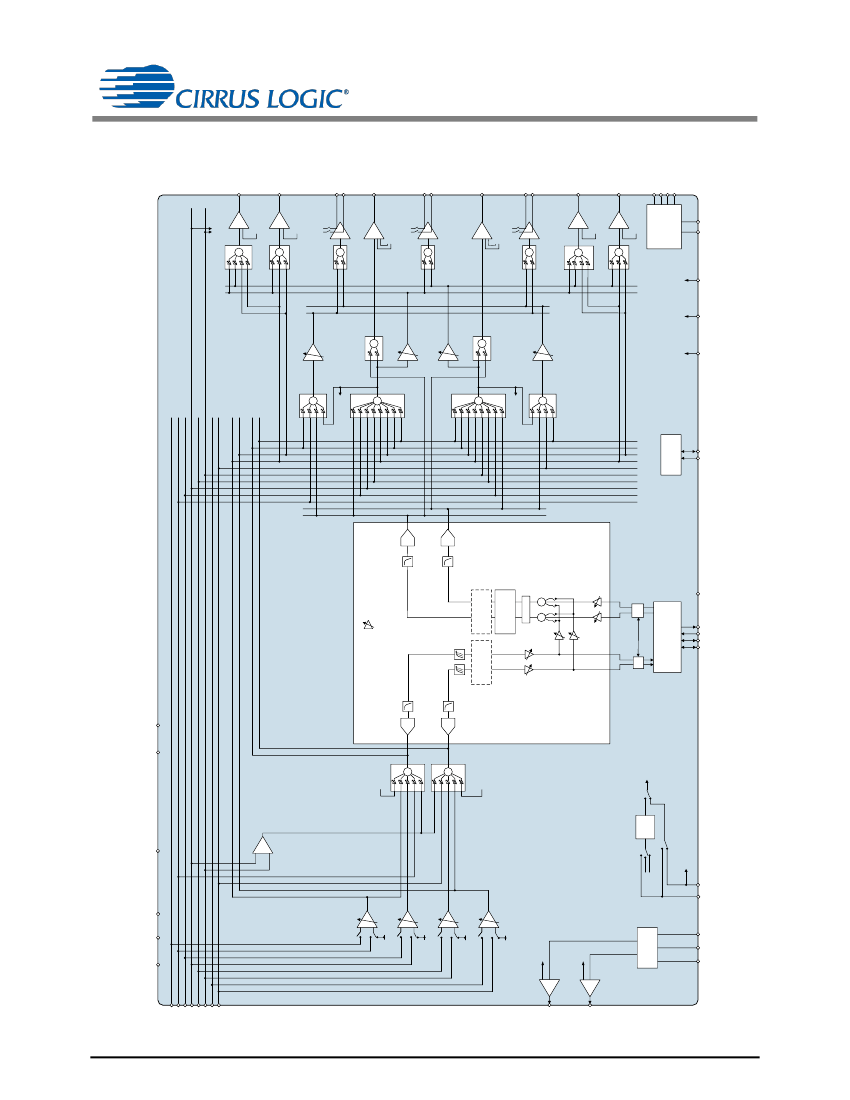

CPVDD CPGND

CPVOUTP CPVOUTN

CPFB1

CPFB2

HPOUT1L

HPOUT1R

HEADPHONE

DRIVERS

AVDD1 VMIDC AGND1

IN1LN

IN1LP

IN2LN

IN2LP/VRXN

IN1RN

IN1RP

IN2RN

IN2RP/VRXP

AVDD2

DCVDD DBVDD DGND

SPKVDD SPKGND

CHARGE PUMP

HPOUT1FB

HPOUT2P

HPOUT2N

MIC

INTERFACE

INPUT

MIXERS

ADC L

ADC

FILTERS

HIGH

PASS

FILTERS

ReTune

Mobile

PARAMETRIC EQUALISER

DYNAMIC RANGE CONTROL

DAC

FILTERS

DAC

VOLUME

EARPIECE

DRIVER

DAC L

OUTPUT

MIXERS

SPKOUTLN

SPKOUTLP

SPKOUTRN

SPKOUTRP

LOUDSPEAKER

DRIVERS

ADC R

RECORD

ADC

VOLUME

DAC R

SPKMONO

LINEOUT1N

RECORD

MICBIAS1

Current

Detect

LINEOUT1P

FLL

GPIO

AUDIO

CLOCKS

LINEOUT2N

DIGITAL AUDIO

INTERFACE

CONTROL

INTERFACE

LINE DRIVERS

MICBIAS2

Current

Detect

LINEOUT2P

LINEOUTFB

GPIO

BCLK

LRCLK

ADCDAT

DACDAT

GPIO1

MCLK

SCLK

SDAT

http://www.cirrus.com



Cirrus Logic, Inc., 2008–2016

Rev 4.1

NOV ‘16

WM8993

TABLE OF CONTENTS

DESCRIPTION ......................................................................................................1

FEATURES ...........................................................................................................1

APPLICATIONS....................................................................................................1

TABLE OF CONTENTS ........................................................................................2

BLOCK DIAGRAM ...............................................................................................5

PIN CONFIGURATION .........................................................................................6

ORDERING INFORMATION .................................................................................6

PIN DESCRIPTION ...............................................................................................6

ABSOLUTE MAXIMUM RATINGS .......................................................................8

RECOMMENDED OPERATING CONDITIONS ....................................................8

THERMAL PERFORMANCE ................................................................................9

ELECTRICAL CHARACTERISTICS ..................................................................10

TERMINOLOGY ........................................................................................................... 23

TYPICAL PERFORMANCE ................................................................................24

POWER CONSUMPTION ............................................................................................ 24

AUDIO SIGNAL PATHS DIAGRAM ...................................................................25

SIGNAL TIMING REQUIREMENTS ...................................................................26

MASTER CLOCK ......................................................................................................... 26

AUDIO INTERFACE TIMING ....................................................................................... 27

MASTER MODE ............................................................................................................................................................27

SLAVE MODE................................................................................................................................................................28

TDM MODE ...................................................................................................................................................................29

CONTROL INTERFACE TIMING ................................................................................. 30

DEVICE DESCRIPTION .....................................................................................31

INTRODUCTION .......................................................................................................... 31

INPUT SIGNAL PATH .................................................................................................. 33

MICROPHONE INPUTS ................................................................................................................................................34

MICROPHONE BIAS CONTROL ..................................................................................................................................34

MICROPHONE CURRENT DETECT ............................................................................................................................35

LINE AND VOICE CODEC INPUTS ..............................................................................................................................35

INPUT PGA ENABLE ....................................................................................................................................................36

INPUT PGA CONFIGURATION ....................................................................................................................................37

INPUT PGA VOLUME CONTROL .................................................................................................................................38

INPUT MIXER ENABLE.................................................................................................................................................40

INPUT MIXER CONFIGURATION AND VOLUME CONTROL .....................................................................................40

ANALOGUE TO DIGITAL CONVERTER (ADC) .......................................................... 43

ADC DIGITAL VOLUME CONTROL ..............................................................................................................................43

HIGH PASS FILTER ......................................................................................................................................................45

DIGITAL MIXING .......................................................................................................... 46

DIGITAL MIXING PATHS ..............................................................................................................................................46

DAC INTERFACE VOLUME BOOST ............................................................................................................................48

DIGITAL SIDETONE......................................................................................................................................................48

DYNAMIC RANGE CONTROL (DRC) ......................................................................... 49

COMPRESSION/LIMITING CAPABILITIES ..................................................................................................................49

GAIN LIMITS..................................................................................................................................................................51

DYNAMIC CHARACTERISTICS ...................................................................................................................................52

ANTI-CLIP CONTROL ...................................................................................................................................................52

QUICK RELEASE CONTROL .......................................................................................................................................53

GAIN SMOOTHING .......................................................................................................................................................53

INITIALISATION ............................................................................................................................................................54

Rev 4.1

WM8993

RETUNE MOBILE PARAMETRIC EQUALIZER (EQ) .................................................. 55

DEFAULT MODE (5-BAND PARAMETRIC EQ) ...........................................................................................................55

RETUNE MOBILE MODE ..............................................................................................................................................56

EQ FILTER CHARACTERISTICS .................................................................................................................................56

DIGITAL TO ANALOGUE CONVERTER (DAC) .......................................................... 58

DAC DIGITAL VOLUME CONTROL ..............................................................................................................................58

DAC SOFT MUTE AND SOFT UN-MUTE .....................................................................................................................60

DAC MONO MIX ............................................................................................................................................................61

DAC DE-EMPHASIS......................................................................................................................................................61

DAC SLOPING STOPBAND FILTER ............................................................................................................................62

OUTPUT SIGNAL PATH .............................................................................................. 63

OUTPUT SIGNAL PATHS ENABLE ..............................................................................................................................64

HEADPHONE SIGNAL PATHS ENABLE ......................................................................................................................65

OUTPUT MIXER CONTROL .........................................................................................................................................67

SPEAKER MIXER CONTROL .......................................................................................................................................70

OUTPUT SIGNAL PATH VOLUME CONTROL .............................................................................................................71

SPEAKER BOOST MIXER ............................................................................................................................................76

EARPIECE DRIVER MIXER ..........................................................................................................................................77

LINE OUTPUT MIXERS ................................................................................................................................................77

CHARGE PUMP ........................................................................................................... 81

DC SERVO ................................................................................................................... 83

DC SERVO ENABLE AND START-UP .........................................................................................................................83

DC SERVO ACTIVE MODES ........................................................................................................................................85

DC SERVO READBACK ...............................................................................................................................................86

ANALOGUE OUTPUTS ............................................................................................... 87

SPEAKER OUTPUT CONFIGURATIONS .....................................................................................................................87

HEADPHONE OUTPUT CONFIGURATIONS ...............................................................................................................90

EARPIECE DRIVER OUTPUT CONFIGURATIONS .....................................................................................................91

LINE OUTPUT CONFIGURATIONS ..............................................................................................................................91

GENERAL PURPOSE INPUT/OUTPUT ...................................................................... 94

GPIO1 CONTROL .........................................................................................................................................................94

BUTTON DETECT .........................................................................................................................................................95

ACCESSORY DETECTION ...........................................................................................................................................96

CLOCK OUTPUT ...........................................................................................................................................................99

FLL LOCK STATUS OUTPUT .......................................................................................................................................99

TEMPERATURE SENSOR OUTPUT ..........................................................................................................................100

CONTROL WRITE SEQUENCER STATUS ................................................................................................................101

LOGIC ‘1’ AND LOGIC ‘0’ OUTPUT ............................................................................................................................102

INTERRUPTS ..............................................................................................................................................................102

GPIO SUMMARY.........................................................................................................................................................103

DIGITAL AUDIO INTERFACE .................................................................................... 105

MASTER AND SLAVE MODE OPERATION ...............................................................................................................105

OPERATION WITH TDM .............................................................................................................................................106

BCLK FREQUENCY ....................................................................................................................................................107

AUDIO DATA FORMATS (NORMAL MODE) ..............................................................................................................107

AUDIO DATA FORMATS (TDM MODE) .....................................................................................................................109

DIGITAL AUDIO INTERFACE CONTROL ................................................................. 111

AUDIO INTERFACE OUTPUT TRI-STATE .................................................................................................................112

BCLK AND LRCLK CONTROL ....................................................................................................................................112

COMPANDING ............................................................................................................................................................114

LOOPBACK .................................................................................................................................................................116

DIGITAL PULL-UP AND PULL-DOWN ........................................................................................................................116

CLOCKING AND SAMPLE RATES............................................................................ 117

CLK_SYS CONTROL ..................................................................................................................................................119

AUTOMATIC CLOCKING CONFIGURATION .............................................................................................................120

Rev 4.1

WM8993

ADC / DAC CLOCK CONTROL ...................................................................................................................................121

256K, DC SERVO, CLASS D CLOCK CONTROL ......................................................................................................122

OPCLK CONTROL ......................................................................................................................................................123

TOCLK CONTROL ......................................................................................................................................................124

BCLK AND LRCLK CONTROL ....................................................................................................................................124

FREQUENCY LOCKED LOOP (FLL) ..........................................................................................................................125

FREE-RUNNING FLL CLOCK .....................................................................................................................................128

EXAMPLE FLL CALCULATION...................................................................................................................................128

EXAMPLE FLL SETTINGS ..........................................................................................................................................129

CONTROL INTERFACE............................................................................................. 130

CONTROL WRITE SEQUENCER.............................................................................. 133

INITIATING A SEQUENCE..........................................................................................................................................133

PROGRAMMING A SEQUENCE ................................................................................................................................134

DEFAULT SEQUENCES .............................................................................................................................................136

POP SUPPRESSION CONTROL .............................................................................. 143

DISABLED LINE OUTPUT CONTROL ........................................................................................................................143

LINE OUTPUT DISCHARGE CONTROL ....................................................................................................................144

VMID REFERENCE DISCHARGE CONTROL ............................................................................................................144

INPUT VMID CLAMPS ................................................................................................................................................144

REFERENCE VOLTAGES AND MASTER BIAS ....................................................... 145

POWER MANAGEMENT ........................................................................................... 146

POWER ON RESET................................................................................................... 150

QUICK START-UP AND SHUTDOWN ...................................................................... 152

SOFTWARE RESET AND DEVICE ID....................................................................... 153

THERMAL SHUTDOWN ............................................................................................ 153

DIGITAL FILTER CHARACTERISTICS ...........................................................205

ADC FILTER RESPONSES ....................................................................................... 206

ADC HIGH PASS FILTER RESPONSES................................................................... 206

DAC FILTER RESPONSES ....................................................................................... 207

DE-EMPHASIS FILTER RESPONSES ...................................................................... 208

APPLICATIONS INFORMATION .....................................................................209

RECOMMENDED EXTERNAL COMPONENTS ........................................................ 209

AUDIO INPUT PATHS .................................................................................................................................................209

HEADPHONE OUTPUT PATH ....................................................................................................................................211

EARPIECE DRIVER OUTPUT PATH ..........................................................................................................................211

LINE OUTPUT PATHS ................................................................................................................................................211

POWER SUPPLY DECOUPLING ...............................................................................................................................212

CHARGE PUMP COMPONENTS ...............................................................................................................................213

MICROPHONE BIAS CIRCUIT ...................................................................................................................................213

CLASS D SPEAKER CONNECTIONS ........................................................................................................................214

RECOMMENDED EXTERNAL COMPONENTS DIAGRAM .......................................................................................216

PCB LAYOUT CONSIDERATIONS ........................................................................... 218

CLASS D LOUDSPEAKER CONNECTION ................................................................................................................218

PACKAGE DIMENSIONS .................................................................................219

IMPORTANT NOTICE ......................................................................................220

REVISION HISTORY ........................................................................................221

Rev 4.1

Recommended Resources

Music loop color changing light circuit

Three-phase AC voltage regulating circuit_2

function generator

Example circuit diagram of switching power supply using μPC1943,1944

Memory type phase loss judgment circuit

Commutation circuit preselected by selector switch for three-phase motor

Shortcut: L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components
