Part Number

Search

BAS382-TR

Description
Schottky Diodes & Rectifiers 50 Volt 30mA 500mA IFSM
Categorysemiconductor    Discrete semiconductor
File Size87KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

BAS382-TR Online Shopping

Suppliers Part Number Price MOQ In stock
BAS382-TR - - View Buy Now

BAS382-TR Overview

Schottky Diodes & Rectifiers 50 Volt 30mA 500mA IFSM

BAS382-TR Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerVishay
Product CategorySchottky Diodes & Rectifiers
RoHSDetails
ProductSchottky Diodes
Mounting StyleSMD/SMT
Package / CaseMicro MELF
If - Forward Current0.03 A
Vrrm - Repetitive Reverse Voltage50 V
Vf - Forward Voltage1 V
Ifsm - Forward Surge Current0.5 A
ConfigurationSingle
TechnologySi
Ir - Reverse Current0.2 uA
Minimum Operating Temperature- 65 C
Maximum Operating Temperature+ 125 C
PackagingCut Tape
PackagingMouseReel
PackagingReel
Height1.15 mm
Length1.9 mm
Operating Temperature Range+ 125 C
TypeSmall Signal Schottky Diode
Width1.15 mm
Factory Pack Quantity2500
Unit Weight0.000423 oz

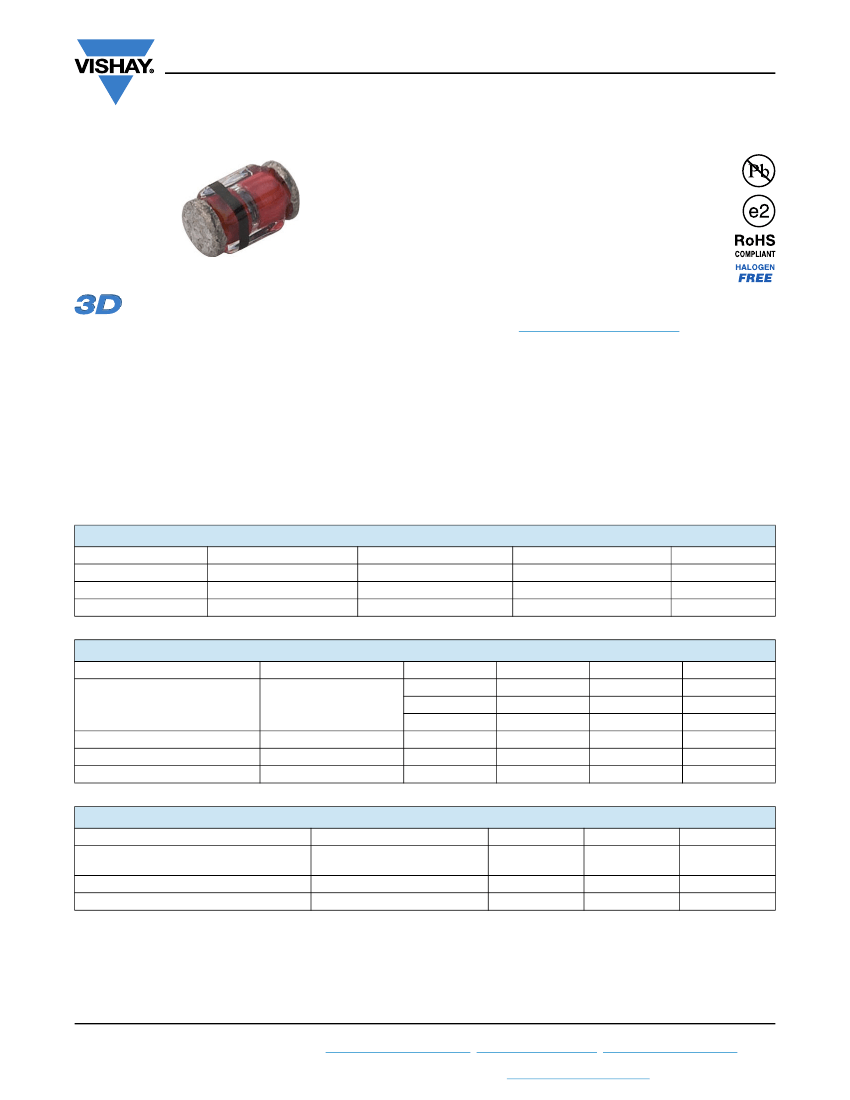

BAS381, BAS382, BAS383
www.vishay.com
Vishay Semiconductors
Small Signal Schottky Diodes
FEATURES
• Integrated
discharge
protection
ring
against
static
• Low capacitance
• Low leakage current
• Low forward voltage drop
DESIGN SUPPORT TOOLS
click logo to get started
Models
Available
• Very low switching time
• AEC-Q101 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
MECHANICAL DATA
Case:
MicroMELF
Weight:
approx. 12 mg
Cathode band color:
black
Packaging codes/options:
TR3/10K per 13" reel (8 mm tape), 10K/box
TR/2.5K per 7" reel (8 mm tape), 12.5K/box
APPLICATIONS
• General purpose and switching Schottky barrier diode
• HF-detector
• Protection circuit
• Diode for low currents with a low supply voltage
• Small battery charger
• Power supplies
• DC/DC converter for notebooks
PARTS TABLE
PART
BAS381
BAS382
BAS383
TYPE DIFFERENTIATION
V
R
= 40 V
V
R
= 50 V
V
R
= 60V
ORDERING CODE
BAS381-TR3 or BAS381-TR
BAS382-TR3 or BAS382-TR
BAS383-TR3 or BAS383-TR
CIRCUIT CONFIGURATION
Single
Single
Single
REMARKS
Tape and reel
Tape and reel
Tape and reel
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Reverse voltage
Peak forward surge current
Repetitive peak forward current
Forward continuous current
t
p
= 1 s
TEST CONDITION
PART
BAS381
BAS382
BAS383
SYMBOL
V
R
V
R
V
R
I
FSM
I
FRM
I
F
VALUE
40
50
60
500
150
30
UNIT
V
V
V
mA
mA
mA
THERMAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Junction to ambient air
Junction temperature
Storage temperature range
TEST CONDITION
On PC board
50 mm x 50 mm x 1.6 mm
SYMBOL
R
thJA
T
j
T
stg
VALUE
320
125
-65 to +150
UNIT
K/W
°C
°C
Rev. 2.2, 02-Jun-17
Document Number: 85503
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
