84314AYLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 84314AYLF

84314AYLF: DescriptionClock Synthesizer / Jitter Cleaner 4 LVPECL OUT SYNTHESIZER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size262KB，19 Pages; ManufacturerIDT (Integrated Device Technology); Environmental Compliance

Download Datasheet Parametric Compare View All

84314AYLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	84314AYLF	-	-	View	Buy Now

84314AYLF Overview

Clock Synthesizer / Jitter Cleaner 4 LVPECL OUT SYNTHESIZER

84314AYLF Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IDT (Integrated Device Technology)
Parts packaging code	TQFP
package instruction	7 X 7 MM, 1.40 MM HEIGHT, LEAD FREE, MS-026BBA, LQFP-32
Contacts	32
Manufacturer packaging code	PRG32
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-30 code	S-PQFP-G32
JESD-609 code	e3
length	7 mm
Humidity sensitivity level	3
Number of terminals	32
Maximum operating temperature	85 °C
Minimum operating temperature
Maximum output clock frequency	350 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Encapsulate equivalent code	QFP32,.35SQ,32
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE
Peak Reflow Temperature (Celsius)	260
power supply	3.3 V
Master clock/crystal nominal frequency	40 MHz
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum slew rate	150 mA
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER

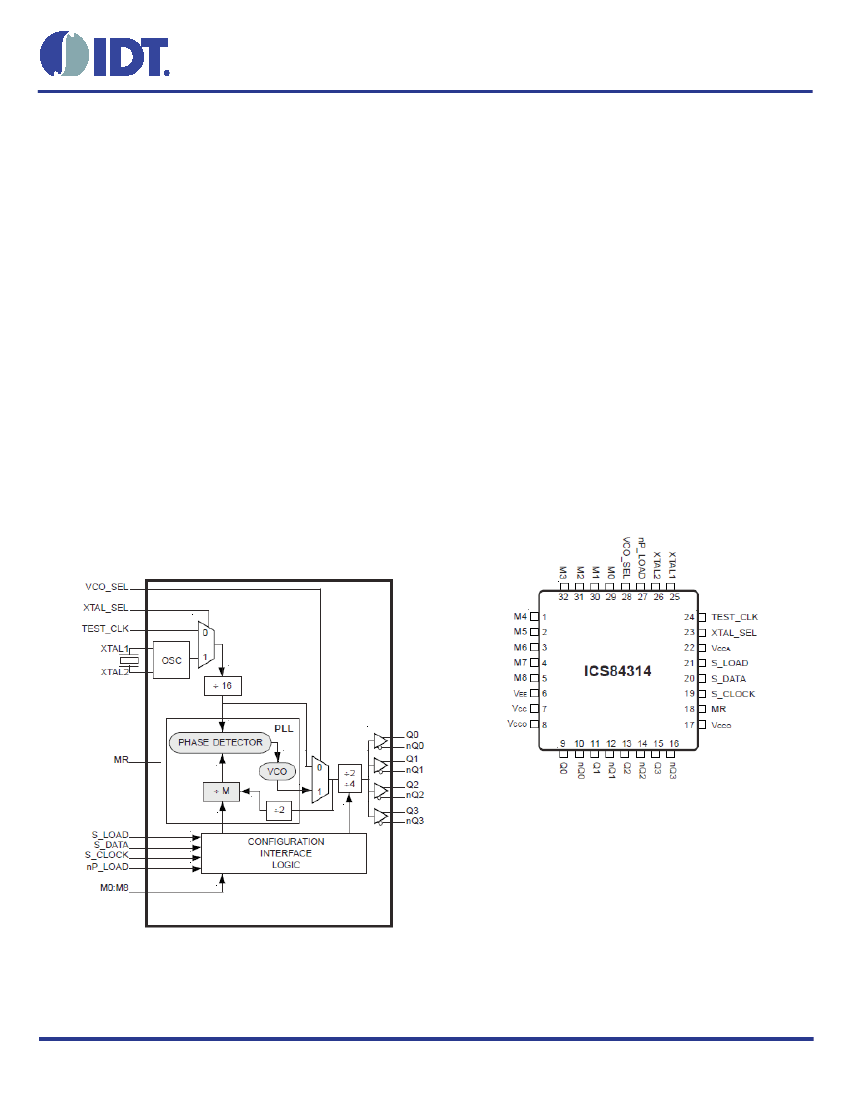

Preview

Download Datasheet

View All

350MHz, Crystal-to-3.3V/2.5V LVPECL

Frequency Synthesizer W/Fanout Buffer

Data Sheet

84314

ENERAL

ESCRIPTION

The 84314 is a general purpose quad output frequency

synthesizer and a member of the family of High Performance Clock

Solutions from IDT. When the device uses parallel loading, the

M bits are programmable and the output divider is hard-wired

for divide by 2 thus providing a frequency range of 125MHz

to 350MHz. In serial programming mode, the M bits are

programmable and the output divider can be set for either divide

by 2 or divide by 4, providing a frequency range of 62.5MHz to

350MHz. The low cycle-cycle jitter and broad frequency range

of the 84314 make it an ideal clock generator for a variety of

demanding applications which require high performance.

EATURES

•

Fully integrated PLL

•

4 differential 3.3V or 2.5V LVPECL outputs

•

Selectable crystal oscillator interface

or LVCMOS TEST_CLK input

•

Output frequency range: 62.5MHz to 350MHz

•

VCO range: 250MHz to 700MHz

•

Parallel interface for programming counter

and output dividers during power-up

•

Serial 3 wire interface

•

Cycle-to-cycle jitter: 23ps (typical)

•

Output skew: 16ps (typical)

•

Output duty cycle: 49% < odc < 51%, fout

≤

125MHz

•

Full 3.3V or mixed 3.3V core, 2.5V operating supply

•

0°C to 85°C ambient operating temperature

•

Lead-Free package available

LOCK

IAGRAM

SSIGNMENT

32-Lead LQFP

7mm x 7mm x 1.4mm package body

Y Package

Top View

Revision C

January 8, 2016
