74ACT541PC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> logic> 74ACT541PC

74ACT541PC: DescriptionBuffers & Line Drivers Octal Buf/Line Drv; Categorysemiconductor logic; File Size340KB，11 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric View All

74ACT541PC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74ACT541PC	-	-	View	Buy Now

74ACT541PC Overview

Buffers & Line Drivers Octal Buf/Line Drv

74ACT541PC Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ON Semiconductor
Product Category	Buffers & Line Drivers
RoHS	Details
Number of Input Lines	8 Input
Number of Output Lines	3 Output
Polarity	Non-Inverting
Supply Voltage - Max	5.5 V
Supply Voltage - Min	4.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	Through Hole
Package / Case	PDIP-20
Packaging	Tube
Function	Buffer/Line Driver
Height	3.43 mm (Max)
Length	26.92 mm (Max)
Output Type	3-State
Quiescent Current	4 uA
Technology	CMOS
Width	7.11 mm (Max)
Logic Family	ACT
Logic Type	CMOS
Number of Channels	8
Supply Current - Max	4 uA
High Level Output Current	- 24 mA
Input Signal Type	Single-Ended
Low Level Output Current	24 mA
Operating Supply Voltage	4.5 V to 5.5 V
Propagation Delay Time	7 ns at 5 V
Factory Pack Quantity	18
Unit Weight	0.079719 oz

Preview

Download Datasheet

View All

74AC541, 74ACT541 — Octal Buffer/Line Driver with 3-STATE Outputs

January 2008

74AC541, 74ACT541

Octal Buffer/Line Driver with 3-STATE Outputs

Features

■

and I

reduced by 50%

■

3-STATE outputs

■

Inputs and outputs opposite side of package, allowing

General Description

The 74AC541 and 74ACT541 are octal buffer/line

drivers designed to be employed as memory and

address drivers, clock drivers and bus oriented transmitter/

receivers.

These devices are similar in function to the 74AC244

and 74ACTC244 while providing flow-through architec-

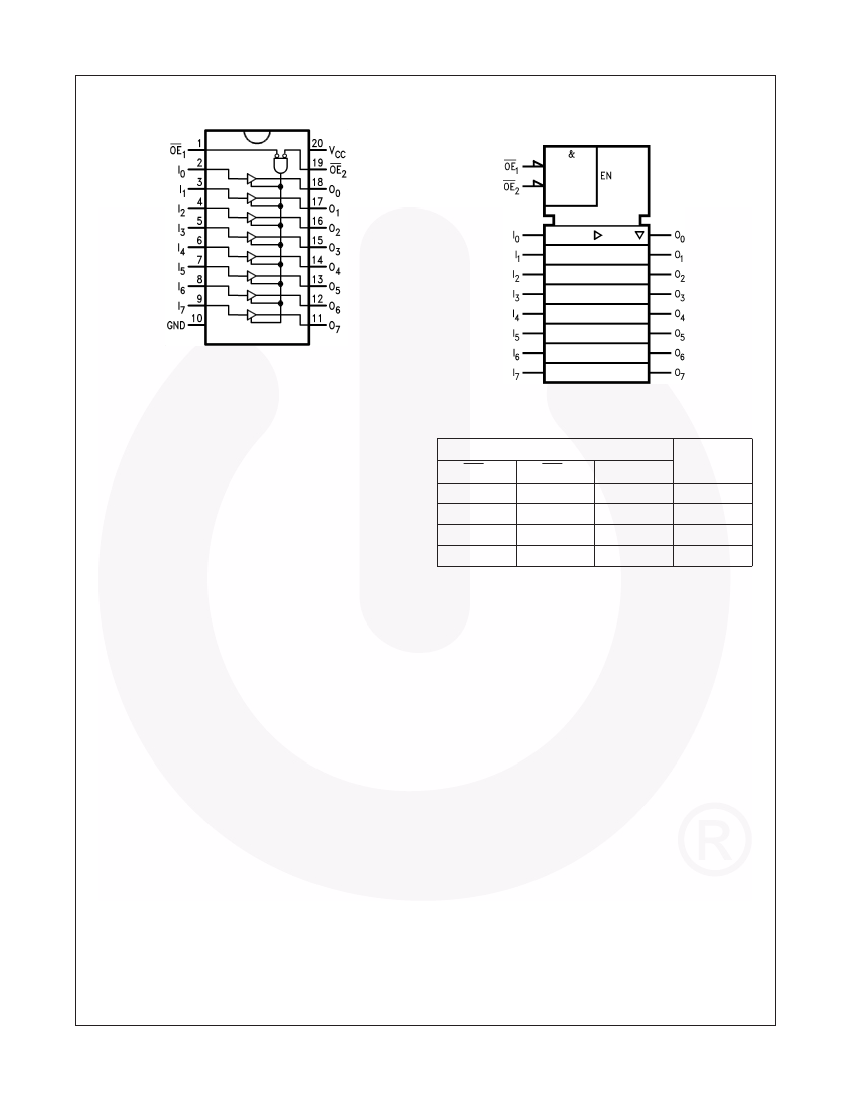

ture (inputs on opposite side from outputs). This pinout

arrangement makes these devices especially useful as

an output port for microprocessors, allowing ease of

layout and greater PC board density.

easier interface to microprocessors

■

Output source/sink 24mA

■

74AC541 is a non-inverting option of the 74AC540

■

74ACT541 has TTL-compatible inputs

Ordering Information

Order Number

74AC541SC

74AC541SJ

74AC541MTC

74AC541PC

74ACT541SC

74ACT541MTC

Package

Number

M20B

M20D

MTC20

N20A

M20B

MTC20

Package Description

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide

20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm

Wide

20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide

20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm

Wide

Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering number.

All packages are lead free per JEDEC: J-STD-020B standard.

74AC541, 74ACT541 Rev. 1.5.0

www.fairchildsemi.com
