SKNH56/16E: Description95 A, 1200 V, SCR; CategoryAnalog mixed-signal IC Trigger device; File Size232KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SKNH56/16E Overview

95 A, 1200 V, SCR

SKNH56/16E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	FLANGE MOUNT, R-XUFM-X4
Contacts	4
Manufacturer packaging code	CASE A 7
Reach Compliance Code	compli
ECCN code	EAR99
Other features	HIGH RELIABILITY, UL RECOGNIZED
Shell connection	ISOLATED
Configuration	SINGLE WITH BUILT-IN DIODE
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	G
Description of screw terminals	2K-CA
Maximum holding current	250 mA
JESD-30 code	R-XUFM-X4
JESD-609 code	e2
Maximum leakage current	15 mA
On-state non-repetitive peak current	1500 A
Number of components	1
Number of terminals	4
Maximum on-state current	50000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	95 A
Off-state repetitive peak voltage	1600 V
Repeated peak reverse voltage	1600 V
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

Preview

Download Datasheet

View All

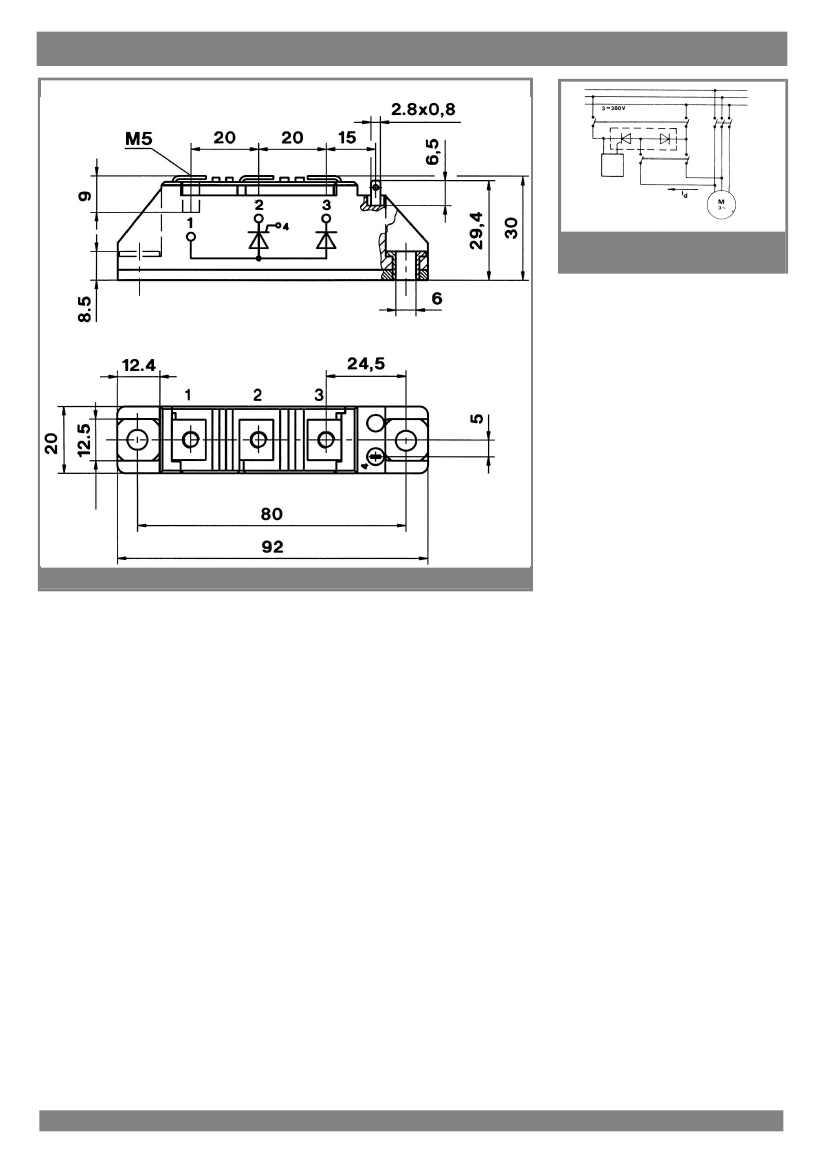

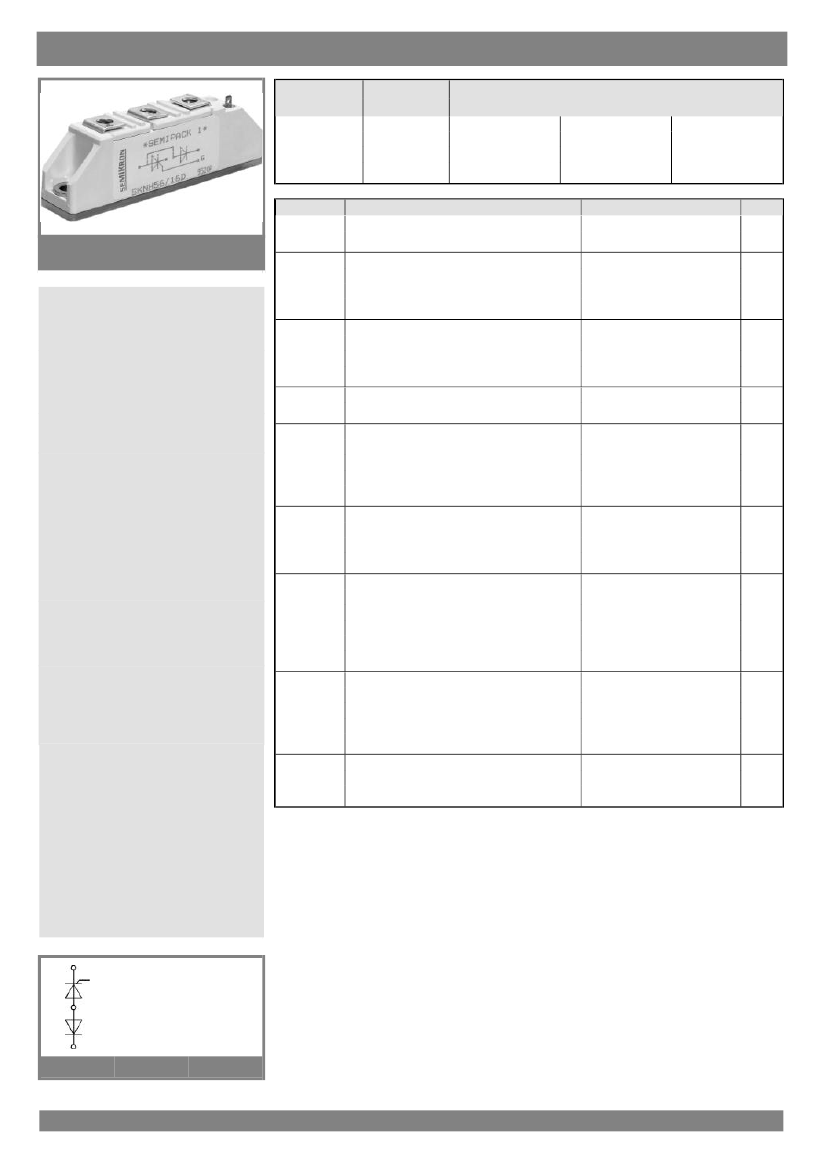

SKNH 56

Symbol

Conditions

Values

Units

SEMIPACK

®

1

Modules with Thyristor

and Free-Wheeling Diode

SKNH 56

Features

Typical Applications

SKNH

1

28-08-2003 SCT

SKNH56/16E Related Products

	SKNH56/16E	SKNH56	SKNH56/12E	SKNH56/14E	SKNH56/18E
Description	95 A, 1200 V, SCR	95 A, 1200 V, SCR	95 A, 1200 V, SCR	95 A, 1200 V, SCR	95 A, 1200 V, SCR
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Number of components	1	1	1	1	1
Number of terminals	4	4	4	4	4
Off-state repetitive peak voltage	1600 V	1200 V	1200 V	1400 V	1800 V
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	conform to	conform to	conform to
Maker	SEMIKRON	-	SEMIKRON	SEMIKRON	SEMIKRON
package instruction	FLANGE MOUNT, R-XUFM-X4	-	FLANGE MOUNT, R-XUFM-X4	FLANGE MOUNT, R-XUFM-X4	FLANGE MOUNT, R-XUFM-X4
Contacts	4	-	4	4	4
Manufacturer packaging code	CASE A 7	-	CASE A 7	CASE A 7	CASE A 7
Reach Compliance Code	compli	-	compli	compli	compli
Other features	HIGH RELIABILITY, UL RECOGNIZED	-	HIGH RELIABILITY, UL RECOGNIZED	HIGH RELIABILITY, UL RECOGNIZED	HIGH RELIABILITY, UL RECOGNIZED
Configuration	SINGLE WITH BUILT-IN DIODE	-	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Maximum DC gate trigger current	150 mA	-	150 mA	150 mA	150 mA
Maximum DC gate trigger voltage	3 V	-	3 V	3 V	3 V
Quick connection description	G	-	G	G	G
Description of screw terminals	2K-CA	-	2K-CA	2K-CA	2K-CA
Maximum holding current	250 mA	-	250 mA	250 mA	250 mA
JESD-30 code	R-XUFM-X4	-	R-XUFM-X4	R-XUFM-X4	R-XUFM-X4
JESD-609 code	e2	-	e2	e2	e2
Maximum leakage current	15 mA	-	15 mA	15 mA	15 mA
On-state non-repetitive peak current	1500 A	-	1500 A	1500 A	1500 A
Maximum on-state current	50000 A	-	50000 A	50000 A	50000 A
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C
Package body material	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	95 A	-	95 A	95 A	95 A
Repeated peak reverse voltage	1600 V	-	1200 V	1400 V	1800 V
surface mount	NO	-	NO	NO	NO
Terminal surface	Tin/Silver (Sn/Ag)	-	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	-	SCR	SCR	SCR
