MC74ACT241DTR2G

Description
Buffers & Line Drivers 5V Octal 3-State
Categorylogic    logic
File Size84KB,7 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric View All

MC74ACT241DTR2G Online Shopping

Suppliers Part Number Price MOQ In stock
MC74ACT241DTR2G - - View Buy Now

MC74ACT241DTR2G Overview

Buffers & Line Drivers 5V Octal 3-State

MC74ACT241DTR2G Parametric

Parameter NameAttribute value
Brand NameON Semiconductor
Is it lead-free?Lead free
Parts packaging codeTSSOP
package instructionTSSOP, TSSOP20,.25
Contacts20
Manufacturer packaging code9.48
Reach Compliance Codecompliant
Factory Lead Time20 weeks
Other featuresOUTPUT ENABLE ACTIVE HIGH FOR ONE FUNCTION
Control typeENABLE LOW/HIGH
seriesACT
JESD-30 codeR-PDSO-G20
JESD-609 codee4
length6.5 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeBUS DRIVER
MaximumI(ol)0.024 A
Humidity sensitivity level1
Number of digits4
Number of functions2
Number of ports2
Number of terminals20
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Encapsulate equivalent codeTSSOP20,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
method of packingTAPE AND REEL
Peak Reflow Temperature (Celsius)260
power supply5 V
Prop。Delay @ Nom-Sup10 ns
propagation delay (tpd)10 ns
Certification statusNot Qualified
Maximum seat height1.2 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceNickel/Palladium/Gold (Ni/Pd/Au)
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
Maximum time at peak reflow temperature40
width4.4 mm
Base Number Matches1

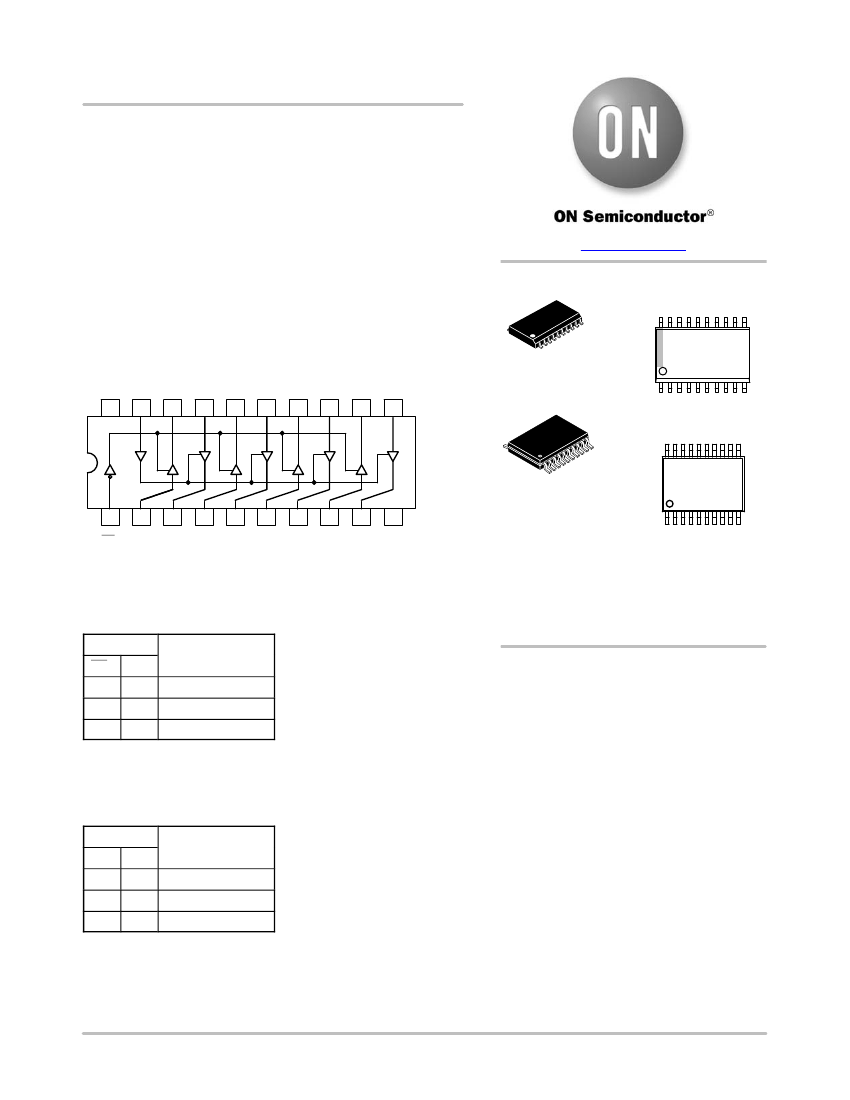

MC74ACT241
Octal Buffer/Line Driver
with 3-State Outputs
The MC74ACT241 is an octal buffer and line driver designed to be
employed as a memory address driver, clock driver and bus oriented
transmitter or receiver which provides improved PC board density.
Features
www.onsemi.com
MARKING
DIAGRAMS
20
1
DB
3
15
YA
3
14
DB
2
13
YA
4
12
DB
1
11
ACT241
AWLYYWWG
1
3−State Outputs Drive Bus Lines or Buffer Memory Address
Registers
Outputs Source/Sink 24 mA
TTL Compatible Inputs
These are Pb−Free Devices
V
CC
20
OE
2
19
YA
1
18
DB
4
17
YA
2
16
SOIC−20W
DW SUFFIX
CASE 751D
20
1
1
OE
1
2
DA
1
3
YB
4
4
DA
2
5
YB
3
6
DA
3
7
YB
2
8
DA
4
9
YB
1
10
GND
A
= Assembly Location
WL, L
= Wafer Lot
YY, Y
= Year
WW, W = Work Week
G or
G
= Pb−Free Package
(Note: Microdot may be in either location)
TSSOP−20
DT SUFFIX
CASE 948E
ACT
241
ALYWG
G
1
Figure 1. Pinout: 20−Lead Packages Conductors
(Top View)
TRUTH TABLE
Inputs
OE
1
L
L
H
D
L
H
X
Outputs
(Pins 12, 14, 16, 18)
L
H
Z
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 5 of this data sheet.
H = HIGH Voltage Level
L = LOW Voltage Level
X = Immaterial
Z = High Impedance
TRUTH TABLE
Inputs
OE
2
H
H
L
D
L
H
X
Outputs
(Pins 3, 5, 7, 9)
L
H
Z
H = HIGH Voltage Level
L = LOW Voltage Level
X = Immaterial
Z = High Impedance
©
Semiconductor Components Industries, LLC, 2015
1
February, 2015 − Rev. 6
Publication Order Number:
MC74ACT241/D
