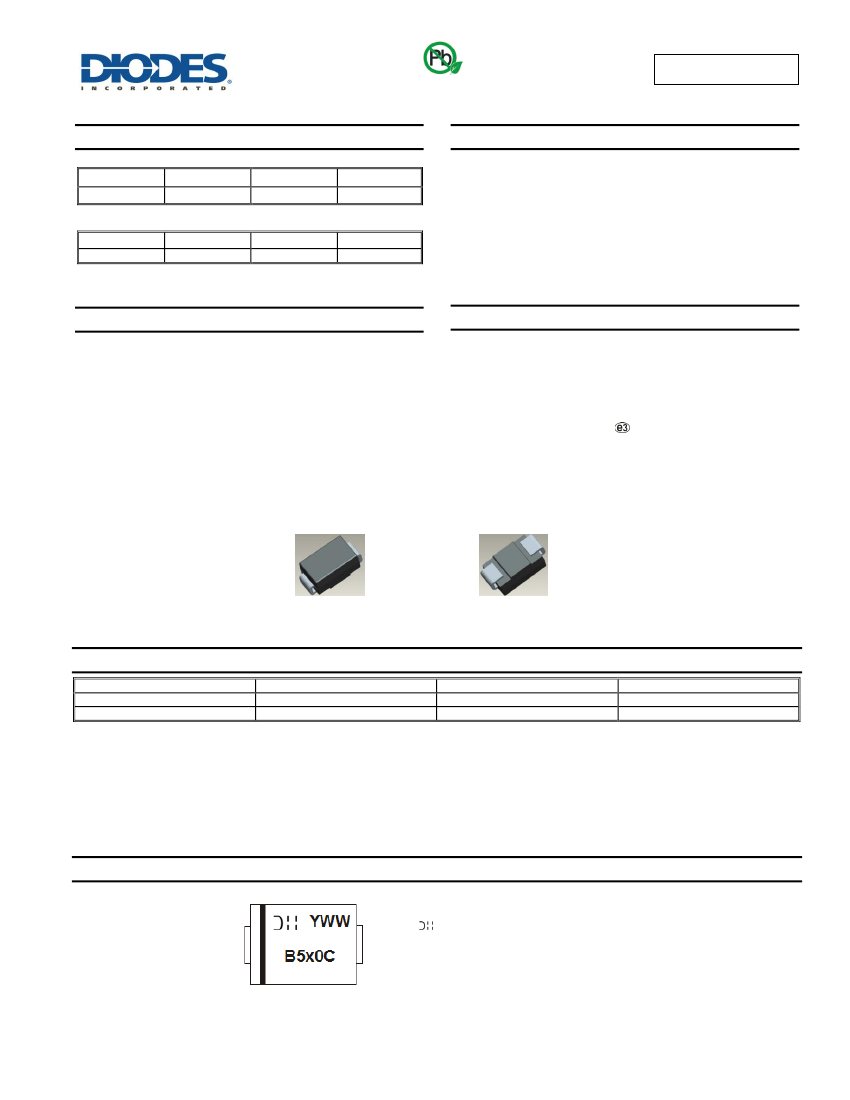

Guard Ring Die Construction for Transient Protection
Ideally Suited for Automated Assembly
Low Power Loss, High Efficiency
For Use in Low-Voltage, High-Frequency Inverters, Free
Wheeling, and Polarity Protection Application
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3)
Qualified to AEC-Q101 Standards for High Reliability
I
O
(A)
5.0
V
F max
(V)
0.70
I
R max
(mA)
0.5
Description and Applications
This Schottky Barrier Rectifier is designed to meet the general
requirements of commercial applications. It is ideally suited for use as
a:
Polarity Protection Diode
Re-Circulating Diode
Switching Diode
Mechanical Data
Case: SMC
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band or Cathode Notch
Weight: 0.21 grams (Approximate)
SMC
Top View
Bottom View
Ordering Information
(Note 4)
Part Number
B5xxC-13-F
B540CQ-13-F
* xx = Device type, e.g. B520C-13-F (SMC package).
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Compliance
Standard
Automotive
Case
SMC
SMC
Packaging
3,000/Tape & Reel
3,000/Tape & Reel
Marking Information
B5x0C = Product Type Marking Code, ex: B540C (SMC package)
