DB2U31400L

Description
Diodes - General Purpose, Power, Switching Schottky Barrier Diode
CategoryDiscrete semiconductor    diode
File Size458KB,5 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Environmental Compliance
Download Datasheet Parametric View All

DB2U31400L Online Shopping

Suppliers Part Number Price MOQ In stock
DB2U31400L - - View Buy Now

DB2U31400L Overview

Diodes - General Purpose, Power, Switching Schottky Barrier Diode

DB2U31400L Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Parts packaging codeSC-116
package instructionR-PDSO-F2
Contacts2
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeMIXER DIODE
Maximum forward voltage (VF)0.4 V
frequency bandL BAND
JESD-30 codeR-PDSO-F2
Number of components1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum output current0.03 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum repetitive peak reverse voltage30 V
surface mountYES
technologySCHOTTKY
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1
DB2U314
Silicon epitaxial planar type
For high speed switching circuits
DB27314 in USSMini2 type package
Features
Small reverse current I
R
Short reverse recovery time t
rr
Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL: Level 1 compliant)
Unit: mm
Marking Symbol: 13
Packaging
DB2U31400L Embossed type (Thermo-compression sealing): 10 000 pcs / reel (standard)
1: Cathode
2: Anode
Rating
30
30
30
150
125
–40 to +85
–55 to +125
Unit
V
V
mA
mA
°C
°C
°C
V
R
V
RM
I
F
I
FM
T
j
T
opr
T
stg

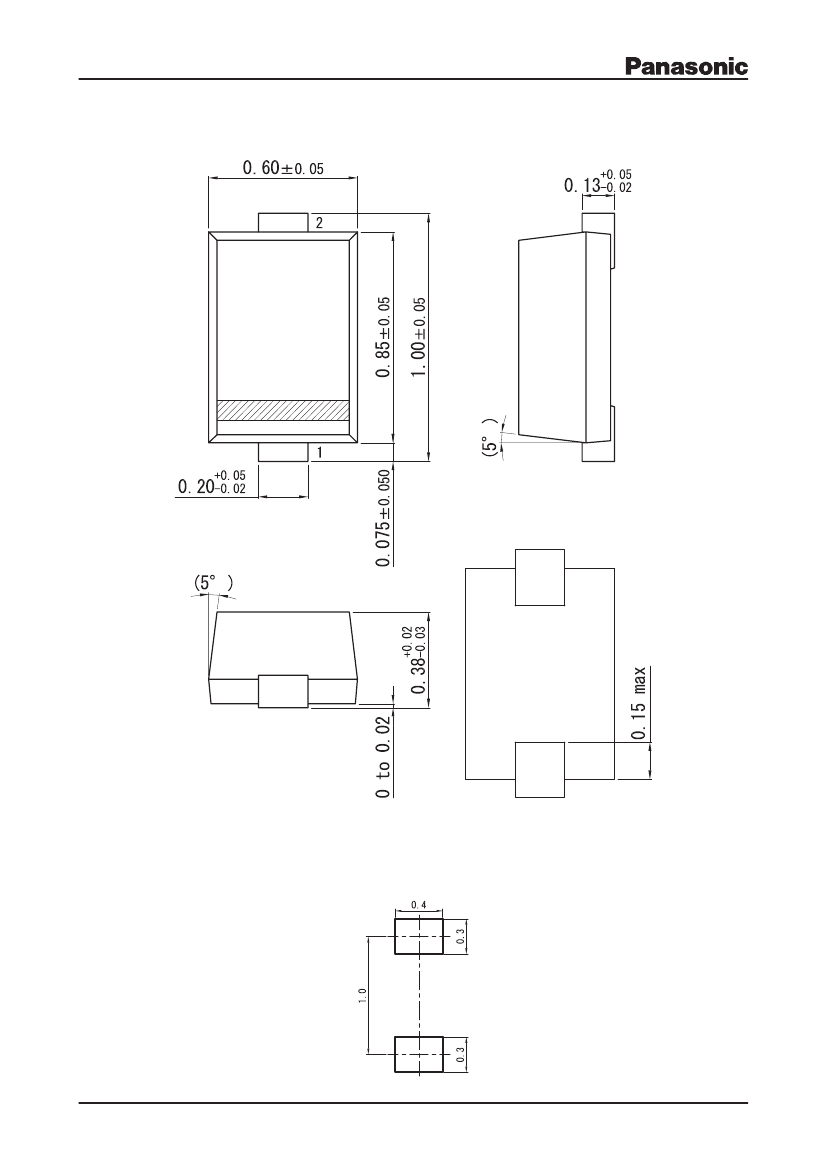

Panasonic
JEITA
Code
USSMini2-F2-B
SC-116A
SOD-923
Absolute Maximum Ratings
T
a
= 25°C
Parameter
Reverse voltage
Maximum peak reverse voltage
Forward current
Peak forward current
Junction temperature
Operating ambient temperature
Storage temperature
Symbol
Electrical Characteristics
T
a
= 25°C±3°C
Parameter
Forward voltage
Reverse current
Terminal capacitance
Reverse recovery time
*1
Symbol
V
F1
V
F2
I
R
C
t
t
rr
I
F
= 1 mA
I
F
= 30 mA
V
R
= 30 V
V
R
= 10 V, f = 1 MHz
I
F
= I
R
= 10 mA, I
rr
= 1 mA, R
L
= 100
1.5
1.0
Conditions
Min
Typ
Max
0.4
1.0
300
Unit
V
nA
pF
ns
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7031 measuring methods for diodes.
2. This product is sensitive to electric shock (static electricity, etc.). Due attention must be paid on the charge of a human body and the leakage
of current from the operating equipment.
3. Absolute frequency of input and output is 2 GHz
*1: t
rr
measurement circuit
Bias Application Unit (N-50BU)
t
r
10%
Input Pulse
t
p
t
I
F
Output Pulse
t
rr
t
I
rr
= 1 mA
A
V
R
Wave Form Analyzer
(SAS-8130)
R
i
= 50
Ver. CED
90%
t
p
= 2
µs
t
r
= 0.35 ns
δ
= 0.05
I
F
= 10 mA
I
R
= 10 mA
R
L
= 100
Pulse Generator
(PG-10N)
R
s
= 50
Publication date: April 2013
1
