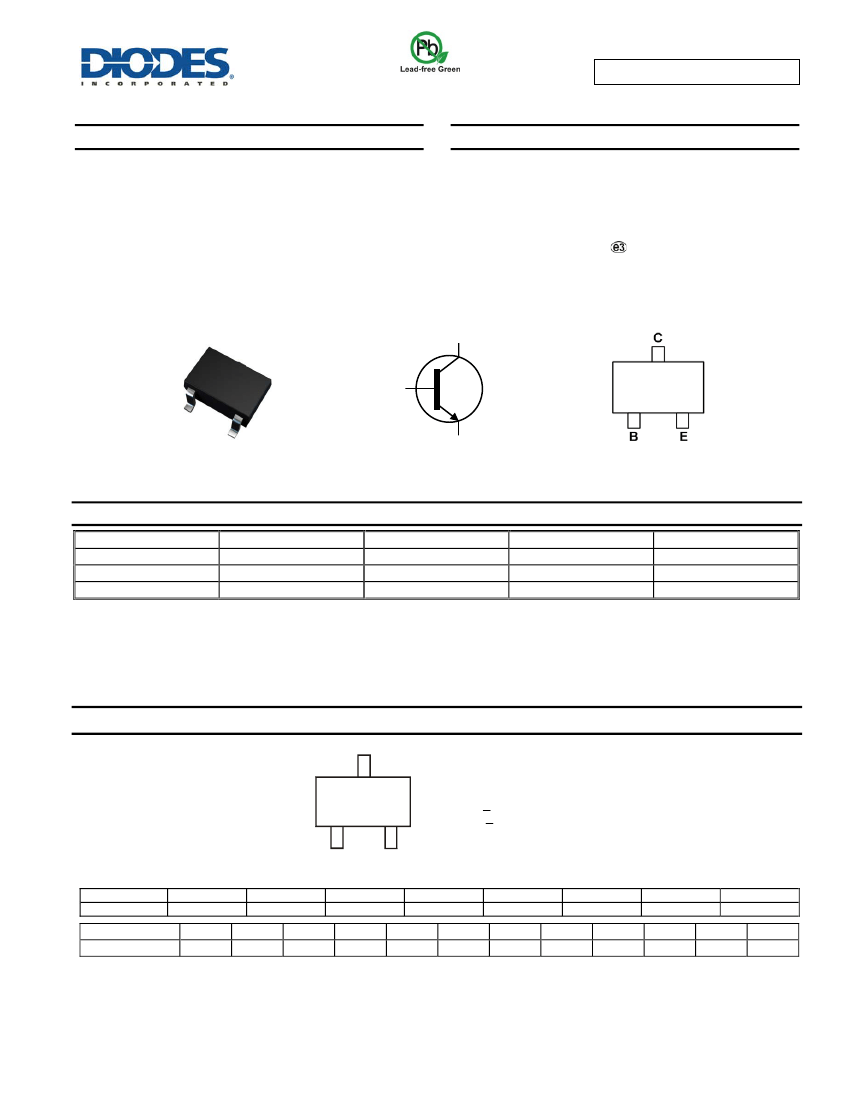

BC817-16W/-25W/-40W
45V NPN SMALL SIGNAL TRANSISTOR IN SOT23
Features
•
•
•
•
•
•
•
Ideally Suited for Automatic Insertion
Epitaxial Planar Die Construction
Complementary PNP Types: BC807-xxW
For switching and AF Amplifier Applications
Totally Lead-Free & Fully RoHS Compliant (Note 1 & 2)
Halogen and Antimony Free. "Green" Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
Case: SOT323
Case Material: molded plastic, “Green” molding compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight 0.006 grams (approximate)
SOT323
C
B
Top View
E
Device Symbol
Top View
Pin-Out
Ordering Information
(Note 4)
Product
BC817-16W-7
BC817-25W-7
BC817-40W-7
Notes:
Marking
K6A
K6B
K6C
Reel size (inches)
7
7
7
Tape width (mm)
8
8
8
Quantity per reel
3,000
3,000
3,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
xxx = Product Type Marking Code
(Please see Ordering Information)
YM = Date Code Marking
Y or Y = Year (ex: A = 2013)
M or M = Month (ex: 9 = September)
xxx
Date Code Key
Year
Code
Month
Code
2010
X
Jan
1
Feb
2
2011
Y
Mar
3
2012
Z
Apr
4
May
5
YM
2013
A
2014
B
Jul
7
Aug
8
2015
C
Sep
9
2016
D
Oct
O
Nov
N
2017
E
Dec
D
Jun
6
BC817-16W/-25W/-40W
Document Number: DS30575 Rev. 5 - 2
1 of 5
www.diodes.com
Jan 2014
© Diodes Incorporated
BC817-16W/-25W/-40W
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Collector Current
Peak Base Current
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
BM
Value
50
45
5
500
1.0
200
Unit
V
V
V
mA
A
mA
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient
Operating and Storage Temperature Range
(Note 5)
(Note 5)
Symbol
P
D
R
θJA
T
J,
T
STG
Value
200
625
-65 to +150
Unit
mW
°C/W
°C
ESD Ratings
(Note 6)
Characteristic
Electrostatic Discharge - Human Body Model
Electrostatic Discharge - Machine Model
Symbol
ESD HBM
ESD MM
Value
4,000
400
Unit
V
V
JEDEC Class
3A
C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Collector-Emitter Breakdown Voltage (Note 7)
Emitter-Base Breakdown Voltage
Collector-Emitter Cutoff Current
Collector-Base Cutoff Current
Emitter-Base Cutoff Current
BC817-16W
BC817-25W
BC817-40W
DC Current Gain (Note 7)
BC817-16W
BC817-25W
BC817-40W
Collector-Emitter Saturation Voltage (Note 7)
Base-Emitter Voltage (Note 7)
Gain Bandwidth Product
Collector-Base Capacitance
Notes:
Symbol
BV
CEO
BV
EBO
I
CES
I
CBO
I
EBO
Min
45
5
—
—
—
100
160
250
60
100
170
—
—
100
—
Typ
—
—
—
—
—
Max
—
—
100
5.0
100
5.0
100
250
400
600
—
Unit
V
V
nA
µA
nA
µA
nA
Test Condition
I
C
= 10mA
I
C
= 100µA
V
CE
= 45V
V
CE
= 25V, T
J
= +150°C
V
CE
= 20V
V
CE
= 20V, T
J
= +150°C
V
EB
= 5V
I
C
= 100mA, V
CE
= 1.0V
h
FE
—
—
I
C
= 300mA, V
CE
= 1.0V
mV
mV
MHz
pF
I
C
= 500mA, I
B
= 50mA
I
C
= 300mA, V
CE
= 1.0V
V
CE
= 5.0V, I
C
= 10mA,
f = 50MHz
V
CB
= 10V, f = 1.0MHz
V
CE(SAT)
V
BE
f
T
C
CBO
—
—
—
—
700
1200
—
12
5. For a device mounted on minimum recommended pad layout 1oz copper that is on a single-sided FR4 PCB; device is measured under still air
conditions whilst operating in a steady-state.
6. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
7. Measured under pulsed conditions. Pulse width
≤
300µs. Duty cycle
≤
2%.
BC817-16W/-25W/-40W
Document Number: DS30575 Rev. 5 - 2
2 of 5
www.diodes.com
Jan 2014
© Diodes Incorporated
BC817-16W/-25W/-40W

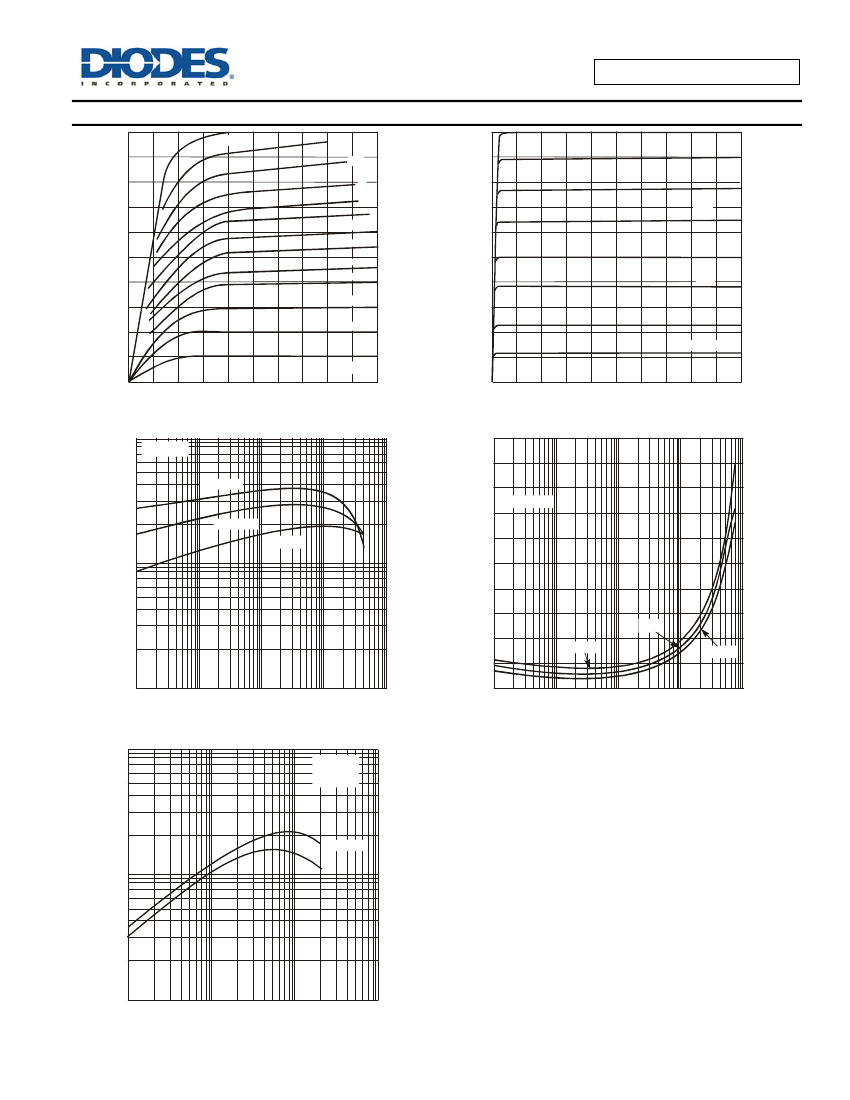

Typical Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
500
3.2
2.8
2.4
100
0.35
I
C
, COLLECTOR CURRENT (mA)
I
C
, COLLECTOR CURRENT (mA)
400
2
1.8
80
0.30
0.25
300
1.6
1.4
1.2
60
0.20
200
0.8
0.6
40
0.15
100
0.4
20
0.10
I
B
= 0.05mA
1
2
V
CE
, COLLECTOR-EMITTER VOLTAGE (V)
Figure 1 Typical Collector Current vs. Collector-Emitter Voltage
1,000
V
CE
= 1V
0
I
B
= 0.2mA
0
10
20
V
CE
, COLLECTOR-EMITTER VOLTAGE (V)
Figure 2 Typical Collector Current vs. Collector-Emitter Voltage
0.5
0
0
V
CE(SAT)
, COLLECTOR-EMITTER
SATURATION VOLTAGE (V)
T
A
=150°C
0.4
I
C
/ I
B
= 10
h
FE
, DC CURRENT GAIN
T
A
= 25°C
T
A
=-50°C
0.3
100
0.2
25
°
C
0.1
150
°
C
-50
°
C
10
0.1
100
1,000
1
10
I
C
, COLLECTOR CURRENT (mA)
Figure 3 Typical DC Current Gain vs. Collector Current
T
A
= 25
°
C
f = 20MHz
100
1,000
1
10
I
C
, COLLECTOR CURRENT (mA)
Figure 4 Typical Collector-Emitter Saturation Voltage vs. Collector Current
0
0.1
1,000
f
T
, GAIN-BANDWIDTH PRODUCT (MHz)
V
CE
= 5V
1V
100
10
100
1,000
I
C
, COLLECTOR CURRENT (mA)
Figure 5 Typical Gain-Bandwidth Product vs. Collector Current
10
1
BC817-16W/-25W/-40W
Document Number: DS30575 Rev. 5 - 2
3 of 5
www.diodes.com
Jan 2014
© Diodes Incorporated
BC817-16W/-25W/-40W

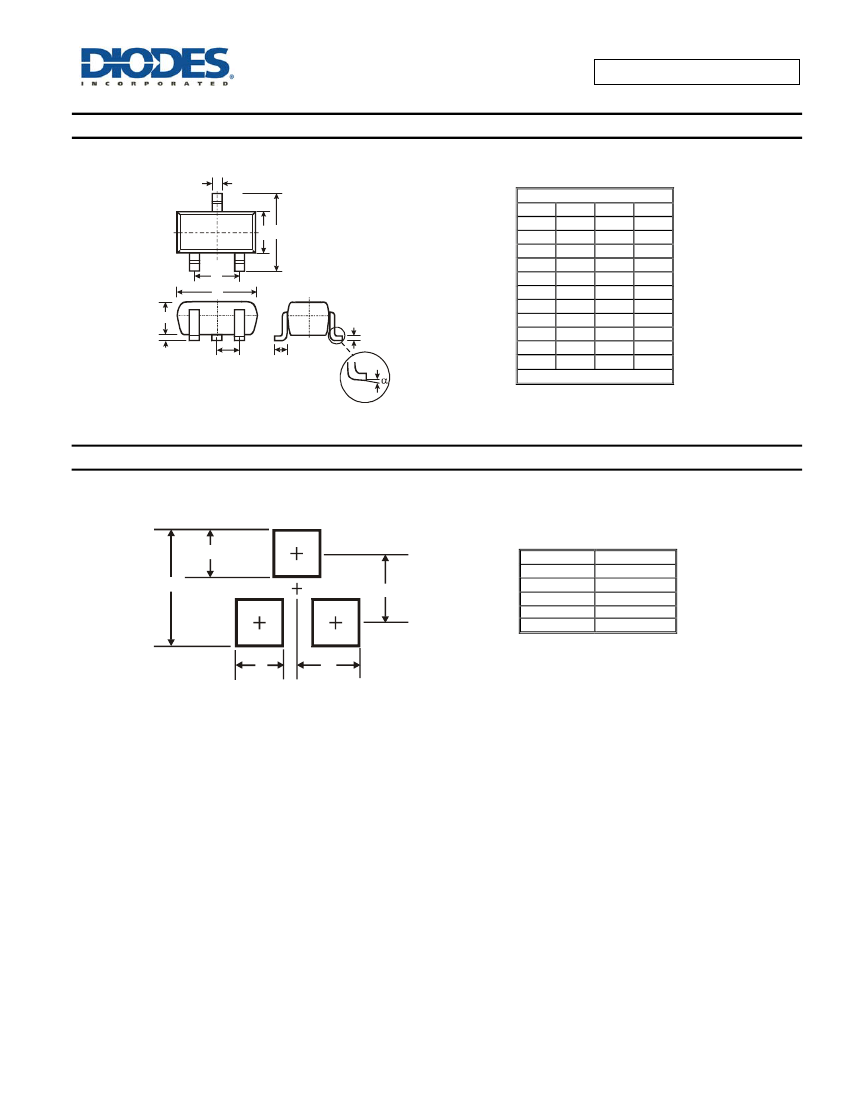

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
A
B C
G
H
K
M
J
D
L
SOT323
Dim
Min
Max
Typ
A
0.25
0.40
0.30
B
1.15
1.35
1.30
C
2.00
2.20
2.10
D
-
-
0.65
G
1.20
1.40
1.30
H
1.80
2.20
2.15
J
0.0
0.10
0.05
K
0.90
1.00
1.00
L
0.25
0.40
0.30
M
0.10
0.18
0.11
0°
8°
-
α
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
Y
Z
C
Dimensions Value (in mm)
Z
2.8
X
0.7
Y
0.9
C
E
1.9
1.0
X
E
BC817-16W/-25W/-40W
Document Number: DS30575 Rev. 5 - 2
4 of 5
www.diodes.com
Jan 2014
© Diodes Incorporated
BC817-16W/-25W/-40W
