BAT54T /AT /CT /ST
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features
•
•
•
•
•
•
•
Ultra-Small Surface Mount Package
Low Forward Voltage Drop
Fast Switching
PN Junction Guard Ring for Transient and ESD Protection
Lead Free/RoHS Compliant (Note 1)
"Green" Device (Note 2 and 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
•
•
Case: SOT-523
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
Polarity: See Diagrams Below
Weight: 0.002 grams (approximate)
Top View
BAT54T
BAT54AT
BAT54CT
BAT54ST
Ordering Information
(Note 4)
Part Number
BAT54T-7-F
BAT54AT-7-F
BAT54CT-7-F
BAT54ST-7-F
Notes:
Case
SOT-523
SOT-523
SOT-523
SOT-523
Packaging
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com.
3. Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
xx = Product Type Marking Code
L1 = BAT54T
L2 = BAT54AT
L3 = BAT54CT
L4 = BAT54ST
YM = Date Code Marking
Y = Year (ex: N = 2002)
M = Month (ex: 9 = September)
xx
YM
Date Code Key
Year
2002
Code
N
Month
Code
Jan
1
2003
P
Feb
2
2004
R
Mar
3
2005
S
2006
T
Apr
4
2007
U
May
5
2008
V
Jun
6
2009
W
Jul
7
2010
X
Aug
8
2011
Y
Sep
9
2012
Z
2013
A
Oct
O
2014
B
Nov
N
2015
C
Dec
D
BAT54T /AT /CT /ST
Document number: DS30259 Rev. 11 - 2
1 of 4
www.diodes.com
October 2010
© Diodes Incorporated
BAT54T /AT /CT /ST
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Forward Continuous Current
Repetitive Peak Forward Current
Forward Surge Current
(Note 5)
@ t < 1.0s
Symbol
V
RRM
V
RWM
V
R
I
FM
I
FRM
I
FSM
Value
30
200
300
600
Unit
V
mA
mA
mA
Thermal Characteristics
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient
Operating and Storage Temperature Range
(Note 5)
(Note 5)
Symbol
P
D
R
θ
JA
T
J
, T
STG
Value
150
833
-65 to +125
Unit
mW
°C/W
°C
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
Reverse Breakdown Voltage
(Note 6)
Symbol
V
(BR)R
Min
30
Typ
⎯
Max
⎯
240
320
400
500
1000
2.0
10
5.0
Unit
V
Test Condition
I
R
= 100μA
I
F
= 0.1mA
I
F
= 1mA
I
F
= 10mA
I
F
= 30mA
I
F
= 100mA
V
R
= 25V
V
R
= 1.0V, f = 1.0MHz
I
F
= 10mA through I
R
= 10mA
to I
R
= 1.0mA, R
L
= 100Ω
Forward Voltage
V
F
(Note 6)
I
R
C
T
t
rr
⎯
⎯
mV
Reverse Leakage Current
Total Capacitance
Reverse Recovery Time
Notes:
⎯
⎯
⎯
⎯
⎯
⎯
μA
pF
ns
5. Device mounted on FR-4 PC board with recommended pad layout, which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf.
6. Short duration pulse test used to minimize self-heating effect.
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1
100
0.1
10
1
0.01
0.1
0.001
0.01
0.0001
0.4
1.0
0.2
0.8
0
0.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

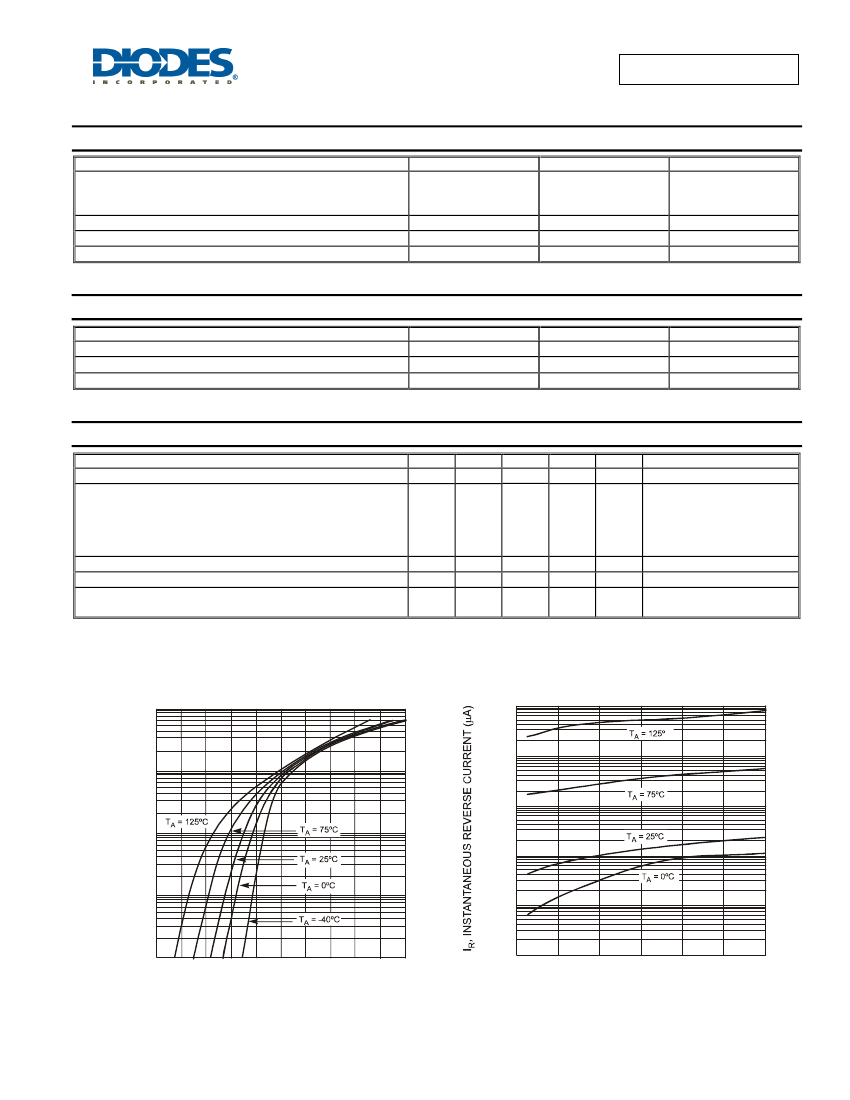

Fig. 1 Typical Forward Characteristics
0.001
0
5
10
15
20
30
25
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
BAT54T /AT /CT /ST
Document number: DS30259 Rev. 11 - 2
2 of 4
www.diodes.com
October 2010
© Diodes Incorporated
