DATASHEET
Intelligent Digital Amplifier and Sound Processor
D2-926xx
The D2-926xx family of the DAE-3™ and DAE-3HT™ Digital
Audio Engine™ devices are complete System-on Chip (SoC)
multi-channel digital sound processors and Class-D amplifier
controllers.
The integrated DSP provides efficient and configurable audio
signal path processing including equalization, dynamic range
compression, mixing, and filtering that is completely
configurable via the Audio Canvas™ III high level programming
interface. The integrated PWM engine supports programmable
and dynamic control of audio output, enabling a variety of
multi-channel output configurations and output power
capacity. Internal noise shaping, an embedded asynchronous
sample rate converter, dynamic level-dependent timing, and
high resolution operation supports power stage audio
performances with SNR >110dB and THD+N < 0.01%.
The D2-926xx devices are provided in two package and feature
configurations which include the 128-pin DAE-3, and the72-pin
DAE-3HT. Both the DAE-3 and DAE-3HT provide identical
performance and enable an extremely flexible platform for
feature rich and cost-affordable quality audio solutions, which
benefit from the addition of Class-D amplifiers and DSP audio
processing.
The 12 integrated digital PWM controllers can be used in a
variety of multi-channel audio system configurations,
supporting powered as well as line outputs. Fully protected
amplifier control provides efficient and clean Class-D power
output support.
Features
• Advanced DAE-3™ Digital Audio Engine™ IC Family
- DAE-3™ Pin Compatible and Function/Feature
Compatible with the D2Audio™ DAE-6™ Device Family
- DAE-3HT™ - Identical DAE-3 performance, in
72-QFN package
• Integrated DSP Digital Sound Processing
- Customizable audio path sound processing
- Fully configurable and routable audio signal paths and
hardware function assignment
- Fully Supported with Audio Canvas™ III Design Tool
• Flexible Audio Input and Output Configurations
- 12 Independent PWM Engine Channels
- 4 Independent Asynchronous I
2
S Digital Inputs
- Integrated high-performance stereo ADC (DAE-3 only)
- S/PDIF™ Digital Audio Inputs supporting
Linear IEC-61958 PCM or Compressed IEC-61937 Audio
- S/PDIF Digital Audio PCM Output
• Embedded 8-Channel Sample Rate Converter
• Real-Time Amplifier Control and Monitoring
- Supports Bridged, Half-Bridged, and Bridge-Tied Load (BTL)
Topologies, Using Discrete or Integrated Power Stages
- Complete Fault Protection with Automatic Recovery
• D2Audio™ SoundSuite™ Enhancement and Virtualization
• Enhanced Audio Processing Decoders And Virtualization
- Dolby
®
Digital/AC3
- Dolby
®
Pro Logic IIx
- Dolby
®
Virtual Speaker
- DTS®(SRS) TruSurround HD4™ , DTS®(SRS) WOW HD™,
DTS®(SRS) TruVolume™
Applications
• DTV and Blu-ray Soundbar
• DVD and Blu-ray Home Theater Systems
• Home Theater in a Box (HTiB)
• Audio Video Receiver (AVR)
• Multi-Channel Multi-Media (MM) Systems
• Multi-Room Distributed Audio (MRDA)
• Powered Speaker Systems
• Automotive Trunk/Amplified Solutions
May 17, 2016
FN6787.3
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
|
Copyright Intersil Americas LLC 2010-2012, 2016. All Rights Reserved
Intersil (and design) and D2Audio are trademarks owned by Intersil Corporation or one of its subsidiaries.
All other trademarks mentioned are the property of their respective owners.
D2-926xx
Ordering Information
PART
NUMBER
(Notes
3, 4)
D2-92633-LR
D2-92634-LR
D2-92683-QR (Note
2)
D2-92684-QR (Note
2)
NOTES:
1. The D2-926xx devices support multiple audio processing algorithms and decoders, and support is device-dependent. Refer to
Table 1 on page 3
for
the supported features for each device part number.
2. Add “-T” suffix for 3k unit Tape and Reel option. Please refer to
TB347
for details on reel specifications.
3. These Intersil Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100% matte
tin plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations). Intersil
Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
4. For Moisture Sensitivity Level (MSL), please see product information page for
D2-92633, D2-92634, D2-92683, D2-92684.
For more information on
MSL, please see tech brief
TB363.
DAE DEVICE
FAMILY
DAE-3
DAE-3
DAE-3HT
DAE-3HT
PART
MARKING
D2-92633-LR
D2-92634-LR
D2-92683-QR
D2-92684-QR
AUDIO PROCESSING
FEATURE SET SUPPORT
(Note
1)
Refer to
Table 1
Refer to
Table 1
Refer to
Table 1
Refer to
Table 1
TEMP. RANGE
(°C)
-10 to +85
-10 to +85
-10 to +85
-10 to +85
PACKAGE
(RoHS Compliant)
128 Ld LQFP
128 Ld LQFP
72 Ld QFN
72 Ld QFN
PKG.
DWG. #
Q128.14x14
Q128.14x14
L72.10x10F
L72.10x10F
Submit Document Feedback
2
FN6787.3
May 17, 2016
D2-926xx
DAE-3 Device Feature Set Offering
The D2-926xx family has specific part numbers to specify the features and algorithms supported in the device. All devices of the DAE-3
family include 8 audio input processing channels, up to 12 PWM output channels, an embedded 8-channel Sample Rate Converter
(SRC), and are fully supported with the Audio Canvas III™ design tool software. Additional features within each DAE-3 family part
number are shown in
Table 1.
TABLE 1. DAE-3 DEVICE PART NUMBERS AND FEATURES
PART NUMBER
D2-92633-LR
DAE FAMILY
FEATURES
LICENSED ALGORITHM SUPPORT (Note
5)
D2Audio™ SoundSuite™
DTS®(SRS) TruSurround HD4™
DTS®(SRS) WOWHD4™
DTS®(SRS) TruVolume™
D2Audio™ SoundSuite™
Dolby® Digital/AC3 Decoder
Dolby® Pro Logic IIx Surround
DAE-3
8 Channels of I
2
S or Left Justified Serial Digital Audio Inputs
128-Pin Package 8 Channels of I
2
S or Left Justified Serial Digital Audio Outputs
2 S/PDIF Digital Inputs
1 S/PDIF Digital Output
2 ADC Analog Audio Inputs
DAE-3
8 Channels of I
2
S or Left Justified Serial Digital Audio Inputs
128-Pin Package 8 Channels of I
2
S or Left Justified Serial Digital Audio Outputs
2 S/PDIF Digital Inputs
1 S/PDIF Digital Output
2 ADC Analog Audio Inputs
DAE-3HT
72-Pin Package
8 Channels of I
2
S or Left Justified Serial Digital Audio Inputs, or
6 Channels of I
2
S or Left Justified Serial Digital Audio Inputs plus
2 Channels of I
2
S or Left Justified Serial Digital Audio Outputs
1 S/PDIF Digital Input
1 S/PDIF Digital Output
8 Channels of I
2
S or Left Justified Serial Digital Audio Inputs, or 6
Channels of I
2
S or Left Justified Serial Digital Audio Inputs plus 2
Channels of I
2
S or Left Justified Serial Digital Audio Outputs
1 S/PDIF Digital Input
1 S/PDIF Digital Output
D2-92634-LR
D2-92683-QR
D2Audio™ SoundSuite™
DTS®(SRS) TruSurround HD4™
DTS®(SRS) WOWHD4™
DTS®(SRS) TruVolume™
D2Audio™ SoundSuite™
Dolby® Digital/AC3 Decoder
Dolby® Pro Logic IIx Surround
D2-92684-QR
DAE-3HT
72-Pin Package
NOTE:
5. All DAE-3 family devices support D2Audio™ SoundSuite™ Audio Processing algorithms, and with license agreements executed with DTS®(SRS) Labs,
also support DTS®(SRS) TruSurround HD4™, DTS®(SRS) WOW HD™, and DTS®(SRS) TruVolume™
Device Designations
This datasheet applies to all of the DAE-3 device family, which includes both the DAE-3 and DAE-3HT. Functional specifications apply to
both designations of this family unless otherwise indicated.
Throughout this document the device names apply to all part numbers of their respective names as follows:
DAE DEVICE NAME
DAE-3
DAE-3HT
DAE DEVICE PART NUMBERS
D2-92633-LR, D2-92634-LR
D2-92683-QR, D2-92684-QR
PACKAGE PINS
128-Pin Package
72-Pin Package
Submit Document Feedback
3
FN6787.3
May 17, 2016
D2-926xx
Table of Contents
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Device Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Thermal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Recommended Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Serial Audio Interface Port Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Two-Wire (I
2
C) Interface Port Timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
SPI™ Interface Port Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pin Configuration DAE-3 (128-Pin Package) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Pin Configuration DAE-3HT (72-Pin Package) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Pin Description, DAE-3 (128-Pin) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Pin Description DAE-3HT (72-Pin) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

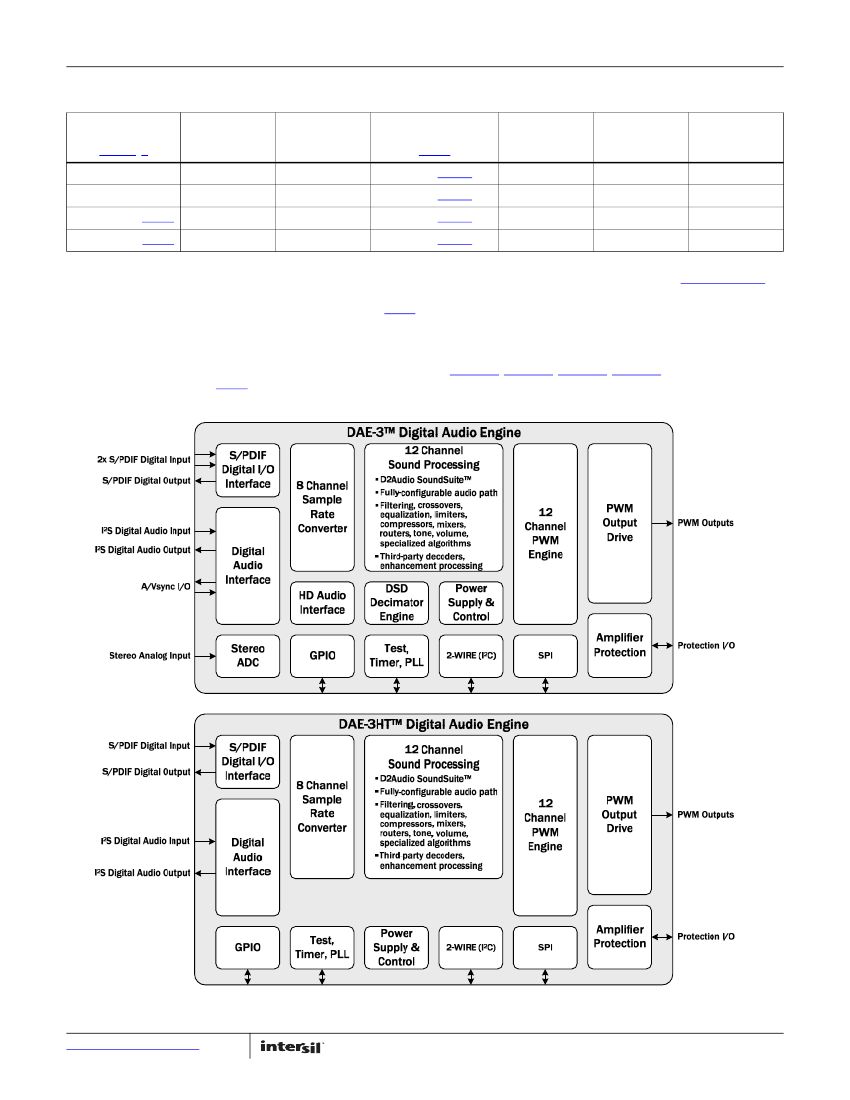

Functional Block Diagram - DAE-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Functional Block Diagram - DAE-3HT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sample Rate Converters (SRC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial Digital Audio Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
S/PDIF Digital Audio Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADC input (DAE-3 Devices Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PWM Audio Amplifier Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Amplifier Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hardware I/O Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clocks And PLL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reset and Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Sequencing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Booting and Boot Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reading and Writing Control Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio Processing Algorithms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SoundSuite™ Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Third Party Virtualization and Enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio Processing Block Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dynamic Register Addressing Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hardware Feature Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
23
23
23
25
25
25
26
26
26
26
26
27
27
27
28
29
30
30
30
31
31
DAE-3 And DAE-3HT Differences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Pin Function Mapping Between Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
I/O Pin Function Assignment Comparison . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Revision History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
About Intersil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Disclaimer for DTS®(SRS) Technology License Required Notice: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Package Outline Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
L72.10x10F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Q128.14x14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Submit Document Feedback
4
FN6787.3
May 17, 2016
D2-926xx
Absolute Maximum Ratings
(Note
10)
Thermal Information
Thermal Resistance (Typical)
JA
(°C/W)
JC
(°C/W)
128 Ld LQFP Package (Notes
6, 8)
. . . . . .
39
6.5
72 Ld QFN Package (Notes
7, 9)
. . . . . . . .
22
0.80
Maximum Storage Temperature. . . . . . . . . . . . . . . . . . . . -55°C to +150°C
Pb-Free Reflow Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see
TB493
Supply Voltage
RVDD, PWMVDD, ADCVDD . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 4.0V
CVDD, PLLVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 2.4V
Input Voltage
Any Input but XTALI . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to RVDD +0.3V
XTALI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to PLLVDD +0.3V
Input Current, Any Pin but Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . ±10mA
ESD Rating
Human Body Model (Tested per JESD22-A114F) . . . . . . . . . . . . . . 2000V
Machine Model (Tested per JESD22-A115C) . . . . . . . . . . . . . . . . . 200V
Charged Device Model (Tested per JESD22-C101E). . . . . . . . . . . . . 750V
Latch-Up
(Pins 2, 4, 6, 7, 8, 9, 37 (72 Ld Package only) Tested per JESD78D
Class II, Level B) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA
(All Other pins Tested per JESD78D Class II, Level A) . . . . . . . . . 100mA
Recommended Operating Conditions
Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -10°C to +85°C
Digital I/O Supply Voltage, PWMVDD . . . . . . . . . . . . . . . . . . . . . . . . . . .3.3V
Core Supply Voltage, CVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.8V
Analog Supply Voltage, PLLVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.8V
CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions may adversely impact product
reliability and result in failures not covered by warranty.
NOTES:
6.
JA
is measured with the component mounted on a high effective thermal conductivity test board in free air. See Tech Brief
TB379
for details.
7.
JA
is measured with the component mounted on a high effective thermal conductivity test board with direct attach of exposed pad to PCB.
8. For
JC
, the “case temp” location is taken at the package top center.
9. For
JC
, the “case temp” is measured on bottom of exposed pad.
10. Absolute Maximum parameters are not tested in production.
Electrical Specifications
T
A
= +25°C, CVDD = PLLVDD = 1.8V ±5%, RVDD = PWMVDD = 3.3V ±10%. All grounds at 0.0V. All voltages
referenced to ground. PLL at 294.912MHz, OSC at 24.576MHz, core running at 147.456MHz with typical audio data traffic. Minimum supply currents are
measured in full power down configuration.
SYMBOL
V
IH
V
IL
V
OH
PARAMETER
Digital Input High Logic Level (Note
11)
Digital Input Low Logic Level (Note
11)
High Level Output Drive Voltage
I
OUT
at - Pin Drive Strength Current. See
“Pin Description, DAE-3 (128-
Pin)” on page 12,
and
“Pin Description DAE-3HT (72-Pin)” on page 17
Low Level Output Drive Voltage
I
OUT
at + Pin Drive Strength Current. See
“Pin Description, DAE-3 (128-
Pin)” on page 12,
and
“Pin Description DAE-3HT (72-Pin)” on page 17
High Level Input Drive Voltage XTALI Pin
Low Level Input Drive Voltage XTALI Pin
Input Leakage Current (Note
12)
Input Capacitance
High Level Output Drive Voltage OSCOUT Pin
Low Level Output Drive Voltage OSCOUT Pin
Output Capacitance
nRESET Pulse Width
Typical Digital I/O Pad Ring Supply
(Voltage)
(Current, Active)
(Current, Power-Down)
PWM
VDD
Typical PWM I/O Pad Ring Supply
(Voltage)
(Current, Active)
(Current, Power-Down)
TEST
CONDITIONS
Relative to RVDD
Relative to RVDD
MIN
(Note
14)
2.0
-
RVDD - 0.4
TYP
-
-
-
MAX
(Note
14)
-
0.8
-
UNIT
V
V
V
V
OL
-
-
0.4
V
VIHX
VILX
I
IN
C
IN
VOHO
VOLO
C
OUT
t
RST
R
VDD
0.7
-
-
-
PLLVDD - 0.3
-
-
-
3.0
-
-
3.0
-
-
-
-
-
9
-
-
9
10
3.3
10
<1
3.3
5
<1
PLLVDD
0.3
±10
-
-
0.3
-
-
3.6
-
-
3.6
-
-
V
V
µA
pF
V
V
pF
ns
V
mA
mA
V
mA
mA
Submit Document Feedback
5
FN6787.3
May 17, 2016
京公网安备 11010802033920号
EEWORLD
