55935-0810 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 55935-0810

55935-0810: DescriptionHeaders & Wire Housings 2.0 WtB Plg Hsg Assy Assy RA W/Boss 8Ckt; CategoryThe connector The connector; File Size30KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

55935-0810 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	55935-0810	-	-	View	Buy Now

55935-0810 Overview

Headers & Wire Housings 2.0 WtB Plg Hsg Assy Assy RA W/Boss 8Ckt

55935-0810 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Molex MICROCLASP Series, Series Number 55935, 2mm Pitch 8 Way 1 Row Right Angle PCB Header, Solder Termination, 3A
Other features	NONE
Board mount options	PEG
body width	0.264 inch
subject depth	0.463 inch
body length	0.787 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

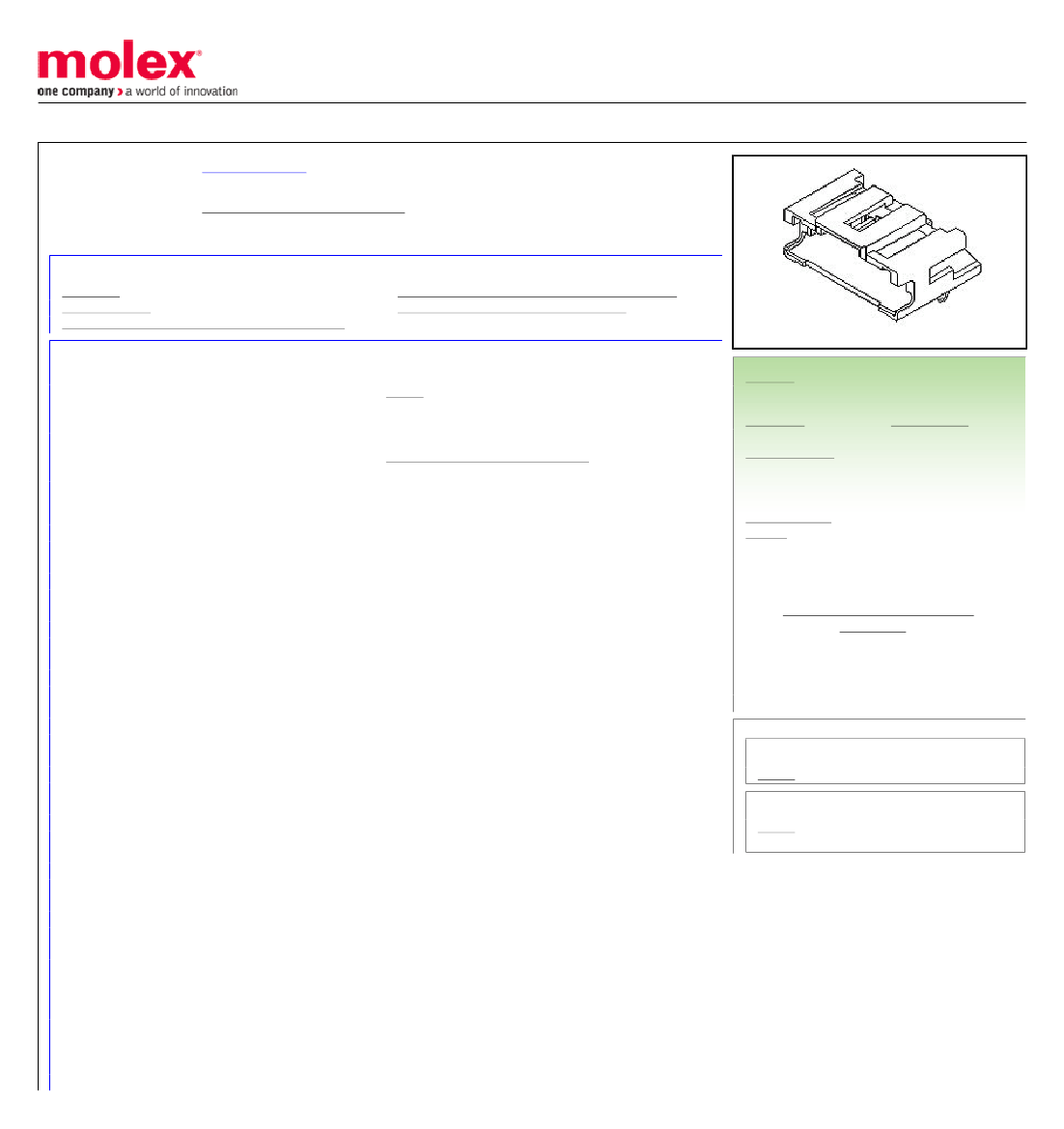

This document was generated on 02/28/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0559350810

Active

MicroClasp Wire-to-Board System

2.00mm Pitch MicroClasp Wire-to-Board Header, Single Row, Right Angle, 8 Circuits,

with PCB Locator

Documents:

3D Model

Drawing (PDF)

Product Specification PS-51382-004-001 (PDF)

General

Product Family

Series

Application

Data Load Status

Made From

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Capable

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Packaging Specification 559359200-200 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

PCB Headers

55935

Signal, Wire-to-Board

Post Go-Live Rev. Not Verified

0559350820, 0590199495

MicroClasp Wire-to-Board System

MicroClasp

800756632162

Natural

None

Yes

Tin

Polyester

830.000/mg

Right Angle

3.20mm

Yes

1.60mm

Tray

2.00mm

Fully

-25°C to +85°C

Through Hole

3.0A

250V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

55935 Series

Mates With

51382 MicroClasp Wire-to-Board Receptacle

Housing

559359200-200
