VRRAF-06-40-50-03-N datasheet, PDF

Datasheet> All Categories > The connector> The connector> VRRAF-06-40-50-03-N

VRRAF-06-40-50-03-N: DescriptionBoard to Board & Mezzanine Connectors CONNECTOR, VERSI; CategoryThe connector The connector; File Size194KB，1 Pages; ManufacturerAirBorn; Environmental Compliance

Download Datasheet Parametric Compare View All

VRRAF-06-40-50-03-N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	VRRAF-06-40-50-03-N	-	-	View	Buy Now

VRRAF-06-40-50-03-N Overview

Board to Board & Mezzanine Connectors CONNECTOR, VERSI

VRRAF-06-40-50-03-N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AirBorn
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.538 inch
subject depth	0.798 inch
body length	2.625 inch
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Durability	2500 Cycles
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	#2-56
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	6
Number of ports	1
Number of rows loaded	6
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	240
Base Number Matches	1

Preview

Download Datasheet

View All

CONTACT CUSTOMER SERVICE

CALL 512-863-5585

x6400

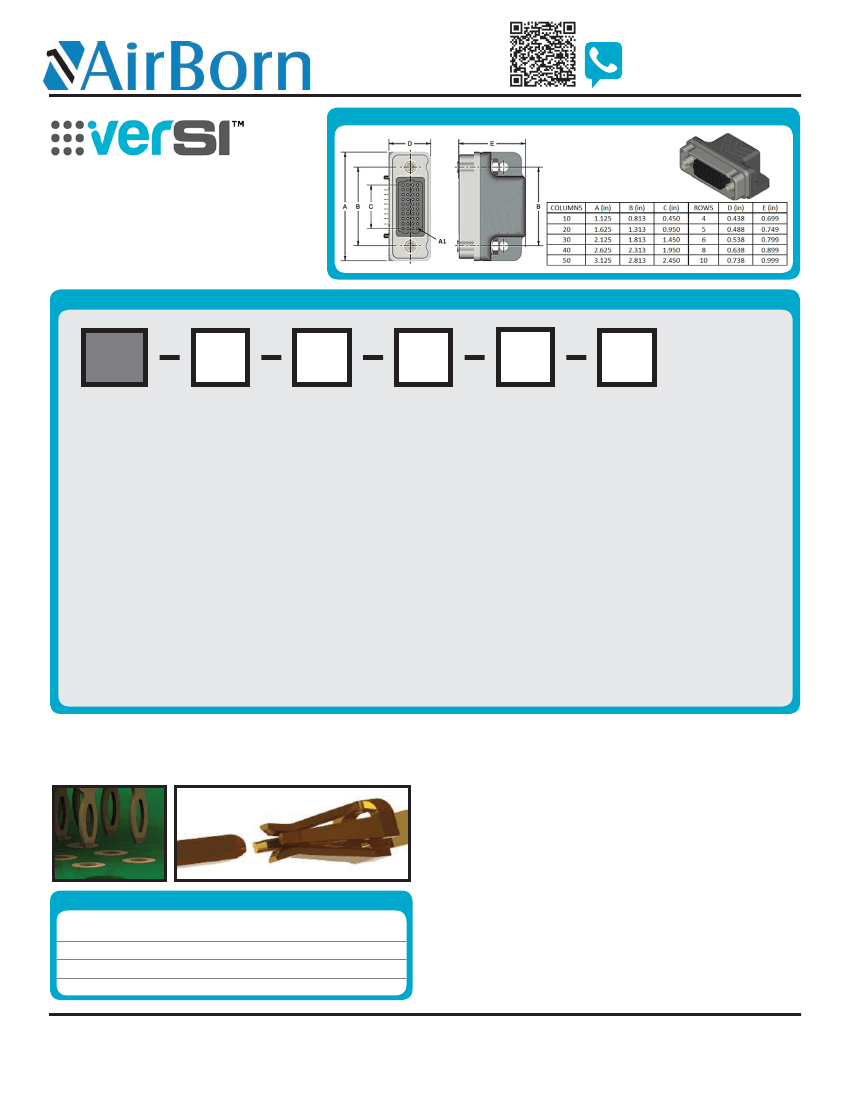

DIMENSIONS

Pitch: 1.27 mm

VRRAM signal-integrity connectors are ruggedized

versions of the standard VSRAF female connectors.

These connectors can be used in extreme

environmental conditions while maintaining high

reliability and continuous performance.

VRRAF

SERIES

Rugged Right Angle

1.27 mm

ROWS

COLUMNS

CONTACT PLATING

TERMINATION

OPTIONS

NOTES

Connector potting is standard.

PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.

FEATURES

Guide hardware is optional.

MATERIALS and FINISHES

Shell: . . . . . . . . . . . .

Finish: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

....................................

...................

..........

μIN

min

μIN

min

...........

μIN

min

Molded Insulators: . . . . . . . . . . . . . . . . .

Potting Compound: . . . . . . . . . . . . . . . . . . . . . . . . . Frey Eng. Co insulating compound CF3003-80

.....

Washers: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PERFORMANCE

Contact Rating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 amperes maximum

Operating Temperature:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55° C to 125° C

Min. Contact Wipe: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.27 mm (0.050”)

Contact Normal Force: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35–40 grams

Max Recommended Voltage: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 V, RMS, 60 Hz

Insulation Resistance: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,000 megaohms minimum @ 500 VDC

Durability:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2500 connector mating cycles

Sinusoidal Vibration: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 g (EIA-364-28, condition IV)

Shock: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 g (EIA-364-27, condition E)

www.airborn.com

VRRAF-PNB-1J

(512 ) 863-5585

VRRAF-06-40-50-03-N Related Products

	VRRAF-06-40-50-03-N	VRRAF-04-10-50-00-G	VRRAF-06-40-50-00-G	VRRAF-04-30-50-00-G	VRRAF-04-10-50-03-N	VRRAF-04-20-50-00-G	VRRAF-10-50-50-00-N	VRRAF-04-30-30-01-N
Description	Board to Board & Mezzanine Connectors CONNECTOR, VERSI	Board to Board & Mezzanine Connectors Signal Integrity Series	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors Signal Integrity Series	Board to Board & Mezzanine Connectors CONNECTOR, VERSI	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors CONNECTOR, VERSI
Is it Rohs certified?	conform to	conform to	-	-	-	conform to	conform to	conform to
Maker	AirBorn	AirBorn	-	-	-	AirBorn	AirBorn	AirBorn
Reach Compliance Code	compliant	compliant	-	-	-	compliant	compliant	compliant
ECCN code	EAR99	EAR99	-	-	-	EAR99	EAR99	EAR99
Board mount options	PEG	PEG	-	-	-	PEG	PEG	PEG
body width	0.538 inch	0.438 inch	-	-	-	0.438 inch	0.738 inch	0.438 inch
subject depth	0.798 inch	0.698 inch	-	-	-	0.698 inch	0.998 inch	0.698 inch
body length	2.625 inch	1.125 inch	-	-	-	1.625 inch	3.125 inch	2.125 inch
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	-	-	-	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	-	-	-	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	-	-	-	FEMALE	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	-	-	-	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	-	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	RND PIN-SKT	RND PIN-SKT	-	-	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Durability	2500 Cycles	2500 Cycles	-	-	-	2500 Cycles	2500 Cycles	2500 Cycles
Insulation resistance	5000000000 Ω	5000000000 Ω	-	-	-	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	-	-	-	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.05 inch	0.05 inch	-	-	-	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.05 inch	0.05 inch	-	-	-	0.05 inch	0.05 inch	0.05 inch
Installation option 1	#2-56	LOCKING	-	-	-	LOCKING	#2-56	#2-56
Installation method	RIGHT ANGLE	RIGHT ANGLE	-	-	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	-	-	-	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	-	-	-	ONE	ONE	ONE
PCB row number	6	4	-	-	-	4	10	4
Number of ports	1	1	-	-	-	1	1	1
Number of rows loaded	6	4	-	-	-	4	10	4
Maximum operating temperature	125 °C	125 °C	-	-	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-	-	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	1.27 mm	1.27 mm	-	-	-	1.27 mm	1.27 mm	1.27 mm
Plating thickness	50u inch	50u inch	-	-	-	50u inch	50u inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	-	-	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	2 A	2 A	-	-	-	2 A	2 A	2 A
reliability	COMMERCIAL	COMMERCIAL	-	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.27 mm	1.27 mm	-	-	-	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	PRESS FIT	-	-	-	PRESS FIT	PRESS FIT	SOLDER
Total number of contacts	240	40	-	-	-	80	500	120
