HTS05237682FPA20 datasheet, PDF

Datasheet> All Categories > The resistor> HTS05237682FPA20

HTS05237682FPA20: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 1 W, 1 %, 150 ppm, 76800 ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT; CategoryThe resistor; File Size99KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

HTS05237682FPA20 Overview

RESISTOR, METAL GLAZE/THICK FILM, 1 W, 1 %, 150 ppm, 76800 ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

HTS05237682FPA20 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
JESD-609 code	e1
Manufacturer's serial number	HTS
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	76800 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	150 ppm/°C
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	5000 V
Base Number Matches	1

Preview

Download Datasheet

View All

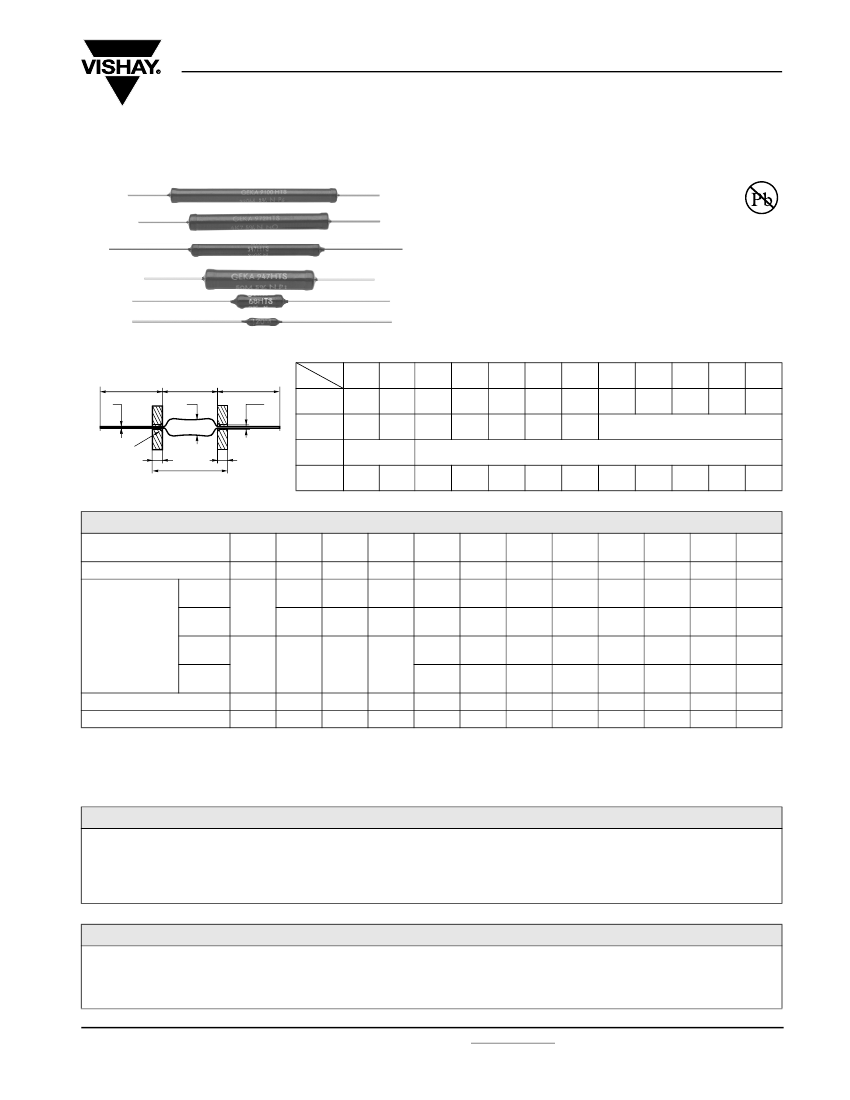

HTS

Vishay Sfernice

High Ohmic Value (up to 100 GΩ), High Voltage Resistors (up to 50 kV)

Thick Film Technology

FEATURES

•

RoHS for most values, please consult us

Core: high purity ceramic

Coating: epoxy

Termination: standard lead material is solder

coated copper

•

Climatic category: - 55 °C/+ 155 °C/56 days

•

High ohmic values: up to 100 GΩ

•

High voltage application: up to 50 kV

RoHS

COMPLIANT

DIMENSIONS

in millimeters

STYLE

25 min.

ØE

ØB

25 min.

DIM.

ØB

523

23 ± 2

547

47 ± 2

729

29 ± 2

747

47 ± 2

923

23 ± 2

932

32 ± 2

947

47 ± 2

8.5 ± 0.5

972

72 ± 2

9100

100 ± 2

Ø a ± 0.02

7 ± 0.2 8.5 ± 0.5 14 ± 1

1.6 ± 0.2 2.2 ± 0.2 3.5 ± 0.3 4.5 ± 0.3 4.5 ± 0.3 6.5 ± 0.5 6.5 ± 0.5

0.6

0.24

0.29

0.67

1.23

4.60

5.27

7.18

0.8

7.18

45° chamfer

max. 0.25 mm deep

L max.

Ø E ± 0.1

Weight in g

7.18

TECHNICAL SPECIFICATIONS

SERIES AND STYLES

Power Rating at + 70 °C

Ohmic Range

in Relation to

• Temperature

Coefficient

± 150 ppm/°C

± 0.5 %

• Tolerance

±1%

±2%

±5%

± 10 %

HTS

0.25 W

200

100 MΩ

HTS

0.5 W

1 kΩ

100 MΩ

1 kΩ

250 MΩ

1 kΩ

500 MΩ

1 kV

2 MΩ

HTS

1 kΩ

100 MΩ

1 kΩ

500 MΩ

1 kΩ

2.5 GΩ

2 kV

4 MΩ

HTS

523

1 kΩ

100 MΩ

1 kΩ

500 MΩ

1 kΩ

5 GΩ

5 kV

25 MΩ

HTS

547

1.5 W

1 kΩ

100 MΩ

1 kΩ

1 GΩ

1 kΩ

10 MΩ

1 kΩ

50 GΩ

15 kV

150 MΩ

HTS

729

1 kΩ

100 MΩ

1 kΩ

1 GΩ

1 kΩ

10 MΩ

1 kΩ

15 GΩ

10 kV

50 MΩ

HTS

747

2.5 W

1 kΩ

100 MΩ

1 kΩ

1 GΩ

1 kΩ

10 MΩ

1 kΩ

30 GΩ

15 kV

90 MΩ

HTS

923

1 kΩ

100 MΩ

1 kΩ

1 GΩ

1 kΩ

10 MΩ

1 kΩ

15 GΩ

8 kV

32 MΩ

HTS

932

2.5 W

1 kΩ

100 MΩ

1 kΩ

1 GΩ

1 kΩ

10 MΩ

1 kΩ

30 GΩ

15 kV

90 MΩ

HTS

947

1 kΩ

100 MΩ

1 kΩ

1 GΩ

1 kΩ

10 MΩ

1 kΩ

50 GΩ

20 kV

133.3 MΩ

HTS

972

1 kΩ

100 MΩ

1 kΩ

1 GΩ

1 kΩ

10 MΩ

1 kΩ

100 GΩ

30 kV

225 MΩ

HTS

9100

1 kΩ

100 MΩ

1 kΩ

1 GΩ

1 kΩ

10 MΩ

1 kΩ

100 GΩ

50 kV

500 MΩ

1 kΩ

200 MΩ

0.5 kV

1 MΩ

Limiting Element Voltage

Critical Resistance

MARKING

GEKA trade-mark, series, style, nominal resistance (in

Ω),

tolerance (in %), letter P for TCR ± 150 ppm/°C, manufacturing date.

Because of lack of space, small styles are marked with ohmic value (in

Ω),

tolerance (in %) and letter P.

ORDERING INFORMATION

HTS

MODEL

SIZE

1M27

OHMIC VALUE

0.5 %

TOLERANCE

150 ppm/°C

TEMPERATURE

COEFFICIENT

P: Standard: ± 150 ppm/°C

AM500

PACKAGING

LEAD (Pb)-FREE

SAP PART NUMBERING GUIDELINES

HTS

MODEL

0063

SIZE

1274

RESISTANCE VALUE

TOLERANCE

TEMPERATURE

COEFFICIENT

A20

PACKAGING

Document Number: 52014

Revision: 22-Nov-06

For technical questions, contact: sfer@vishay.com

www.vishay.com
