PCB terminal block - MKDS 5/ 6-7,62 - 1701488
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 32 A, Nom. voltage: 630 V, Pitch: 7.62 mm, Number of positions: 6,
Connection method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB
connection direction: 0 °, Color: green

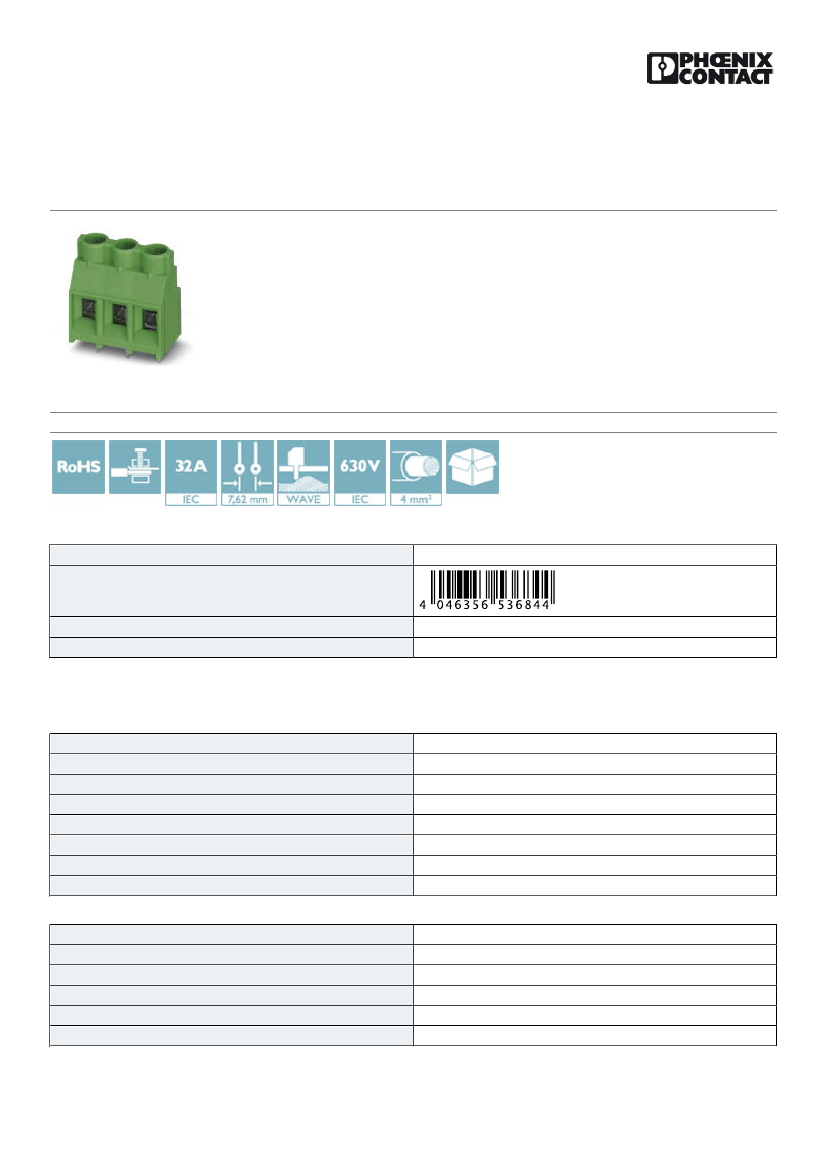

The figure shows the 3-pos. product
version
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4046356536844
85369010
50 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Constructional height
Height
Length of the solder pin
Pin dimensions
Hole diameter
19.05 mm
7.62 mm
38.1 mm
22 mm
21.5 mm
5.1 mm
0,9 x 0,9 mm
1.3 mm
General
Range of articles
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
MKDS 5
6 kV
6 kV
6 kV
500 V
630 V
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1701488
PCB terminal block - MKDS 5/ 6-7,62 - 1701488
Technical data
General
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Solder pin surface
Internal cylindrical gage
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
1000 V
EN-VDE
32 A
4 mm²
Sn
A4
8 mm
6
M3
0.5 Nm
0.6 Nm
Connection data
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
24
10
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
0.75 mm²
0.5 mm²
2.5 mm²
Standards and Regulations
Connection in acc. with standard
EN-VDE
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Approvals
Approvals
Approvals
EAC / cULus Recognized
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1701488
PCB terminal block - MKDS 5/ 6-7,62 - 1701488
Approvals
Ex Approvals
Approval details
EAC B.01742
cULus Recognized http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19770427
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-10
30 A
300 V
D
30-10
10 A
300 V
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/14/2016 Page 3 / 3
