3M
™
MetPak
™
2-FB Header
2 mm 4/5 Row, Vertical, Solder or Press-Fit Tail, Shouldered Pin

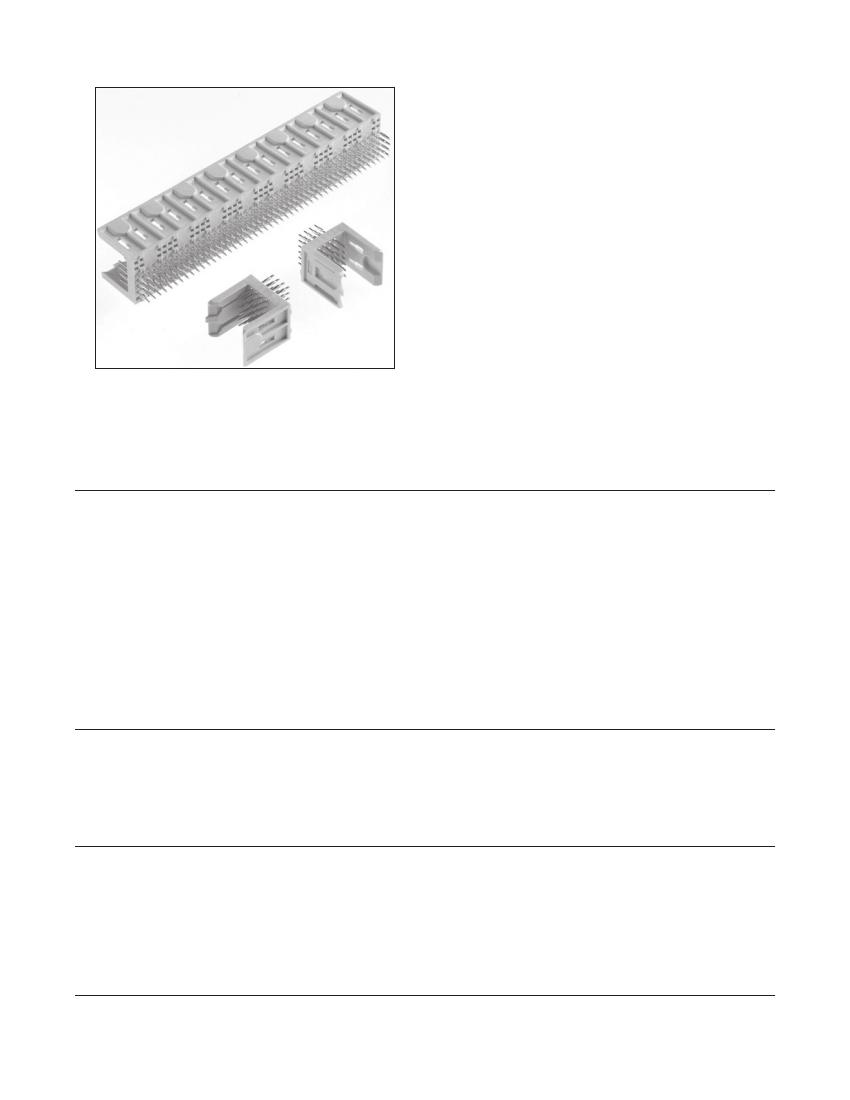

Solder Tail
• End-to-end stackable
• Select load capability
• Monoblockable
• Shoulder Pin
Press Fit
• End-to-end stackable
• Early mate late break for hot swapping (press-fit
EMLB adjusted by application tooling)
• Select load capability
• Monoblockable
• Push-on shoulder pin
• Optional feed-through tail for rear plug-up midplane
applications
• Accepts Universal Tooling
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the “RoHS compliance” section
of www.3Mconnectors.com for compliance
information (RIA E1 & C1 apply)
Date Modified: September 17, 2013
MP2 Series
TS-1120-E
Sheet 1 of 4
Physical
Material: High Temp LCP
Flammability: UL 94V-0
Color: Beige
Insulation:
Contact:
Underplating: 50 µ" [1.27 µm] Nickel
Plating:
Material: Phosphor Bronze
Wiping Area: See Ordering Information
Solder Tails: See Ordering Information
Electrical
Insulation Resistance:
10
3
MΩ
Current Rating:
Signal: 1.5 A – All contacts simultaneously
Withstanding Voltage:
1,000 V
AC
Environmental
Temperature Rating:
-55°C to +125°C
Process Temperature Rating:
260°C (Profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Header
2 mm 4/5 Row, Vertical, Solder or Press-Fit Tail, Shouldered Pin
MP2 Series

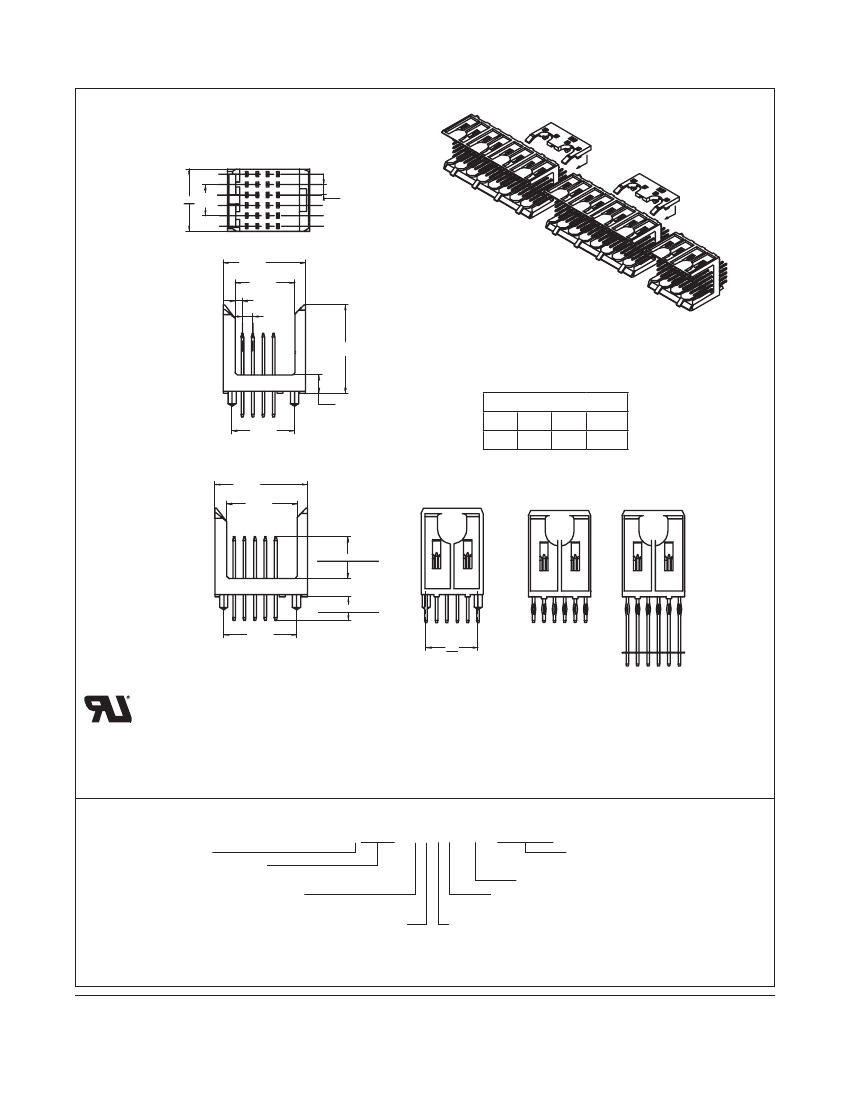

POSITION X
"A" 6.00
.236
2.00
.079
POSITION 2
POSITION 1
15.80
.622
11.50
.453
1.40
.055
2.00
.079
17.00
.669
FOR SPECIAL MONOBLOCKS
AND PIN ARRANGEMENTS
CONTACT 3M SALES
REPRESENTATIVE
mm
[inch]
3.50
.138
Tolerance Unless Noted
0
mm
±3
0.0
±0.3
0.00
±0.13
12.00
.472
4 ROW PRODUCT
17.80
.701
13.52
.532
[ ] Dimensions for
Reference Only
MATING LENGTH
"B" TAIL LENGTH
14.00
.551
E D C B A
ROW
"C"
5 ROW PRODUCT
SOLDER TAIL
PRODUCT
PRESS FIT
PRODUCT
PRESS FIT
PRODUCT
REAR
PLUG-UP
Contact 3M For Rear Plug-Up Option
Notes:
1. Refer to IEC 61076-4-104 Futurebus+
®
global standard.
2. “Press Fit” describes a contact tail having a compliant section designed to make a reliable electrical connection with a plated
through-hole (PTH) in a printed circuit board, typically a “back plane.”
Ordering Information
MP2 - HXXX - XXXX - S - XXXXX
H = Header
Pin Count
(See Table 1)
Rows
4 = 4 Rows
5 = 5 Rows
Plating Options
(See Table 4)
Shouldered Pins
Tail Length
(See Table 3)
Loading Pattern
(See Table 2)
Termination Style
P = Press-Fit
S = Solder Tail
TS-1120-E
Sheet 2 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Header
Table 1 - Connector & Row Lengths
Pin Count
024
048
072
096
120
144
168
192
030
060
090
120
150
180
210
240
Dim. “A” mm
[inch]
11.95 [0.471]
23.95 [0.943]
35.95 [1.415]
47.95 [1.889]
59.95 [2.36]
71.95 [2.833]
83.95 [3.305]
95.95 [3.778]
11.95 [0.471]
23.95 [0.943]
35.95 [1.415]
47.95 [1.888]
59.95 [2.361]
71.95 [2.833]
83.95 [3.305]
95.95 [3.778]
Dim “C” mm
[inch]
10.00 [0.394]
22.00 [0.866]
34.00 [1.339]
46.00 [1.811]
58.00 [2.283]
70.00 [2.756]
82.00 [3.228]
94.00 [3.701]
10.00 [0.394]
22.00 [0.866]
34.00 [1.339]
46.00 [1.811]
58.00 [2.283]
70.00 [2.756]
82.00 [3.228]
94.00 [3.701]
Rows
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
KV
for rear
plug-
up only
LR
Plating
Suffix
KR
2 mm 4/5 Row, Vertical, Solder or Press-Fit Tail, Shouldered Pin
Table 4 - Plating Options
Press-Fit
Tails*
(RIA E1 &
C1 apply)
Solder
Tails
(RIA E1 &
C1 apply)
MP2 Series
Plating Composition
0.76 μm [30 μ”] Min. Au Contact Area
2.54 μm [100 μ”] Min. Matt Whisker
Mitigating Sn Tail Area
1.27 μm [50 μ”] Min. Ni all over
0.08 μm [3 μ”] Min. Au Contact Area
0.67 μm [27 μ”] Min. PdNi Contact Area
2.54 μm [100 μ”] Min. Matt Whisker
Mitigating Sn Tail Area
1.27 μm [50 μ”] Min. Ni all over
0.76 µm [30 µ”] Min. Au Primary Contact Area
0.10 µm [4 µ”] Min. Au Needle Eye Area
0.10 µm [4 µ”] Min. Au Secondary Contact Area
1.27 m [50 µ”] Min. Ni all over
(RIA E1 &
C1 apply)
(RIA E1 &
C1 apply)
(RIA E1 &
C1 apply)
Table 3 - Tail Length Options
Plating Suffix
Solder Tail
1
3
*Compliant-Pin Tail
Press-Fit* Tail
1
Dim. “B”
4.60 [0.181]
2.72 [0.107]
Table 2 - Mate Length vs. Loading Pattern
Loading
Pattern
Code
1
2
3
4
5
6
7
8
9
A
B
C
D
E
G
H
J
K
Description
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
Mate length Row A
5.00 [0.197]
6.50 [0.256]
6.50 [0.256]
6.50 [0.256]
5.75 [0.226]
7.25 [0.285]
6.50 [0.256]
6.50 [0.256]
5.00 [0.197]
5.00 [0.197]
5.75 [0.226]
5.00 [0.197]
5.75 [0.226]
7.25 [0.285]
7.25 [0.285]
5.00 [0.197]
8.00 [0.315]
5.00 [0.197]
Mate length Row B
5.00 [0.197]
5.00 [0.197]
5.75 [0.226]
6.50 [0.256]
7.25 [0.285]
5.75 [0.226]
5.75 [0.226]
5.00 [0.197]
6.50 [0.256]
5.75 [0.226]
5.75 [0.226]
5.00 [0.197]
5.75 [0.226]
7.25 [0.285]
5.75 [0.226]
5.75 [0.226]
8.00 [0.315]
6.50 [0.256]
Mate length Row C
5.00 [0.197]
5.00 [0.197]
5.75 [0.226]
6.50 [0.256]
5.75 [0.226]
5.75 [0.226]
5.00 [0.197]
6.50 [0.256]
5.00 [0.197]
6.50 [0.256]
5.75 [0.226]
6.50 [0.256]
7.25 [0.285]
7.25 [0.285]
5.75 [0.226]
5.75 [0.226]
8.00 [0.315]
7.25 [0.285]
Mate length Row D
5.00 [0.197]
5.00 [0.197]
6.50 [0.256]
6.50 [0.256]
5.75 [0.226]
5.75 [0.226]
5.00 [0.197]
6.50 [0.256]
5.00 [0.197]
5.75 [0.226]
5.75 [0.226]
5.00 [0.197]
5.75 [0.226]
7.25 [0.285]
5.00 [0.197]
7.25 [0.285]
8.00 [0.315]
6.50 [0.256]
Mate length Row E
(5-Row Prod. Only)
5.00 [0.197]
5.00 [0.197]
6.50 [0.256]
6.50 [0.256]
5.75 [0.226]
5.75 [0.226]
5.00 [0.197]
6.50 [0.256]
5.00 [0.197]
5.00 [0.197]
5.75 [0.226]
5.00 [0.197]
5.75 [0.226]
7.25 [0.285]
5.00 [0.197]
7.25 [0.285]
8.00 [0.315]
5.00 [0.197]
TS-1120-E
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Header
12.00
.472
16.00
.630 MIN
2.00
.079
2.00
.079
2 mm 4/5 Row, Vertical, Solder or Press-Fit Tail, Shouldered Pin
1 6 .0 0
. 6 3 0 M IN
MP2 Series
A1
12.00
.472
"C"
12.00
.472
"D" PLATED THRU HO LE
Ø
0.10
2.00
.079
1.50
+.10
-.00
6.00
.236
UNPLATED
CENTER HOLES OPTIONAL
FOR 3M PRODUCT
Ø
.059
+.004
-.000
Ø
0.10
"D " P L A T E D T H R U H O L E
Ø
0 .1 0

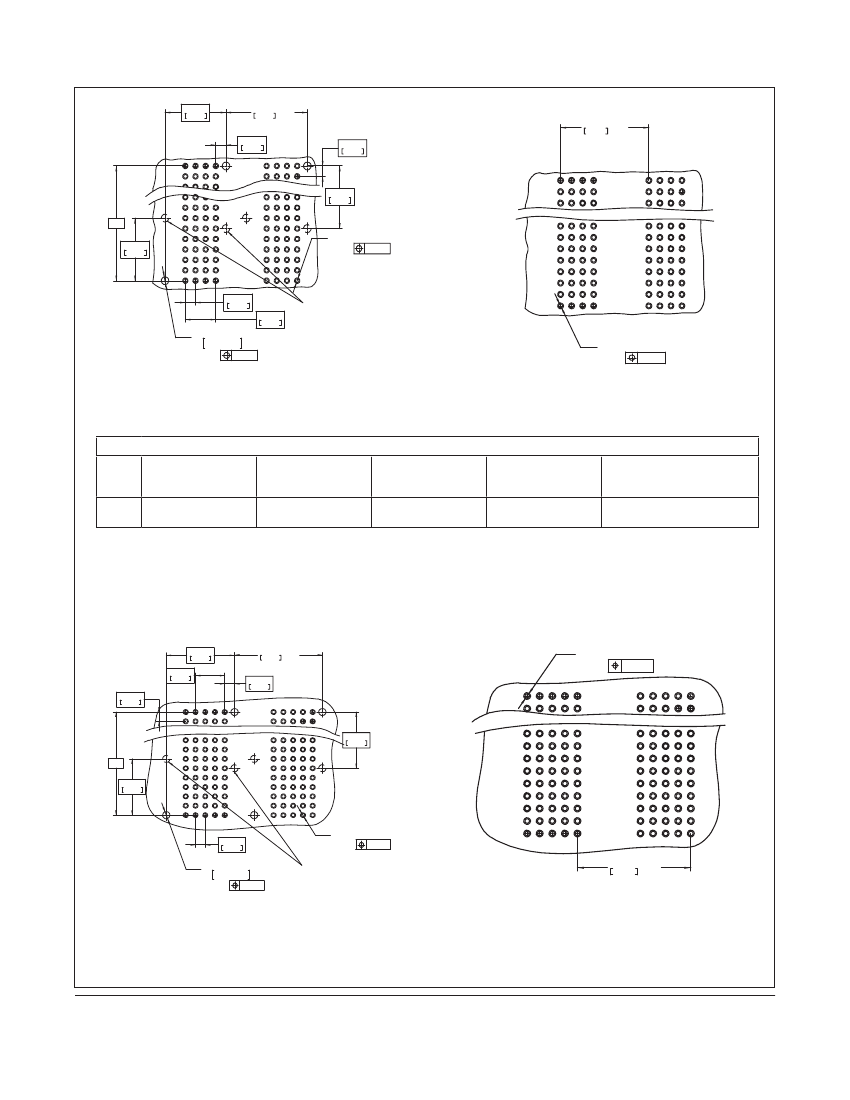

RECOMMENDED 4 ROW SOLDER
TAIL PCB HOLE MOUNTING PATTERN
RECOMMENDED 4 ROW PRESS-FIT
Table 5 - HOLE PLATING FINISHES
HOLE
Finished Dia.
MM [in]
0.700-0.800
[.0276-.0315]
Immersion Matte
Sn Thickness
microns [µ”]
0.025-0.045
[0.001-0.002]
Electrolytic Au
Thickness
microns [µ"]
0.1 - 0.5
[4 - 20]
OSP ENTEK
Thickness
microns [µ”]
0.2 - 0.5
[8 - 20]
Drilled Hole
Dia. mm [in]
0.830-0.860 [.0330-.0340] or
0.85 mm [#66] TWIST DRILL
“D”
14.00
.551
6.00
.236
2.00
.079
18.00
.709 MIN
2.00
.079
"D " P L A T E D T H R U H O L E
Ø
0 .1 0
A1
12.00
.472
"C"
12.00
.472
2.00
.079
Ø
1.50
.059
+.10
-.00
+.004
-.000
"D" PLATED THRU HOLE
Ø 0.10
CENTER HOLES OPTIONAL
FOR 3M PRODUCT
UNPLATED
1 8 .0 0
.7 0 9 M IN
Ø 0.10
RECOMMENDED 5 ROW SOLDER
TAIL PCB HOLE MOUNTING PATTERN
RECOMMENDED 5 ROW PRESS-FIT
PCB HOLE MOUNTING PATTERN
TS-1120-E
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M is a trademark of 3M Company.
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable,
but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for
your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are
not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect
unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES
NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s
option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by law, 3M will
not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
the legal theory asserted.
3
3M Electronics Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
U.S.A.
1-800-225-5373
www.3Mconnectors.com
Please recycle. Printed in USA.
© 3M 2013. All rights reserved.
RIA-2217B-E
