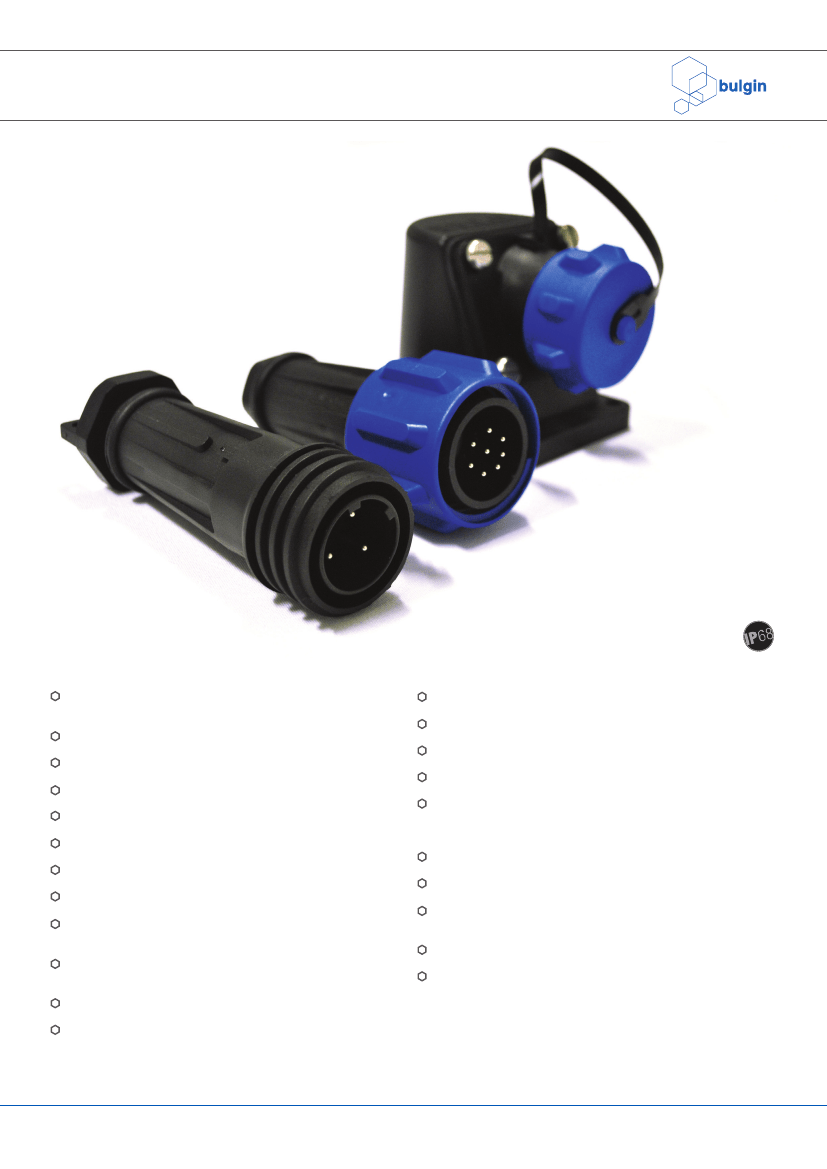

900 Series Buccaneer
BUCCANEER FOR POWER
IP68 rating tested at 1.054kg/sq cm (15lb/sq in)
10m depth for 2 weeks
IP69K, Tested in accordance with DIN 40050/Part 9 IP6k9k
32A, 600V ac/dc rating
2, 3, 4, 5, 7 and 10 pole
Plug or socket connection in each body style
Water and dustproof to IP68 when mated
‘Scoop proof’ contacts
Field termination - screw terminations
Positive locating keyways - cannot be
mis-connected
Sealing caps available to maintain IP68 rating of
unmated connectors
Leading earth contact for 3, 4, 5 and 7 pole versions
EN60068-2-52 Test Kb Salt Mist (Cyclic) Marine Severity
Level 1
Trailing Neutral on 5 pole
Compact design
Easy assembly - no special tools required
Single or 3 phase applications
Bulkhead moulding available for use with flange
mounting body for 45° or 90° mounting (order each
separately)
Cost effective solution
Cable accomodation 7-22mm O/D
Two cable connector versions for 15mm and 22mm
(maximum) cable diameters
Separate strain relief on large cable version
CCC, UL, CSA and VDE approvals
Circular Power Connectors 15
900 Series Buccaneer
Flex Cable Connector
BUCCANEER FOR POWER
PX0911

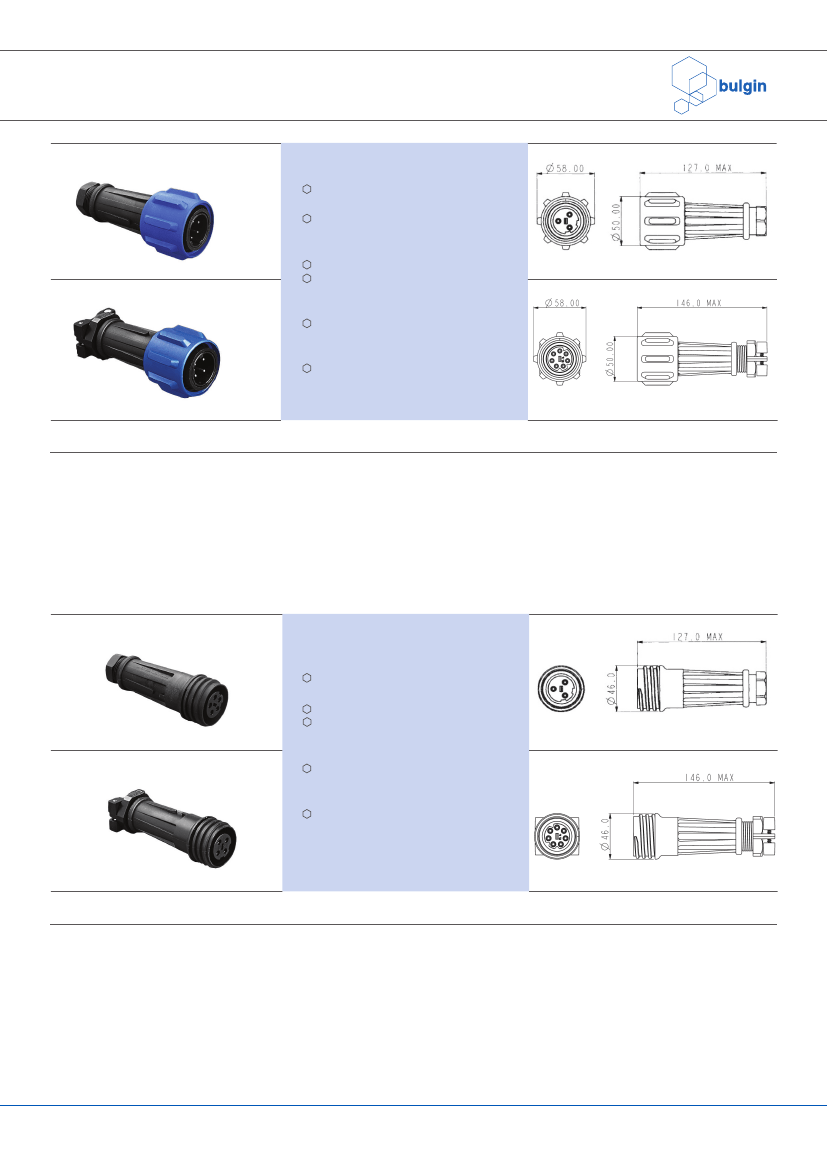

Flex Cable Connector
Mates with in-line flex or
panel mounting versions
Positive, fast acting locking
ring - can be turned with a
gloved hand
Plug or socket versions
PX0 Series13-15mm cable
dia. as standard, 7-13mm
with additional gland pack
PXA Series 20-22mm cable
dia. as standard, 14-20mm
with additional gland pack
Strain Relief Clamp
PXA911
Standard Cable
PX0911/02/P
PX0911/03/P
PX0911/04/P
PX0911/05/P
PX0911/07/P
PX0911/10/P
Large Cable
PXA911/02/P
PXA911/03/P
PXA911/04/P
PXA911/05/P
PXA911/07/P
PXA911/10/P
Description
2 pole Plug
3 pole Plug
4 pole Plug
5 pole Plug
7 pole Plug
10 pole Plug
Standard Cable
PX0911/02/S
PX0911/03/S
PX0911/04/S
PX0911/05/S
PX0911/07/S
PX0911/10/S
Large Cable
PXA911/02/S
PXA911/03/S
PXA911/04/S
PXA911/05/S
PXA911/07/S
PXA911/10/S
Description
2 pole Socket
3 pole Socket
4 pole Socket
5 pole Socket
7 pole Socket
10 pole Socket
In-Line Flex Cable Connector
PX0921
In-Line Flex Cable Connector
Mates with either PX0911 or
PXA911 connectors
Plug or socket versions
PX0 Series 13-15mm cable
dia. as standard, 7-13mm
with additional gland pack
PXA Series 20-22mm cable
dia. as standard, 14-20mm
with additional gland pack
Strain Relief Clamp
PXA921
Standard Cable
PX0921/02/P
PX0921/03/P
PX0921/04/P
PX0921/05/P
PX0921/07/P
PX0921/10/P
Large Cable
PXA921/02/P
PXA921/03/P
PXA921/04/P
PXA921/05/P
PXA921/07/P
PXA921/10/P
Description
2 pole Plug
3 pole Plug
4 pole Plug
5 pole Plug
7 pole Plug
10 pole Plug
Standard Cable
PX0921/02/S
PX0921/03/S
PX0921/04/S
PX0921/05/S
PX0921/07/S
PX0921/10/S
Large Cable
PXA921/02/S
PXA921/03/S
PXA921/04/S
PXA921/05/S
PXA921/07/S
PXA921/10/S
Description
2 pole Socket
3 pole Socket
4 pole Socket
5 pole Socket
7 pole Socket
10 pole Socket
16 Circular Power Connectors
900 Series Buccaneer

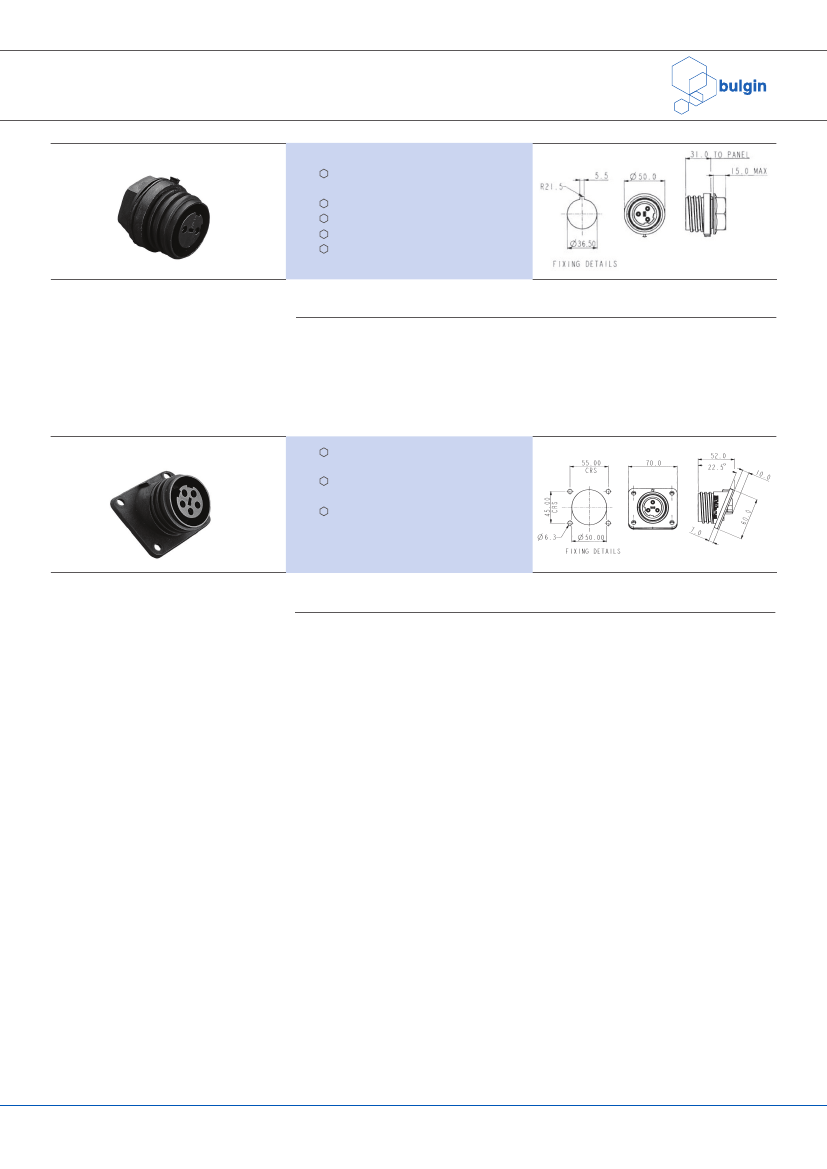

Panel Mounted Connector
BUCCANEER FOR POWER
Mates with PX0911 and
PXA911 connectors
Single hole fixing
Anti-rotation key
High grade sealing gasket
3-7mm panel thickness
PX0931
Panel Mounting
PX0931/02/P
PX0931/03/P
PX0931/04/P
PX0931/05/P
PX0931/07/P
PX0931/10/P
2 pole Plug
3 pole Plug
4 pole Plug
5 pole Plug
7 pole Plug
10 pole Plug
PX0931/02/S
PX0931/03/S
PX0931/04/S
PX0931/05/S
PX0931/07/S
PX0931/10/S
2 pole Socket
3 pole Socket
4 pole Socket
5 pole Socket
7 pole Socket
10 pole Socket
Flange Mounted Connector
PX0941
Mates with PX0911 and
PXA911 connectors
Supplied with high grade
sealing gasket
Supplied with sealing
grommets for panel fixing
screws (M6 thread
recommended)
Flange Mounting
PX0941/02/P
PX0941/03/P
PX0941/04/P
PX0941/05/P
PX0941/07/P
PX0941/10/P
2 pole Plug
3 pole Plug
4 pole Plug
5 pole Plug
7 pole Plug
10 pole Plug
PX0941/02/S
PX0941/03/S
PX0941/04/S
PX0941/05/S
PX0941/07/S
PX0941/10/S
2 pole Socket
3 pole Socket
4 pole Socket
5 pole Socket
7 pole Socket
10 pole Socket
Circular Power Connectors 17

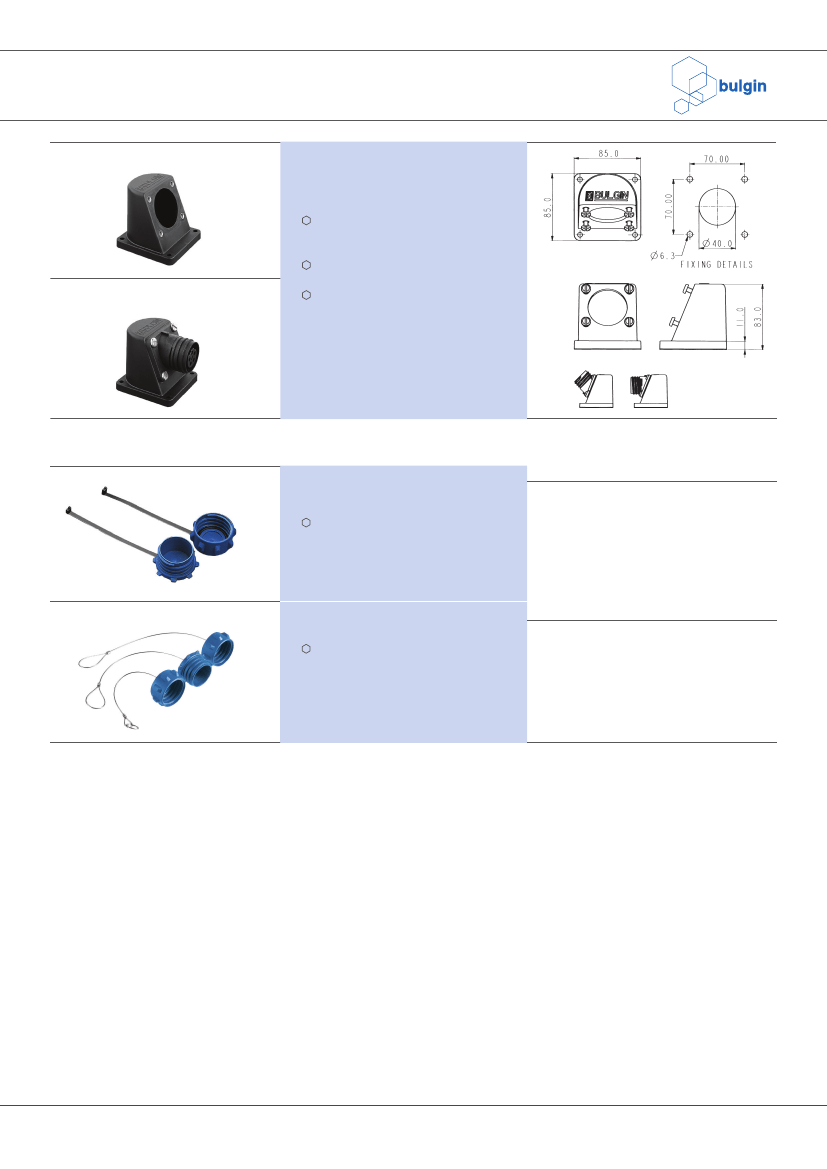

900 Series Buccaneer
Accessories
Additional Bulkhead Adaptor Moulding
BUCCANEER FOR POWER
PX0950
Additional Bulkhead Adaptor Moulding
For use with flange mounting
connector PX0941, to give
45° or 90° angle
Supplied with high grade
sealing gasket
Supplied with sealing
grommets for panel fixing
screws (M6 thread
recommended)
PX0950 & PX0941
Accessories
Sealing Caps
PX0960
Sealing caps to maintain IP68
rating of unmated connectors,
with plastic straps
PX0960, PX0970
Accessories
PX0970
PX0990
PX0991
PX0992
Sealing cap for use with PX0911/xx/x
and PXA911/xx/x
Sealing cap for use with all other styles
Heavy duty sealing cap for use with
PX0911/xx/x and PXA911/xx/x
Heavy duty sealing cap for use with
PX0921/xx/x and PXA921/xx/x
Heavy duty sealing cap for use with
PX0931Wand PX0941
Pack of 3 additional cable glands for
PX0911 and PX0921 to suit cable sizes;
11-13mm, 9-11 and 7-9mm dia.
Pack of 3 additional cable glands for
PXA911 and PXA921 to suit cable
sizes;18-20mm, 16-18 and 14-16mm dia.
Gland Packs
PX0980
Heavy duty sealing caps to
maintain IP68 rating of
unmated connectors, with
stainless steel straps
PX0990, PX0991, PX0992
PXA980
18 Circular Power Connectors
900 Series Buccaneer
Specifications
BUCCANEER FOR POWER
Electrical
No Poles:
Current Rating:
Voltage Rating:
Contact Resistance:
Insulation Resistance:
Dielectric strength:
AC Breakdown voltage:
Operating
Temperature Range:
Approvals:
-
2, 3
32A
30A, CSA
600V ac/dc
4, 5
32A
25A, CSA
600V ac/dc
7
32A
25A, CSA*
430V ac/dc
10†
10A
UL
250V ac/dc
Mechanical:
Sealing:
IP69K, Tested in accordance with DIN 40050/Part 9
IP6K9K.
IP68, EN60529:1992+A2:2013 tested @ 1.054kg/sq.cm.
(15lb/sq.in.) 10m depth for 2 weeks
Salt Mist:
EN60068-2-52 Test Kb Salt Mist (Cyclic) Marine
Severity Level 1
PX0911-PX0921 13 - 15mm O/D standard,
7-13mm with gland pack
PXA911-PXA921 20 - 22mm O/D standard,
14 - 20mm with gland pack
2-7 pole - 2.5 to 4mm2 (13 to10AWG)
conductor, single or multi stranded
10 pole - 0.75 to 2mm2 (14 to 18AWG)
conductor, single or multi stranded
Axial screw terminals
22mm dia, 150N
15mm dia, 150N
7mm dia, 80N
<10m Ω (initial)
>10⁶MΩ (@ 500V dc)
2.2kV ac min
6kV
–40°C to +85°C
E214972
1211899
40003148
2011010203500396 – 10 Amp Rated
2011010203500396 – 32 Amp Rated
*with 75ºC min. rated cable
Cable Acceptance:
Contact Accommodation:
Termination:
Material
Body Mouldings:
Flammability Rating:
UV Resistance:
Contacts:
O Rings:
Panel Sealing Gasket:
RoHS
Polyamide
UL94V-0
To EN50021: 1999
Machined Solid Brass, Nickel plated
Nitrile
Silicone Rubber
Compliant
Cable Retention force:
Gland Nut Torques:
PX0 range
13-15mm (Yellow - std.)
11-13mm (black)
7-9mm (dark grey)
PXA range
20-22mm (Yellow - std.)
18-20mm (black)
16-18mm (white)
14-16mm (dark grey)
Tightening Torques:
Panel mount nut
Flange & Bulkhead
fixing screws
Inserts into Bodies
Term screws - 2 to 5 poles
Term screws - 7 pole
Term screws - 10 pole
2.25Nm (20 lbf.in.)
0.9Nm (8 lbf.in.)
1.13Nm (10 lbf.in.) to 1.36Nm (12 lbf.in.)
1.0Nm (9 lbf.in.) max
0.4Nm (3.5 lbf.in.) max
0.25Nm (2.2 lbf.in.) max
3.16Nm (28 lbf.in.)
3.16Nm (28 lbf.in.)
3.16Nm (28 lbf.in.)
3.16Nm (28 lbf.in.)
3.16Nm (28 lbf.in.)
3.16Nm (28 lbf.in.)
3.16Nm (28 lbf.in.)
Contact Layout
2 pole
3 pole
4 pole
5 pole
7 pole
10 pole
Overall dimensions of connectors when mated together
PX0911 + PX0921 230 mm max.
PXA911 + PXA921 270 mm max.
PX0911 + PX0931 135 mm max. (to panel)
PXA911 + PX0931 175 mm max. (to panel)
PX0911 + PX0941 145 mm max.
(to panel, mid point on flange)
PXA911 + PX0941 174 mm max.
(to panel, mid point on flange)
Dimensions
Rear thread PX0931 series M36 x 2-6g
Circular Power Connectors 19
