High Current Connector
PS3 Series
1U
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Flexible wire
Flexible wire
Fig.1

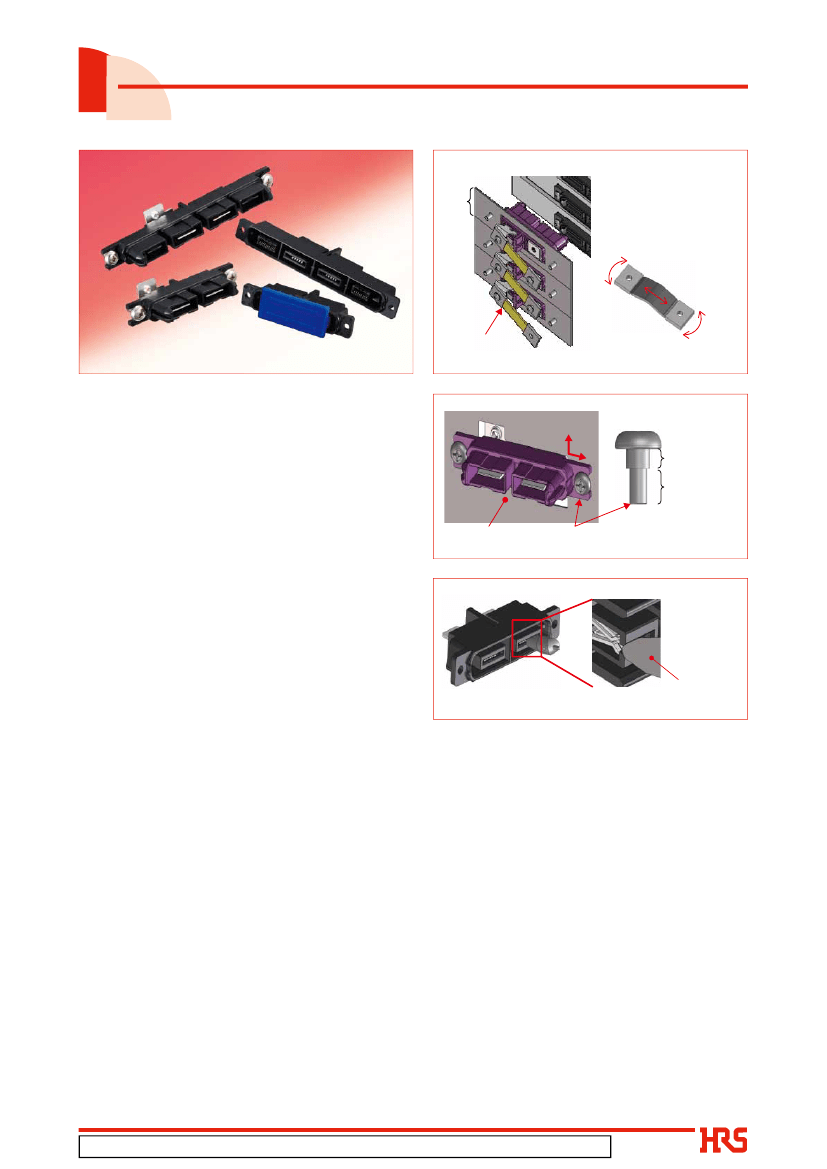

■Features
1. Power contact supports up to 150 Amps
(210A/1pin Derating curve, ambient temp
25˚C) with 50mm sq. O/I AWG wire.
2. The unique blade contacts help to
create a slim design and allows it to
be utilized in a standard 1U rack size
(44.5mm × 482.6mm).
(Fig.1)
3. Sp e cial s cr ew s a r e us e d in t h e
receptacle to allow the floating (±2.0
mm) in X Y axial directions.
Connector floating is allowed by using flexible
wire without missing flexibility in short distant
wiring between 1U connection. (Fig.1, 2)
System Side Panel
Y
X
Shoulder Portion
Thread Portion
Shoulder Screw
Fig.2
Test Finger
4. The cable connection to the power
contact is made by means of a screw
to a JIS round crimp contact.
5. For added safety, the plug side
(battery side) is designed to prevent
shock hazard and provides for more
user safety and security.
(Fig.3)
6. A special dust cap is available and
can be used with both the plug and
receptacle.
7. The plug and receptacle have been
UL, C-UL and TÜV certified.
Fig.3
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2017.2②
1
PS3 Series●High Current Connector
■Product
Specifications
Power
Rated Current
Ratings
150A/1pin
（*1）
210A/1pin (Derating curve, ambient temp 25°C)
5 to 1/0 AWG
14 to 50sq
（WL1、WL2
*1 *2）
Signal
1A/1pin
Rated Voltage
AC、DC 1000V（*1）
-40 to +105°C
(including temperature rise due
20 to 22 AWG
to electric current)
Stor. Temp. Range
−40℃∼ +60℃
*1 : UL, C-UL and TÜV certifications have been obtained while changing conditions such as rated current and voltage multiple times.
For details, see the "Conditions on Safety Standards (UL, C-UL, TÜV)" on page 6.
*2 : Select your cables based on the current capacity needed for your application.
Flexible wires are recommended to provide flexibility to the receptacles (system side).
*3 : Used 50sq (1/0 AWG) cable.
Applicable
Cable
Op. Temp. Range
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
■Materials
/ Finish
●Receptacle
Parts
Insulator
Contact
Contact Retention plate A
Contact Retention plate B
Floating screw
Signal male contact
Signal Retention plate (12)
Signal Retention plate (16)
Materials
PBT
Copper alloy
PBT
PBT
Steel
Copper allay
PBT
PBT
Materials
PBT resin
Copper alloy
PBT resin
Copper allay
PBT
PBT
Materials
Silicon rubber
Color/Finish
Black
Silver plated
Black
Black
Nickel plated
Gold plated
Black
Black
Color/Finish
Black
Silver plated
Black
Gold plated
Black
Black
Color/Finish
Blue
Remarks
UL94V-0
————
UL94V-0
UL94V-0
————
————
UL94V-0
UL94V-0
Remarks
UL94V-0
————
UL94V-0
————
UL94V-0
UL94V-0
Remarks
UL94HB
●Plug
Parts
Insulator
Contact
Contact Retention plate C
Signal female contact
Signal Retention plate (12)
Signal Retention plate (16)
●Dust
Cap
Parts
Insulator
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
1. Connector product name
PS3 - 2 U S / 12 S / 16 S
❶
❷ ❸ ❹
❺
❻
❺
❻
❶
Series name symbol
❷
No. of power contacts
❺
No. of signal contacts
2. Dust cap product name
❻
Signal contact shapes
P : Male contact
❸
Current capacity of power contact
S : Female contact
U : 150A
❹
Power contact shapes
P : Male contact
S : Female contact
❼
Dust cap
PS3 - 2 U - DC
❶
❷ ❸
❼
■
Combination List
Signal part for Power/signal hybrid type is GT8E series (sell separately).
PS3-2UP/12P/16P
PS3-2US/12S/16S
＜
＜
GT8E-12DS-HU + GT8E-2022SCF (Gold plated)
GT8E-16DS-HU + GT8E-2022SCF (Gold plated)
GT8E-12DS-HU + GT8E-2022SCF (Gold plated)
GT8E-16DS-HU + GT8E-2022SCF (Gold plated)
GT8E-12DS-HU + GT8E-2022SCF (Gold plated)
GT8E-16DS-HU + GT8E-2022SCF (Gold plated)
(Example) PS3-2UP/12P/16P
2

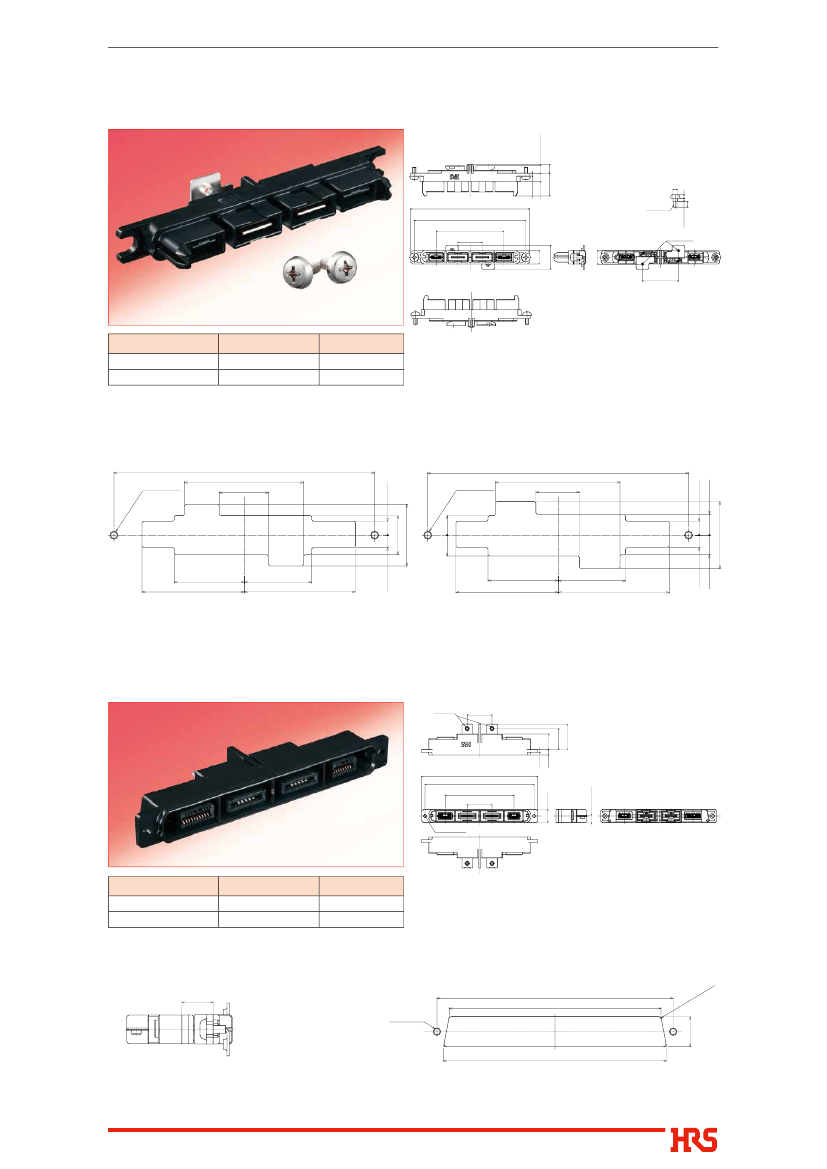

PS3 Series●High Current Connector

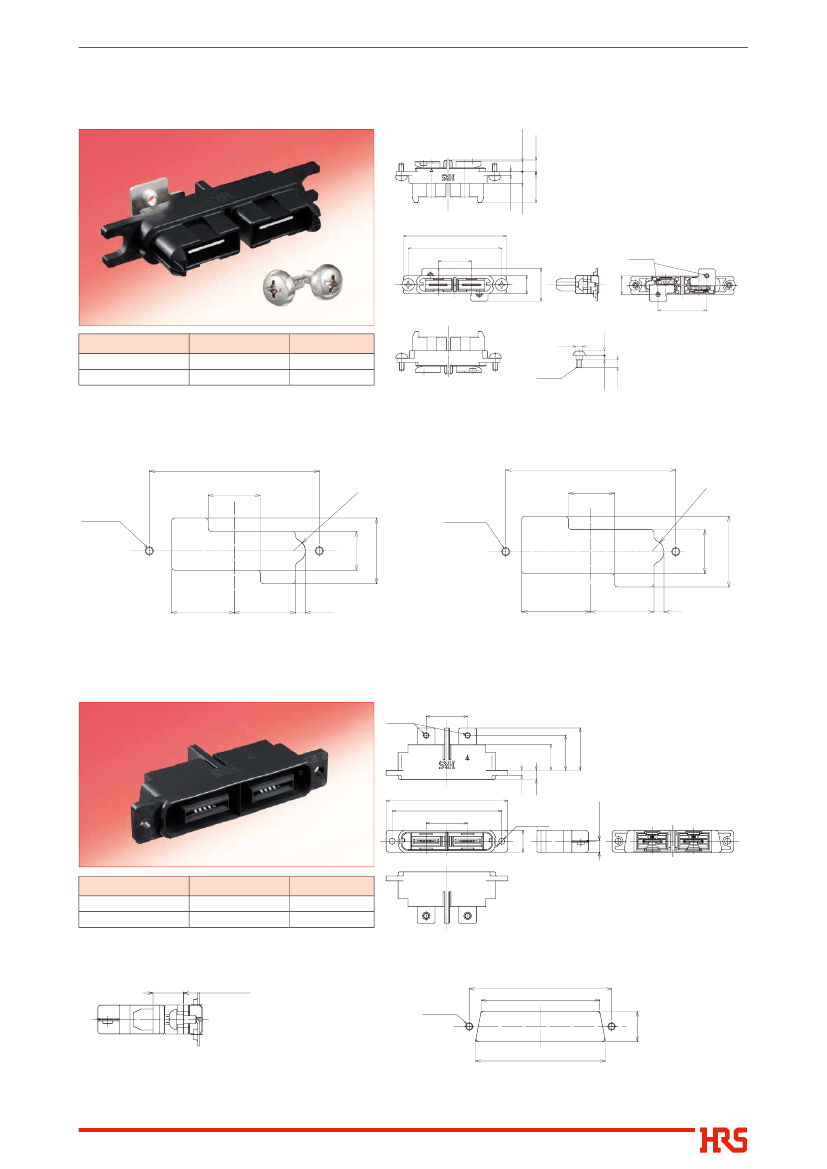

■Receptacle
●PS3-2UP
(Power type)
(12.75)
14.75
131.7
(119.5)
(42.45)
23
(41.8)
(23.8)
5
15
39.7
M6
×
1
A
PS3
A
A
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
(62.45)
8.2
M6
×
1
(6)
119.5
32.45
2-M6
×
1
27.2
46.2
49.8
A
Part No.
PS3-2UP
PS3-2UP(01)
HRS No.
236-1042-2 00
236-1042-2 01
Packaging
1box (40pcs.)
1pcs.
BDiagram
of recommended PCB layout dimensions
Corner radius : 2mm max.
Panel thickness：3mm max.
119.5
36.7
2-M6
×
1
Corner radius : 2mm max.
Panel thickness：3mm max.
(5.5)
(10)
.5
R8
44
43
7
48.5
44.5
7
■Plug
●PS3-2US
(Power type)
M6
×
1
(42.45)
26.6
(35.85)
43.5
2-Ø6.4
22.7
(12.4)
124.6
112.3
(42.45)
5
9.2
Part No.
PS3-2US
PS3-2US(01)
HRS No.
236-1041-0 00
236-1041-0 01
Packaging
1box (40pcs.)
1pcs.
BDistance
between panels
(24.2
∼
26.2)
BRecommended
panel
2-M6
×
1
Corner radius : 2mm max.
Panel thickness：3mm max.
112.3
93.6
102.6
23.7
PS3
PS3
A
PS3
31
A
R8
.5
3
PS3 Series●High Current Connector
■Receptacle
●PS3-2UP/12P/16P
(Signal hybrid type)
5
(12.75)
15
39.7 15
205.7
(193.5)
(117.2)
(42.45)
(23.8)
23
(41.8)
Ｐ３
Ｓ
M6
×
1
M6
×
1
(62.45)
A
Ｌ
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part No.
PS3-2UP/12P/16P
PS3-2UP/12P/16P(01)
HRS No.
236-1044-8 00
236-1044-8 01
Packaging
1box (40pcs.)
1pcs.
BDiagram
of recommended PCB layout dimensions
Corner radius : 1mm max.
Panel thickness：3mm max.
193.5
88.45
36.45
193.5
92.45
32.45
Corner radius : 1mm max.
Panel thickness：3mm max.
10.4
2×M6×1
2×M6×1
15.5 14.5
29
45.8
52.05
75.9
50.05
82.4
52.05
75.9
50.05
82.4
■Plug
●PS3-2UP/12P/16P
(Signal hybrid type)
M6×1
(42.45)
5
9.2 26.6
(35.85)
43.5
9.15
(12.4)
22.7
198.6
186.3
(117.2)
(42.45)
Ｐ３
Ｓ
Ｐ３
Ｓ
A
Ｐ３
Ｓ
A
2
×
Ø6.4
Part No.
PS3-2US/12S/16S
PS3-2US/12S/16S(01)
HRS No.
236-1043-5 00
236-1043-5 01
Packaging
1box (40pcs.)
1pcs.
BDistance
between panels
(24.7 to 28.7)
BRecommended
panel
186.3
167
Corner radius : 1mm max.
Panel thickness：3mm max.
m
R2
4
×
23.7
176
2×M6×1
A
9.15
14.5
ax
49.8
10.4
15.5
A
Ｌ
A
(5.5)
(10) (6)
Ø8.2
4
PS3 Series●High Current Connector

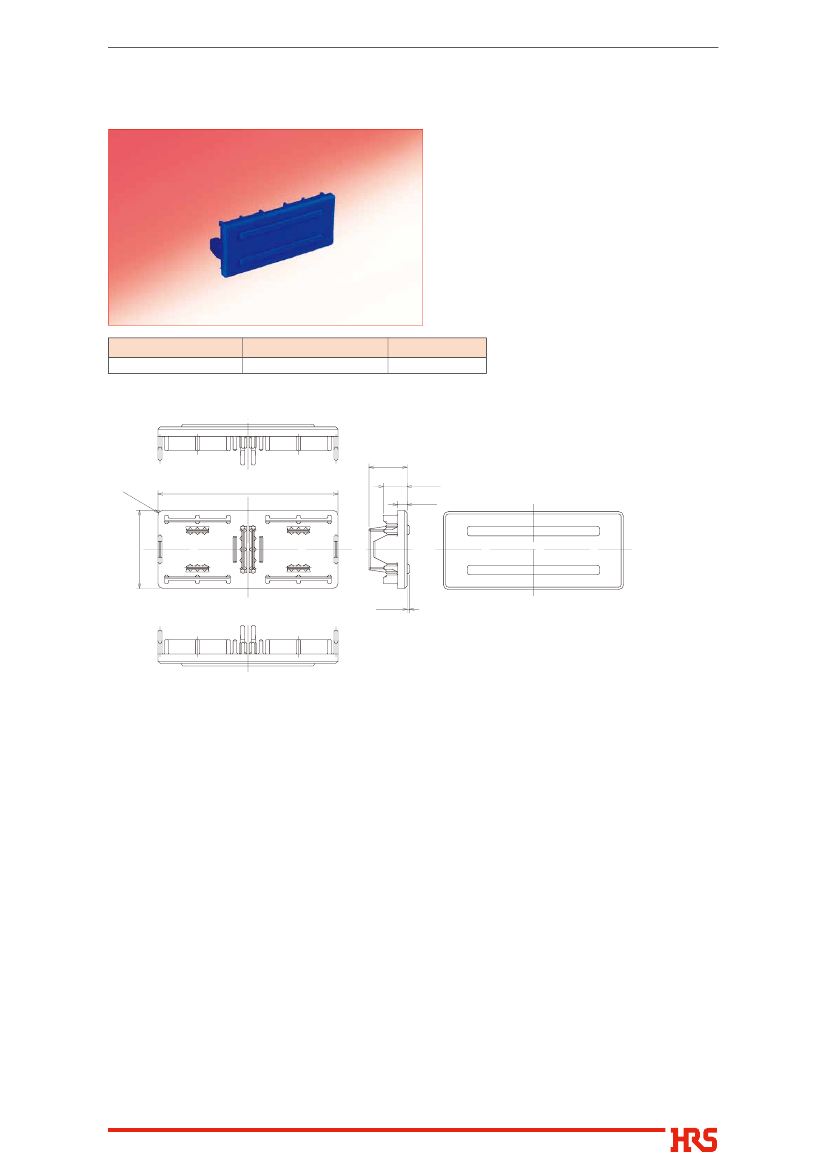

■Dust cap
●PS3-2U-DC
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part No.
HRS No.
Packaging
PS3-2U-DC
236-1054-1
1box (40pcs.)
This dust cap can be used on both the receptacle and plug.
(16)
4
Ｘ
R2
75.6
(10)
(4)
32.7
A
(1)
