PS1T24-14X: DescriptionHeavy Duty Power Connectors 5P MPL SEALING GLAND WIR RNGE 11.0-14.0mm; CategoryThe connector; File Size200KB，2 Pages; ManufacturerAnderson Power Products; Environmental Compliance

Download Datasheet Parametric View All

PS1T24-14X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PS1T24-14X	-	-	View	Buy Now

PS1T24-14X Overview

Heavy Duty Power Connectors 5P MPL SEALING GLAND WIR RNGE 11.0-14.0mm

PS1T24-14X Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Anderson Power Products
Product Category	Heavy Duty Power Connectors
RoHS	Details
Product	Accessories
Accessory Type	Backshell
Number of Positions	-
Termination Style	-
Housing Material	Polycarbonate (PC)
Contact Plating	-
Contact Material	-
Packaging	Bulk
Mounting Angle	-
Number of Rows	-
Flammability Rating	UL 94 V-0
Mounting Style	-
Pitch	-
Contact Gender	-
For Use With	5-POSITION MINI-PL SPEC PAK
Housing Gender	-
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 20 C
Factory Pack Quantity	1
Unit Weight	0.493835 oz

Preview

Download Datasheet

View All

8

7

6

5

4

3

2

1

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF

ANDERSON POWER PRODUCTS. ANY REPRODUCTION IN PART OR WHOLE WITHOUT

THE WRITTEN PERMISSION OF ANDERSON POWER PRODUCTS IS PROHIBITED.

ANDERSON POWER PRODUCTS RESERVES THE RIGHT TO ALTER PRODUCT TYPES,

THEIR TECHNICAL DATA, DIMENSION, STYLE AND ACCESSORIES WITHOUT PRIOR

NOTIFICATION.

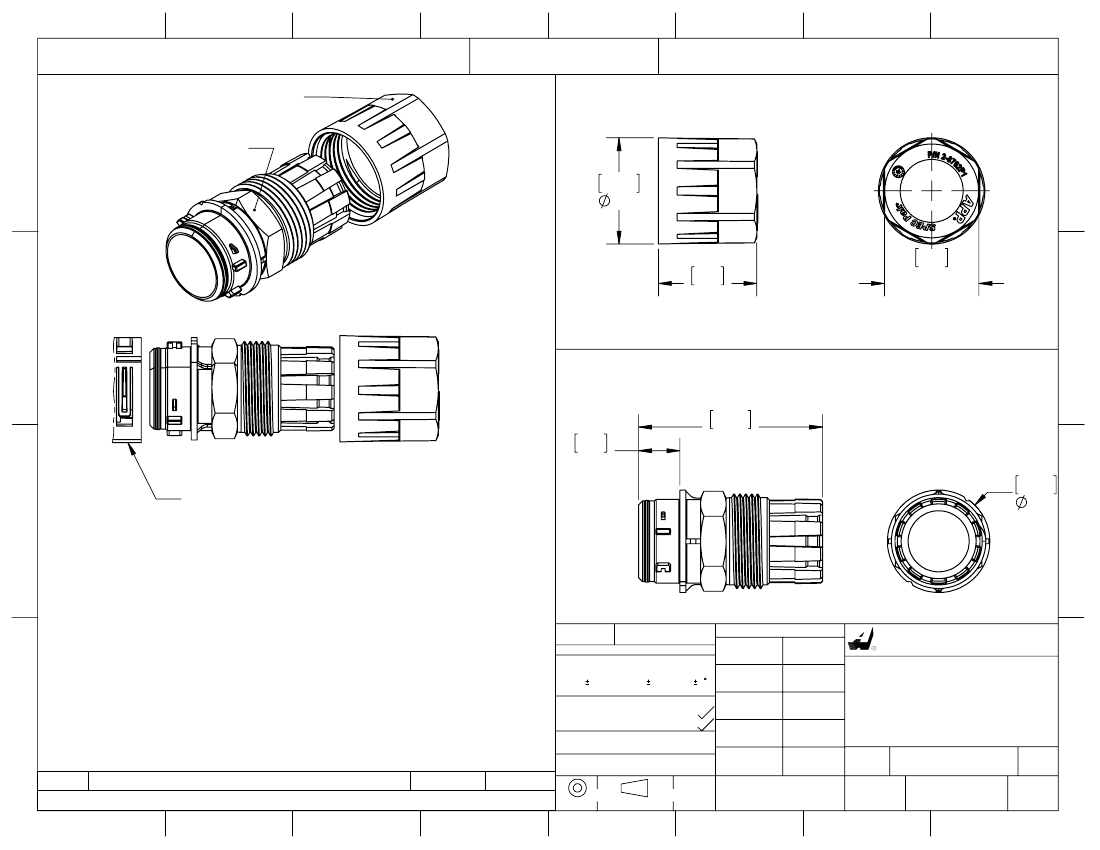

SEALING NUT

D

SEAL NUT

D

WIRE SEAL ASSEMBLY

(O-RING, GLAND BODY,

& SEALING GROMMET)

1.06

27.0

.94

24.0

ACROSS

FLATS

.98

25.0

C

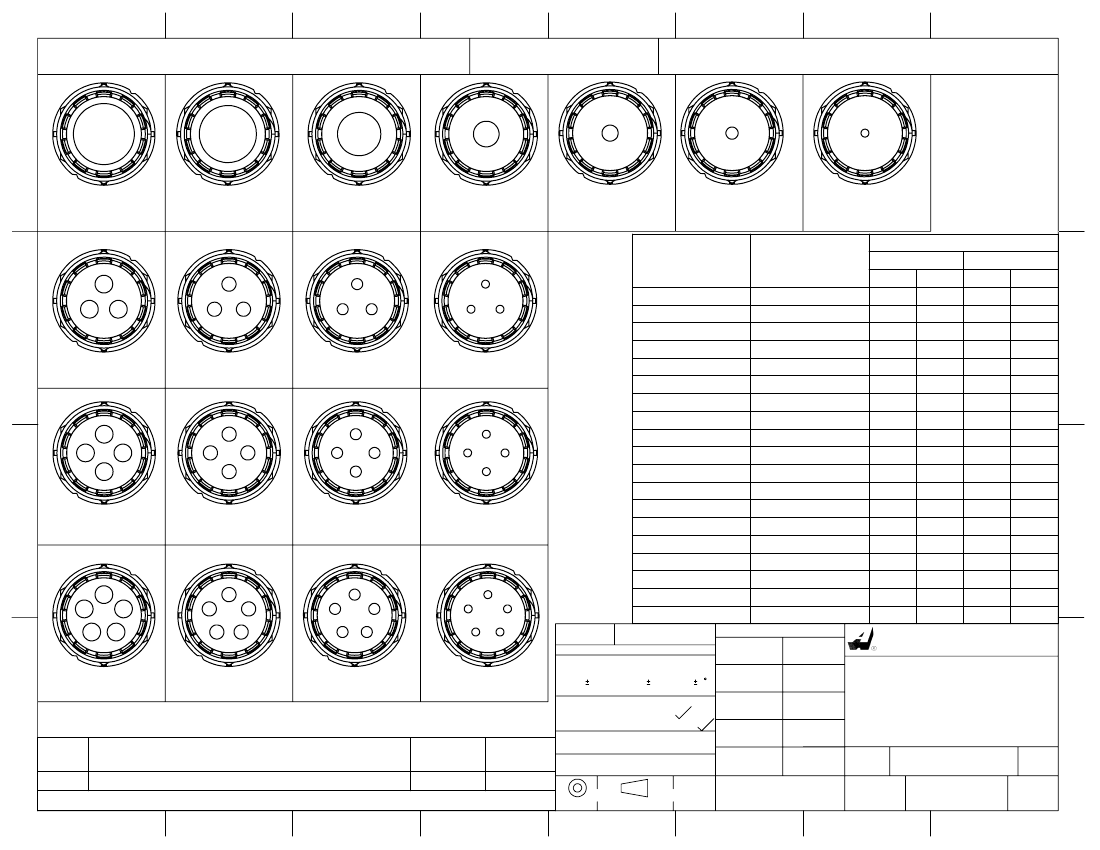

SEE SHEET 2 FOR WIRE SEAL OPTIONS

1.84

46.8

1.02

26.0

B

WIRE SEAL ASSEMBLY

.41

10.5

STRAIGHT PLUG (FEMALE) OR

IN-LINE RECEPTACLE SHELL (MALE)

NOT INCLUDED

NOTES:

1.

MATERIALS:

A.

SEAL NUT - PC, UL94 V-0, BLACK

B.

GLAND BODY - PC, UL94 V-0, BLACK

C. SEALING GROMMET - EPDM RUBBER, BLACK

D.

O-RING - NBR, BLACK

2.

BACKSHELL ASSEMBLY KITS INCLUDE ONE EACH SEAL NUT

AND WIRE SEAL ASSEMBLY

3.

REFER TO ASSEMBLY INSTRUCTIONS 1S6616 FOR STRAIGHT

PLUG (FEMALE) AND 1S6617 FOR IN-LINE RECEPTACLE

(MALE) ASSEMBLY

4.

FOR USE WITH 5-POSITION MINI-PL SPEC PAK®

SK1-021M05 (ALL KEYS) AND SK6-021M05 (ALL KEYS) ONLY

REV.

DESCRIPTION

REVISIONS

APPRV

DATE

3rd ANGLE

PROJECTION

B

DIMENSIONS

ARE IN:

MM [INCH]

UNLESS OTHERWISE STATED

DRAWN

APPROVALS

10/7/2013

1/23/2014

1/24/2014

1/23/2014

SIZE

SCALE

TITLE

DECIMALS (INCH) DECIMALS (MM) ANGLES

CHECKED

TOLERANCES:

.X

.5

NTS

ANDERSON POWER

PRODUCTS

5-POSITION MINI-PL

SPEC PAK®

BACKSHELL ASSEMBLY

DWG NO.

.XX

.02

2

A

SEE NOTE 1

FINISH:

MACHINED

MOLDED

MATERIAL:

SURFACE FINISH:

MFG APPRV

QC APPRV

ENG APPRV

MM

3.2μ [128μin]

1.6μ [64μin]

CHB

UFN

A

CMS

3

A

-CAD GENERATED DRAWING-

DO NOT MANUALLY UPDATE

DO NOT SCALE

CADFILE

115308S1

04072

1

REV.

SHEET

0

NONE

2

1 OF 2
