Standard Connectors
MD Series
■
Overview
Connectors conforming to the requirements of the High
Definition Multimedia Interface (HDMI) Standard intended for
the digital television.
The HDMI places the video and audio links into a single
connector /cable.
■
Features
1. Two panel mounting styles (receptacle)
¡SMT
termination, through panel (no screw)
¡SMT
termination, through panel, single screw panel attachment
1.6 mm offset from the mating surface
2. Easy insertion
Mating interface is visible on the panel surface, allowing correct insertion
of the plug. (Figures (1) and (2))
3. Reliable connection
Fully mated condition between the plug and receptacle is confirmed with a
distinctive tactile “click” sensation, assuring complete mechanical and
electrical connection.
4. Small size
Despite it’s small size, solder connection of the wires to the terminations is
easily performed.
1.6mm
Figure (1)
5. Strong shields
Two-piece shields surrounding the wire termination areas provide EMI
protection as well as increase the strength of the plug. (Figure (3))
Easy insertion - connector flush with the panel
Panel
Receptacle
Panel mounting screw
Plug
6. RoHS compliant
All components and materials comply with the requirements of EU
Directive 2002/95/EC
■
Applications
PDP, LCD, CRT televisions, projectors, DVD, set top boxes and other audio-
visual peripheral equipment.
PCB
Mating surface
Figure (2)
Strong shields-plug
HDMI
connections
Shell – top
Assembly
(insulator/ contacts)
Figure (3)
*High Definition Multimedia Interface and HDMI are trademarks of HDMI Licensing, LLC.
Shell - bottom
2008.3
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
MD Series●HDMI™ Standard Connectors
■
Specifications
Current rating
Ratings
Voltage rating
125V AC
0.5A
Operating temperature range : -55°C to +85°C
Item
1. Contact resistance
2. Insulation resistance
3. Withstanding voltage
4. Durability
5. Vibration
6. Shock
Signal: 60 mø max.
Shell: 30 mø max.
100 Mø min.
Specification
Conditions
100mA (DC or 1,000Hz)
500V DC
500 V AC / 1 minute
10,000 cycles
No flashover or insulation breakdown
Contact resistance of contacts: Change of 30mø max.
Contact resistance of shell: Change of 50mø max.
No electrical discontinuity of 1 µs or longer.
Contact resistance, contacts: Change of 30 mø max.
Contact resistance, shell: Change of 50 mø max.
No damage, cracks, or parts dislocation
Contact resistance, contacts: Change of 30 mø max.
Contact resistance, shell: Change of 50 mø max.
No damage, cracks, or parts dislocation
No corrosion
Frequency: 55 to 2,000 Hz, total amplitude of 1.5 mm
Acceleration of 147 m/s
2
, 12 test cycles in each of the 3 directions
Acceleration of 490m/s
2
, 11 ms continuous time, sine
half-wave, 3 test cycles in each of the 3 directions
Temperature:-55ç/+15ç
to 35ç/+85ç/+15ç to 35ç
Times: 30 min./ 2 min.to 3 min.
/
30 min./ 2 min. to 3 min
10 cycles
5% salt water solution / 48 hours
7. Temperature cycle
8. Salt spray
■
Materials / Finishes
●
Receptacles
Part
Insulator
Contacts
Shell
Material
LCP
Copper alloy
Copper alloy
Finish
-------
Contact area: Gold plating over nickel
Lead area: Gold flash plating over nickel
Tin plating over nickel
Remarks
UL94V-0
-------
-------
-------
●
Plugs
Part
Insulator
Contacts
Shell
Material
LCP
Copper alloy
Copper alloy
Finish
-------
Contact area: Gold plating over nickel
Lead area: Gold flash plating over nickel
Tin plating over nickel
Remarks
UL94V-0
-------
-------
-------
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
MD Series●HDMI™ Standard Connectors
■
Ordering information
●
Receptacles
Receptacles
: MD
1
Series name
2
Board mounting style:
60
3
Number of Contacts
4
Contact type
P
5
Panel mounting style
Blank
A
Plugs
:Right angle SMT
:19
: Male
:Standard
:Single panel screw
MD 60
-
19 P A
1
2
3
4
5
●
Plugs
MD 40
-
19 S
1
2
3
4
1
Series name
2
Termination style
40
3
Number of Contacts
4
Contact type
S
: MD
: Solder
:19
:Female
Note: Plug cable termination and overmold recommendations are available upon request.
Contact your Hirose sales representative for details.
*Information contained in this catalog may not reflect latest updates.
Request drawing for a specific part number listed.
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales represent
MD Series●HDMI™
Standard Connectors
■

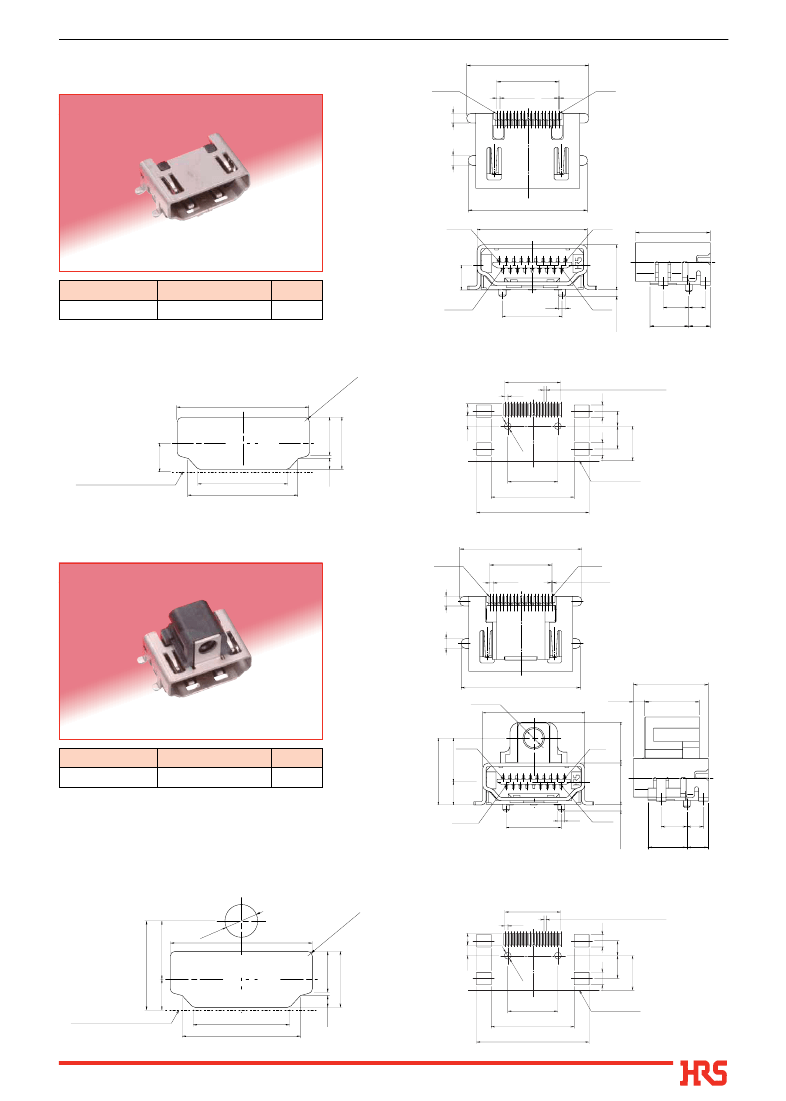

Receptacles
17.6
No.19
1.4
9
P=0.5
(0.18)
No.1
●Receptacles
– Right angle
1.4
17.2
No.19
15
No.1
10.8
Part Number
MD60-19P
CL No.
243-0001-8
RoHS
YES
(3.375)
A
6.15
No.18
8.1
1
No.2
0.9
3.7 2.4
(5.6)
(3.1)
Note 1: Tape and reel packaging (750 pieces/reel).
Order by number of reels.
All dimensions: mm
BRecommended
Panel Cutout
15.6
1.7 1.9
4.5
6.15
3.7 2.4
8-
R0
.5
M
AX
BRecommended
PCB mounting pattern
9
2
2
8.1
13.4
18.2
PCB edge
5.6
0.5
0.35 ± 0.05 Solder pad
2-Ø
1.1
3.375
PCB mounting surface
10.6
13
Panel thickness: 1.6 mm max.
1.3
All dimensions: mm
●Receptacles
– Single panel screw
17.6
No.19
9
P=0.5
1.4
No.1
(0.18)
1.4
17.2
Note.1
1.6
15
10.8
7.9
Part Number
CL No.
RoHS
YES
A
Tray packaging
No.18
8.1
Ø1
No.2
0.9
6.15
MD60-19PA
243-0003-3
9.8
(3.375) (6.425)
No.19
No.1
6
3.7 2.4
(5.6)
(3.1)
Note 1: Use M3x12mm long pan head self-taping screw.
BRecommended
Panel Cutout
9.8
6.425
6
Ø3.
BRecommended
PCB mounting pattern
AX
1.7 1.9
9
0.5
0.35 ± 0.05 Solder pad
2
3.7 2.4
2
8.1
PCB edge
5.6
15.6
8-
R
5
0.
M
2-Ø
4.5
6.15
1.1
(3.375)
PCB mounting surface
10.6
13
1.3
13.4
18.2
Panel thickness: 1.6 mm max.
All dimensions: mm
4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales represent
MD Series●HDMI™ Standard Connectors
■

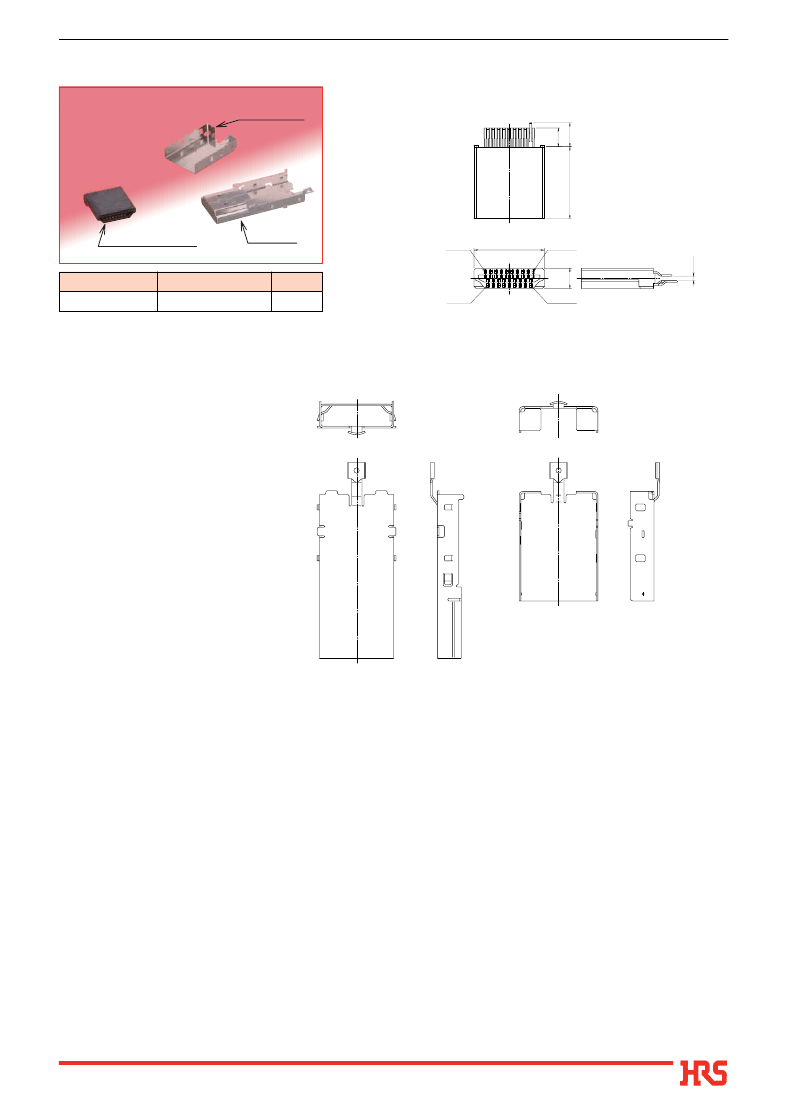

Plug
Shell - bottom
Assembly (insulator / contacts)
Assembly
(insulator/contacts)
Shell - top
No.1
13.2
No.19
3.8
0.8
Part Number
CL No.
RoHS
YES
No.2
MD40-19S
CL243-0002-0
No.18
13.45
3.5
4.5
* Supplied separate as shown.
All dimensions: mm
Shell - top
Shell- bottom
Note: Plug cable termination and overmold recommendations are available upon request.
Contact your Hirose sales representative for details.
