35362-0286

Description
Headers & Wire Housings New 2.0 WtB Wafer As sy Str 2Ckt StickPkg
CategoryThe connector    The connector
File Size29KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

35362-0286 Online Shopping

Suppliers Part Number Price MOQ In stock
35362-0286 - - View Buy Now

35362-0286 Overview

Headers & Wire Housings New 2.0 WtB Wafer As sy Str 2Ckt StickPkg

35362-0286 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.217 inch
subject depth0.335 inch
body length0.303 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
insulator materialPOLYAMIDE
Plug contact pitch0.079 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
PCB contact patternRECTANGULAR
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.13 inch
Terminal pitch2.0066 mm
Termination typeSOLDER KINKED LEADS
Total number of contacts2
Base Number Matches1

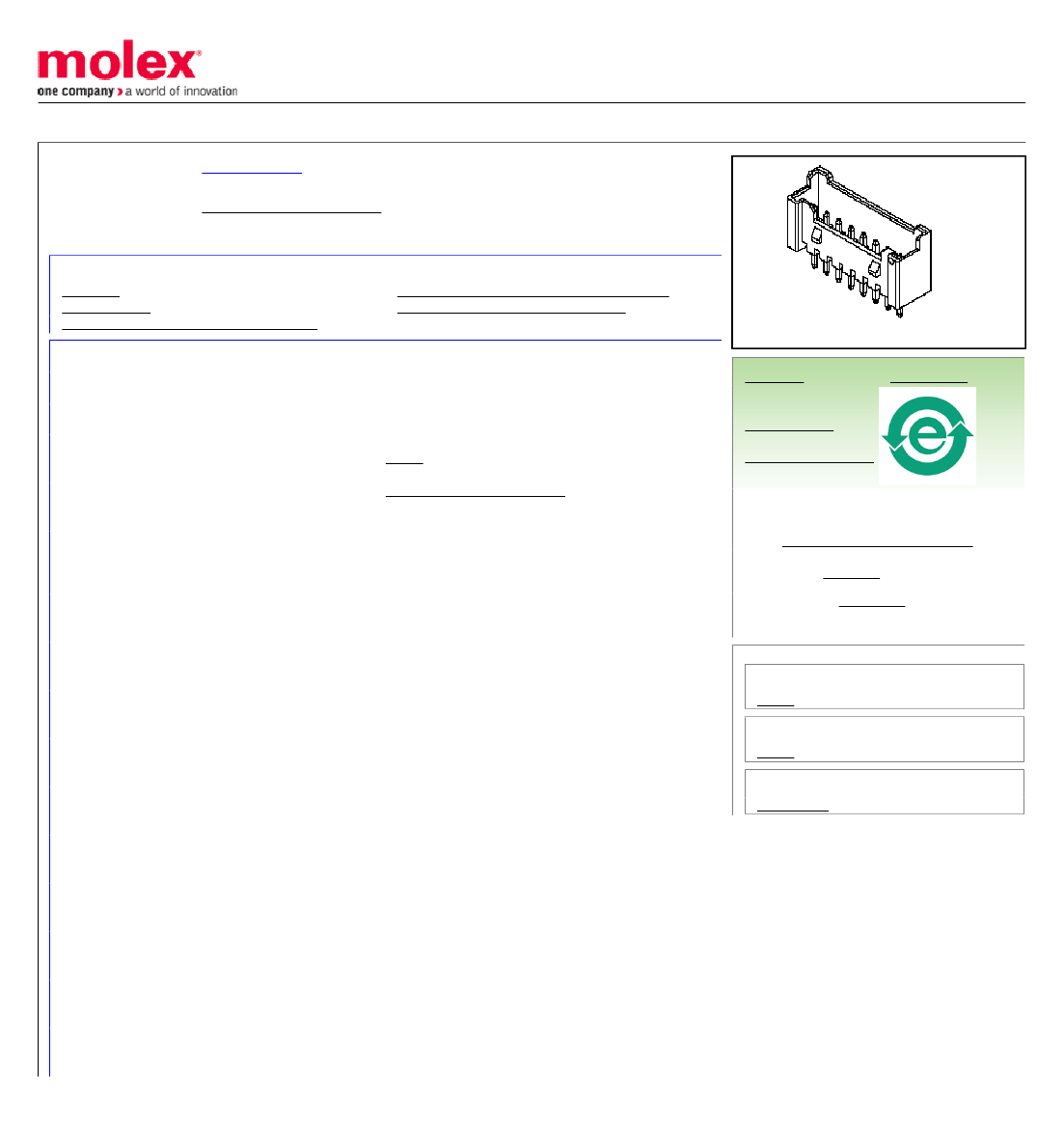

This document was generated on 01/15/2015
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
35362-0286
Active
Sherlock™ Connector System
2.00mm Pitch Sherlock™ Wire-to-Board Header, Vertical, with Positive Lock, 2 Circuits,
without Kinked PC Tails, Natural, Tube Packaging
Documents:
3D Model
Drawing (PDF)
Product Specification PS-35507-003 (PDF)
Packaging Specification PK-35362-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
Agency Certification
CSA
UL
LR19980
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Low-Halogen
China RoHS
General
Product Family
Series
Application
Overview
Product Name
UPC
PCB Headers
35362
Signal, Wire-to-Board
Sherlock™ Connector System
Sherlock™
822348261680
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
2
2
Natural
30
No
94V-0
No
No
None
Yes
8.50mm
Tin
Tin
Nylon
0.206/g
1
Vertical
3.30mm
No
None
1.60mm
Tube
2.00mm
2.00mm
Yes
No
Partial
No
No
-40°C to +105°C
Through Hole
Search Parts in this Series
35362Series
Mates With
35507 Sherlock™ Wire-to-Board Housing
Use With
50212-8000 Terminal
