TECHNICAL DATA SHEET
ADAPTOR
SMA JACK – 7/16 PLUG
32K160-S00N5

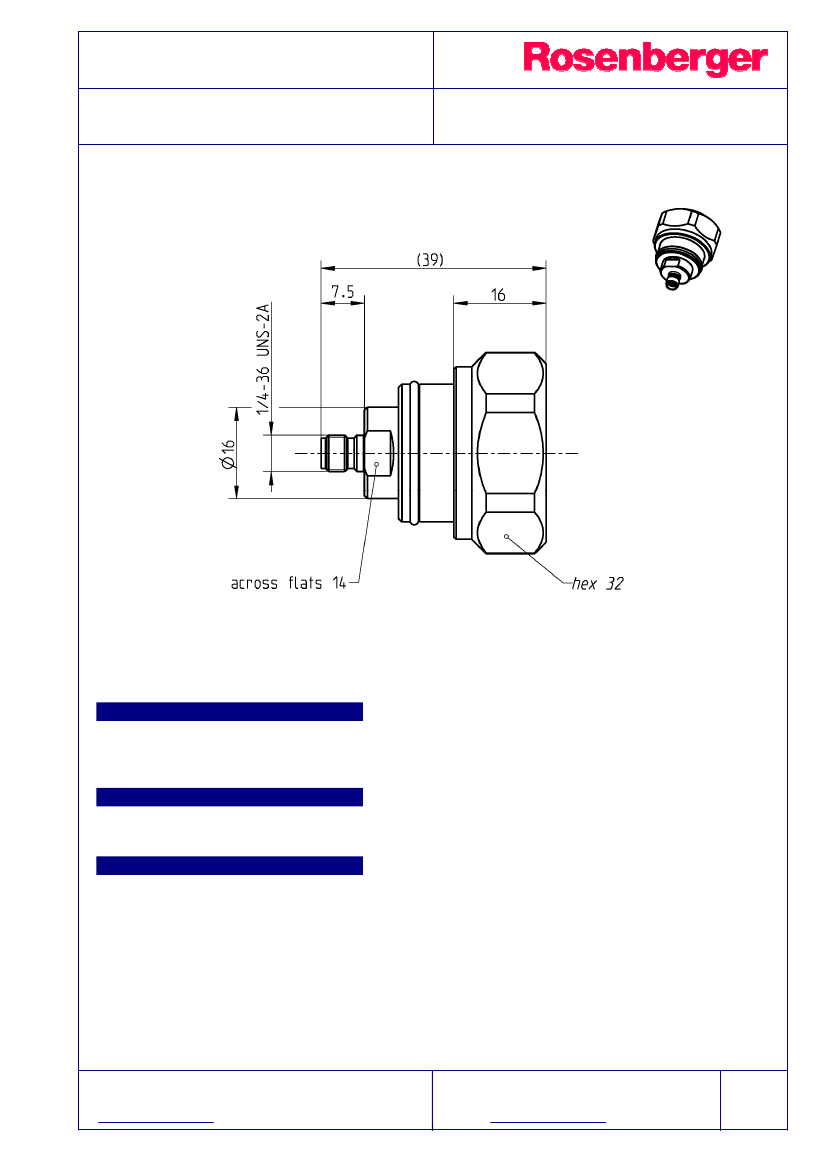

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
SMA side:
7/16 side:
IEC 60169-15; EN 122110; MIL-STD-348
IEC 60169-4, VG 95250, CECC 22190, DIN 47223
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact SMA
Outer contact 7/16
Dielectric
Gasket
Material
Beryllium copper
Brass
Brass
PTFE
Silicone
Plating
AuroDur, gold plated
Flash white bronze over silver(e.g. Optargen®)
White bronze(e.g. Optalloy®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
ADAPTOR
SMA JACK – 7/16 PLUG
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
Intermodulation
(3
rd
order)
50
Ω
DC to 8.3 GHz
≥
34 dB, DC to 2.5 GHz
≥
21 dB, 2.5 to 8.3 GHz
≤
0.03 x
f(GHz)
dB
≥
5 x10
3
MΩ
≤
3 mΩ, SMA side
≤
0.4 mΩ, 7/16 side
≤
2 mΩ, SMA side
≤
1.5 mΩ, 7/16 side
1000 V rms
480 V rms
≤
200 W @ 2 GHz
≥
100 dB up to 1 GHz
≤
-120 dBm @ 2 x 20 W, 1800 MHz
32K160-S00N5
Mechanical data
Mating cycles
Coupling nut retention
Center contact captivation: axial
Coupling test torque
Recommended torque
SMA side
min. 100
N/A
≥
200 N
max. 0.6 Nm
0.5 Nm
7/16 side
min. 500
≥
1000 N
≥
200 N
max. 35 Nm
25 to 30 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
RoHS
-65°C to +165°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
D
I
Tooling
N/A
Suitable cables
N/A
Weight
Weight
98 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
A. König
Date
08/10/04
Approved
J_Krautenbacher
Date
21.07.16
Rev.
e00
Engineering change number
15-1629
Name
I_Wallner
Date
21.07.16
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
2/2
