44300-2000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 44300-2000

44300-2000: DescriptionHeaders & Wire Housings 3MM MICRO-FIT Plug House 20 CKT; CategoryThe connector The connector; File Size25KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

44300-2000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	44300-2000	-	-	View	Buy Now

44300-2000 Overview

Headers & Wire Housings 3MM MICRO-FIT Plug House 20 CKT

44300-2000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MICRO-FIT 3.0, BMI, COMPATIBLE CONTACTS: 43031-0001; 43031-0004; 43031-0002, POLARIZED
body width	0.638 inch
subject depth	0.75 inch
body length	1.844 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	11.5648 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
MIL compliance	NO
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Plug information	44133-2000
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYESTER
Total number of contacts	20
UL Flammability Code	94V-0
Evacuation force-minimum value	3.614 N
Base Number Matches	1

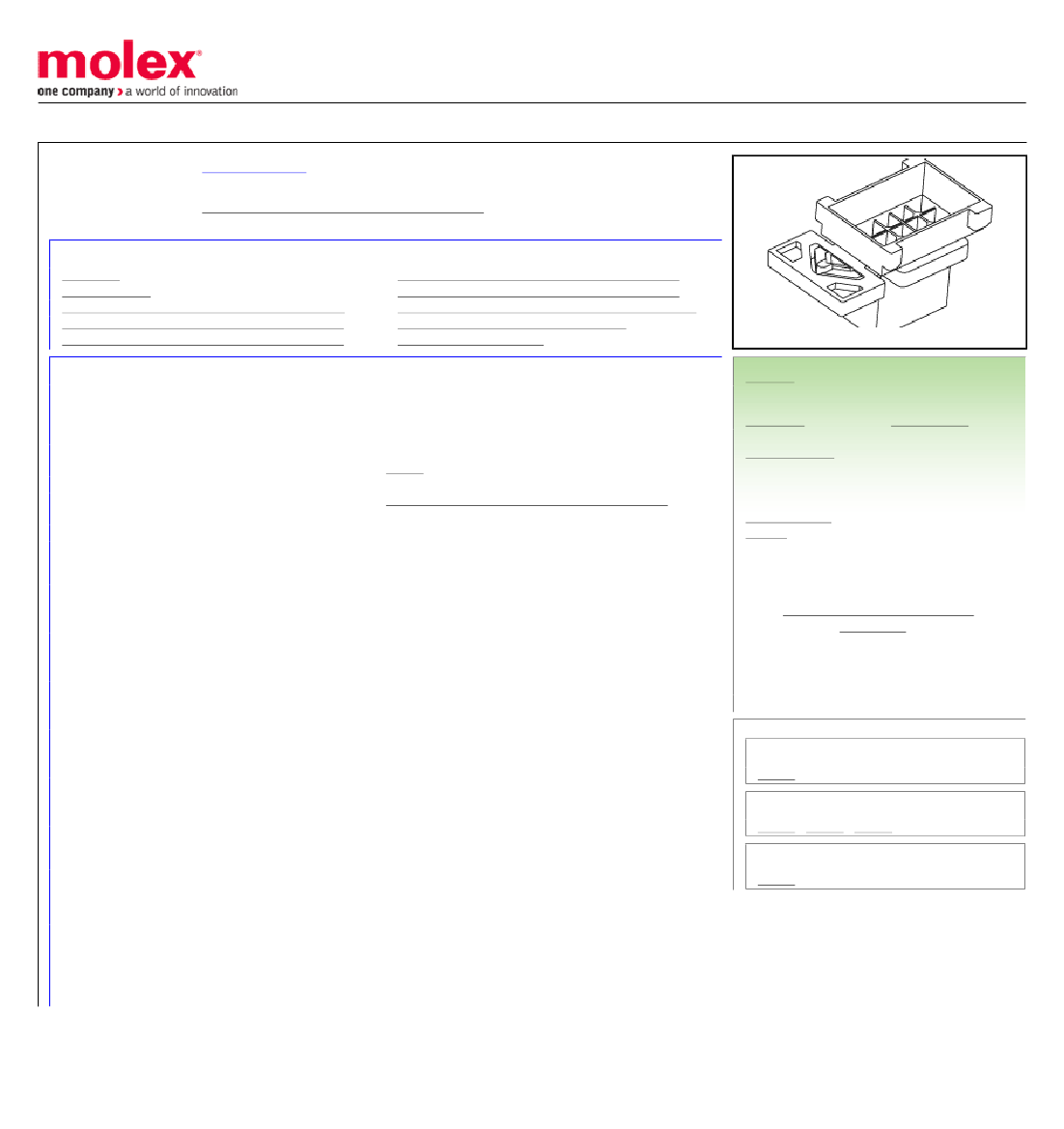

Preview

Download Datasheet

View All

This document was generated on 03/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0443002000

Active

Micro-Fit 3.0 Connector System Product Family

Micro-Fit BMI Plug Housing, Dual Row, Panel Mount, 20 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-44300-001-001 (PDF)

Product Specification TS-43045-001-001 (PDF)

Product Specification TS-43045-002-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Literature Order No

Product Name

UPC

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Capable

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Product Specification TS-44300-001-001 (PDF)

Product Specification TS-46235-001-001 (PDF)

Packaging Specification PK-44300-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

Crimp Housings

44300

Power, Wire-to-Board, Wire-to-Wire

Micro-Fit 3.0 Connector System Product Family

987650-5984

Micro-Fit BMI

800753281967

Black

94V-0

Plug

Polyester

4.581/g

Bag

Yes

3.00mm

Yes

-40°C to +105°C

N/A

Search Parts in this Series

44300 Series

Mates With

44133 , 44764 , 44769

Use With

43031 Micro-Fit 3.0 Male Crimp Terminals

Sales Drawing

PK-44300-001-001

PS-44300-001-001, TS-43045-001-001,

TS-43045-002-001, TS-44300-001-001,

TS-46235-001-001

SD-44300-001

This document was generated on 03/01/2018
