AM2833DC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> AM2833DC

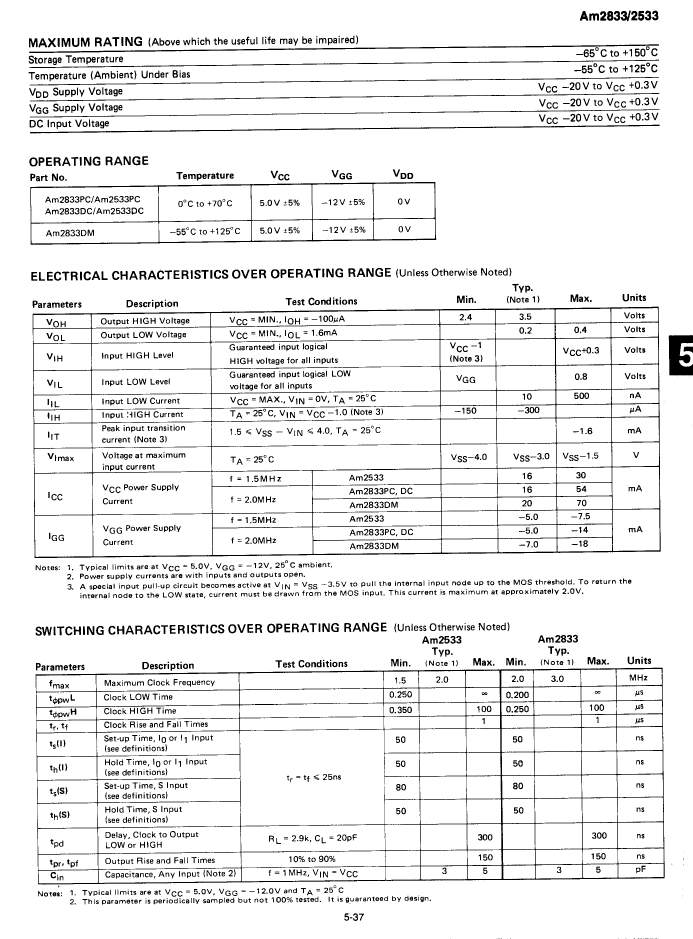

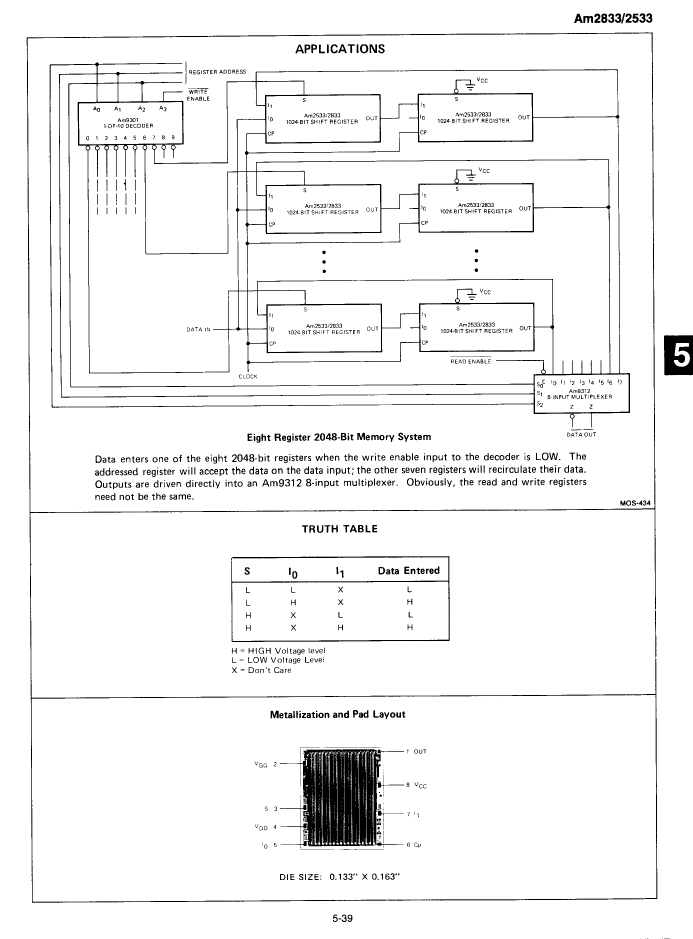

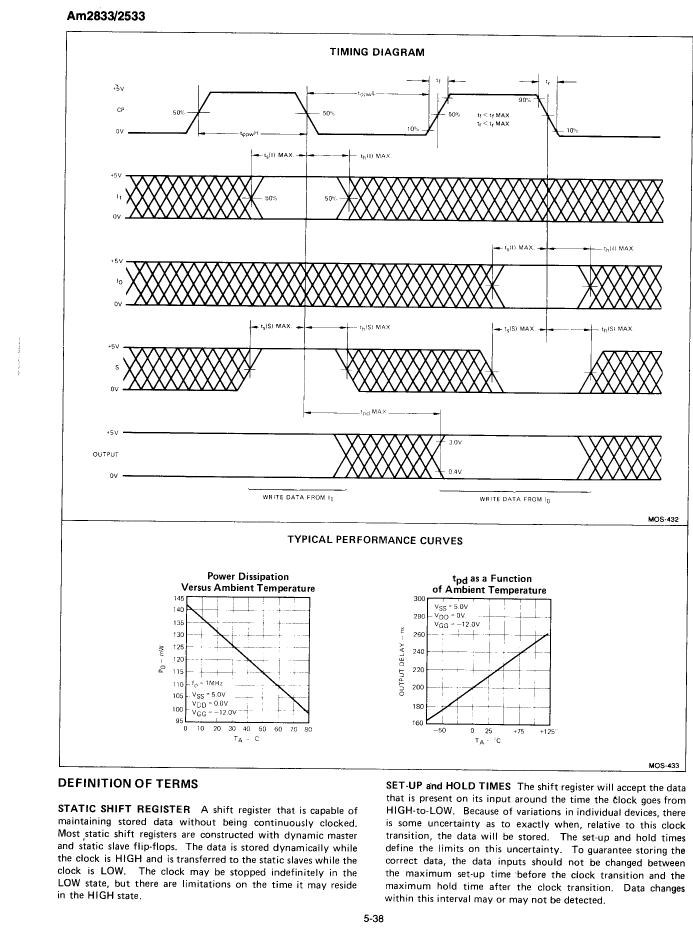

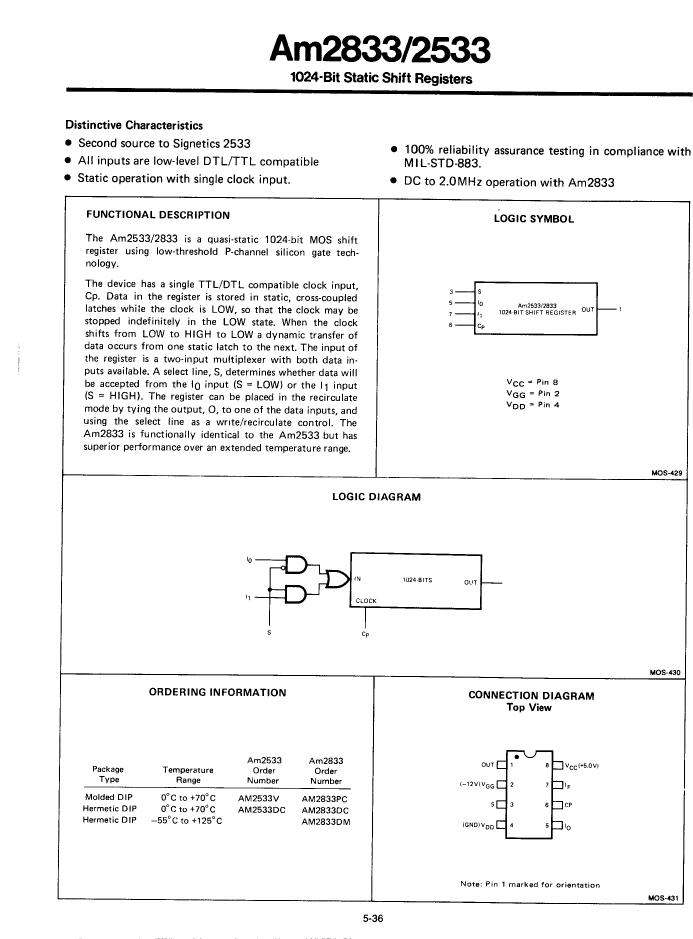

Preview

AM2833DC: Description1024-Bit Static Shift Registers; Categorylogic logic; File Size275KB，4 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM2833DC Overview

1024-Bit Static Shift Registers

AM2833DC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	unknow
Counting direction	RIGHT
JESD-30 code	R-CDIP-T8
JESD-609 code	e0
length	13.208 mm
Load capacitance (CL)	20 pF
Logic integrated circuit type	SERIAL IN SERIAL OUT
Maximum Frequency@Nom-Su	2000000 Hz
Number of digits	1024
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	300 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	PMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	NEGATIVE EDGE
width	7.62 mm
minfmax	3 MHz

Preview

Download Datasheet

View All

AM2833DC Related Products

	AM2833DC	AM2533	AM2833	AM2833PC	AM2533V	AM2533DC	AM2833DM
Description	1024-Bit Static Shift Registers	1024-Bit Static Shift Registers	1024-Bit Static Shift Registers	1024-Bit Static Shift Registers	1024-Bit Static Shift Registers	1024-Bit Static Shift Registers	1024-Bit Static Shift Registers
Is it Rohs certified?	incompatible	-	-	incompatible	incompatible	incompatible	incompatible
Maker	AMD	-	-	AMD	AMD	AMD	AMD
Parts packaging code	DIP	-	-	DIP	DIP	DIP	DIP
package instruction	DIP, DIP8,.3	-	-	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3
Contacts	8	-	-	8	8	8	8
Reach Compliance Code	unknow	-	-	unknow	unknow	unknow	unknow
Counting direction	RIGHT	-	-	RIGHT	RIGHT	RIGHT	RIGHT
JESD-30 code	R-CDIP-T8	-	-	R-PDIP-T8	R-PDIP-T8	R-CDIP-T8	R-CDIP-T8
JESD-609 code	e0	-	-	e0	e0	e0	e0
length	13.208 mm	-	-	9.779 mm	9.652 mm	13.208 mm	13.208 mm
Load capacitance (CL)	20 pF	-	-	20 pF	-	20 pF	20 pF
Logic integrated circuit type	SERIAL IN SERIAL OUT	-	-	SERIAL IN SERIAL OUT	SERIAL IN SERIAL OUT	SERIAL IN SERIAL OUT	SERIAL IN SERIAL OUT
Maximum Frequency@Nom-Su	2000000 Hz	-	-	2000000 Hz	1500000 Hz	1500000 Hz	2000000 Hz
Number of digits	1024	-	-	1024	1024	1024	1024
Number of functions	1	-	-	1	1	1	1
Number of terminals	8	-	-	8	8	8	8
Maximum operating temperature	70 °C	-	-	70 °C	70 °C	70 °C	125 °C
Output polarity	TRUE	-	-	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	-	-	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP8,.3	-	-	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
propagation delay (tpd)	300 ns	-	-	300 ns	300 ns	300 ns	300 ns
Certification status	Not Qualified	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	-	-	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	-	-	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	-	-	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	-	-	5 V	5 V	5 V	5 V
surface mount	NO	-	-	NO	NO	NO	NO
technology	PMOS	-	-	PMOS	MOS	PMOS	PMOS
Temperature level	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	-	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	-	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	-	-	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	NEGATIVE EDGE	-	-	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
width	7.62 mm	-	-	7.62 mm	7.62 mm	7.62 mm	7.62 mm
minfmax	3 MHz	-	-	3 MHz	1.5 MHz	2 MHz	3 MHz
