39-30-7065

Description
Headers & Wire Housings 6 Ckt Mini-Fit Jr R/ ni-Fit Jr R/A Header
CategoryThe connector    The connector
File Size31KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

39-30-7065 Online Shopping

Suppliers Part Number Price MOQ In stock
39-30-7065 - - View Buy Now

39-30-7065 Overview

Headers & Wire Housings 6 Ckt Mini-Fit Jr R/ ni-Fit Jr R/A Header

39-30-7065 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
package instructionLEAD FREE
Reach Compliance Codecompliant
Other featuresMINI-FIT JR
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedNICKEL
Contact point genderMALE
Contact materialBRASS
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number5569
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell materialPOLYAMIDE66
Termination typeSOLDER
Total number of contacts6
UL Flammability Code94V-2
Base Number Matches1
This document was generated on 03/05/2012
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:

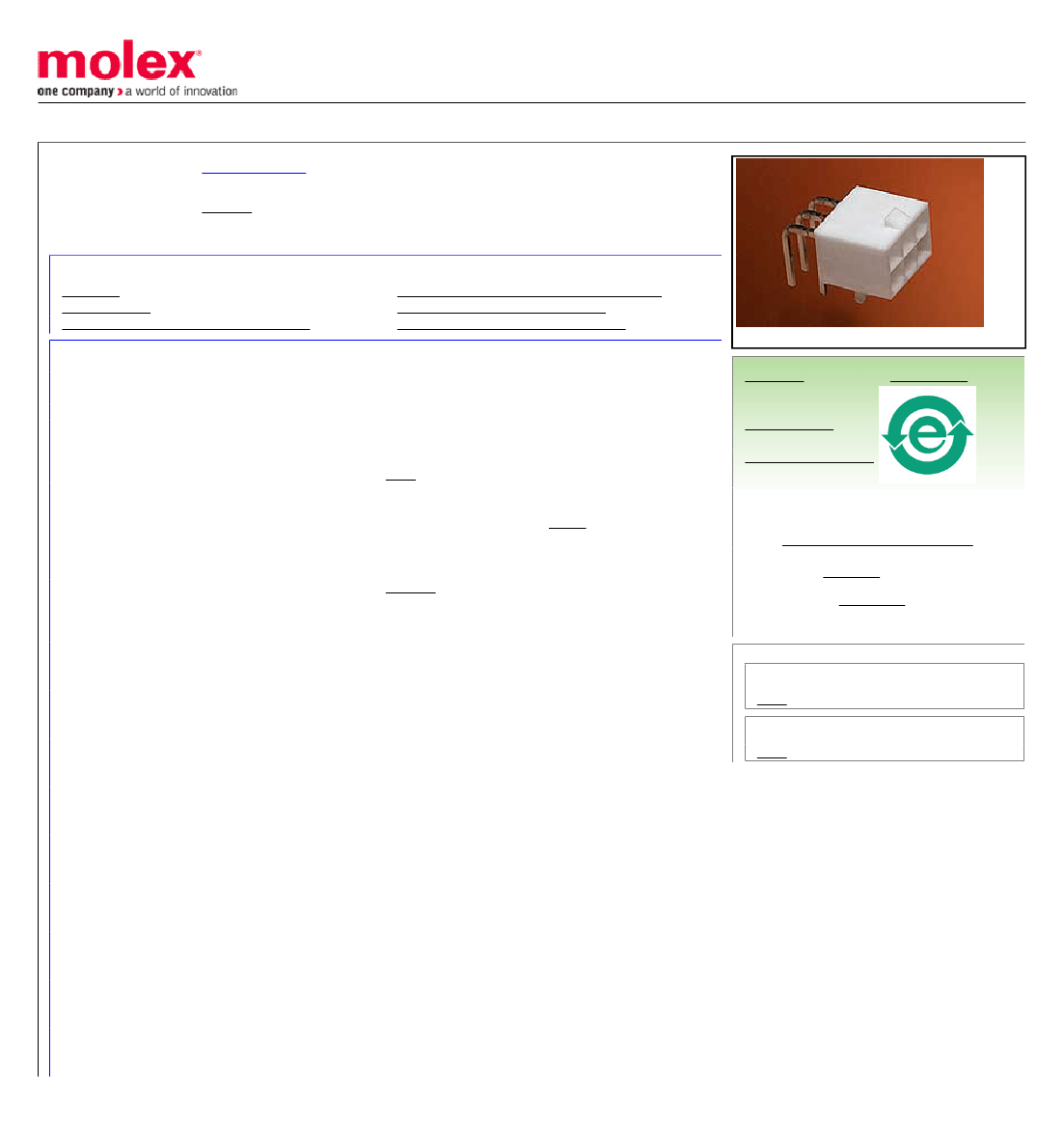

0039307065
Active
minifit_jr
4.20mm Pitch Mini-Fit Jr.™ Header, Dual Row, Right Angle, with Snap-in Plastic Peg
PCB Lock, 6 Circuits, PA Polyamide Nylon 6/6, 94V-2, Tin (Sn) Over Nickel (Ni) Plating
Documents:
3D Model
Drawing (PDF)
Product Specification PS-5556-001 (PDF)
Packaging Specification PK-5569-002 (PDF)
Test Summary TS-5556-002 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
Agency Certification
CSA
TUV
UL
LR19980
R72081037
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Application
Comments
PCB Headers
5569
Power, Wire-to-Board
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 Mini-Fit® Plus HCS
Crimp Terminal Crimped to 16 AWG wire., See Molex
Product specification PS-5556001 for additional current
de-rating information.
minifit_jr
Mini-Fit Jr.™
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Overview
Product Name
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Polarized to PCB
Shrouded
No
6
6
Natural
30
No
94V-2
No
No
None
Yes
Brass
Gold
Nickel
Nylon
2
Right Angle
3.50mm
Yes
Yes
1.78mm
Bag
4.20mm
4.20mm
Yes
Yes
Fully
Search Parts in this Series
5569Series
Mates With
5557 Mini-Fit Jr.™ Receptacle Housing
