71436-0190: DescriptionBoard Stacking Connector, 90 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug; CategoryThe connector; File Size236KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

71436-0190 Overview

Board Stacking Connector, 90 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Is Samacsys	N
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	71436
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	90
UL Flammability Code	94V-0
Base Number Matches	1

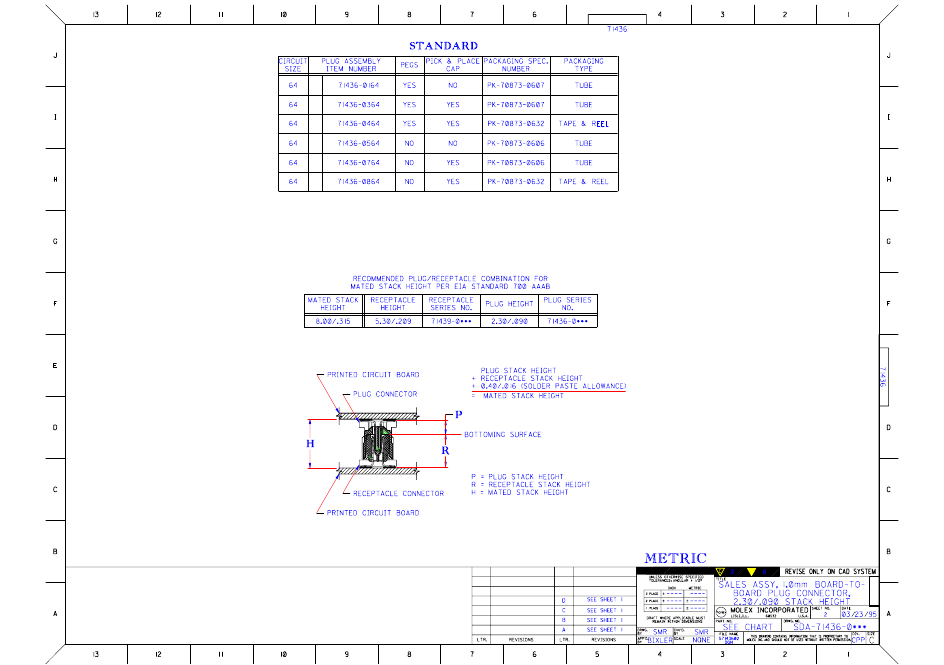

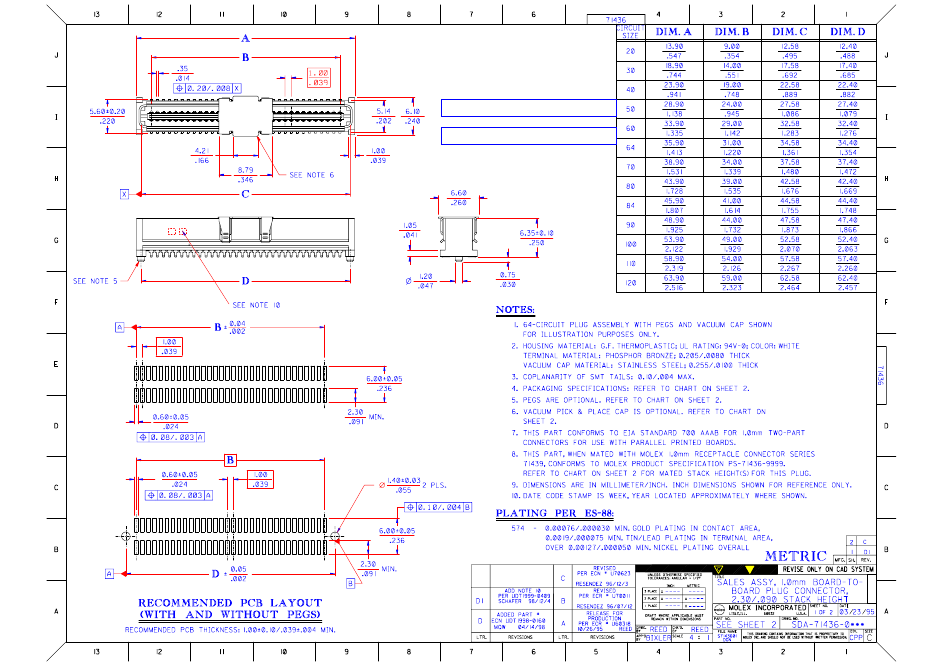

Molex 71436 Series Sales Assembly 1.0mm Board to Board Plug Connector, 2.30/.090 Stack Height

View Stack Height

3.30mm/.130in (71436-1***)

4.30mm/.169in (71436-2***)
