MaxiBridge - 2.54 mm Connectors
CABLE CONNECTOR SYSTEM
GENERAL

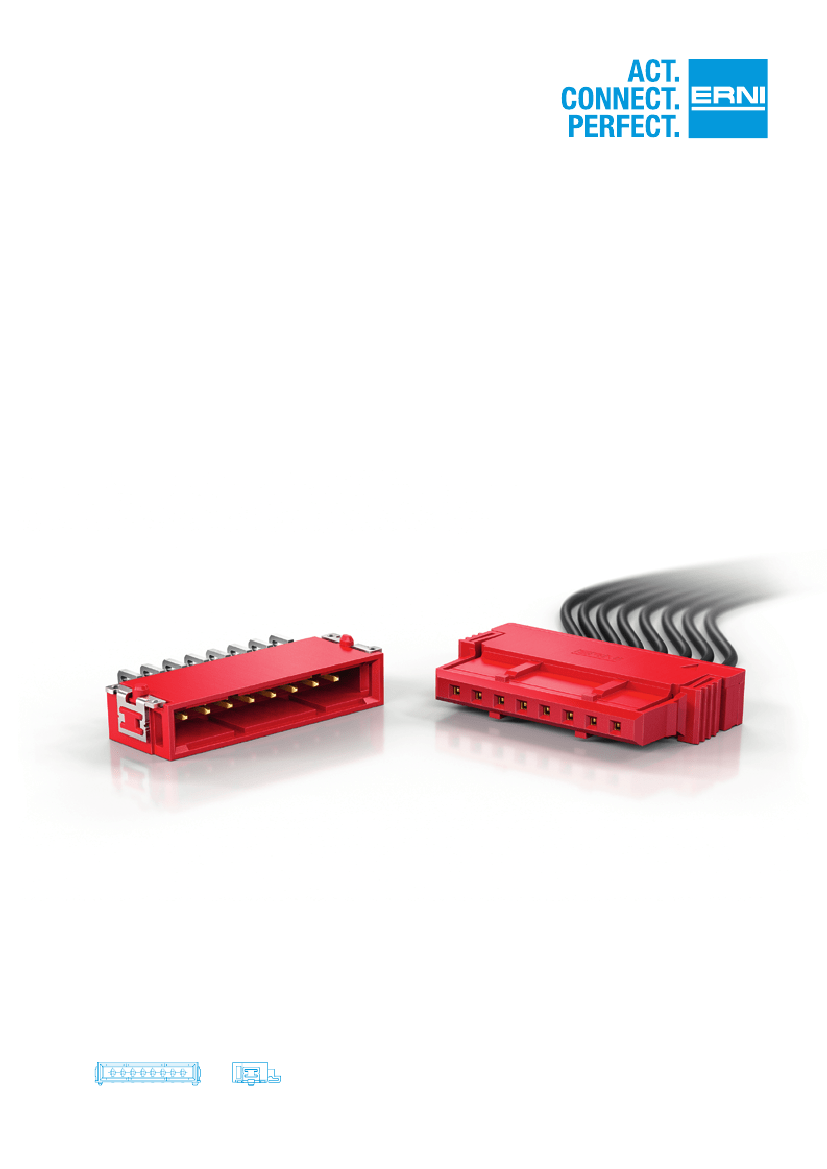

MaxiBridge
Male and Female
Connector

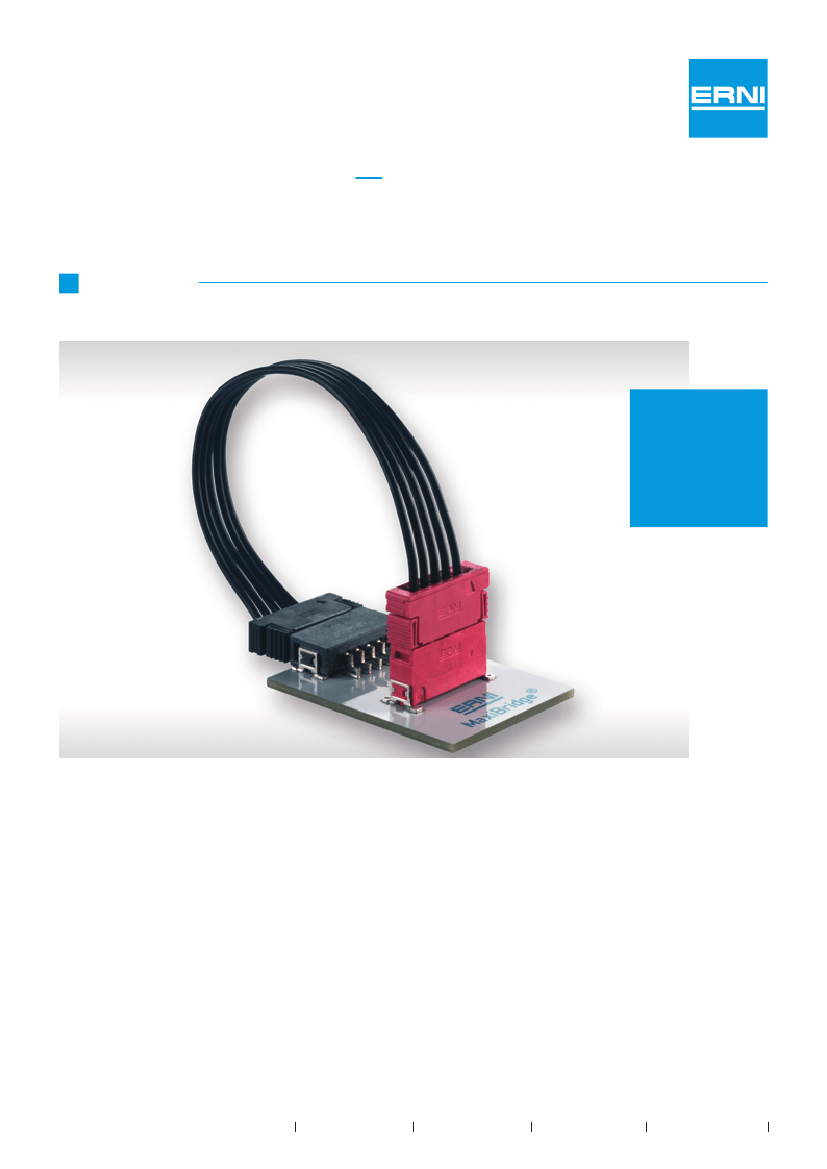

The 2.54 mm single and dual row cable connector
system is ideally suitable for high reliable and spa-
ce saving connections between PCBs and decentral
units, e.g. lamps or info panels, front plate elements
like buttons, switches or LEDs, motors, fans etc. The
cable system can be used in different applications, for
example: automotive, industrial, medical or even ligh-
ting technology. Thanks to the availability of vertical
and right angle male connectors and female connec-
tors with 180° cable outlet the system can be used in
a versatile manner. Emphasis is put on flexibility of the
usable cable sizes. Thus the required current rating
can be adjusted over a wide range.

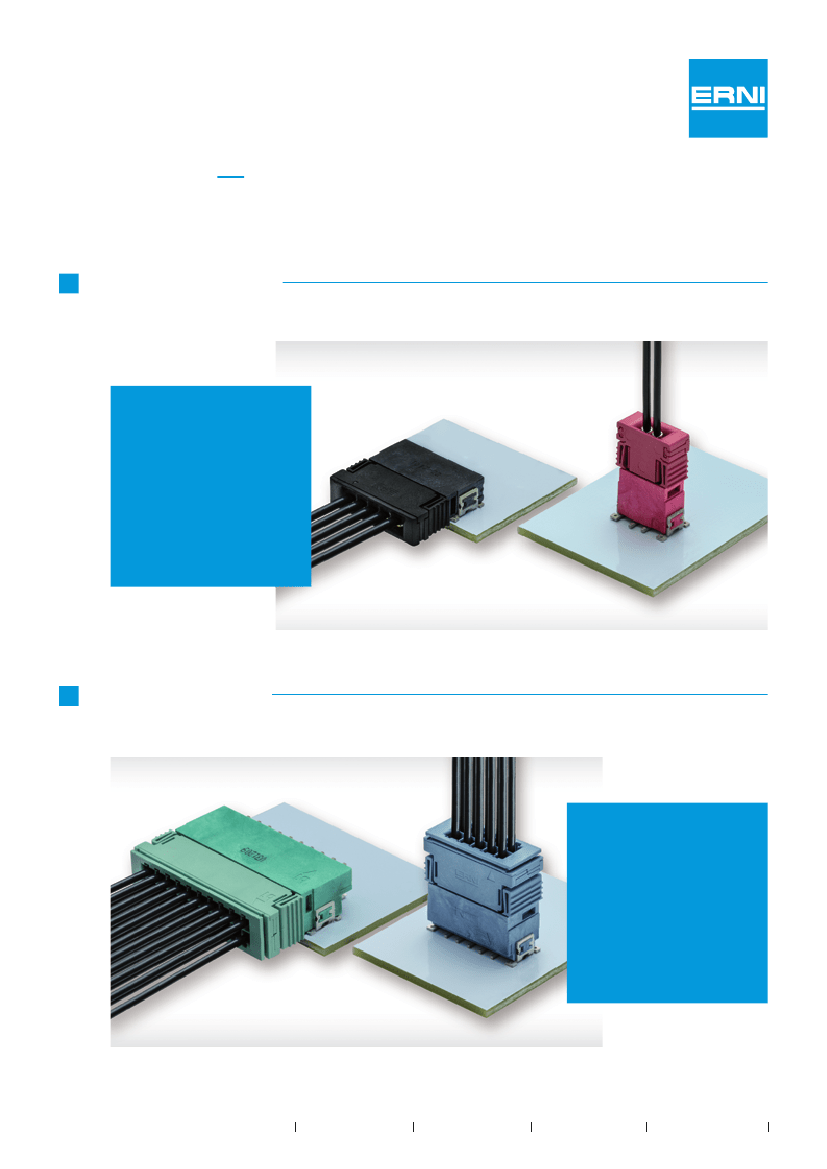

The vertical and right angle male connectors provide
SMT-terminals and the female connector has contact
cavities according to the crimp contacts. The plastic
material used is suitable for lead-free reflow soldering.
Tape and reel packaging and pick and place pad for
fully automatic assembly is a standard.
The crimp contacts are secured twice and reach hig-
hest retention forces. For each pin number, there are
four mechanical and different colored coding versions
with high blocking forces against mismating availab-
le. Cable and male connector have a locking system
on both sides, which prevents the contact from loo-
sening due to vibration. The robust interlocking can
be manually released without tools.
2
Catalog E 074593
07/16
Edition 11
www.erni.com
MaxiBridge - 2.54 mm Connectors
CONCEPT
FEATURES
Pitch
No. of Pins
Current rating per contact
Termination technology
Cable
2.54 mm
2, 3, 4, 5, 6, 8, 2x5, 2x10
up to 12 A (depends on cable)
Male connector SMT, female connector crimp
Single stranded wires AWG 18, AWG 20, AWG 22, AWG 24, AWG 26

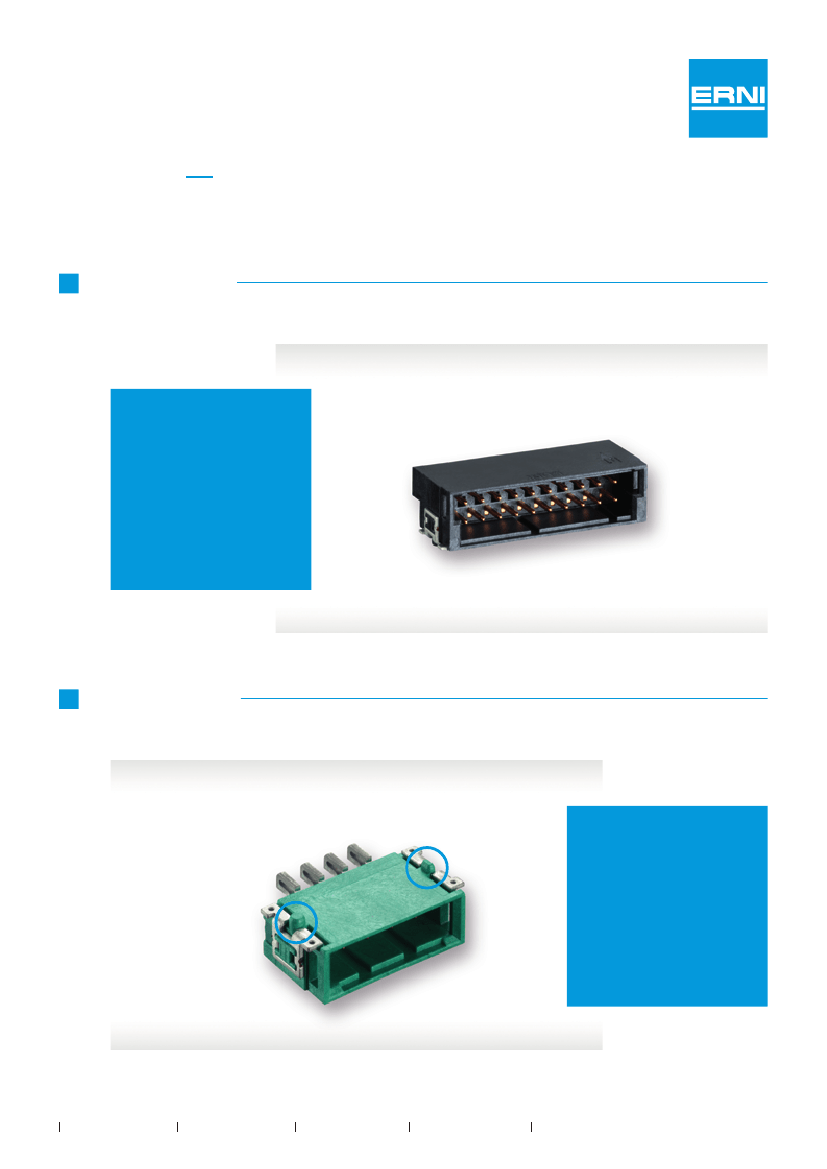

Single row male connectors, vertical and right angle
Dual row male connectors, vertical and right angle
Cable assemblies:
- Female connectors crimp, vertical
black, blue, green, red
particular wire cross sections have been tested according to the requirements of
LV214 for automotive connectors
Connectors
Coding
Automotive standard

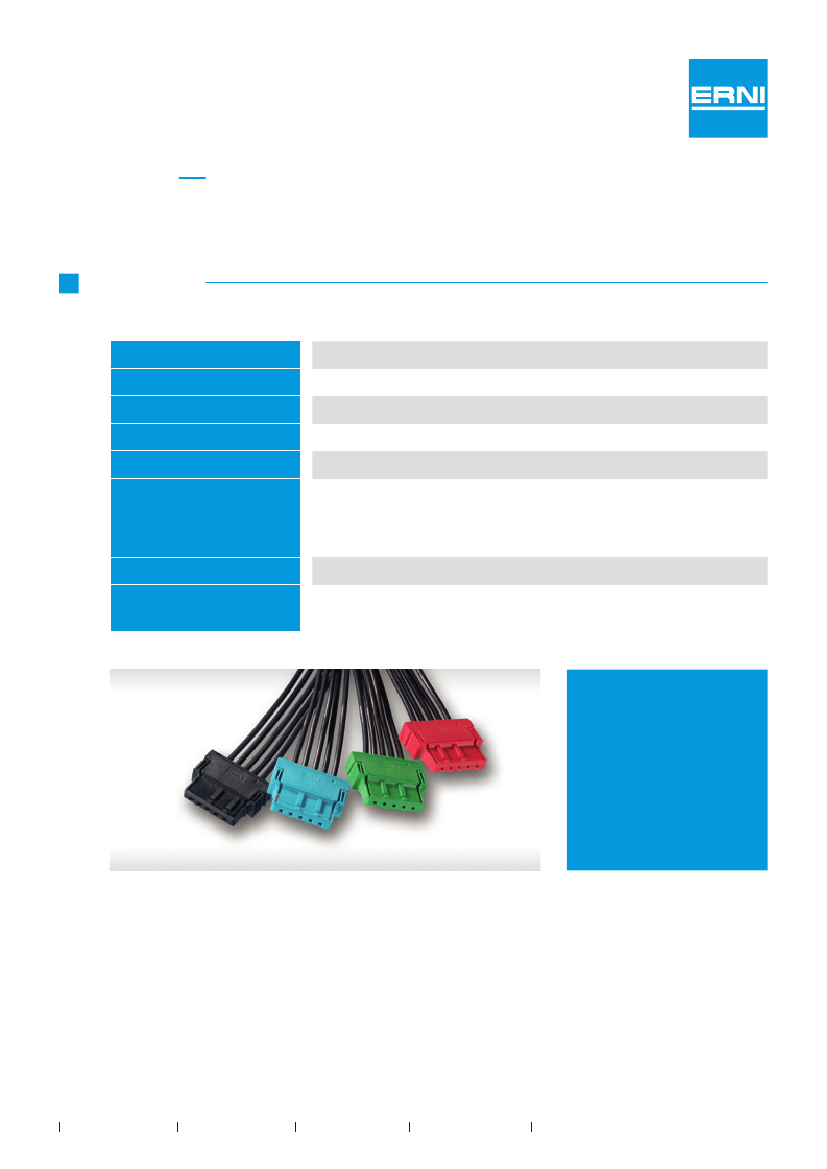

Robust interlocking with four
different colored codings per
pin number
Catalog E 074593
07/16
Edition 11
www.erni.com
3
