AT04-2P-BM03 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> AT04-2P-BM03

AT04-2P-BM03: DescriptionAutomotive Connectors AT RCPT 2P (Ni) PCB BRD MNT NO POTING BK; CategoryThe connector; File Size36KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

AT04-2P-BM03 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AT04-2P-BM03	-	-	View	Buy Now

AT04-2P-BM03 Overview

Automotive Connectors AT RCPT 2P (Ni) PCB BRD MNT NO POTING BK

AT04-2P-BM03 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	Automotive Connectors
RoHS	Details
Product	Connectors
Number of Positions	2 Position
Color	Black
Current Rating	13 A
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Contact Gender	Pin (Male)
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	50

Preview

Download Datasheet

View All

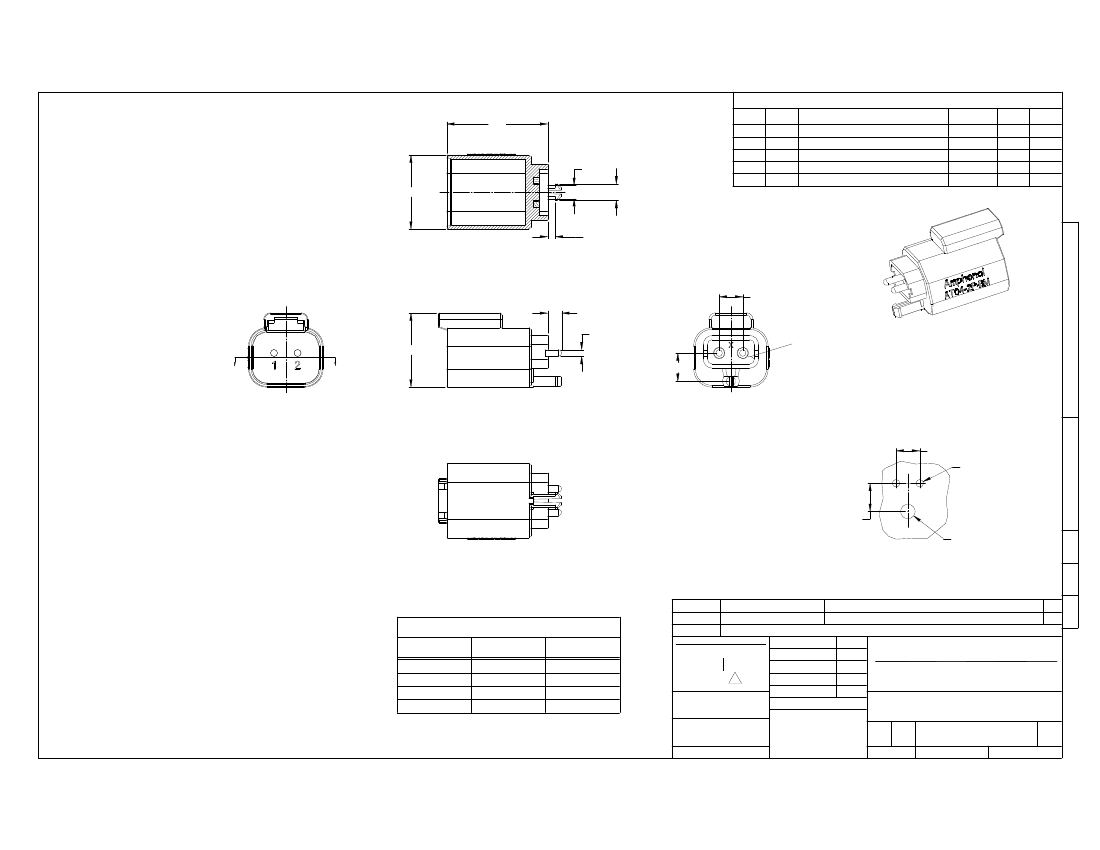

REVISIONS

23.1

REV

ECO

DESCRIPTION

RELEASE NUMBER

UPDATE DRAWING

ADD NICKEL PLATING VERSION

CHANGE PC TAIL LENGTH

REMOVE A DIMENSION AND ADD COLOR

DATE

SEP/24/14

OCT/06/14

APR/24/15

AUG/04/15

AUG/10/15

ORION

JARRY

ORION

APPR

Ø3.00

17.1

Ø3.80

TOMMY

TITLE:

1.70

SECTION A-A

RECEPTACLE, 2 PIN,PCB,BOARD MOUNT

5.40

3.20

2-Ø1.50

17.0

6.45

RESERVOIR

DWG NO:

5.40

2-ø1.70

AT04-2P-BMXX

NOTES: UNLESS OTHERWISE SPECIFIED

1. MATERIAL:

HOUSING: THERMOPLASTIC; COLOR: BLACK

CONTACT: COPPER ALLOY

2. MODIFICATIONS: PCB MOUNT

3. SPECIFICATIONS:

3.1 CURRENT RATING: 13 AMPS

3.2 OPERATING TEMPERATURE: -55°C TO +125°C

3.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2

MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.

3.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C.

3.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )

3.6 MATING CYCLE DURABILITY: 100 CYCLES

3.7 RoHS COMPLIANT

4. MATING PART: AT06-2S* PLUG

( * = MODIFICATIONS AND COLORS )

5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.

6.45

ø3.30

RECOMMENDED LAYOUT

VIEW FROM COMPONENTS

SIDE OF PCB

REV:

SH:

AT04-2P-BMXX VARIANTS

CONTACT

PLATING

GOLD

NICKEL

POTTING OR NOT

IN RESERVOIR

NO POTTING

POTTING

NO POTTING

POTTING

PART NUMBER

AT04-2P-BM01

AT04-2P-BM02

AT04-2P-BM03

AT04-2P-BM04

QUANTITY

SEE PART NUMBER

CHART

DESCRIPTION

PART NUMBER

MATERIALS LIST

SIGNATURES

DRAWN:

CHECKED:

ENGINEER:

APPROVAL:

OF:

ITEM

UNLESS OTHERWISE SPECIFIED

All dimensions are in metric(mm).

Tolerances are as follows:

PL DEC

±0.30

Fractions

±1/64

PL DEC

±0.15

Angles

±1°

PL DEC

±0.08

DATE

ORION.LI

SEP/24/14

Amphenol

Sine Systems - www.amphenol-sine.com

44724 Morley Drive

Clinton Township, MI 48036

3) Note reference =

MATERIAL SPECIFICATIONS:

TOMMY.XIE

SEP/24/14

CUSTOMER:

THIS DRAWING IS SUPPLIED FOR

INFORMATION ONLY. DESIGN FEATURES,

SPECIFICATIONS AND PERFORMANCE DATA SIZE

SHOWN HEREON ARE THE PROPERTY OF

THE AMPHENOL CORPORATION. NO RIGHTS

OF REPRODUCTION ARE IMPLIED. ALL

DIMENSIONS ARE SUBJECT TO NORMAL

SCALE:

MANUFACTURING VARIATIONS.

RECEPTACLE, 2 PIN,

PCB, BOARD MOUNT

TYPE

DWG NO:

PROCESS SPECIFICATIONS:

REVISION

B C-

NONE

AT04-2P-BMXX

SHEET

NEXT ASS'Y:

AT04-2P-BM03 Related Products

	AT04-2P-BM03	AT04-2P-BM02
Description	Automotive Connectors AT RCPT 2P (Ni) PCB BRD MNT NO POTING BK	Automotive Connectors AT RCPT 2P (Au) PCB BRD MNT POTING BK
Product Attribute	Attribute Value	Attribute Value
Manufacturer	Amphenol	Amphenol
Product Category	Automotive Connectors	Automotive Connectors
RoHS	Details	Details
Product	Connectors	Connectors
Number of Positions	2 Position	2 Position
Color	Black	Black
Current Rating	13 A	13 A
Housing Material	Thermoplastic	Thermoplastic
Contact Material	Copper Alloy	Copper Alloy
Contact Gender	Pin (Male)	Pin (Male)
Maximum Operating Temperature	+ 125 C	+ 125 C
Minimum Operating Temperature	- 55 C	- 55 C
Factory Pack Quantity	50	50
