Description
The GM78L00 series in positive voltage regulators are low-
cost devices providing a simple solution for a wide variety
of applications, which requires a regulated supply of up to
100mA.
These virtually indestructible positive voltage regulators
are protected by thermal shutdown and internal current-
limiting. Most applications require no external components.
The GM78L00 is very versatile. To use them as fixed volt-
age regulators in a wide range of applications, including
both local and on-card regulation for elimination of noise
and distribution problems associated with single-point regu-
lation. They can also be used with power pass elements to
make high current voltage regulators.
The GM78L00 offers impressive performance advantages
over old-fashioned zener diode-resistor combinations, pro-
viding lower output impedance and reduced quiescent cur-
Features
Output Current up to 100mA
Output Voltages 5V, 6V, 8V, 9V, 10V, 12V,
15V, 18V and24V
3- Terminal Regulators
No External Components Required
Internal Thermal Overload Protection
Internal Short Circuit Current-Limiting
Available in TO-92, SOT-89 and SOP-8
packages

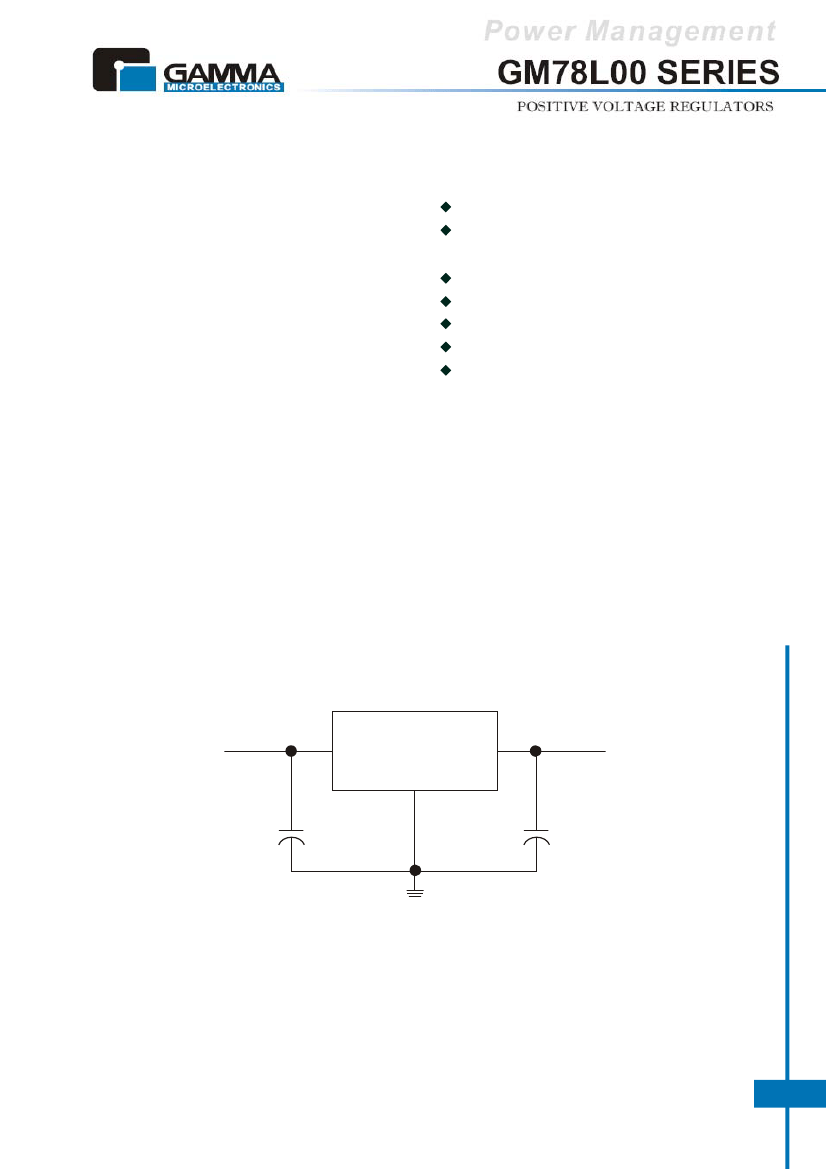

TYPIC APPLICATION CIRCUITS
C
IN
*
0.33µF
C
O
**
GND
A common ground is required between the input and the output voltages. The
input voltage must remain typically 2.0V above, the output voltage even during
the low point on the input ripple voltage.
* C
IN
is required if regulator is located an appreciable distance from power supply
filter.
** C
O
is not needed for stability; however, it does improve transient response.
www.gammamicro.com
GM78L00 SERIES
V0.1
1
V
IN
GM78L00
V
OUT

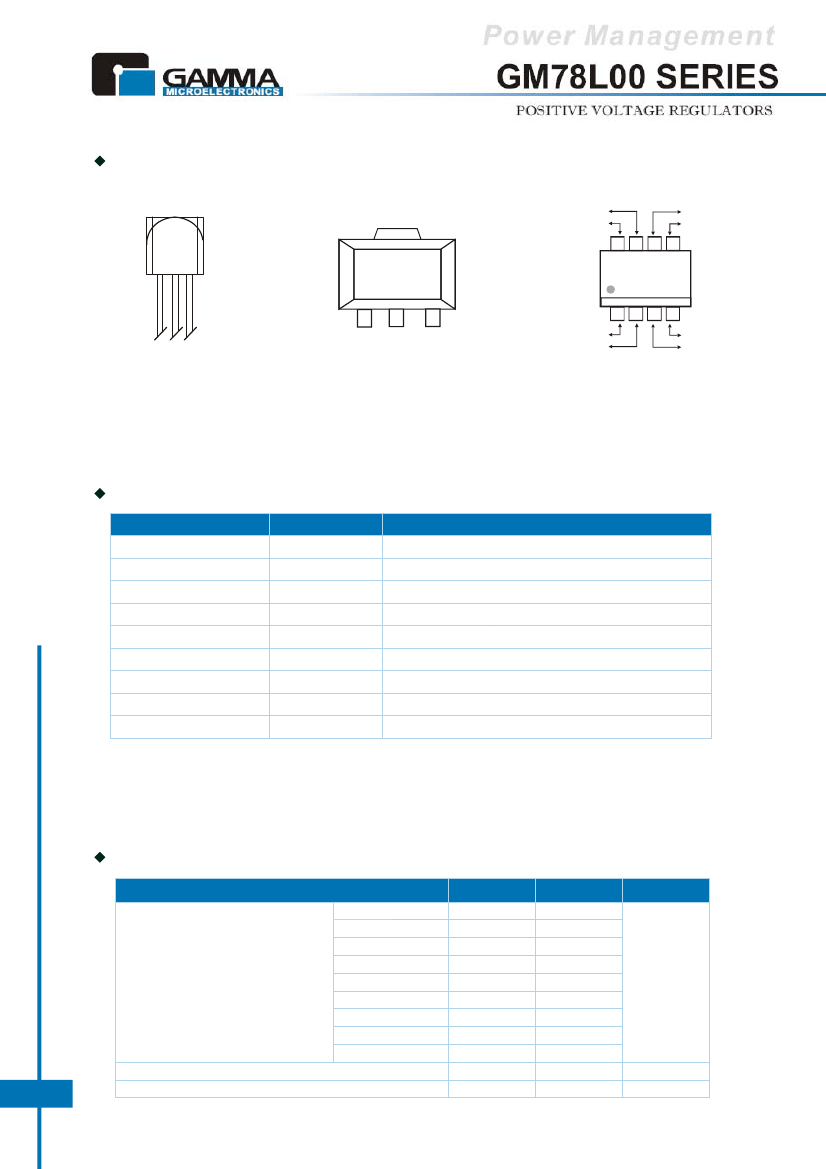

MARKING INFORMATION & PIN CONFIGURATIONS
(TOP VIEW)
TO-92
78LVV
AYWW
SOT-89
GND
V
IN
SOP-8
GND
NC
8 7 6 5
1. INPUT
2. GROUND
3. OUTPUT
3
2
1
GM78LVV
AYWW
V
OUT
1
VV
A
Y
WW
2
3
GM78LVV
AYWW
V
IN
1 2
3 4
GND
=Output Voltage (05:5.0V, 12:12V)
=Assembly Location
=Year
=Weekly
V
OUT
GND
NC
GND
ORDERING INFORMATION
Pro Number
GM78L05
GM78L06
GM78L08
GM78L09
GM78L10
GM78L12
GM78L15
GM78L18
GM78L24
V
OUT
5.0V
6.0V
8.0V
9.0V
10V
12V
15V
18V
24V
Package
TO-92, SOT-89, SOP-8
TO-92, SOT-89, SOP-8
TO-92, SOT-89, SOP-8
TO-92, SOT-89, SOP-8
TO-92, SOT-89, SOP-8
TO-92, SOT-89, SOP-8
TO-92, SOT-89, SOP-8
TO-92, SOT-89, SOP-8
TO-92, SOT-89, SOP-8
* For detail Ordering Number identification, please see last page.
GM78L00 SERIES

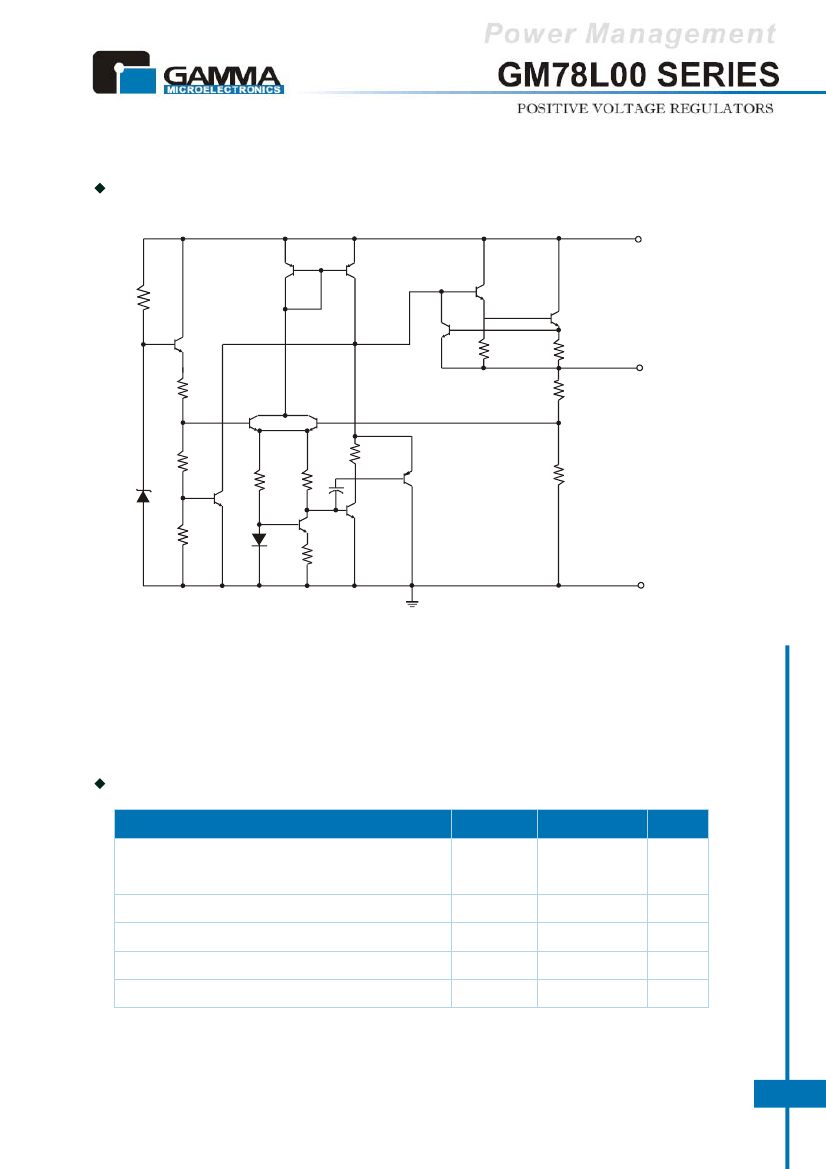

RECOMMENDED OPERATING CONDITIONS (I
O
= 1.5A)
PARAMETER
GM78L05
GM78L06
GM78L08
GM78L09
GM78L10
GM78L12
GM78L15
GM78L18
GM78L24
MIN
7
8
10.5
11.5
12.5
14.5
17.5
21
27
0
MAX
20
20
23
24
25
27
30
33
39
100
125
UNIT
Input Voltage V
I
V
Output Current, I
O
Operating virtual junction temperature, T
J
2
mA
°C
ELECTRICAL CHARACTERISTICS at specified Junction Temperature
GM78L05:
V
I
= 10V, I
O
= 40mA, (unless otherwise noted)
CHARACTERISTICS
TEST CONDITIONS *
25°C
I
O
= 1mA to 40mA
V
I
=7V to 20V
I
O
= 1mA to 70mA
V
I
=7V to 20V
V
I
=8V to 20V
V
I
=8V to 18V, f = 120Hz
I
O
=1mA to 100mA
I
O
=1mA to 40mA
f = 10Hz to 100kHz
MIN
4.8
4.75
4.75
TYP
5.0
5.0
5.0
32
26
MAX
5.2
5.25
5.25
150
100
60
30
UNIT
Output Voltage **
0°C to 125°C
V
Input Regulation
Ripple Rejection
Output Regulation
Output Resistance
Dropout Voltage
Bias Current
Bias Current
25°C
25°C
25°C
25°C
25°C
25°C
125°C
41
mV
dB
mV
µV
V
49
15
8
42
1.7
3.8
6
5.5
1.5
0.1
mA
mA
V
I
=8V to 20V
I
O
=1mA to 40mA
0°C to 125°C
GM78L06:
V
I
= 11V, I
O
= 40mA, (unless otherwise noted)
CHARACTERISTICS
TEST CONDITIONS *
25°C
Output Voltage **
I
O
= 1mA to 40mA
V
I
=8V to 20V
I
O
= 1mA to 70mA
Input Regulation
V
I
=8V to 20V
V
I
=9V to 20V
V
I
=9V to 19V, f = 120Hz
I
O
=1mA to 100mA
I
O
=1mA to 40mA
f = 10Hz to 100kHz
25°C
25°C
25°C
25°C
25°C
25°C
125°C
V
I
=9V to 20V
I
O
=1mA to 40mA
0°C to 125°C
40
0°C to 125°C
MIN
5.75
5.7
5.7
TYP
6.0
6.0
6.0
35
29
48
16
9
46
1.7
3.9
MAX
6.25
6.3
6.3
175
125
80
40
UNIT
V
mV
dB
mV
µV
V
GM78L00 SERIES
Ripple Rejection
Output Regulation
Output Resistance
Dropout Voltage
Bias Current
Bias Current
6
5.5
1.5
0.1
mA
mA
*Pulse testing tehniques are used to maintain the junction temperature as close to the ambient temperature as possible.
Thermal effects must be taken into account.
** The specification applies only for DC power dissipation permitted by absolute maximum ratings
4
ELECTRICAL CHARACTERISTICS at specified Junction Temperature
GM78L08:
V
I
= 14V, I
O
= 40mA, (unless otherwise noted)
CHARACTERISTICS
TEST CONDITIONS *
25°C
Output Voltage **
I
O
= 1mA to 40mA
V
I
=10.5V to 23V
I
O
= 1mA to 70mA
Input Regulation
Ripple Rejection
Output Regulation
Output Resistance
Dropout Voltage
Bias Current
Bias Current
V
I
=11V to 23V
I
O
=1mA to 40mA
V
I
=10.5V to 23V
V
I
=11V to 23V
V
I
=13V to 23V, f = 120Hz
I
O
=1mA to 100mA
I
O
=1mA to 40mA
f = 10Hz to 100kHz
25°C
0°C to 125°C
25°C
25°C
25°C
25°C
125°C
0°C to 125°C
37
0°C to 125°C
MIN
7.7
7.6
7.6
TYP
8.0
8.0
8.0
42
36
46
18
MAX
8.3
8.4
8.4
175
125
80
40
UNIT
V
mV
dB
mV
µV
V
10
54
1.7
4
6
5.5
1.5
0.1
mA
mA
GM78L09:
V
I
= 16V, I
O
= 40mA, (unless otherwise noted)
CHARACTERISTICS
TEST CONDITIONS *
25°C
Output Voltage **
I
O
= 1mA to 40mA
V
I
=12V to 24V
I
O
= 1mA to 70mA
Input Regulation
Ripple Rejection
Output Regulation
Output Resistance
Dropout Voltage
Bias Current
Bias Current
V
I
=13V to 20V
I
O
=1mA to 40mA
V
I
=12V to 24V
V
I
=13V to 24V
V
I
=15V to 25V, f = 120Hz
I
O
=1mA to 100mA
I
O
=1mA to 40mA
f = 10Hz to 100kHz
25°C
25°C
25°C
25°C
25°C
25°C
125°C
0°C to 125°C
38
0°C to 125°C
MIN
8.6
8.55
8.55
TYP
9.0
9.0
9.0
45
40
45
19
11
58
1.7
4.1
MAX
9.4
9.45
9.45
175
125
90
40
UNIT
V
mV
dB
mV
µV
V
6
5.5
1.5
0.1
mA
mA
*Pulse testing tehniques are used to maintain the junction temperature as close to the ambient temperature as possible.
Thermal effects must be taken into account.
** The specification applies only for DC power dissipation permitted by absolute maximum ratings
GM78L00 SERIES
5
