RM15WTRZB-8S(71) datasheet, PDF

Datasheet> All Categories > The connector> RM15WTRZB-8S(71)

RM15WTRZB-8S(71): DescriptionStandard Circular Connector WATERPROOF CONN RECEPT STR W/FLANGE; CategoryThe connector; File Size441KB，12 Pages; ManufacturerHirose Electric; Environmental Compliance

Download Datasheet Parametric View All

RM15WTRZB-8S(71) Overview

Standard Circular Connector WATERPROOF CONN RECEPT STR W/FLANGE

RM15WTRZB-8S(71) Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Hirose Electric
Product Category	Standard Circular Connector
RoHS	Details
Factory Pack Quantity	1

Preview

Download Datasheet

View All

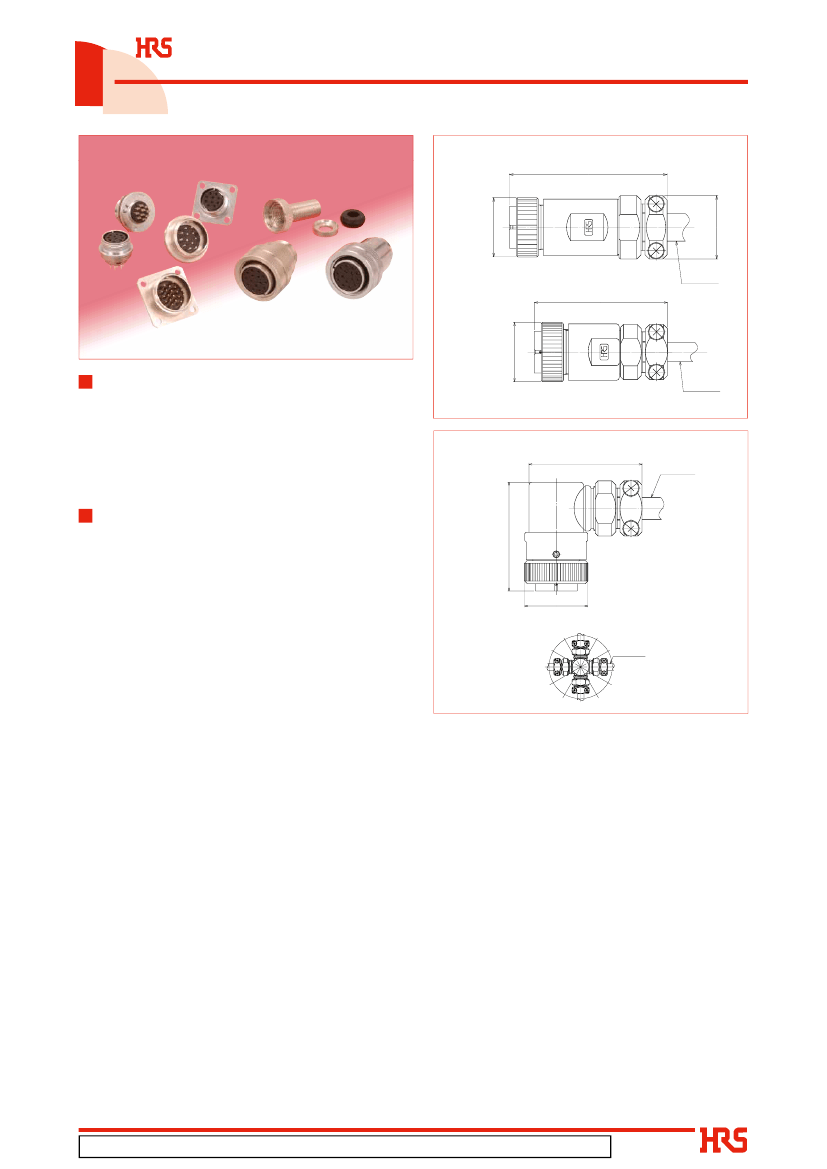

-Original Multi-purpose High-pin-count Miniature

Waterproof Connectors

RM-W Series

Assembly type (straight plug/RM15W)

Ø21.5

(Low-height plug)

Cable

Overview

RM-W series connectors originally developed by

Hirose offer miniature waterproof connectors to

satisfy the requirements of high-capability in a small

package.

The locking structure adopts a thread coupling style,

showing superior waterproof reliability.

Ø21.5

Cable

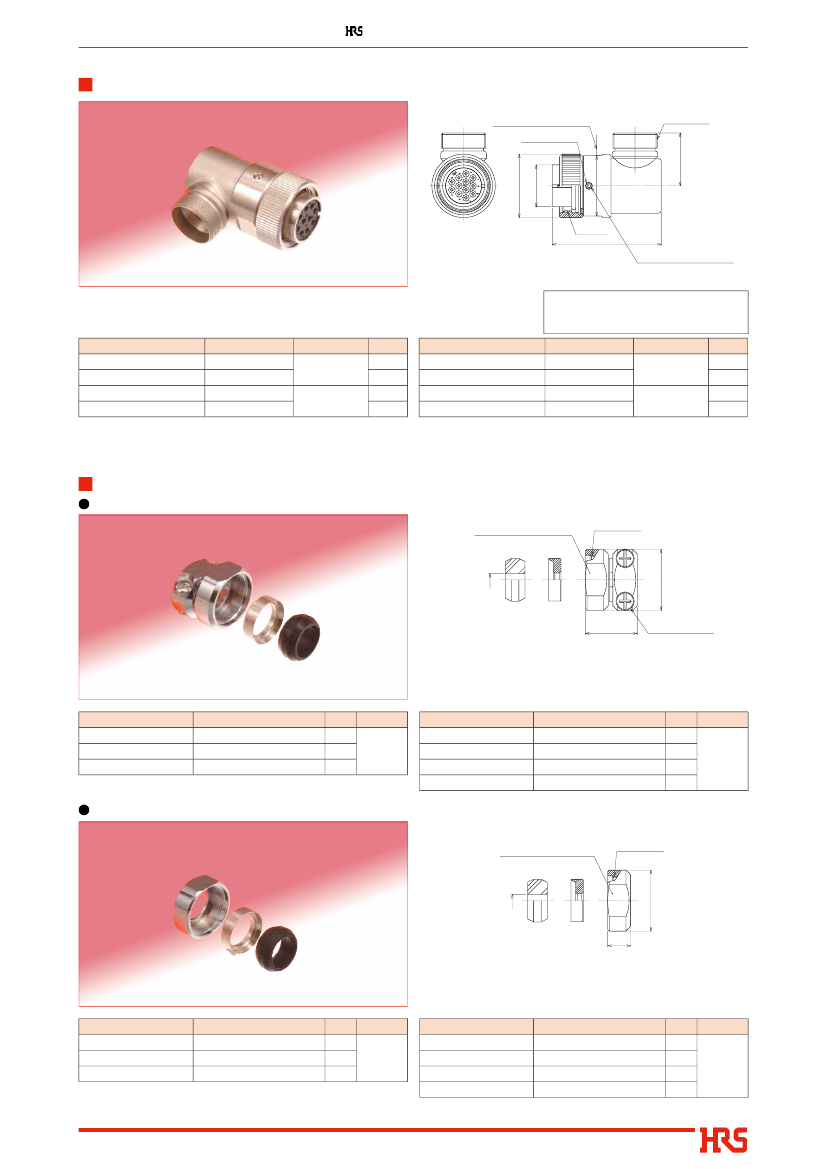

Assembly type (right-angled plug/RM15W)

Cable

Features

1. Rich variation

In RM-W series, you can select an optimal product

for your application through different kinds of both

plugs and receptacles.

Plugs :

Available in 3 types - straight plug, straight low-

height plug, and right-angled plug.

Receptacles :

Single-body waterproof type is available to satisfy

waterproof requirements in a single connector.

Fixing methods :

Available in 2 types-Jam nut type and screw

tightening type with square flange. The Jam nut

types offer a front or back mount application.

Available numbers of contacts :

2, 3, 4, 8, 10, 12, 15, 20, 40, and 55 contacts in

2 contact plating types: gold or silver.

Ø23

Flexible cable arrangements

Cable

360

2. Waterproof structure

When fully mated, the connectors meet the

waterproof requirements of IP67 and IP68.

Single-body waterproof receptacles also meet

the requirements of IP67 and IP68.

*IP67 : Submerged in 1m for 30 minutes.

*IP68 : Submerged in 2m for 14 days.

3. Flexible cable arrangements

The assembly type right-angled plugs permit

exiting of the cable over a 360-degree range in

any direction.

In cases where the application will demand a high level of reliability, such as automotive,

please contact a company representative for further information.

Ø23

Fig.1

Fig.2

2018.7④
