39753-0008 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 39753-0008

Preview

39753-0008: DescriptionPluggable Terminal Blocks TERMINAL PLUG HORIZ 5.00MM 8C GRN; CategoryThe connector; File Size145KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39753-0008 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39753-0008	-	-	View	Buy Now

39753-0008 Overview

Pluggable Terminal Blocks TERMINAL PLUG HORIZ 5.00MM 8C GRN

39753-0008 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Pluggable Terminal Blocks
RoHS	Not Applicable
Product	Plugs
Number of Positions	8 Position
Pitch	5 mm
Factory Pack Quantity	640

Preview

Download Datasheet

View All

13

12

11

10

9

8

7

6

5

4

3

2

1

PART NUMBER DATA

J

A

B

CIRCUITS

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

I

H

.197

A

G

PART

NUMBER

397530002

397530003

397530004

397530005

397530006

397530007

397530008

397530009

397530010

397530011

397530012

B

.47

M450B

F

WIRE ENTRY

C

ENGINEERING

NUMBER

M450B-00-1-02-3

M450B-00-1-03-3

M450B-00-1-04-3

M450B-00-1-05-3

M450B-00-1-06-3

M450B-00-1-07-3

M450B-00-1-08-3

M450B-00-1-09-3

M450B-00-1-10-3

M450B-00-1-11-3

M450B-00-1-12-3

M450B-00-1-13-3

M450B-00-1-14-3

M450B-00-1-15-3

M450B-00-1-16-3

M450B-00-1-17-3

M450B-00-1-18-3

M450B-00-1-19-3

M450B-00-1-20-3

M450B-00-1-21-3

M450B-00-1-22-3

M450B-00-1-23-3

M450B-00-1-24-3

COLOR

GREEN

A IN mm

.39

.59

.79

.98

1.18

1.38

1.57

1.77

1.97

2.17

2.36

2.56

2.76

2.95

3.15

3.35

3.54

3.74

3.94

4.13

4.33

4.53

4.72

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

50.0

55.0

60.0

65.0

70.0

75.0

80.0

85.0

90.0

95.0

100.0

105.0

110.0

115.0

120.0

B IN mm

.197

.394

.591

.787

.984

1.181

1.378

1.575

1.772

1.969

2.165

2.362

2.559

2.756

2.953

3.150

3.346

3.543

3.740

3.937

4.134

4.331

4.528

5.00

10.00

15.00

20.00

25.00

30.00

35.00

40.00

45.00

50.00

55.00

60.00

65.00

70.00

75.00

80.00

85.00

90.00

95.00

100.00

105.00

110.00

115.00

J

I

H

G

F

D

E

REF. THE LAST 2 DIGITS OF THE PART NUMBER EQUAL CIRCUIT COUNT

E

.53

D

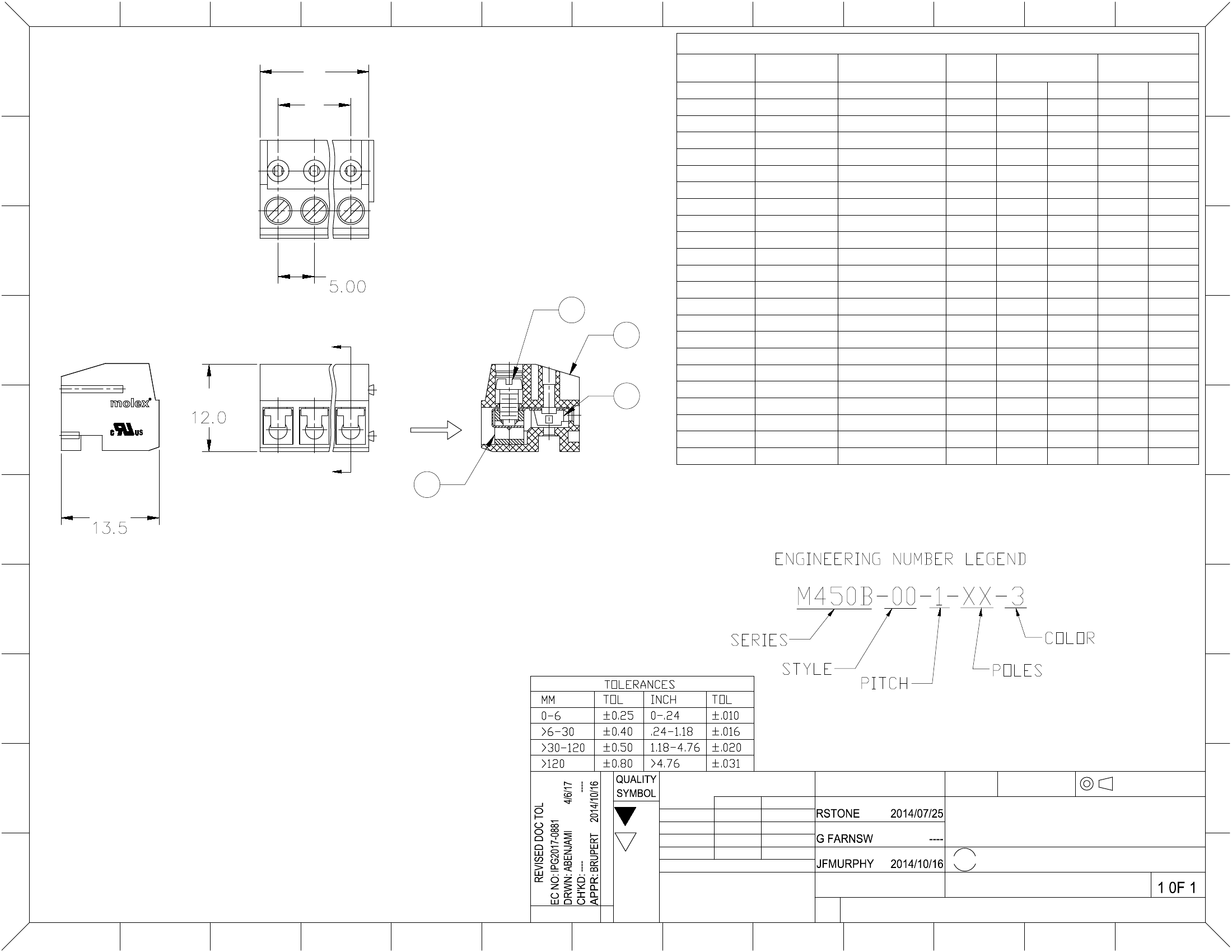

SPECIFICATIONS

1. MATERIAL:

A. SCREW: M2.5 STEEL, ZINC PLATED

B. BODY: PA66, UL94V-0

C. CONTACT: PHOS-BRONZE

D. CAGE: BRASS, NI PLATED

2. WIRE SIZE: 24 TO 14AWG

3.RATING: 300V, 10A

4.MAX TORQUE: 3 IN. LBS.

5.WIRE STRIP LENGTH: .20 IN. (5.0mm)

7.DIMS SHOWN ARE FOR REFERENCE ONLY

A1

13

12

11

10

9

8

REV

C

CONTACT FACTORY FOR OPTIONAL COLORS

B

GENERAL TOLERANCES

(UNLESS SPECIFIED)

DESCRIPTION

DIMENSION STYLE

SCALE

DESIGN UNITS

IN/MM

DRAWN BY

DATE

TITLE

CHECKED BY

DATE

---

METRIC

THIRD ANGLE

PROJECTION

B

=

0

C

mm

4 PLACES

3 PLACES

2 PLACES

1 PLACE

---

INCH

---

=

0

APPROVED BY

DATE

molex

TERMINAL PLUG-5.0MM

HORIZONTAL

----

MOLEX INCORPORATED

SHEET NO.

A

DRAFT WHERE

APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

7

6

5

MATERIAL NO.

DOCUMENT NO.

SEE CHART

SIZE

A

SD-39753-001

3

2

1

C

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

4

39753-0008 Related Products

	39753-0008	39753-0010	39753-0004	39753-0009	39753-0011	39753-0003	39753-0005	39753-0007
Description	Pluggable Terminal Blocks TERMINAL PLUG HORIZ 5.00MM 8C GRN	Pluggable Terminal Blocks TERMINAL PLUG HORIZ 5.00MM 10C GRN	Pluggable Terminal Blocks TERMINAL PLUG HORIZ 5.00MM 4C GRN	Pluggable Terminal Blocks TERMINAL PLUG HORIZ 5.00MM 9C GRN	Pluggable Terminal Blocks TERMINAL PLUG HORIZ 5.00MM 11C GRN	Pluggable Terminal Blocks TERMINAL PLUG HORIZ 5.00MM 3C GRN	Pluggable Terminal Blocks TERMINAL PLUG HORIZ 5.00MM 5C GRN	Pluggable Terminal Blocks TERMINAL PLUG HORIZ 5.00MM 7C GRN
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	-	Attribute Value	Attribute Value
Manufacturer	Molex	Molex	Molex	Molex	Molex	-	Molex	Molex
Product Category	Pluggable Terminal Blocks	Pluggable Terminal Blocks	Pluggable Terminal Blocks	Pluggable Terminal Blocks	Pluggable Terminal Blocks	-	Pluggable Terminal Blocks	Pluggable Terminal Blocks
RoHS	Not Applicable	Not Applicable	Not Applicable	Not Applicable	Not Applicable	-	Not Applicable	Not Applicable
Product	Plugs	Plugs	Plugs	Plugs	Plugs	-	Plugs	Plugs
Number of Positions	8 Position	10 Position	4 Position	9 Position	11 Position	-	5 Position	7 Position
Pitch	5 mm	5 mm	5 mm	5 mm	5 mm	-	5 mm	5 mm
Factory Pack Quantity	640	480	1800	560	400	-	1280	800
