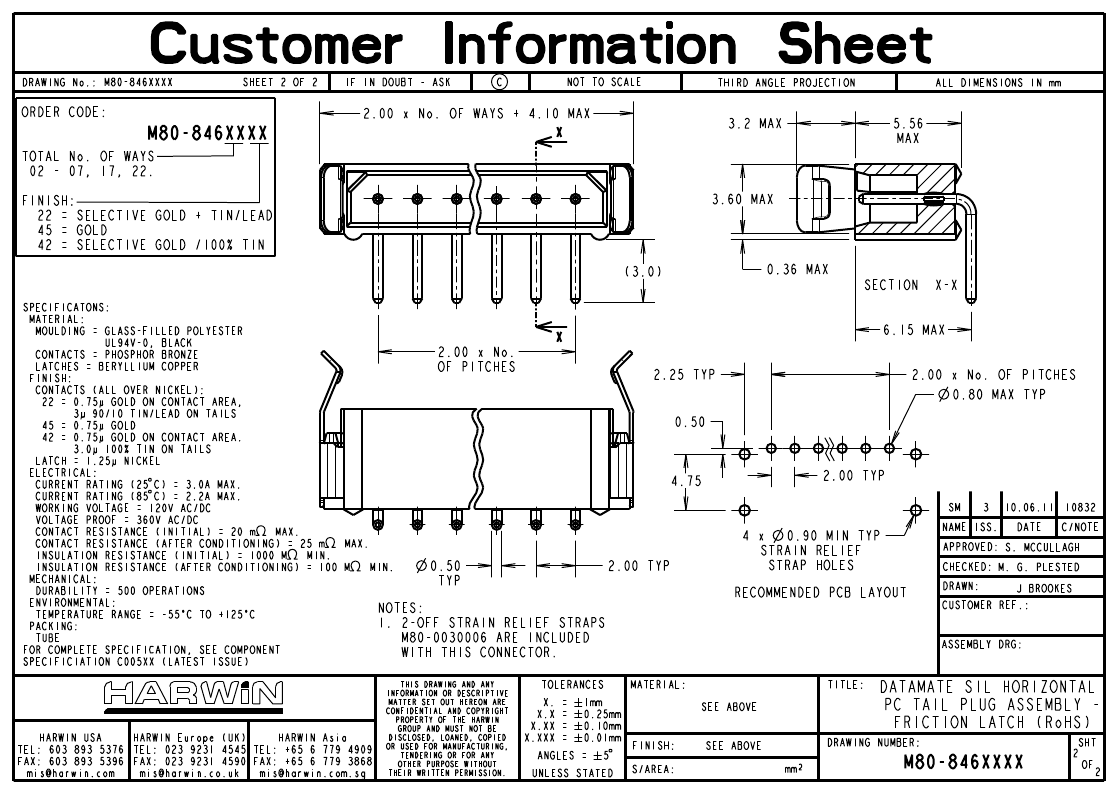

M80-8460342: DescriptionHeaders & Wire Housings 3 POS SIL R/A MALE FRICTION LATCH TIN; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-8460342 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-8460342	-	-	View	Buy Now

M80-8460342 Overview

Headers & Wire Housings 3 POS SIL R/A MALE FRICTION LATCH TIN

M80-8460342 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	LATCHED
body width	0.156 inch
subject depth	0.218 inch
body length	0.398 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	LATCH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

M80-8460342 Related Products

	M80-8460342	M80-8460542	M80-8462242	M80-8460742	M80-8460442	M80-8461742
Description	Headers & Wire Housings 3 POS SIL R/A MALE FRICTION LATCH TIN	Headers & Wire Housings 5 POS SIL R/A MALE FRICTION LATCH TIN	Headers & Wire Housings 22P MALE HORIZONTAL 3MM PC TAIL	Headers & Wire Housings 7 POS SIL R/A MALE FRICTION LATCH TIN	Headers & Wire Housings 4 POS SIL R/A MALE FRICTION LATCH TIN	Headers & Wire Housings 17 POS SIL R/A MALE FRICTION LATCH TIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
body width	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch
subject depth	0.218 inch	0.218 inch	0.218 inch	0.218 inch	0.218 inch	0.218 inch
body length	0.398 inch	0.555 inch	1.894 inch	0.713 inch	0.476 inch	1.5 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
maximum insertion force	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	LATCH	LATCH	LATCH	LATCH	LATCH	LATCH
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	3	5	22	7	4	17
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99
