8
7
6
5
4
3
2
1
NOTES
1 MATERIAL:
BODY: HIGH TEMP GLASS
FILLED POLYESTER,
GRAY UL94V-0
CONTACTS: COPPER ALLOY
2 PLATING:
2.03-3.81
m
[80-150
NICKEL UNDERPLATE
0.38
m
[15 in] OR
0.76
m
[30 in] AVG
GOLD ON WIPING AREA.
3 RIBBON CABLE:
RECOMMENDED: 3M
TM
3625
(28 AWG, 7 STRAND).
4 APPLICATION TOOLS:
3460 PRESS (OR EQUIVALENT)
3443-119 LOCATOR PLATE,
3442-9 PLATEN
SEE 3M INSTRUCTION SHEET
78-9101-2810-3.
MATES WITH 3M
TM
HEADERS
5
159 SERIES (REFERENCE 3M
DRAWING 78-5100-2359-7).
(0.51 mm [.020 in] SQ,
CROWNED
PINS).
6 SEE THE REGULATORY
INFORMATION APPENDIX (RIA)
IN THE "RoHS COMPLIANCE"
SECTION OF
WWW.3MCONNECTOR.COM FOR
COMPLIANCE INFORMATION
(RIA E1 & C1 APPLY).
7
3M
TM

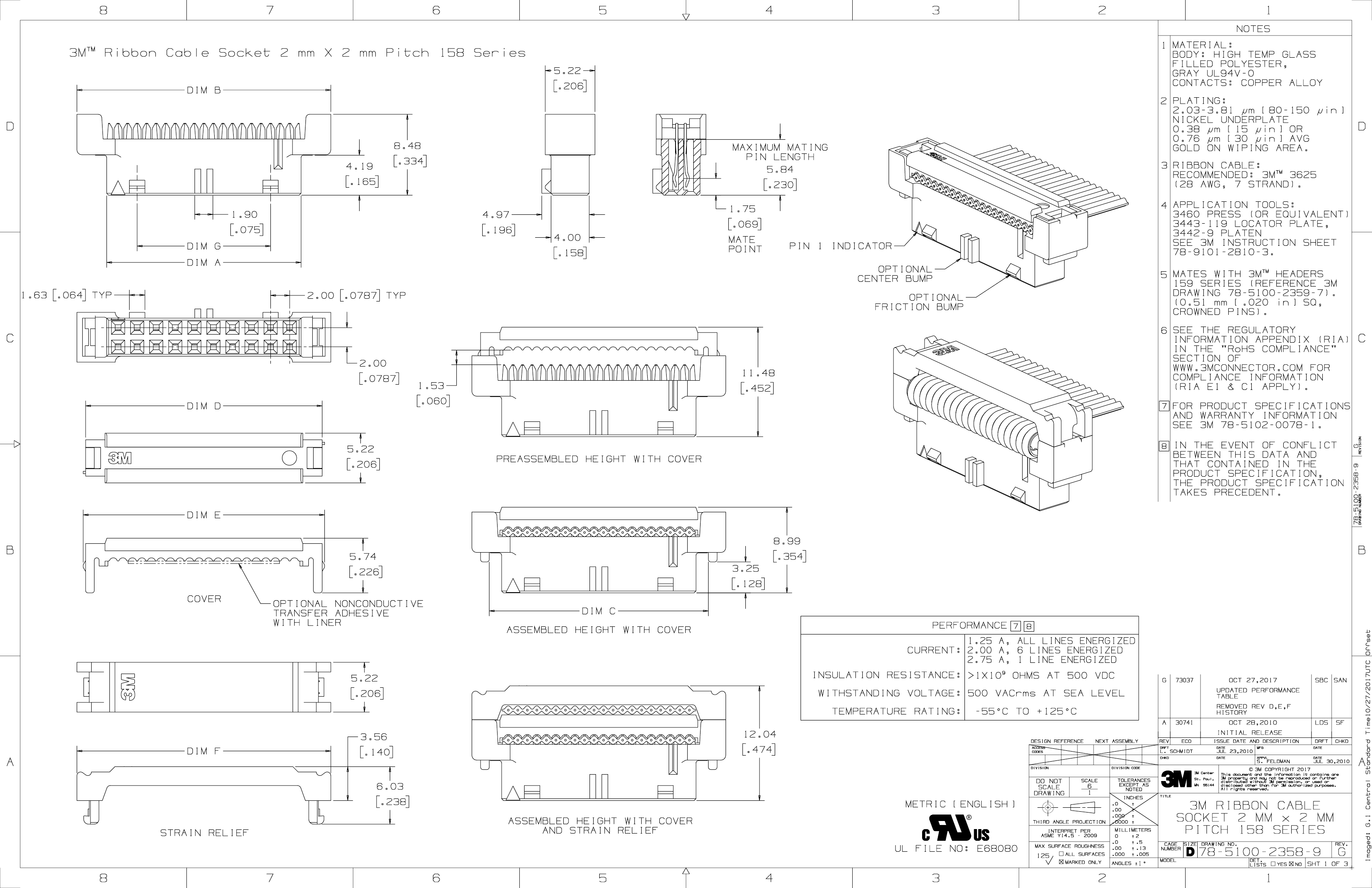

Ribbon Cable Socket 2 mm X 2 mm Pitch 158 Series
5.22
DIM B
.206
in]
D
8.48
4.19
.165
1.75
.069
4.00
.158
MATE
POINT
PIN 1 INDICATOR
OPTIONAL
CENTER BUMP
2.00 .0787 TYP
OPTIONAL
FRICTION BUMP
.334
MAXIMUM MATING
PIN LENGTH
5.84
.230
4.97
.196
D
1.90
.075
DIM G
DIM A
1.63 .064 TYP
C
2.00
.0787
DIM D
11.48
1.53
.060
.452
C
FOR PRODUCT SPECIFICATIONS
AND WARRANTY INFORMATION
SEE 3M 78-5102-0078-1.
IN THE EVENT OF CONFLICT
BETWEEN THIS DATA AND
THAT CONTAINED IN THE
PRODUCT SPECIFICATION,
THE PRODUCT SPECIFICATION
TAKES PRECEDENT.
REVISION
DRAWING NUMBER
5.22
.206
PREASSEMBLED HEIGHT WITH COVER
8
DIM E
8.99
5.74
.226
COVER
OPTIONAL NONCONDUCTIVE
TRANSFER ADHESIVE
WITH LINER
3.25
.128
DIM C
1.25 A, ALL LINES ENERGIZED
CURRENT: 2.00 A, 6 LINES ENERGIZED
2.75 A, 1 LINE ENERGIZED
5.22
.206
INSULATION RESISTANCE: >1X10
9
OHMS AT 500 VDC
WITHSTANDING VOLTAGE: 500 VACrms AT SEA LEVEL
TEMPERATURE RATING:
3.56
DIM F
.140
12.04
DESIGN REFERENCE
NEXT ASSEMBLY
REV
DRFT
B
.354
G
73037
OCT 27,2017
UPDATED PERFORMANCE
TABLE
REMOVED REV D,E,F
HISTORY
SBC SAN
-55 C TO +125 C
A
30741
ECO
OCT 28,2010
INITIAL RELEASE
ISSUE DATE AND DESCRIPTION
DATE
MFG
LDS
DRFT
DATE
DATE
SF
CHKD
.474
ACCESS
CODES
L. SCHMIDT
CHKD
JUL 23,2010
DATE
APPVL
A
6.03
.238
STRAIN RELIEF
ASSEMBLED HEIGHT WITH COVER
AND STRAIN RELIEF
METRIC [ENGLISH]
R
S. FELDMAN
DIVISION
DIVISION CODE
3M Center
JUL 30,2010
DO
NOT
SCALE
DRAWING
SCALE
6
1
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
MILLIMETERS
0
2
.0
.5
.00
.13
.000
.005
ANGLES
TITLE
St. Paul,
MN
55144
C
3M COPYRIGHT 2017
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
3M RIBBON CABLE
SOCKET 2 MM x 2 MM
PITCH 158 SERIES
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
UL FILE NO: E68080
MAX SURFACE ROUGHNESS
125
ALL SURFACES
MARKED ONLY
78-5100-2358-9
DET.
LISTS
YES
NO
G
1
SHT 1 OF 3
8
7
6
5
4
3
2
1
Imaged: G.1 Central Standard Time10/27/2017UTC Offset
ASSEMBLED HEIGHT WITH COVER
PERFORMANCE
7 8
78-5100-2358-9
G
B
8
7
6
5
4
3
2
1

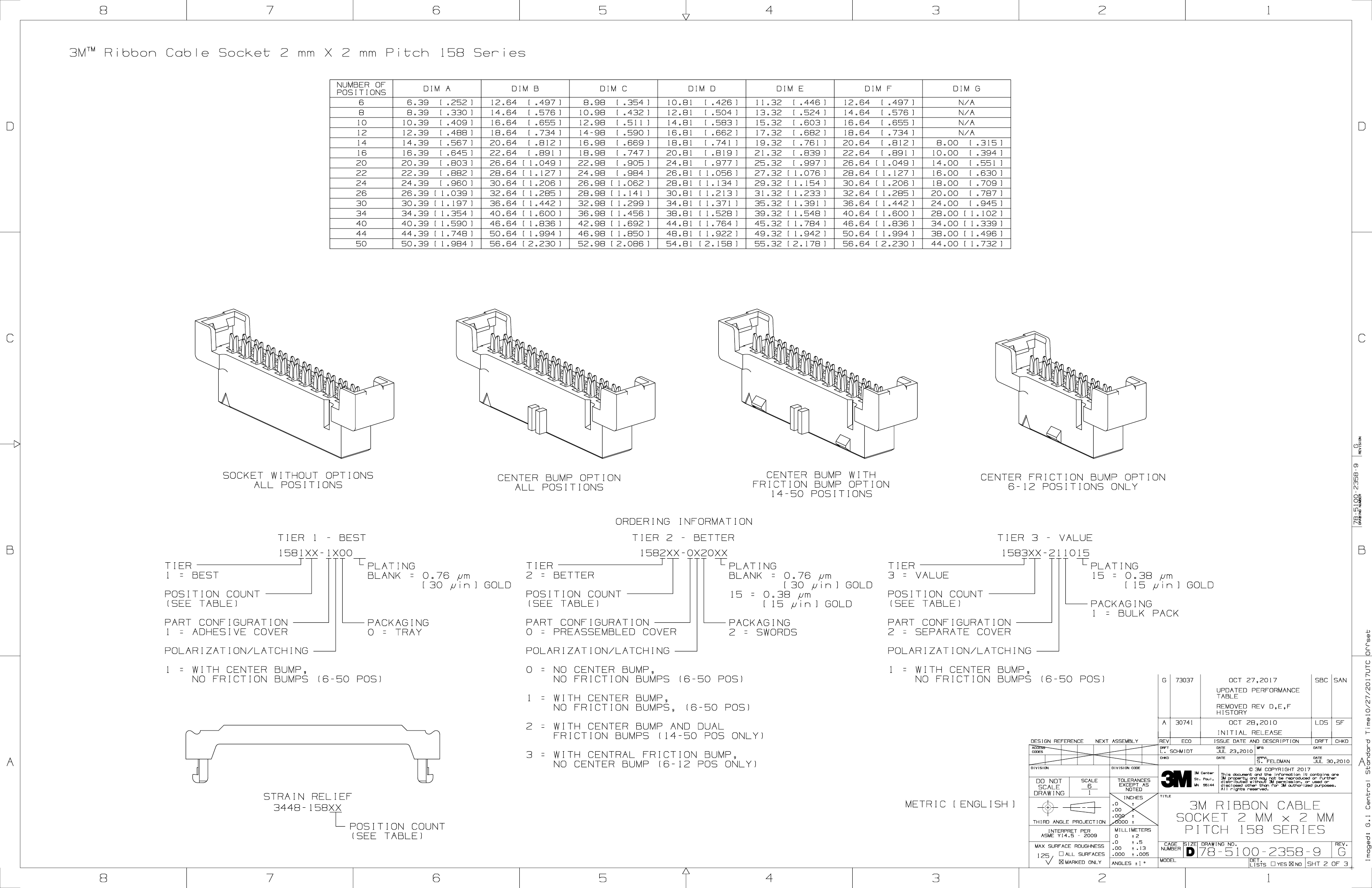

3M
TM
Ribbon Cable Socket 2 mm X 2 mm Pitch 158 Series
NUMBER OF
POSITIONS
6
8
10
12
14
16
20
22
24
26
30
34
40
44
50
DIM A
6.39
8.39
10.39
12.39
14.39
16.39
20.39
22.39
24.39
26.39
30.39
34.39
40.39
44.39
50.39
[.252]
[.330]
[.409]
[.488]
[.567]
[.645]
[.803]
[.882]
[.960]
[1.039]
[1.197]
[1.354]
[1.590]
[1.748]
[1.984]
DIM B
12.64
14.64
16.64
18.64
20.64
22.64
26.64
28.64
30.64
32.64
36.64
40.64
46.64
50.64
56.64
[.497]
[.576]
[.655]
[.734]
[.812]
[.891]
[1.049]
[1.127]
[1.206]
[1.285]
[1.442]
[1.600]
[1.836]
[1.994]
[2.230]
DIM C
8.98
10.98
12.98
14-98
16.98
18.98
22.98
24.98
26.98
28.98
32.98
36.98
42.98
46.98
52.98
[.354]
[.432]
[.511]
[.590]
[.669]
[.747]
[.905]
[.984]
[1.062]
[1.141]
[1.299]
[1.456]
[1.692]
[1.850]
[2.086]
DIM D
10.81
12.81
14.81
16.81
18.81
20.81
24.81
26.81
28.81
30.81
34.81
38.81
44.81
48.81
54.81
[.426]
[.504]
[.583]
[.662]
[.741]
[.819]
[.977]
[1.056]
[1.134]
[1.213]
[1.371]
[1.528]
[1.764]
[1.922]
[2.158]
DIM E
11.32
13.32
15.32
17.32
19.32
21.32
25.32
27.32
29.32
31.32
35.32
39.32
45.32
49.32
55.32
[.446]
[.524]
[.603]
[.682]
[.761]
[.839]
[.997]
[1.076]
[1.154]
[1.233]
[1.391]
[1.548]
[1.784]
[1.942]
[2.178]
DIM F
12.64
14.64
16.64
18.64
20.64
22.64
26.64
28.64
30.64
32.64
36.64
40.64
46.64
50.64
56.64
[.497]
[.576]
[.655]
[.734]
[.812]
[.891]
[1.049]
[1.127]
[1.206]
[1.285]
[1.442]
[1.600]
[1.836]
[1.994]
[2.230]
DIM G
N/A
N/A
N/A
N/A
8.00 [.315]
10.00 [.394]
14.00 [.551]
16.00 [.630]
18.00 [.709]
20.00 [.787]
24.00 [.945]
28.00 [1.102]
34.00 [1.339]
38.00 [1.496]
44.00 [1.732]
D
D
C
C
SOCKET WITHOUT OPTIONS
ALL POSITIONS
CENTER BUMP OPTION
ALL POSITIONS
ORDERING INFORMATION
TIER 1 - BEST
TIER 2 - BETTER
1582XX-0X20XX
PLATING
BLANK = 0.76
m
[30 in] GOLD
TIER
2 = BETTER
POSITION COUNT
(SEE TABLE)
PACKAGING
0 = TRAY
PART CONFIGURATION
0 = PREASSEMBLED COVER
POLARIZATION/LATCHING
0 = NO CENTER BUMP,
NO FRICTION BUMPS (6-50 POS)
1 = WITH CENTER BUMP,
NO FRICTION BUMPS, (6-50 POS)
2 = WITH CENTER BUMP AND DUAL
FRICTION BUMPS (14-50 POS ONLY)
A
DESIGN REFERENCE
ACCESS
CODES
TIER 3 - VALUE
1583XX-211015
B
TIER
1 = BEST
POSITION COUNT
(SEE TABLE)
1581XX-1X00
B
PLATING
15 = 0.38
m
[15 in] GOLD
PACKAGING
1 = BULK PACK
Imaged: G.1 Central Standard Time10/27/2017UTC Offset
PLATING
BLANK = 0.76
m
[30 in] GOLD
15 = 0.38
m
[15 in] GOLD
PACKAGING
2 = SWORDS
TIER
3 = VALUE
POSITION COUNT
(SEE TABLE)
PART CONFIGURATION
2 = SEPARATE COVER
POLARIZATION/LATCHING
PART CONFIGURATION
1 = ADHESIVE COVER
POLARIZATION/LATCHING
1 = WITH CENTER BUMP,
NO FRICTION BUMPS (6-50 POS)
1 = WITH CENTER BUMP,
NO FRICTION BUMPS (6-50 POS)
G
73037
OCT 27,2017
UPDATED PERFORMANCE
TABLE
REMOVED REV D,E,F
HISTORY
SBC SAN
30741
ECO
OCT 28,2010
INITIAL RELEASE
ISSUE DATE AND DESCRIPTION
DATE
MFG
LDS
DRFT
DATE
DATE
SF
CHKD
NEXT ASSEMBLY
REV
DRFT
A
STRAIN RELIEF
3448-158XX
POSITION COUNT
(SEE TABLE)
3 = WITH CENTRAL FRICTION BUMP,
NO CENTER BUMP (6-12 POS ONLY)
L. SCHMIDT
CHKD
JUL 23,2010
DATE
APPVL
S. FELDMAN
DIVISION
DIVISION CODE
3M Center
JUL 30,2010
DO
NOT
SCALE
DRAWING
SCALE
6
1
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
MILLIMETERS
0
2
.0
.5
.00
.13
.000
.005
ANGLES
TITLE
St. Paul,
MN
55144
C
3M COPYRIGHT 2017
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
METRIC [ENGLISH]
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
3M RIBBON CABLE
SOCKET 2 MM x 2 MM
PITCH 158 SERIES
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
125
ALL SURFACES
MARKED ONLY
78-5100-2358-9
DET.
LISTS
YES
NO
G
1
SHT 2 OF 3
8
7
6
5
4
3
2
1
DRAWING NUMBER
CENTER BUMP WITH
FRICTION BUMP OPTION
14-50 POSITIONS
CENTER FRICTION BUMP OPTION
6-12 POSITIONS ONLY
78-5100-2358-9
REVISION
G
8
7
6
5
4
3
2
1
3M
TM
Ribbon Cable Socket 2 mm X 2 mm Pitch 158 Series
D
D
POLARIZING KEY
3435-152200
C
C
B
78-5100-2358-9
G
B
DRAWING NUMBER
REVISION
G
73037
OCT 27,2017
UPDATED PERFORMANCE
TABLE
REMOVED REV D,E,F
HISTORY
SBC SAN

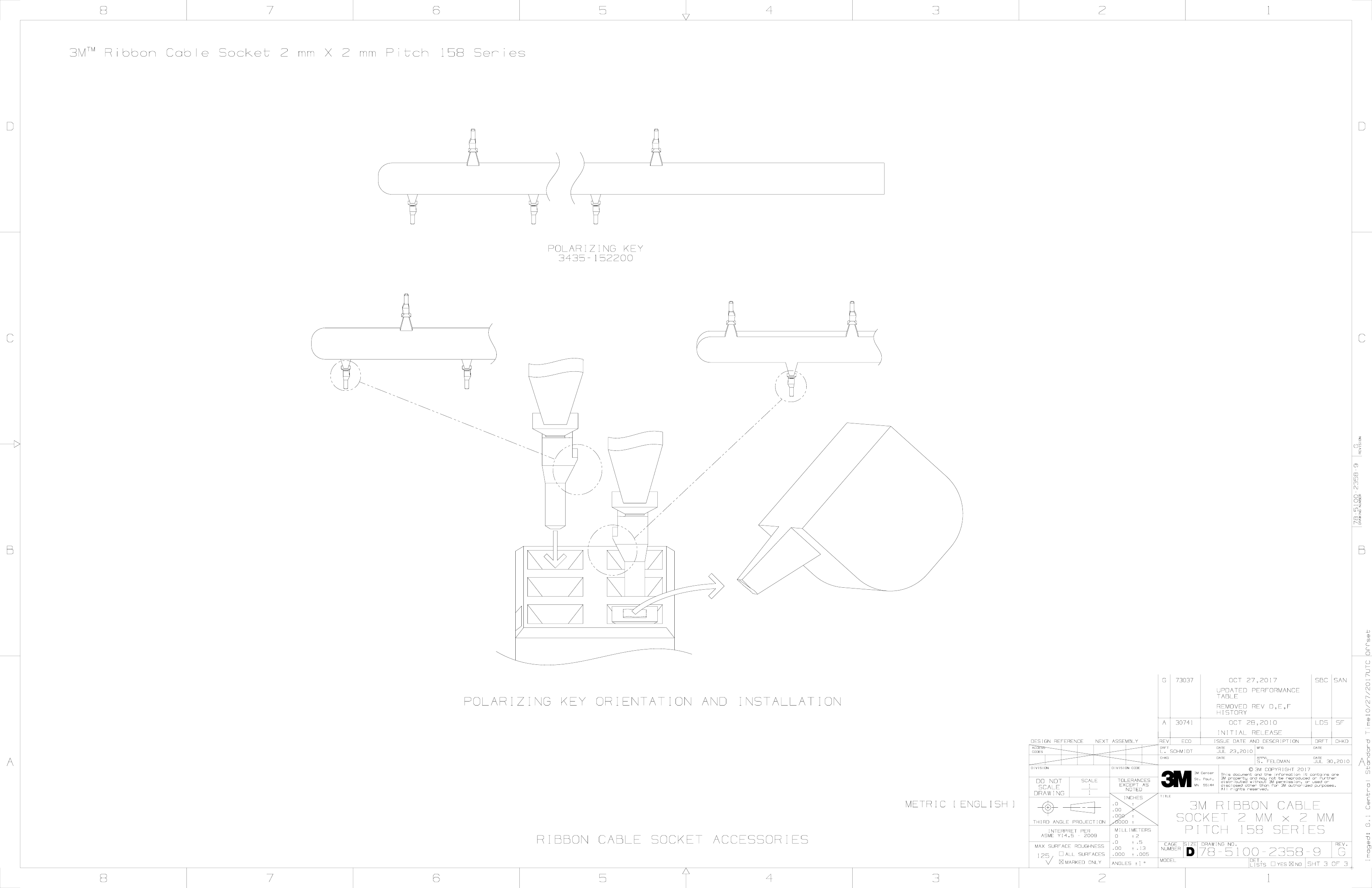

POLARIZING KEY ORIENTATION AND INSTALLATION
A
DESIGN REFERENCE
ACCESS
CODES
30741
ECO
OCT 28,2010
INITIAL RELEASE
ISSUE DATE AND DESCRIPTION
DATE
MFG
LDS
DRFT
DATE
DATE
SF
CHKD
NEXT ASSEMBLY
REV
DRFT
L. SCHMIDT
CHKD
JUL 23,2010
DATE
APPVL
A
S. FELDMAN
DIVISION
DIVISION CODE
3M Center
JUL 30,2010
DO
NOT
SCALE
DRAWING
SCALE
1
1
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
MILLIMETERS
0
2
.0
.5
.00
.13
.000
.005
ANGLES
TITLE
St. Paul,
MN
55144
C
3M COPYRIGHT 2017
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
METRIC [ENGLISH]
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
RIBBON CABLE SOCKET ACCESSORIES
8
7
6
5
4
3
3M RIBBON CABLE
SOCKET 2 MM x 2 MM
PITCH 158 SERIES
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
125
ALL SURFACES
MARKED ONLY
78-5100-2358-9
DET.
LISTS
YES
NO
G
1
SHT 3 OF 3
2
1
Imaged: G.1 Central Standard Time10/27/2017UTC Offset
8
7
6
5
4
3
2
1
3M
TM
Ribbon Cable Socket 2 mm X 2 mm Pitch 158 Series
D
D
Technical Information: The technical information, recommendations
and other statements contained in this document are based upon
tests or experience that 3M believes are reliable, but the
accuracy or completeness of such information is not guaranteed.
C
Product Use: Many factors beyond 3M's control and uniquely
within user's knowledge and control can affect the use and
performance of a 3M product in a particular application. Given
the variety of factors that can affect the use and performance
of a 3M product, user is solely responsible for evaluating the
3M product and determining whether it is fit for a particular
purpose and suitable for user's method of application.
Warranty, Limited Remedy, and Disclaimer: Unless an additional
warranty is specifically stated on the applicable 3M product
packaging or product literature, 3M warrants that each 3M
product meets the applicable 3M product specification at the
time 3M ships the product. 3M MAKES NO OTHER WARRANTIES OR
CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,
ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE OR ANY IMPLIED WARRANTY OR CONDITION
ARISING OUT OF A COURSE OF DEALING, CUSTOM OR USAGE OF TRADE.
If the 3M product does not conform to this warranty, then the
sole and exclusive remedy is, at 3M's option, replacement of
the 3M product or refund of the purchase price.
Limitation of Liability: Except where prohibited by law,
3M will not be liable for any loss or damage arising from the
3M product, whether direct, indirect, special, incidental or
consequential, regardless of the legal theory asserted,
including warranty, contract, negligence or strict liability.
C
B
78-5100-2358-9
G
B
DRAWING NUMBER
REVISION
G
73037
OCT 27,2017
UPDATED PERFORMANCE
TABLE
REMOVED REV D,E,F
HISTORY
SBC SAN
A
DESIGN REFERENCE
ACCESS
CODES
30741
ECO
OCT 28,2010
INITIAL RELEASE
ISSUE DATE AND DESCRIPTION
DATE
MFG
LDS
DRFT
DATE
DATE
SF
CHKD
NEXT ASSEMBLY
REV
DRFT
L. SCHMIDT
CHKD
JUL 23,2010
DATE
APPVL
A
S. FELDMAN
DIVISION
DIVISION CODE
3M Center
JUL 30,2010
DO
NOT
SCALE
DRAWING
SCALE
1
1
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
MILLIMETERS
0
2
.0
.5
.00
.13
.000
.005
ANGLES
TITLE
St. Paul,
MN
55144
C
3M COPYRIGHT 2017
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
3M ELECTRONICS MATERIALS SOLUTIONS DIVISION
INTERCONNECT SOLUTIONS
http://www.3m.com/Interconnect
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION CALL 800-225-5373
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
3M RIBBON CABLE
SOCKET 2 MM x 2 MM
PITCH 158 SERIES
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
125
ALL SURFACES
MARKED ONLY
78-5100-2358-9
DET.
LISTS
YES
NO
G
1
SHT 3 OF 3
8
7
6
5
4
3
2
1
Imaged: G.1 Central Standard Time10/27/2017UTC Offset
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
