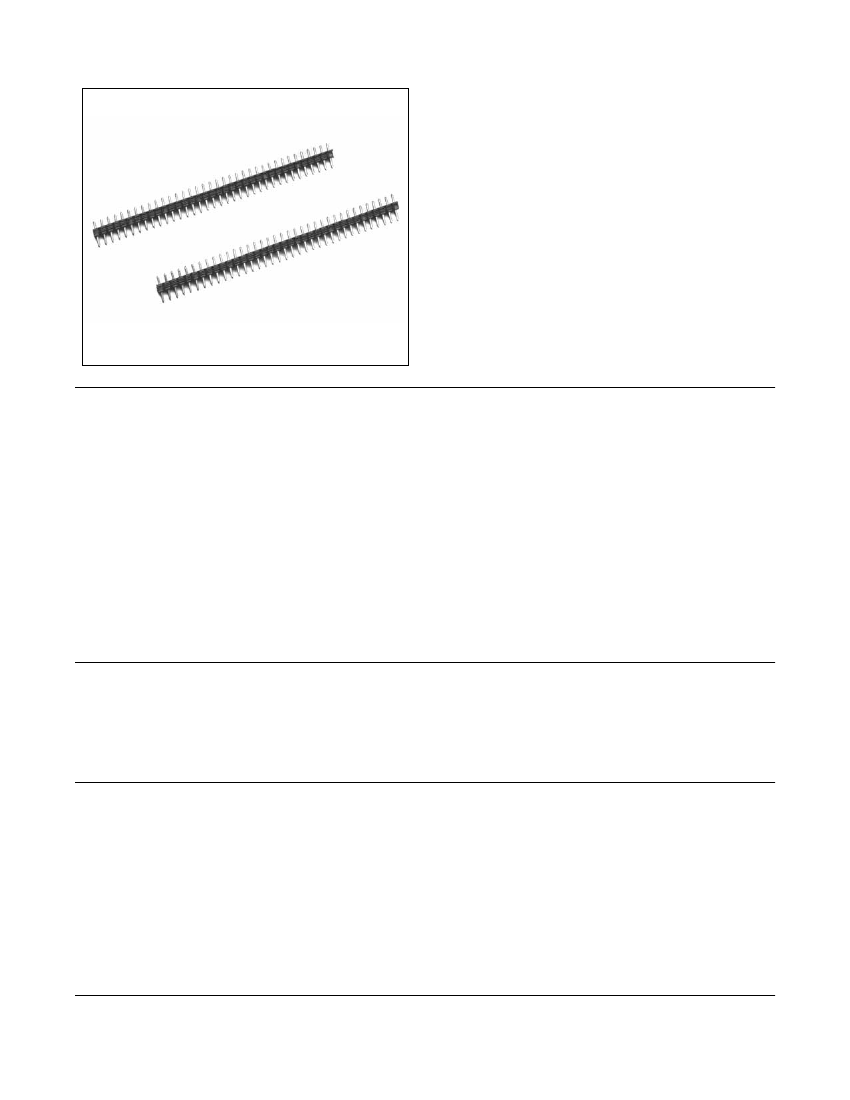

.100" and .100" x .100", .093" Mating Length, Straight, Solder Tails
• Low profile for close board stacking
• Solder stand-offs to facilitate production wave solder
and board cleaning
• Board pin retention feature available
929 Series
• See the Regulatory Information Appendix (RIA) in the
"RoHS Compliance" section of www.3Mconnectors.com
for compliance information.
Date Modified: February 3, 2012
TS-0816-B
Sheet 1 of 2
Physical
Insulation:
Flammability: UL 94V-0
Material: Glass Filled Polyester (PBT) or PCT
Color: Black
Contact:
Wiping Area & Solder Tails: See ordering information
Underplating: 50 μ [ 1.27 μm ] Nickel
Plating:
Material: Copper Alloy
Marking:
None
Electrical
Current Rating:
2.5 A
Insulation Resistance:
> 5 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
1500 V
RMS
at Sea Level
Environmental
Temperature Rating:
-40°C to +105°C
Process Rating:
PCT Insulator: 260°C per J-STD-020
Moisture Sensitivity Level:
1 (per J-STD-020C) for PCT insulator only
UL File No.: E68080
PBT Insulator: Maximum insulator temperature 191°C for solder wave process only
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

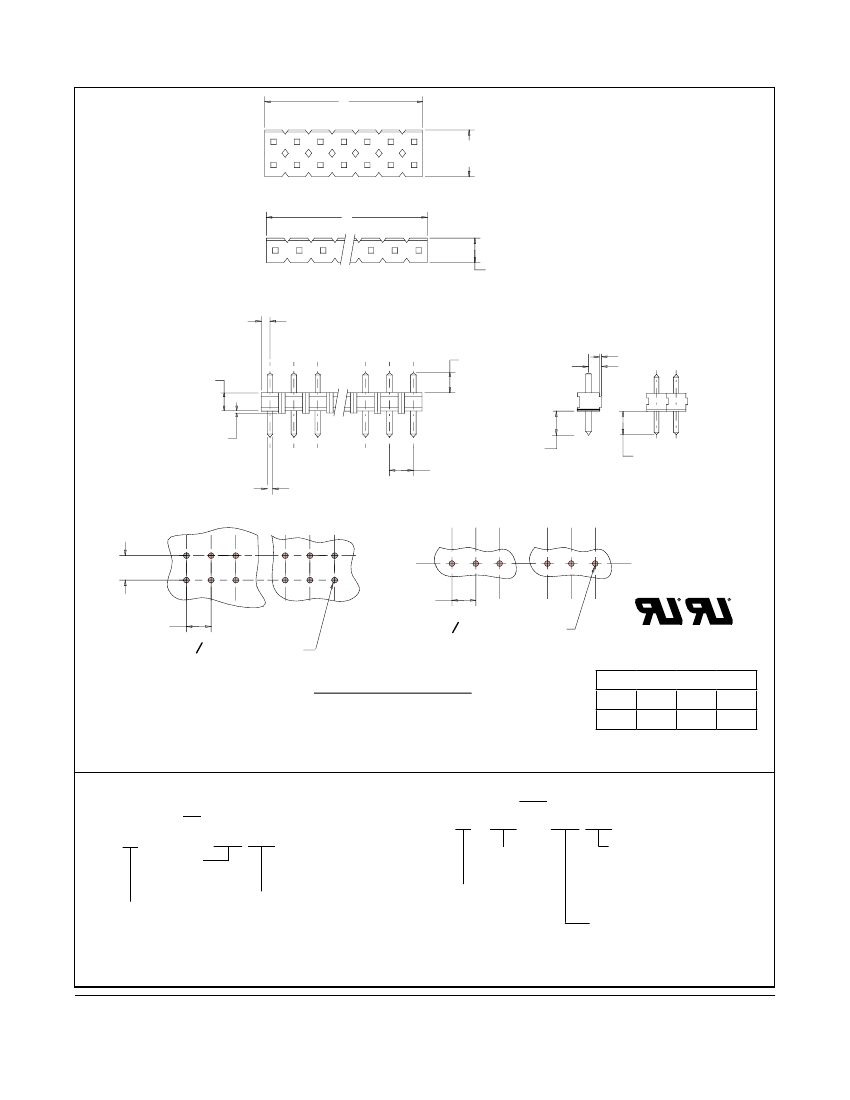

Pin Strip Header
.100" and .100" x .100", .093" Mating Length, Straight, Solder Tails
A
( See Note )
.215 Ref
[5.46]
929 Series
A
( See Note )
.115 [2.92]
2X .05 Max
[1.27]
.093 + .008
-.003
0.013
0.056
.100 [2.54]
.015 [0.38]
.110 +.015
-.010
.100 Typ [2.54]
.025
±
.001 Sq Typ
[0.64]
.110 +.015
-.010
.100
±
.003
[2.54]
.100
±
.003
[ 2.54 ]
.100
±
.003
[2.54]
Ο
Ο
.040
±
.003 After Plating
[1.02]
.040
±
.003 After Plating
[ 1.02 ]
C
mm
[Inch]
Tolerance Unless Noted
.0
mm
±.1
.00
±.01
.000
±.005
Recommended Hole Pattern
Note:
A = .10" [2.5] × pin quantity per row. Dimension A is a maximum when the pin strip is cut to length, not when the strip is
broken to length. 2 row parts not recommended to be broken to length.
[ ] Dimensions for Reference Only
Ordering Information
Tin
9X9800-01-XX-XX
Pin Quantity
(01-36)
Plating Suffix:
blank = 100 μ" [2.54 µm] tin-lead,
PBT insulator (RIA E3 & C2 apply)
RK = 200 μ" [5 μm] matte tin,
PCT insulator (RIA E1 & C1 apply)
9X98XX-01-XX-XX
05 = 1 row
15 = 2 row
Board Retention Feature
2 = None
R = Kinked Tails
Gold Plating Suffix
I = 10 μ" [0.25 μm] all over, PBT insulator
(RIA E1 & C1 apply)
EU = 10 μ" [0.25 µm] all over, PCT insulator
(RIA E1 & C1 apply)
Pin Quantity per row
(01-36)
([02-72] ÷ 2)
TS-0816-B
Sheet 2 of 2
Gold
Board Retention Feature
2 = None
R = Kinked Tails
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
