Plug - QP 1,5/ 1-M - 3051043
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug, Connection method: Quick connection, Number of positions: 1, Cross section: 0.25 mm² - 1.5 mm²,
AWG: 24 - 16, Width: 5.2 mm, Height: 40 mm, Color: gray

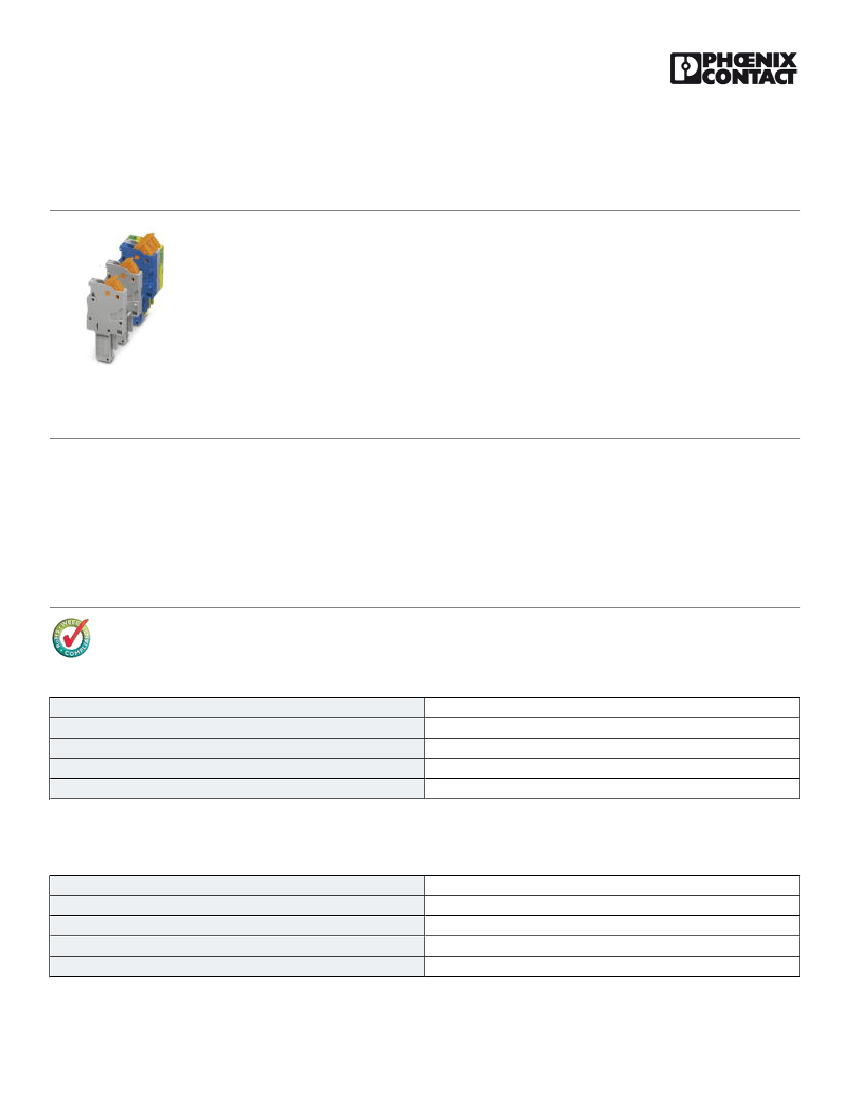

Illustration shows various versions
of the product (left, center and
right element) in different color
combinations
Product Description
Connector element center, left housing with engagement pin, right opened without cover
Product Features
■
■
■
■
The conductor is connected using the familiar IDC connection with no stripping, therefore saving time
The QT-COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
The QP 1,5/... fast connector plug is designed for the connection of solid and stranded conductors
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
4.0 g
85366990
Turkey
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
1
1
1.5 mm²
gray
PA
04/25/2016 Page 1 / 8
https://www.phoenixcontact.com/us/products/3051043
Plug - QP 1,5/ 1-M - 3051043
Technical data
General
Flammability rating according to UL 94
Area of application
V0
Railway industry
Machine building
Plant engineering
Maximum load current
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
17.5 A (with 1.5 mm² conductor cross section)
6 kV
3
III
I
17.5 A (with 1.5 mm² conductor cross section)
17.5 A
500 V
Dimensions
Width
Length
Height
Pitch
5.2 mm
20 mm
40 mm
24.00 mm
5.20 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Material wire insulation
Structure of individual litz in acc. with VDE 0295 / smallest wire diameter
Max. wire diameter incl. insulation
Quick connection
IEC 61984
0.25 mm²
1.5 mm²
24
16
0.25 mm²
1.5 mm²
24
16
PVC / PE
VDE 0295 Cl.1-5
3 mm
Standards and Regulations
Connection in acc. with standard
CSA
IEC 61984
04/25/2016 Page 2 / 8
https://www.phoenixcontact.com/us/products/3051043
Plug - QP 1,5/ 1-M - 3051043
Technical data
Standards and Regulations
Flammability rating according to UL 94
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27141120
27141120
27141151
27141151
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC002021
EC002021
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211802
39121402
39121402
39121402
39121402
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / GL / EAC / cULus Recognized
Ex Approvals
04/25/2016 Page 3 / 8
https://www.phoenixcontact.com/us/products/3051043
Plug - QP 1,5/ 1-M - 3051043
Approvals
Approvals submitted
Approval details
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
24-16
10 A
300 V
C
24-16
10 A
300 V
D
24-16
5A
600 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
24-16
10 A
600 V
B
24-16
10 A
300 V
C
24-16
10 A
300 V
D
24-16
5A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
24-12
10 A
600 V
B
24-12
10 A
300 V
C
24-12
10 A
300 V
D
24-12
5A
600 V
GL
EAC
cULus Recognized
Accessories
Accessories
04/25/2016 Page 4 / 8
https://www.phoenixcontact.com/us/products/3051043
Plug - QP 1,5/ 1-M - 3051043
Accessories

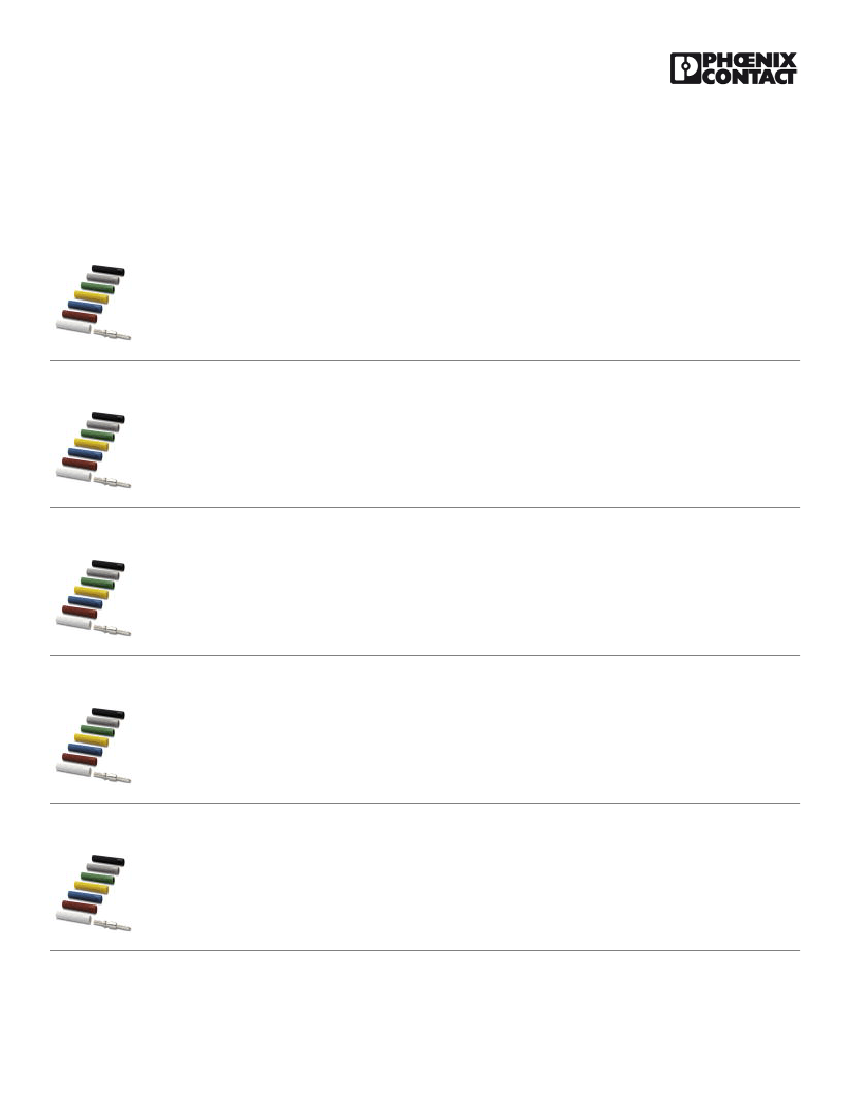

Insulating sleeve
Insulating sleeve - MPS-IH WH - 0201663
Insulating sleeve, Color: white
Insulating sleeve - MPS-IH RD - 0201676
Insulating sleeve, Color: red
Insulating sleeve - MPS-IH BU - 0201689
Insulating sleeve, Color: blue
Insulating sleeve - MPS-IH YE - 0201692
Insulating sleeve, Color: yellow
Insulating sleeve - MPS-IH GN - 0201702
Insulating sleeve, Color: green
