5962R9578301VCC datasheet, PDF

Datasheet> All Categories > logic> 5962R9578301VCC

5962R9578301VCC: DescriptionXOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14; Categorylogic; File Size215KB，6 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

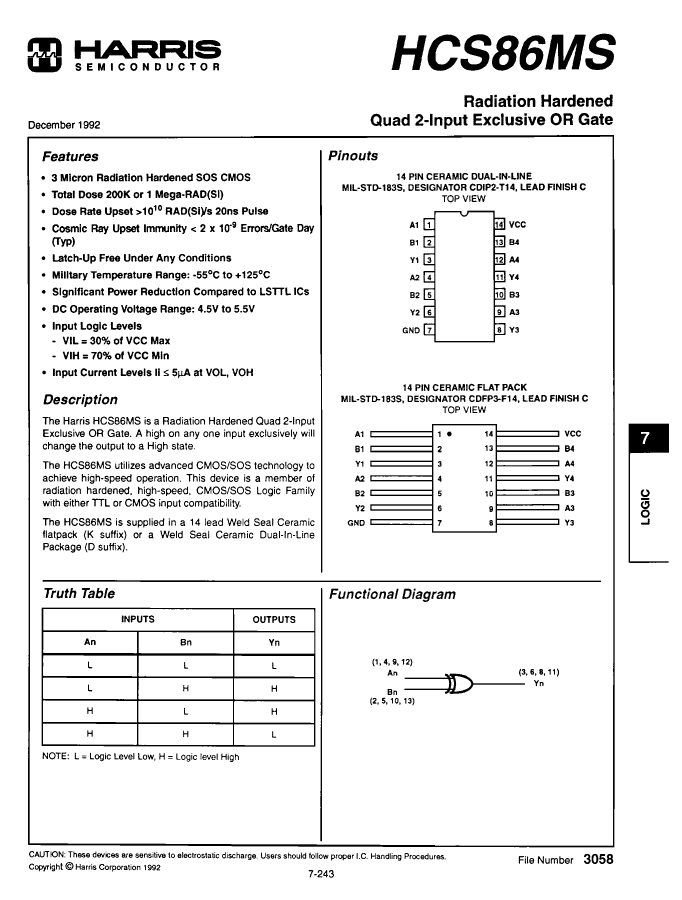

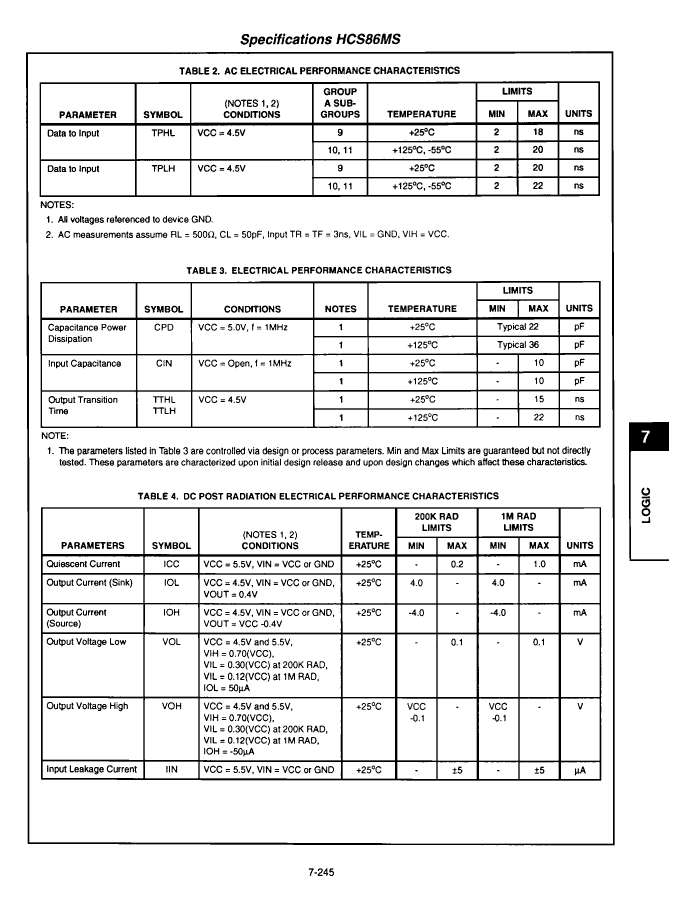

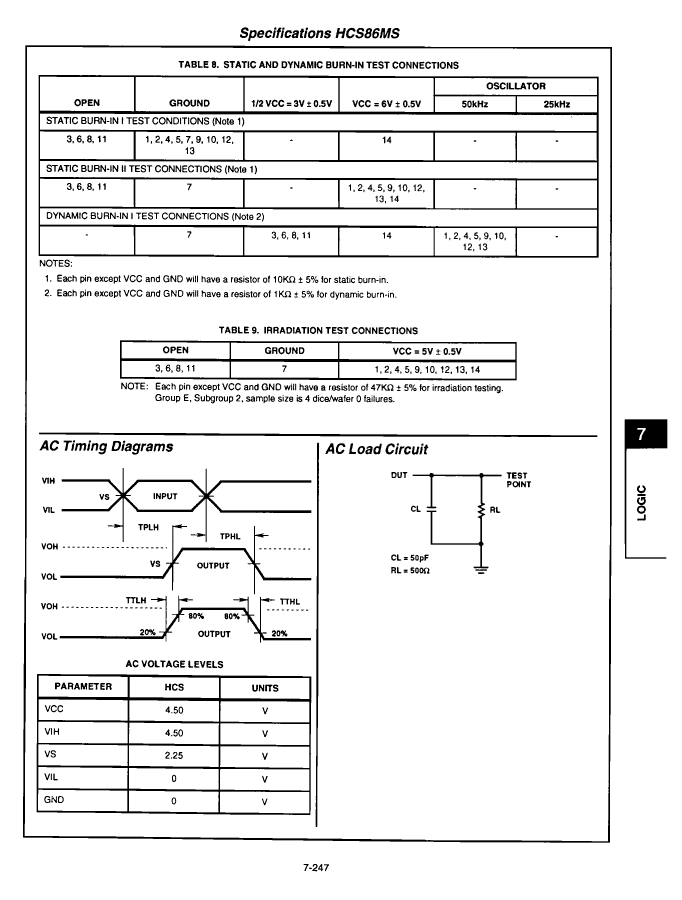

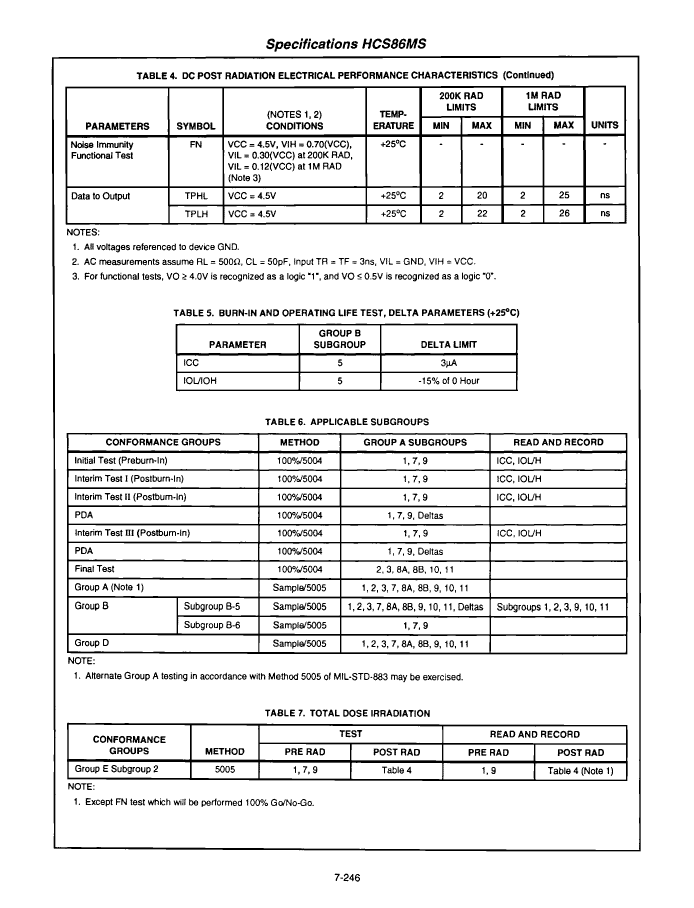

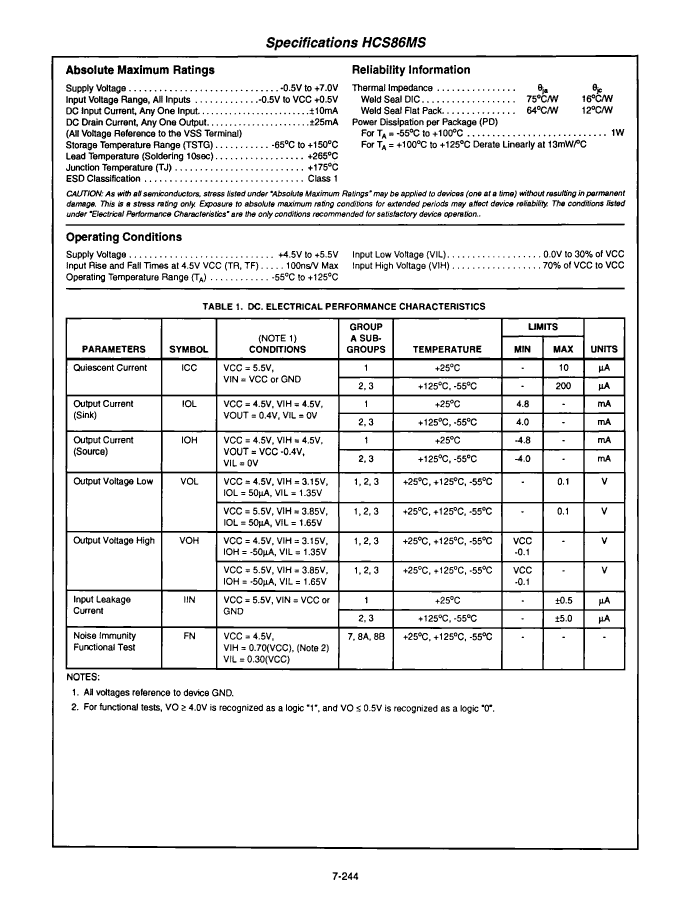

5962R9578301VCC Overview

XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14

5962R9578301VCC Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY
series	HC/UH
JESD-30 code	R-CDIP-T14
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	XOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
total dose	100k Rad(Si) V
Base Number Matches	1

Preview

Download Datasheet

View All

5962R9578301VCC Related Products

	5962R9578301VCC	5962R9578301VXX	5962R9578301VXC	5962R9578301VCX	HCS86DMSH	HCS86KMSH
Description	XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14	XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14	XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14	XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14	XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14	XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-CDIP-T14	R-CDFP-F14	R-CDFP-F14	R-CDIP-T14	R-CDIP-T14	R-CDFP-F14
Logic integrated circuit type	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE
Number of functions	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK	IN-LINE	IN-LINE	FLATPACK
propagation delay (tpd)	20 ns	20 ns	20 ns	20 ns	25 ns	25 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	1M Rad(Si) V	1M Rad(Si) V
JESD-609 code	e4	-	e4	-	e0	e0
Load capacitance (CL)	50 pF	-	50 pF	-	50 pF	50 pF
Terminal surface	GOLD	-	GOLD	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	-	-
