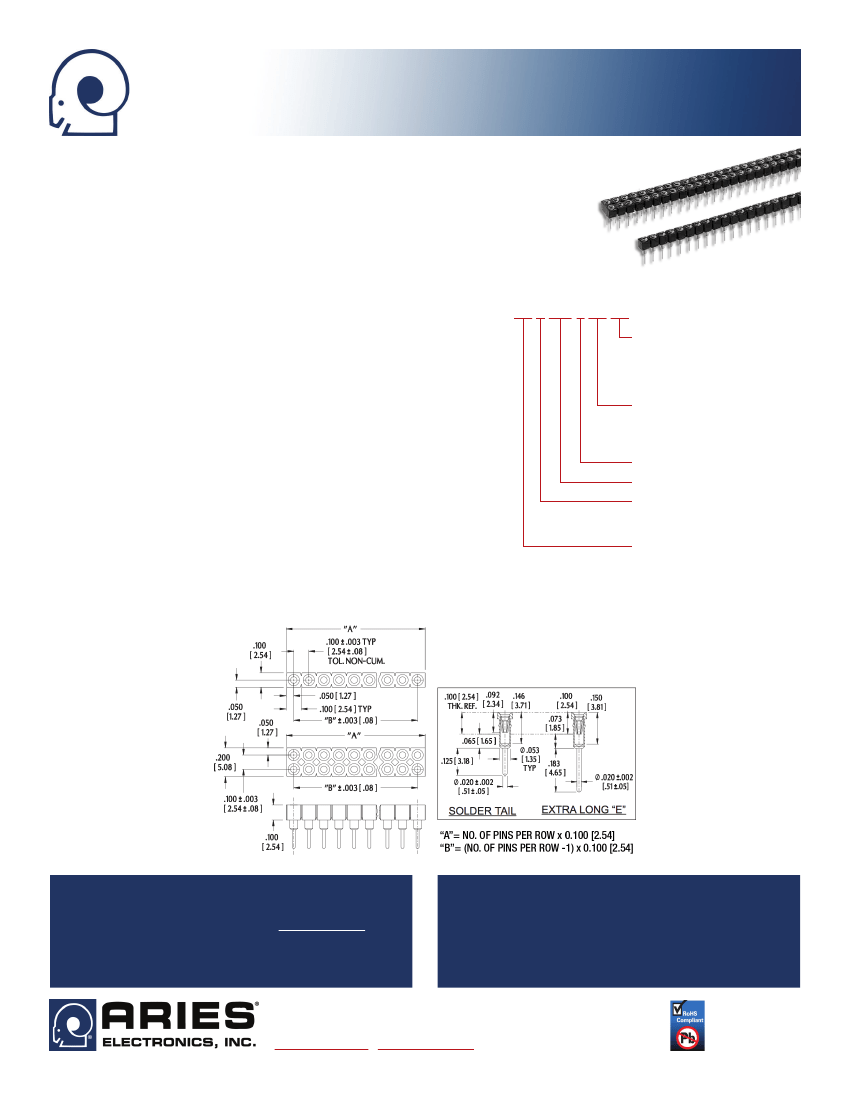

Single and Dual Row Solder Pin Tails
Collet Socket – Series 518
FEATURES
• Collet Sockets available in Single or Dual Rows
• Cuttable to the number of pins desired to fit the application
• Side-to-side and end-to-end stackable
GENERAL SPECIFICATIONS
•
BODY MATERIAL:
Black UL 94V-0 Glass-filled 4/6 Nylon
•
PIN BODY:
Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
•
PIN BODY PLATING:
10µ [0.25µ] min. Au per MIL-G-45204
–OR–
200µ [5.08µ]
ORDERING INFORMATION
min. 93/7 Sn/Pb per ASTM B545 or 200µ [5.08µ] min. Sn per ASTM B545 Type 1
XX X 518-1 XX XX
over 100µ [2.54µ] min. Ni per SAE AMS-QQ-N-290B
•
4-FINGER COLLET CONTACT:
BeCu per UNS C17200 ASTM B194-08
Additional Options
H = Heavy Au on Collet Shell
•
CONTACT PLATING:
200µ [5.08µ] min. 93/7 Sn/Pb per ASTM B545
–OR–
200µ
T = Sn Collet, Sn Shell
[5.08µ] min. Sn per ASTM B545 Type 1 or 10µ [0.25µ] Au per MIL-G-45204 over
TL = Sn/Pb Collet & Shell
50µ [1.27µ] min. [1.27µ] Ni per SAE AMS-QQ-N-290 Heavy 30µ [0.76µ]
E = Extra Long Tail (0.183")
•
CONTACT CURRENT RATING:
3 amps
Plating
•
INSERTION FORCE:
180g/pin, based on 0.018 [0.46] dia. test lead
0 = Au Collet, RoHS Shell
•
WITHDRAWAL FORCE:
90g/pin, based on 0.018 [0.46] dia. test lead
0TL = Au Collet, Sn/Pb Shell
•
NORMAL FORCE:
140g/pin, based on 0.018 [0.46] dia. test lead
1 = Au Collet & Shell
•
OPERATING TEMPERATURE:
-67°F to 221°F [-55°C to 105°C] for Sn plating;
Solder Pin Tail
-67°F to 257°F [-55°C to 125°C] for Au plating
Series
•
INSERTION FORCE:
180g/pin, based on 0.018 [0.46] dia. test lead
No. of Rows
•
WITHDRAWAL FORCE:
90g/pin, based on 0.018 [0.46] dia. test lead
0 = Single
•
NORMAL FORCE:
140g/pin, based on 0.018 [0.46] dia. test lead
1 = Dual
•
ACCEPTS LEADS:
0.015-0.025 [0.38-0.64] dia.
No. of Pins per Socket
•
LEAD LENGTHS:
from 0.100 [2.54] min.
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE:
0.030 ±0.002 [0.76 ±0.05] dia.
1 Row – 1 to 40 Pins
2 Rows – 2 to 66 Pins
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR SOCKET STRIPS WITH WIRE WRAP PINS, SEE DATA SHEETS 12021
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12020
Rev. 7.5
1 of 1
