502350-4500: DescriptionFFC & FPC Connectors 0.3 FPC Hsg Assy 45Ckt EmbsTp Pkg; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

502350-4500 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	502350-4500	-	-	View	Buy Now

502350-4500 Overview

FFC & FPC Connectors 0.3 FPC Hsg Assy 45Ckt EmbsTp Pkg

502350-4500 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	FITTING NAIL
body width	0.043 inch
body length	0.606 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Durability	10 Cycles
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.012 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	3.3528 mm
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.6096 mm
Termination type	SURFACE MOUNT
Total number of contacts	45

Preview

Download Datasheet

View All

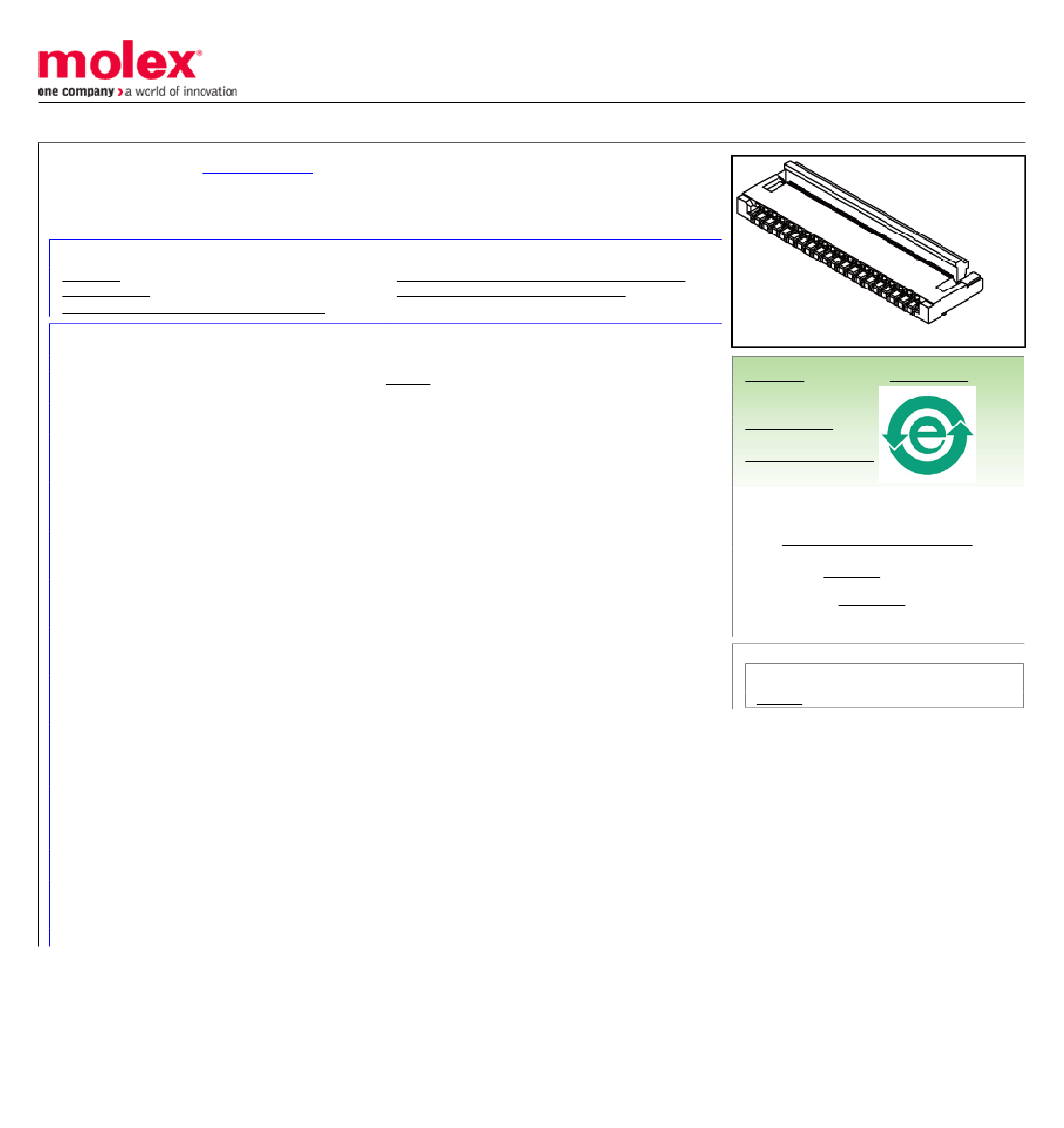

This document was generated on 04/04/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

502350-4500

Active

0.30mm Pitch Easy-On™ BackFlip™ FPC Connector, Right Angle, SMT,Dual Contact

Style, 1.10mm Mated Height, 45 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-502350-001 (PDF)

Packaging Specification SPK-502350-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Product Name

FFC/FPC Connectors

502350

BackFlip™, Easy-On™

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

45

Black, White

Dual

10

90° Angle

1.10mm

Copper Alloy, Phosphor Bronze

Gold

1

Right Angle

No

Yes

Embossed Tape on Reel

0.30mm

Yes

No

-40°C to +85°C

Surface Mount

FPC only

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

502350Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.3A

50V AC (RMS)/DC

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

SPK-502350-001

PS-502350-001, RPS-502350-001, RPS-502350-007,

RPS-502350-008

SD-502350-001, SD-502350-002

This document was generated on 04/04/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
