DP1R020JQ1

Description
HDMI, Displayport & DVI Connectors DisplayPort RCPT Board Side SMT
CategoryThe connector
File Size913KB,12 Pages
ManufacturerJAE Electronics
Environmental Compliance
Download Datasheet Parametric View All

DP1R020JQ1 Online Shopping

Suppliers Part Number Price MOQ In stock
DP1R020JQ1 - - View Buy Now

DP1R020JQ1 Overview

HDMI, Displayport & DVI Connectors DisplayPort RCPT Board Side SMT

DP1R020JQ1 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerJAE Electronics
Product CategoryHDMI, Displayport & DVI Connectors
RoHSDetails
ProductDisplayport
GenderFemale
Number of Positions20 Position
Termination StyleSMD
Contact PlatingGold
Contact MaterialCopper Alloy
PackagingTray
Contact Rating0.5 A
Housing MaterialCopper Alloy
Voltage Rating500 V
Factory Pack Quantity1
COMPONENTS PRODUCT INFORMATION
NEW
DisplayPort
TM
Standard Digital Interface Connector
CONNECTOR
MB-0192-1
October 2008
DP1 Series
RoHS Compliant

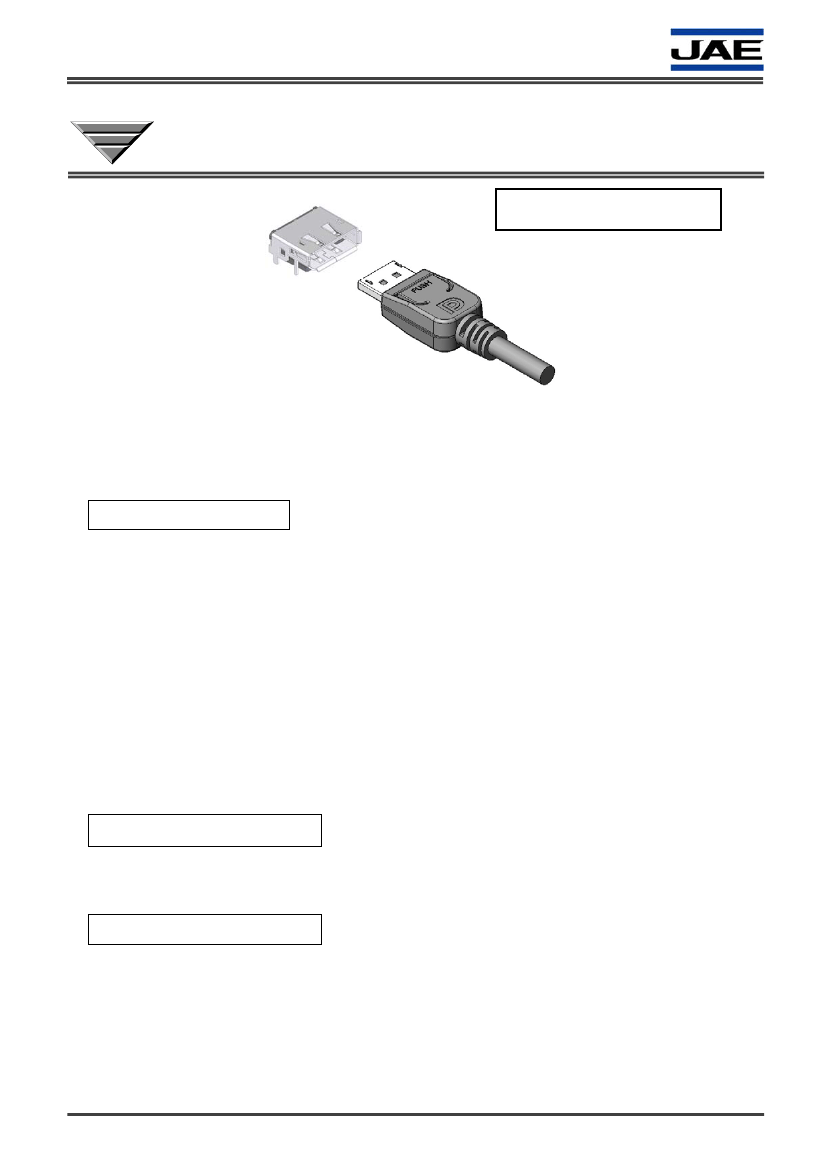

The DP1 Series is a high speed differential transmission board-to-cable connector
compatible with the Display Port v1.1a, the VESA standardized next-generation digital
display interface.
*VESA (Video Electronics Standard Association)
Features

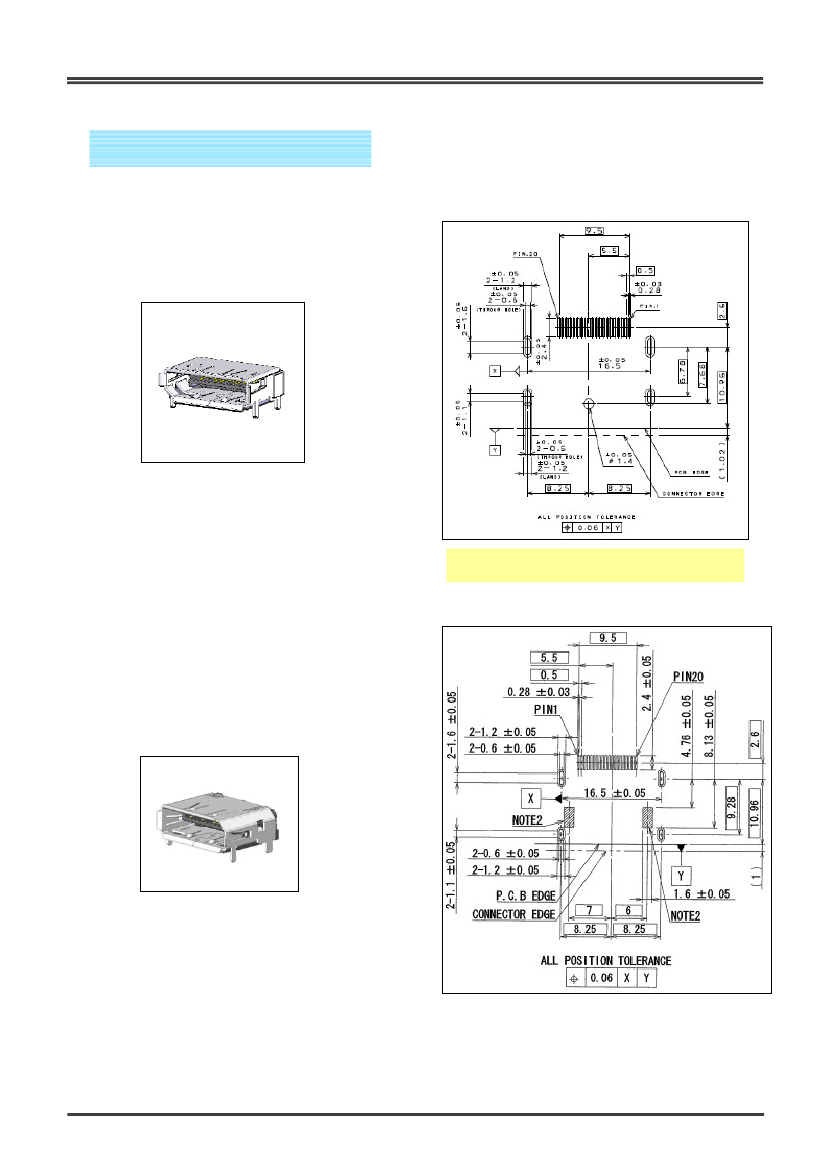

Receptacle is available in reverse SMT type for reverse mounting, angle SMT with
flange, standard angle SMT(mating height 6.5mm, thickest area 6.65mm), and angle
through-hole types (soldered terminal area 1.9mm, applicable board thickness t1.6).
Reinforced-type receptacle available with enhanced metal shell structure, robust
against rough handling of cable during mating and unmating (DP1RD20JQ4).
Excellent transmission with three-row footprint for through-hole type receptacle.
Plugs are available as part of cables in 12.2mm height with latch (mechanical lock) for
increased retention, and 10mm height slim type without latch.
Cable assembly passed compliance test certification by VESA. (2m, 32 AWG)
Nickel and tin plating available for receptacle shell. With 0.3um min. gold plating for
contact.
Applicable Markets
Desktop PC, notebook PC, LCD monitor, graphic board, LCD projector,
LCD television, PDP, etc.
General Specifications
No. of Contacts: 20 pos.
Contact Resistance:
Contact area --- 50m ohm max.
Shell area --- 30m ohm max.
Dielectric Withstanding Voltage :
AC 500V rms per minute
Rated Current: 0.5A per contact
Insulation Resistance: 100M ohm min.
(after test)
Mating Cycles: 10,000 times
Operating Temperature:
-20 Deg. C to +85 Deg. C
1/12
JAE PMK Div. Proprietary. Copyright © 2008,Japan Aviation Electronics Industry, Ltd.
