PP10 Pin & Socket
Powerpole Connector
®
Powerpole
®
connectors provide cost-effective
reliability, design flexibility and safety for your
products' manufacture, installation and
maintenance.
The housings are modular. They provide 600
Volts continuous, AC or DC operation. Wire
sizes range from #14 to #16 AWG (2.1 to 1.3
mm²). Contacts are available in reeled and
loose piece designs to support all production
needs from engineering prototype, low
volume and high volumes products.
FEATURES
• Make-first/Break-last connection
Provides safety and system integrity
• Green housing
Visual indication of ground terminal
• Molded-in dovetails
Can be assembled with standard
Powerpole PP15, Powerpole PP30 and
Powerpole PP45 connectors to make
pre-grounded multipole configurations
PRODUCT SPECIFICATIONS
Connector Model
UL Current Rating (Amperes)*
UL Voltage Ratings (Volts)**
Contact Barrel Wire Size (AWG)
(mm²)
Maximum Wire Insulation Diameter (inches)
(mm)
AVG Contact Resistance*
(micro-ohms)
Insulation Withstanding
Test Voltage (Volts AC/DC)
Contact Retention Force (lbf)
PP10 P & S
10*
600*
#14 to #16
2.1 to 1.3
0.137
3.48
2200
Connector Model
No load (Contact/Disconnect Cycles)
Avg. Connection/Disconnect (lbf)
Operating Temperature Range °C***
°F
Flammability Rating of Housing Material
PP10 P & S
To 250
5
-20° to 105°
-4° to 221°
UL94 V-0
2200
* UL Rated for 65°C largest wire or cable size
** Both AC & DC Voltage
*** Contact factory for higher temperature rated connectors
25
ORDERING INFORMATION
Housing & 10 amp Contact
Part
Number
1200G1
1201G1
Housing
Color
Socket, Green
Pin, Green
Wire
AWG
sq. mm
14/16
2.1/1.3
14/16
2.1/1.3
Housings Only
Part
Number
1204G1
1205G1
Description
Green housing, socket
Green housing, pin
Tooling
Part
Number
1309G1
260G3
280G2
250G1
250G2
Description
Hand tool, #14 to #16
Applicator only (110V & 220V)
Applicator and press (110V, 60Hz)
Press only (110V, 60Hz)
Press only (220V, 50Hz)
10 amp Contacts
Part
Number
1202G1
264G1
1203G1
263G1
Description
Socket, Individual
Socket, Reel
Pin, Individual
Pin, Reel
Wire
AWG
sq. mm
14/16
2.1/1.3
14/16
2.1/1.3
14/16
2.1/1.3
14/16
2.1/1.3
HEADQUARTERS:
Anderson Power Products®, 13 Pratts Junction Road, Sterling, MA 01564-2305 USA T:978-422-3600 F:978-422-3700
EUROPE:
Anderson Power Products® Ltd., Unit 3, Europa Court, Europa Boulevard, Westbrook, Warrington, Cheshire, WA5 7TN United Kingdom T: +44 (0) 1925 428390 F: +44 (0) 1925 428399
ASIA / PACIFIC:
IDEAL Anderson Asia Pacific Ltd., Unit 922-928 Topsail Plaza, 11 On Sum Street, Shatin N.T., Hong Kong T:+(852) 2636 0836 F:+(852) 2635 9036
CHINA:
IDEAL Anderson Technologies (Shenzhen) Ltd., Block A8 Tantou Western Industrial Park, Songgang Baoan District, Shenzhen, PR. China 518105 T: +(86) 755 2768 2118 F: +(86) 755 2768 2218
TAIWAN:
IDEAL Anderson Asia Pacific Ltd., Taiwan Branch, 4F.-2, No.116, Dadun 20th St., Situn District, Taichung City 407, Taiwan (R.O.C.) T: +(886) 4 2310 6451 F:+(886) 4 2310 6460
www.andersonpower.com
PP10 Pin & Socket Connector

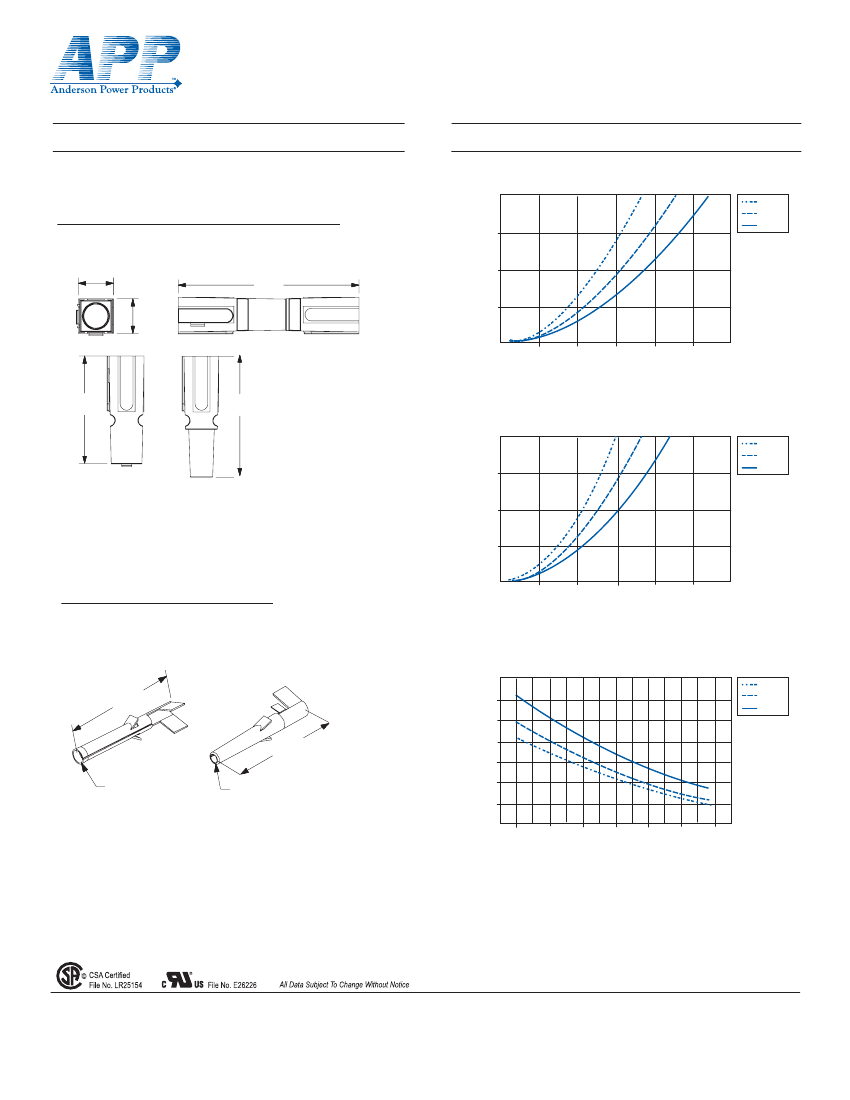

DIMENSIONS
Housings
-A-
-B-
Series
mm in.
mm in.
PP10 Pin
7.9 0.31 7.9 0.31
PP10 Socket 7.9 0.31 7.9 0.31
A
-C-
mm in.
24.5 0.97
27.5 1.081
D
B
0
0
4
8
12
16
Amperes Applied
20
24
-D-
mm in.
41.3 1.63
41.3 1.63
40
30
20
10
TEMPERATURE RISE CHARTS
PP10 Singlepole
Temperature Rise at Constant Current
16 AWG
14 AWG
12 AWG
C
C
PP10 Multipole
Temperature Rise at Constant Current
40
30
20
10
0
in.
0.093 - OD
0.089 - ID
0
4
8
12
16
Amperes Applied
20
24
16 AWG
14 AWG
12 AWG
Contacts
-A-
Series
PP10 Pin
PP10 Socket
mm in.
22.4 0.88
22.4 0.88
mm
2.4
2.3
-B-
Temperature (°C)
Temperature (°C)
Socket Contact
A
Pin Contact
40
35
30
PP10 Multipole
Pulse Current Capability
16 AWG
14 AWG
12 AWG
Amperes
A
25
20
15
10
5
0.5
1.0
2.0
4.0
8.0
16.0
Duration of Current (seconds)
32.0
B
B
DS-PP10PS REV04
